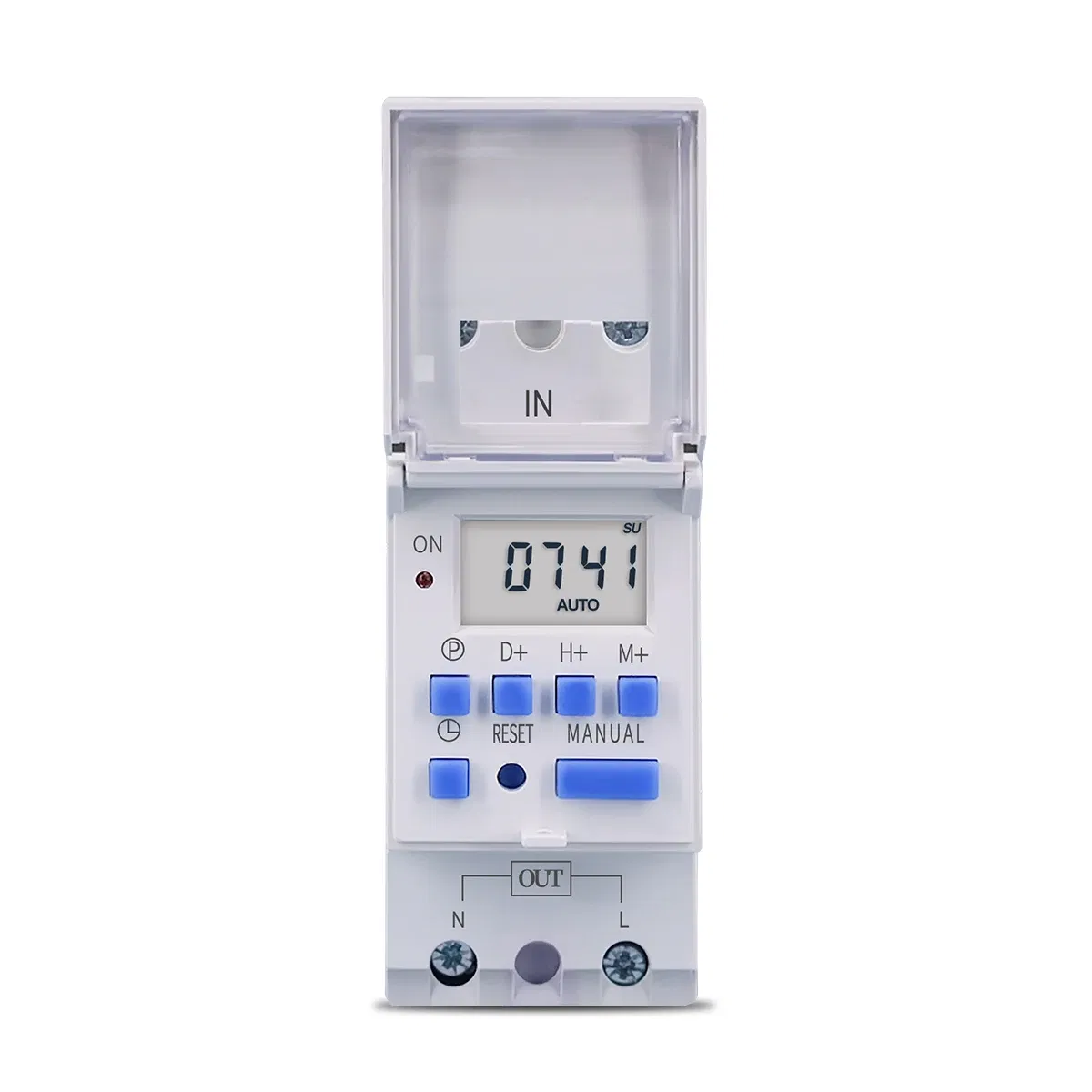

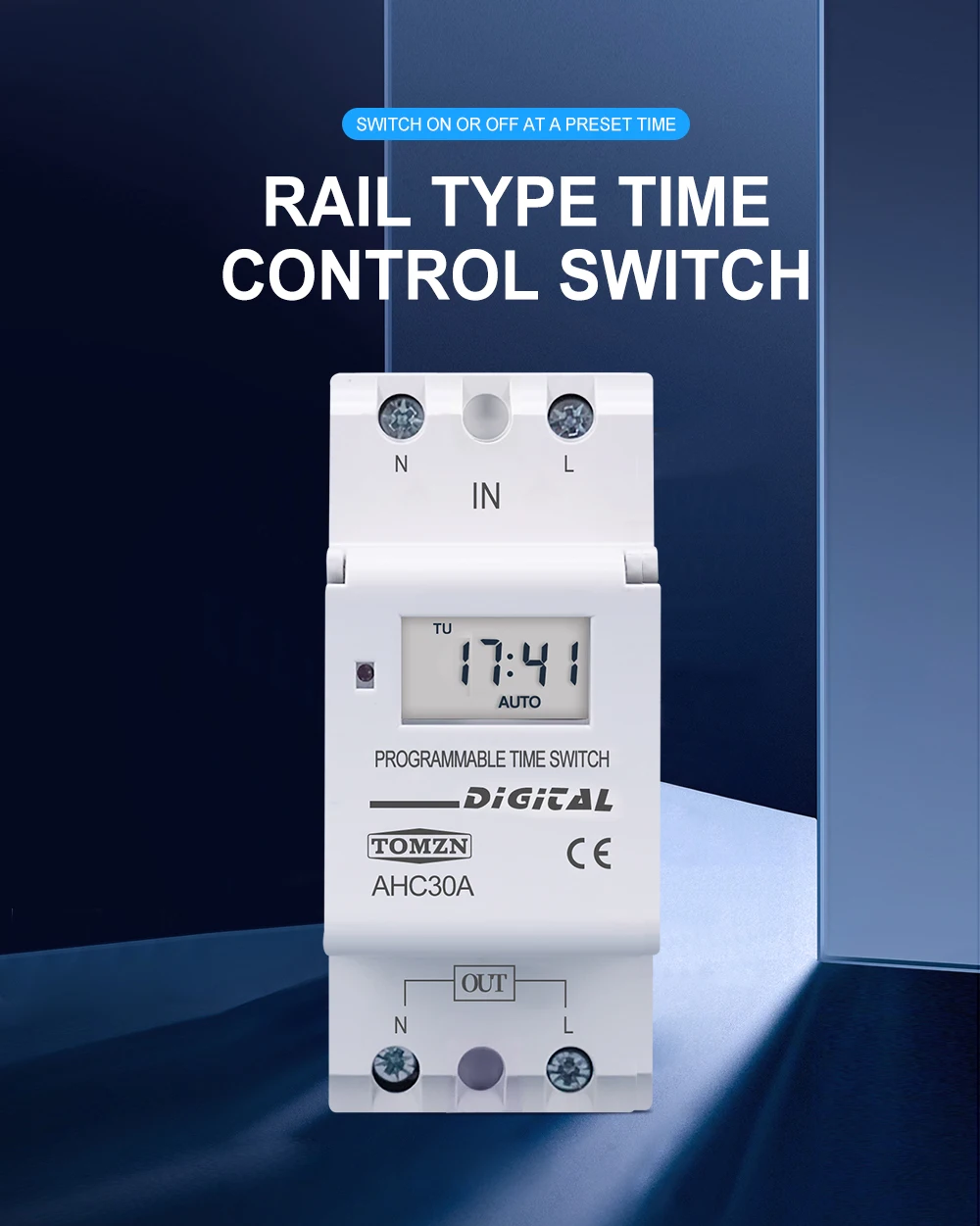

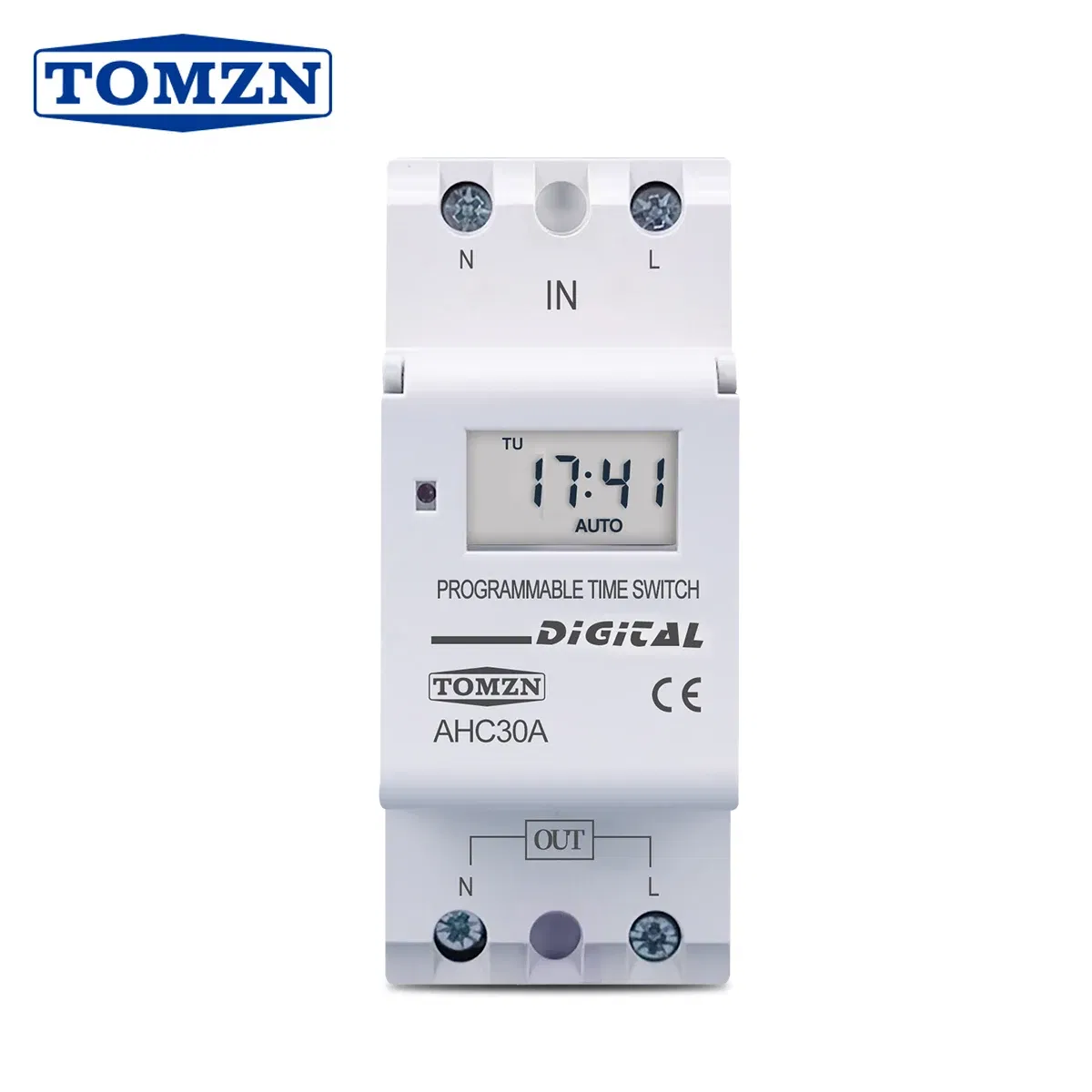

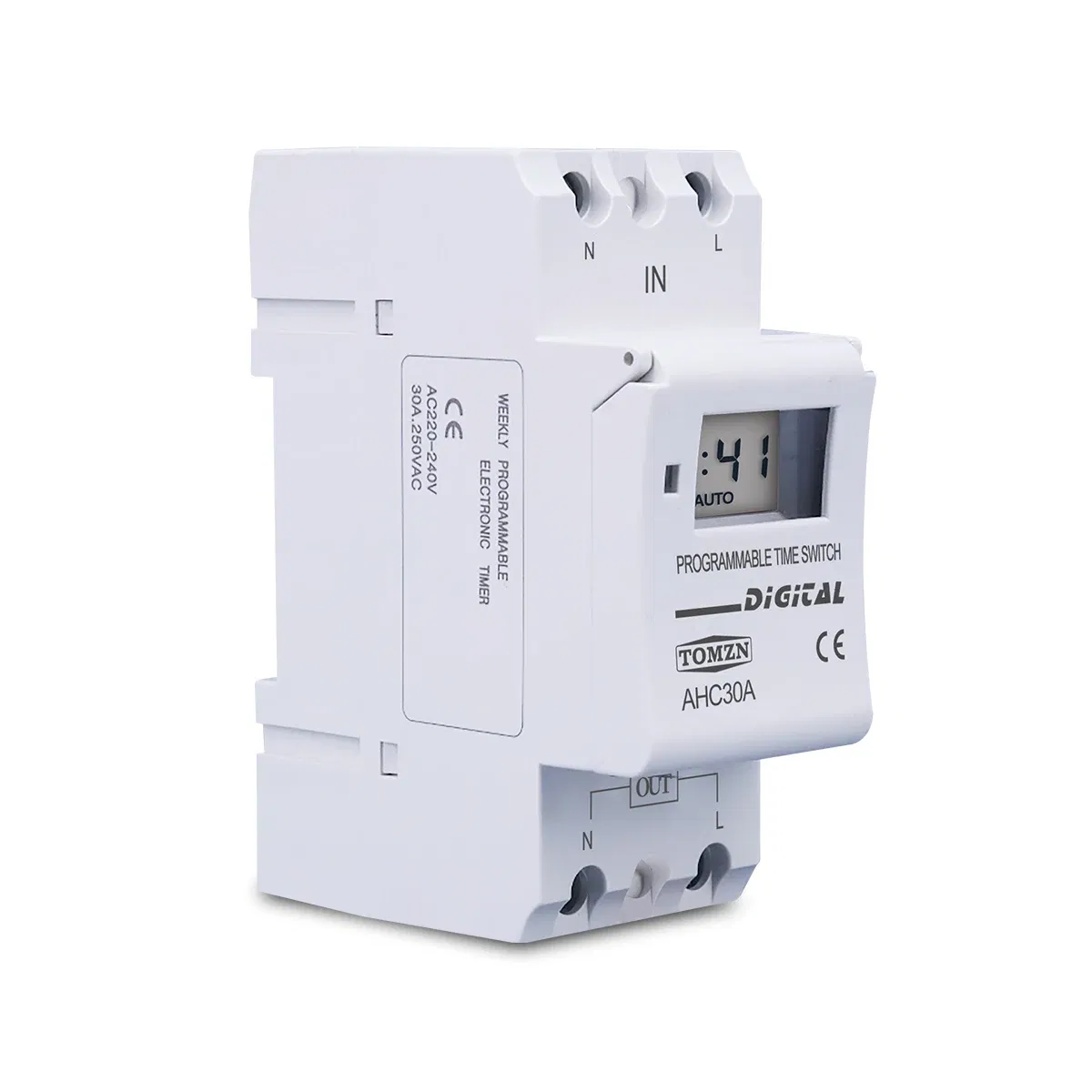

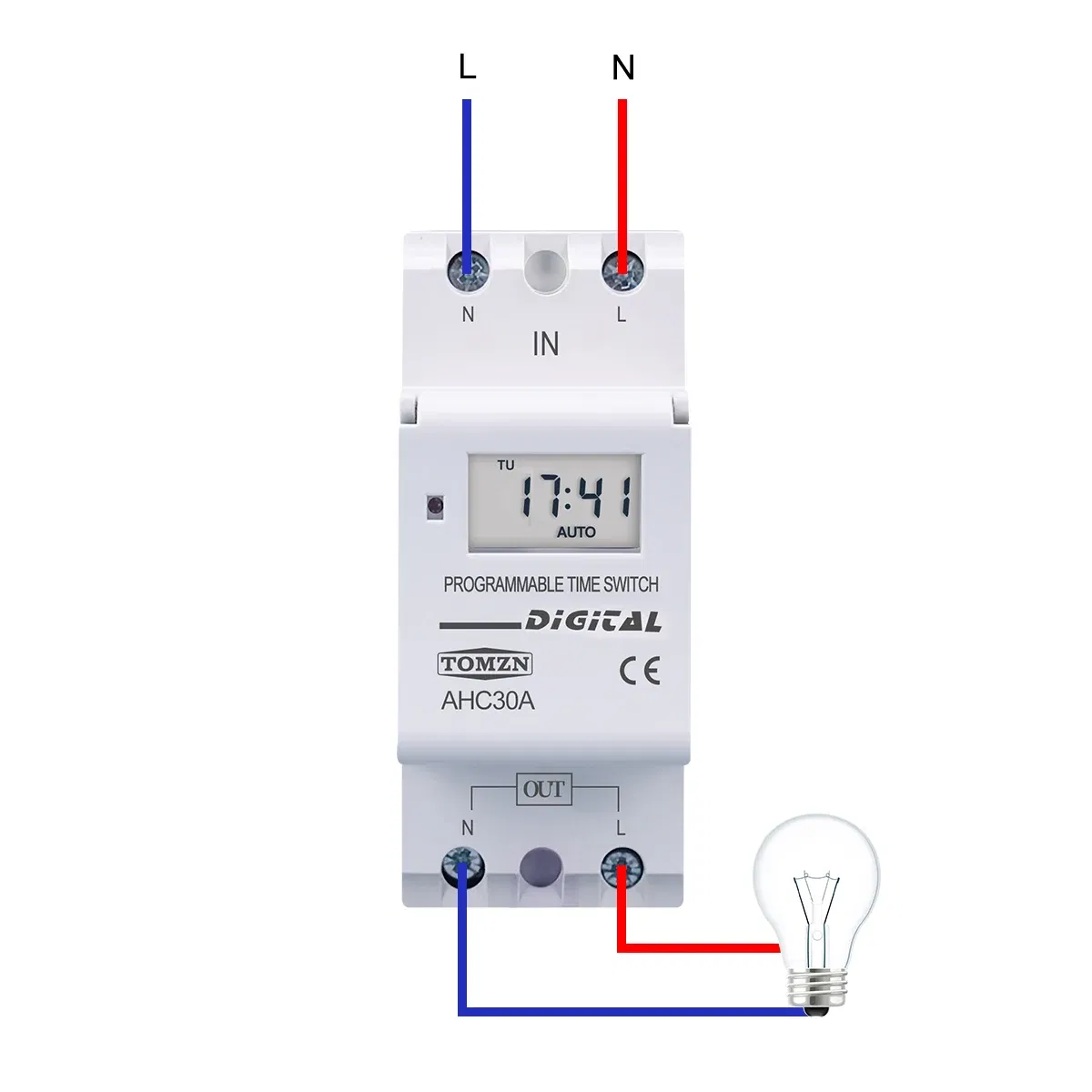

Size: L, Current Range: Current Range 1 - New type Din Rail 2 wire Weekly 7 Days Programmable Digital TIME SWITCH Relay Timer Control AC 220V 230V 12V 24V 48V 16A
Origin: Mainland China
Usage: General Purpose
Theory: Time Relay
Voltage: 12V,24V48V,110V,220V
Model Number: AHC15A, AHC30A
Protect Feature: Sealed
is_customized: Yes
Contact Load: High Power
Certification: CE
Choice: yes
semi_Choice: yes
Product attributes
AC DC means the products can work with AC and DC current
AC means the products only work with AC current.

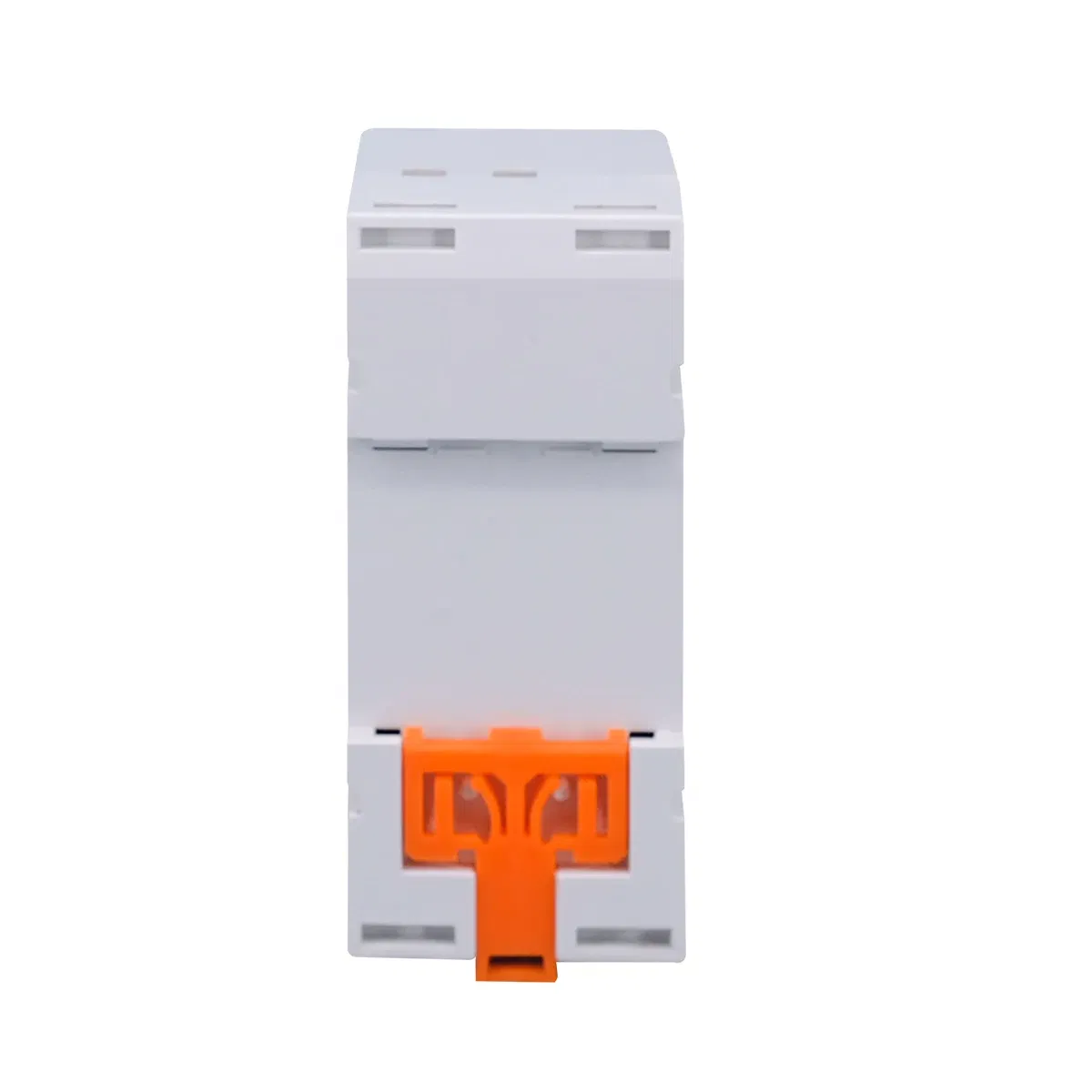

Panel mounted
Advanced pre-setting one week before

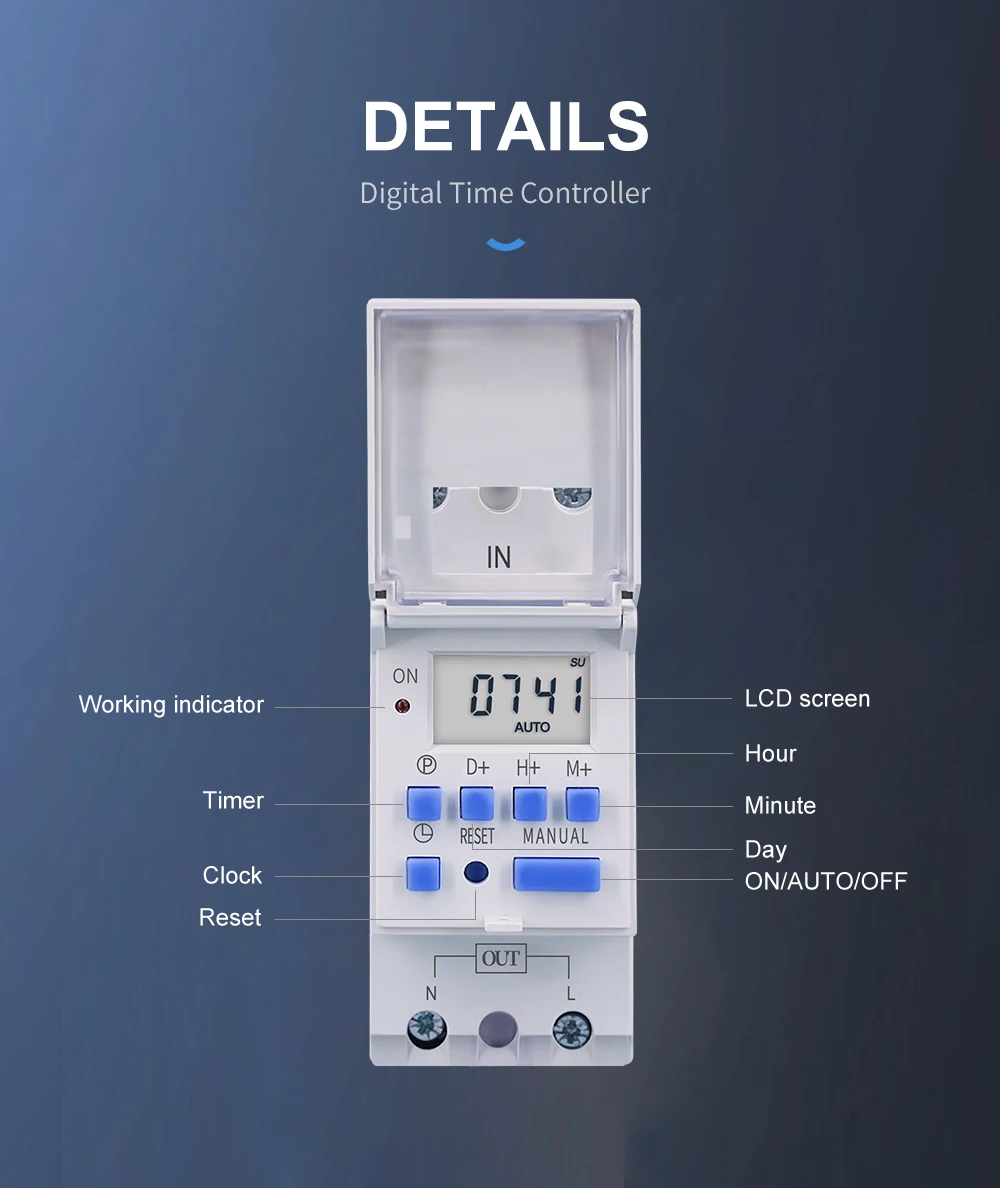

Digital electronic timer switch with daily and weekly programs

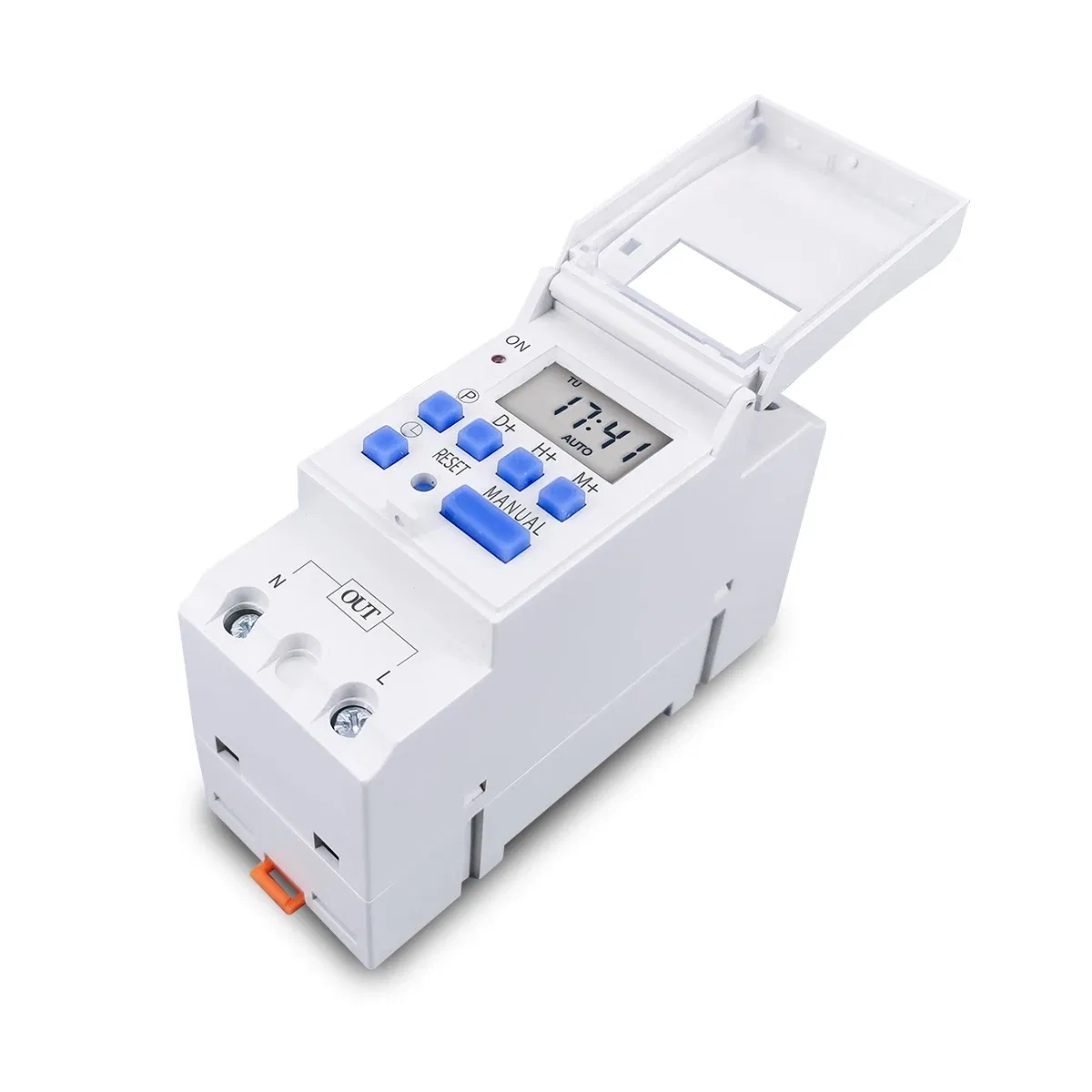

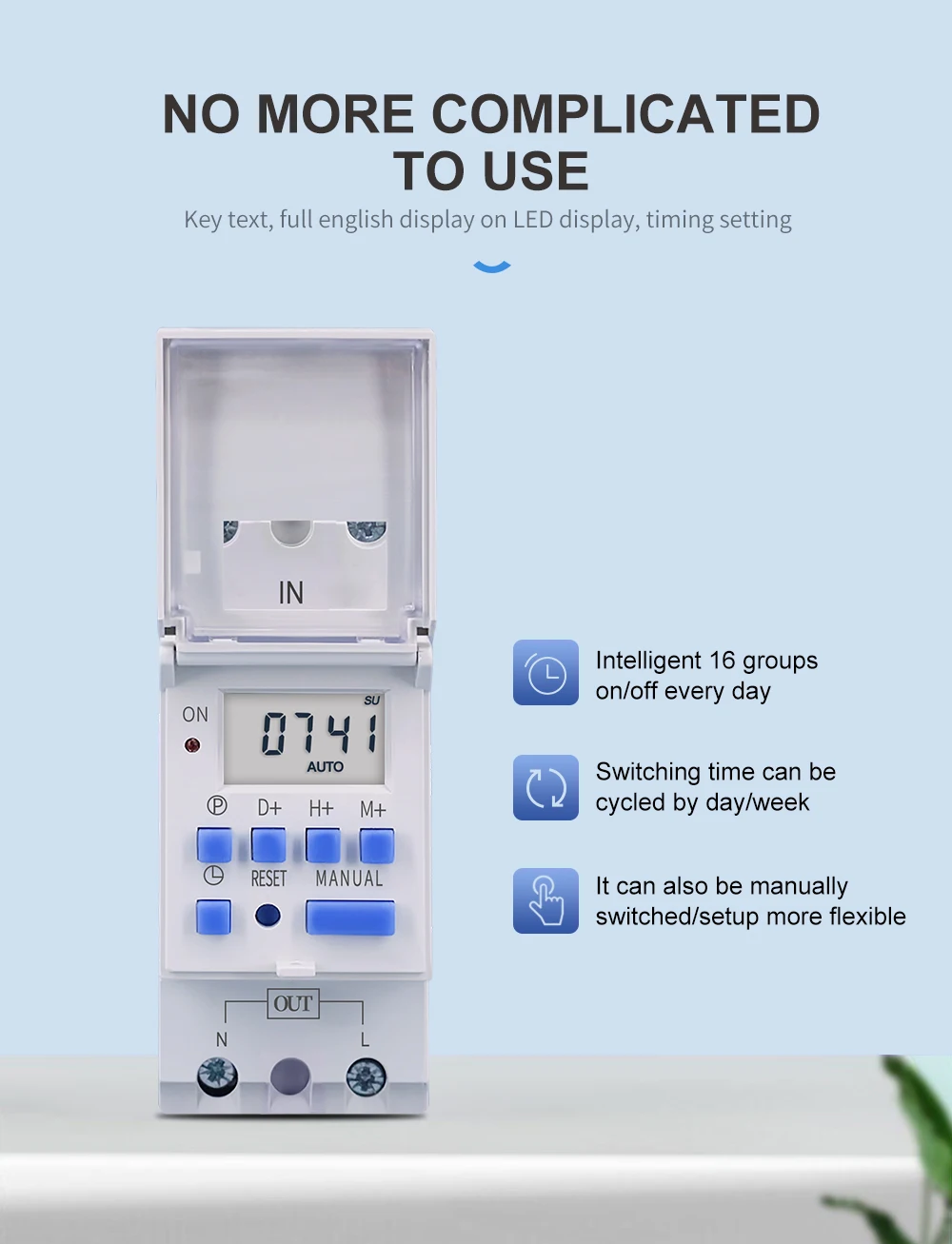

Repeat programs with 16 on/off setting and manual override

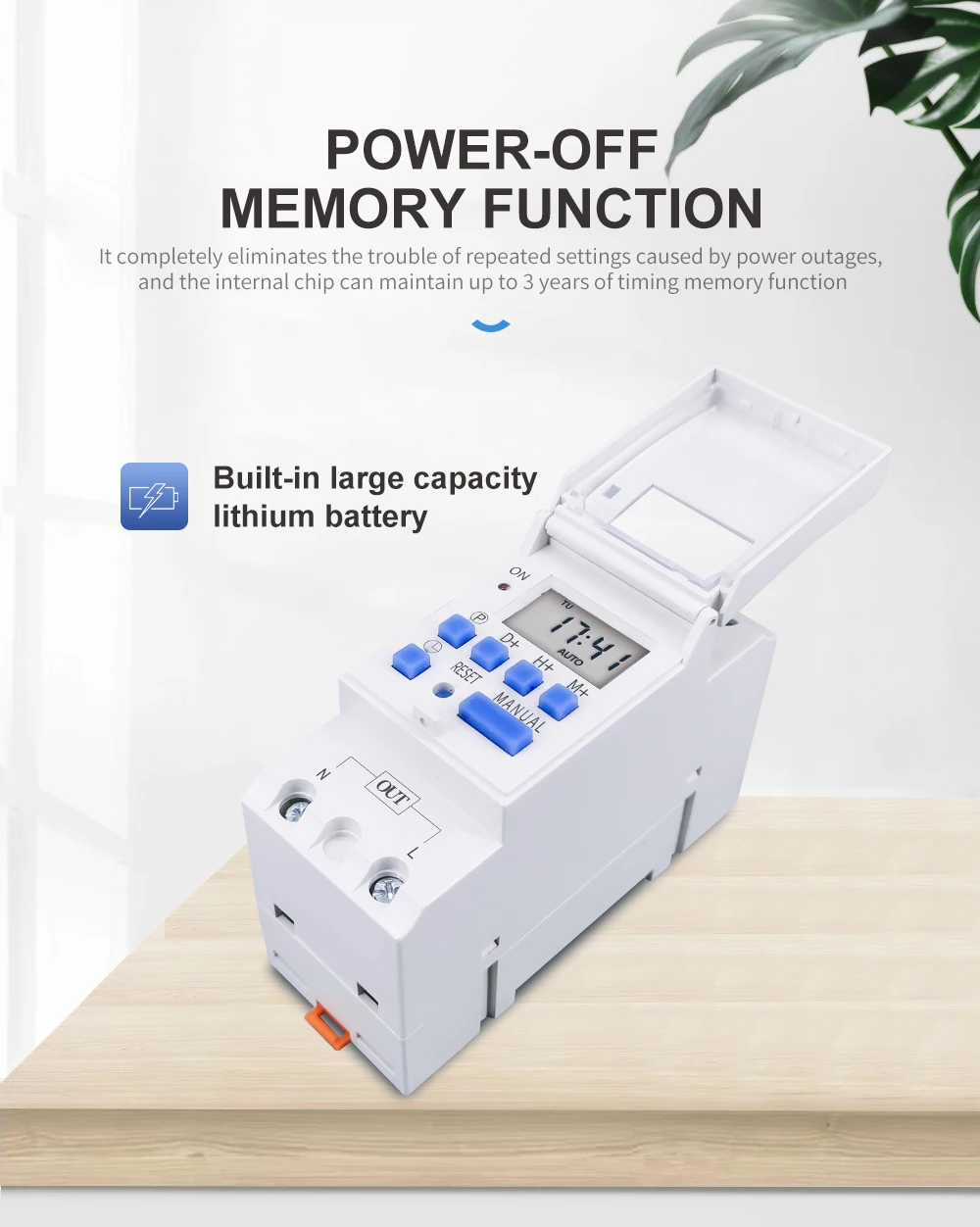

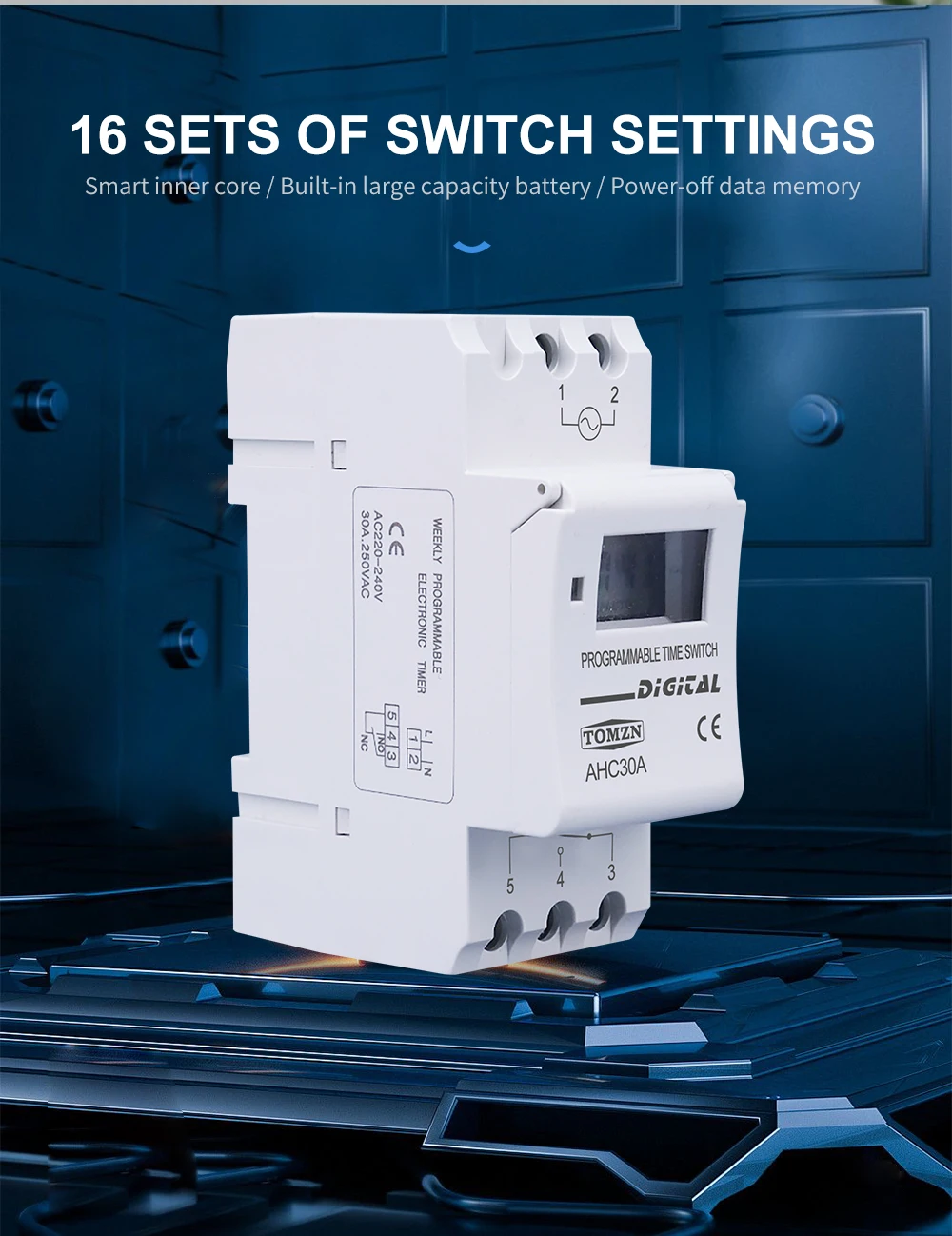

NiH battery power reserve when electric supply cut off

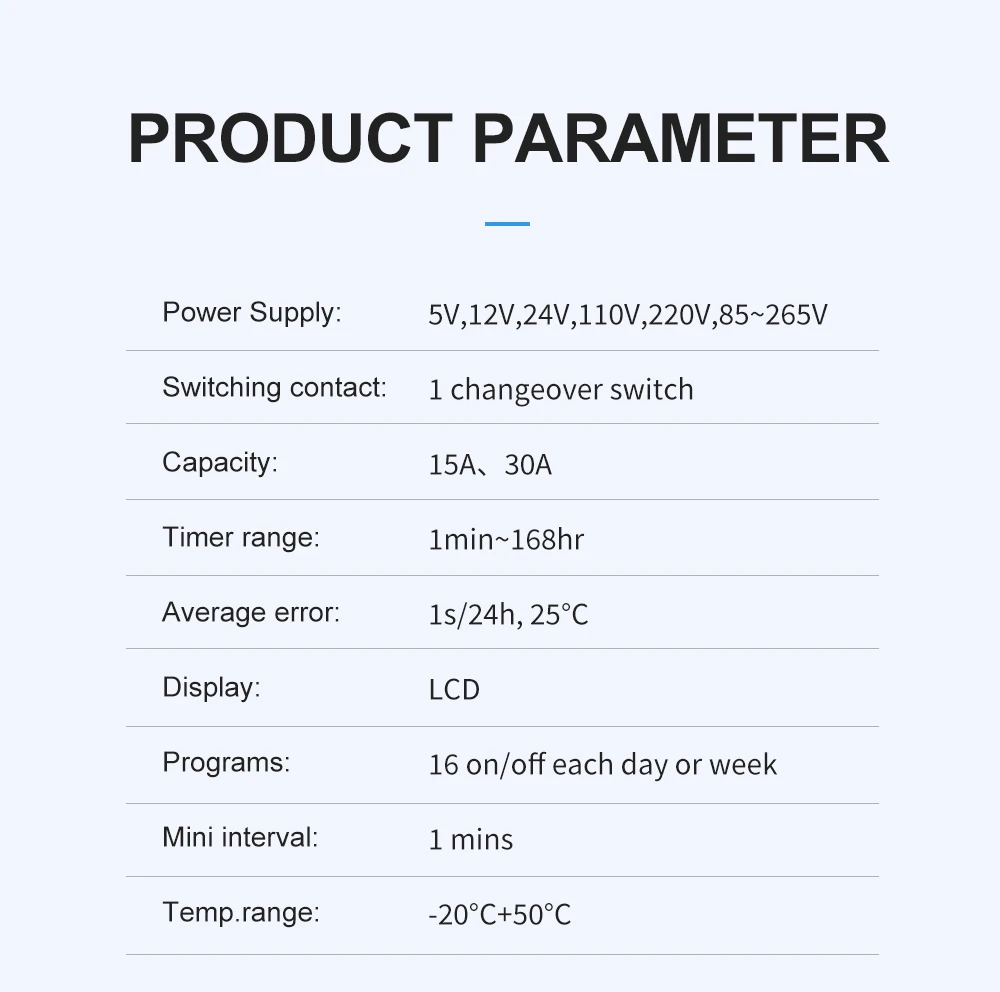

Technical Data:
Model | AHC15A, AHC30A |
Temp.range: -20°C+50°C | Power Supply: accorind your order |
Power consumption 4.5 VA (MAX) | Display: LCD |
Switching contact: 1 changeover switch | Programs:16 on/off each day or week |

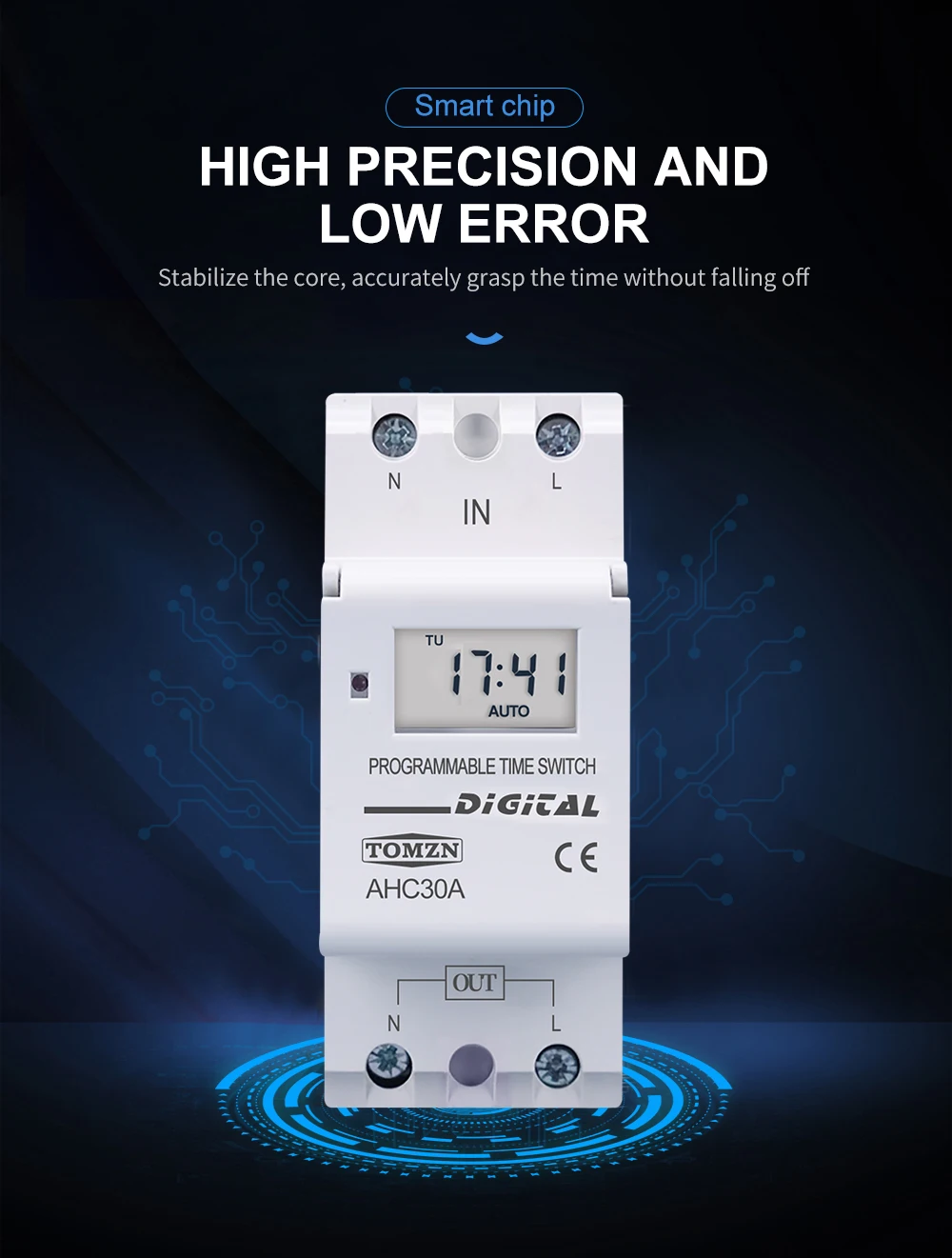

Hysteresis 2 sec/day (25°C) | Mini interval: 1min |
Capacity: 16(8) 250V AC | Black-out: 60 days |
Timer range: 1min~168hr | Recharge battery: 1.2V 40Ma |
Average error: 1s/24h, 25°C | Weight: 0.15kg |
Package Content:
1 x Digital Timer
1 x English Manual
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
