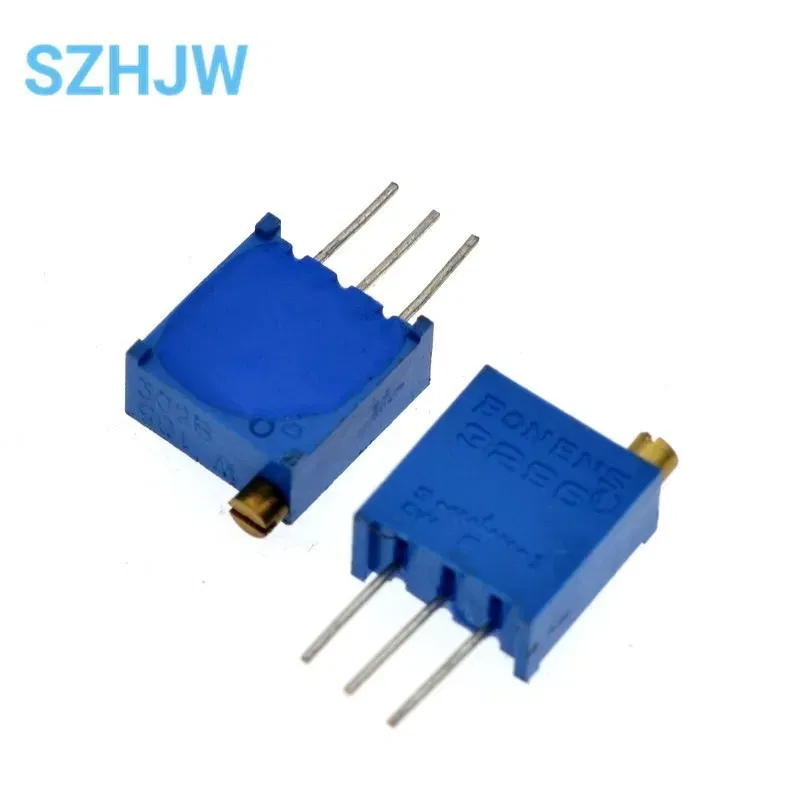

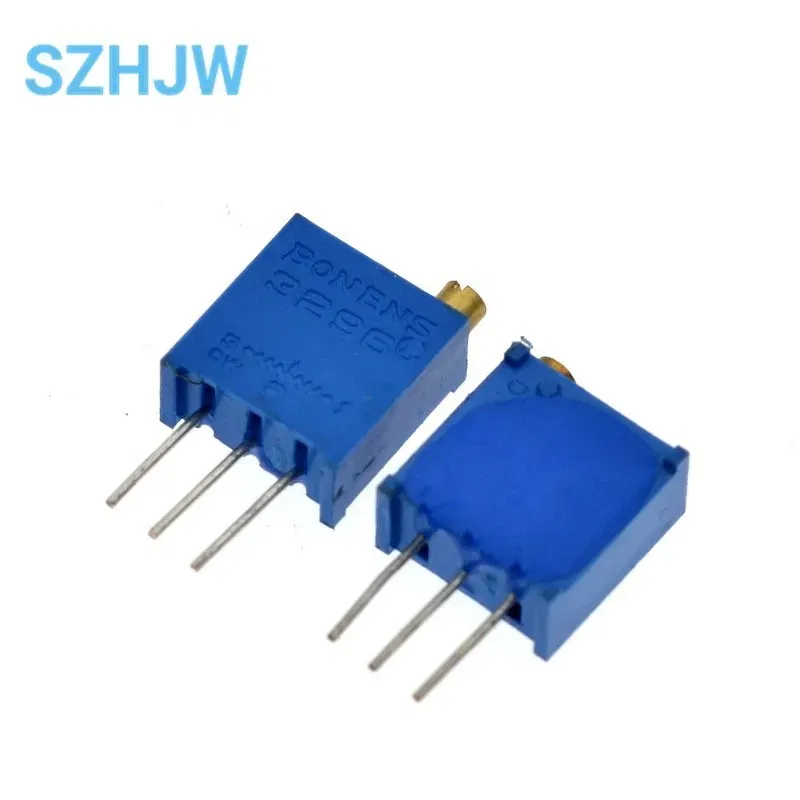

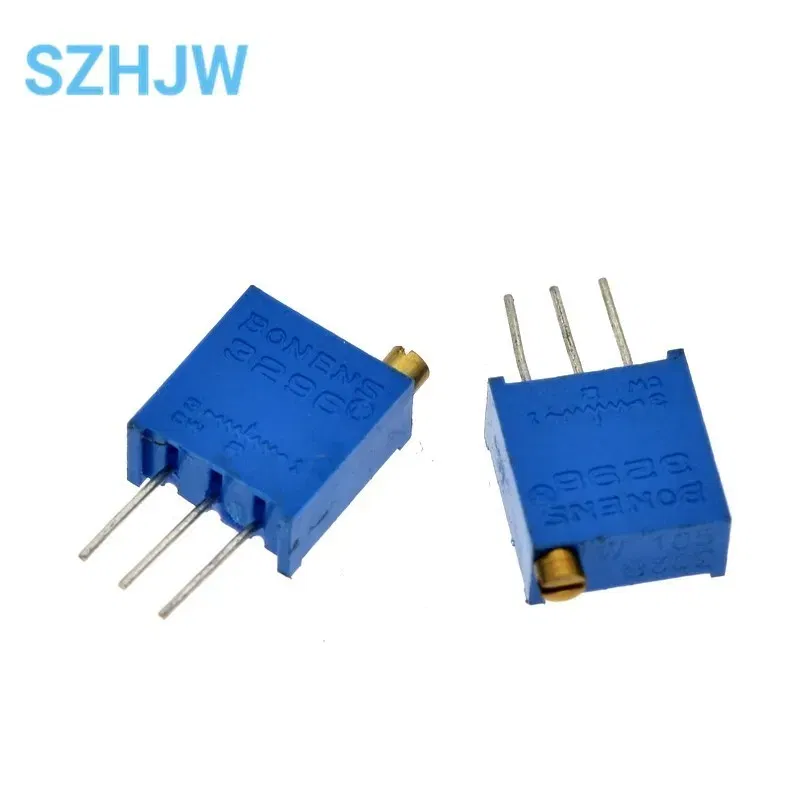

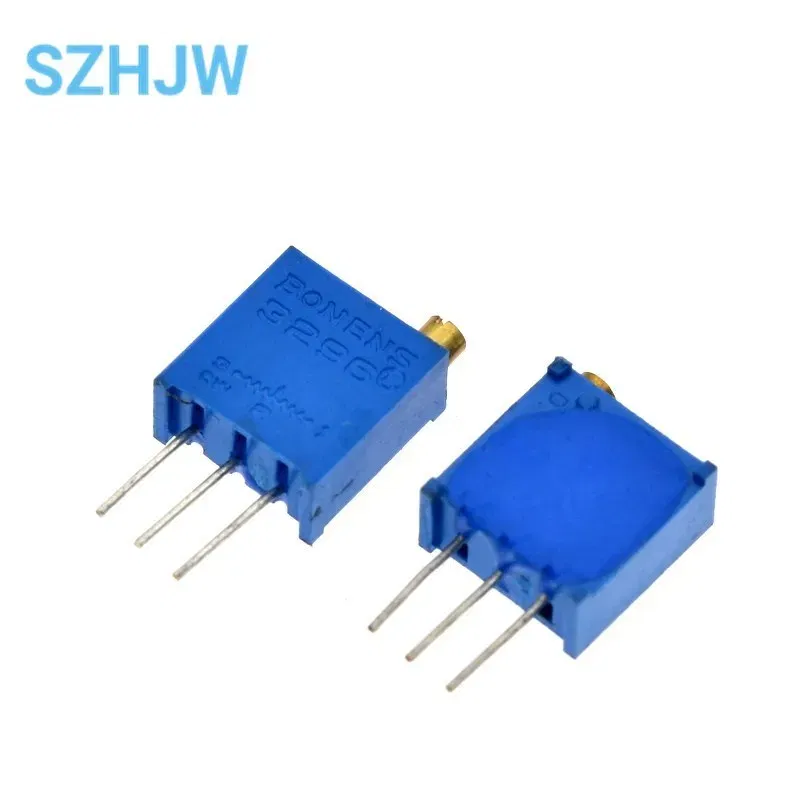

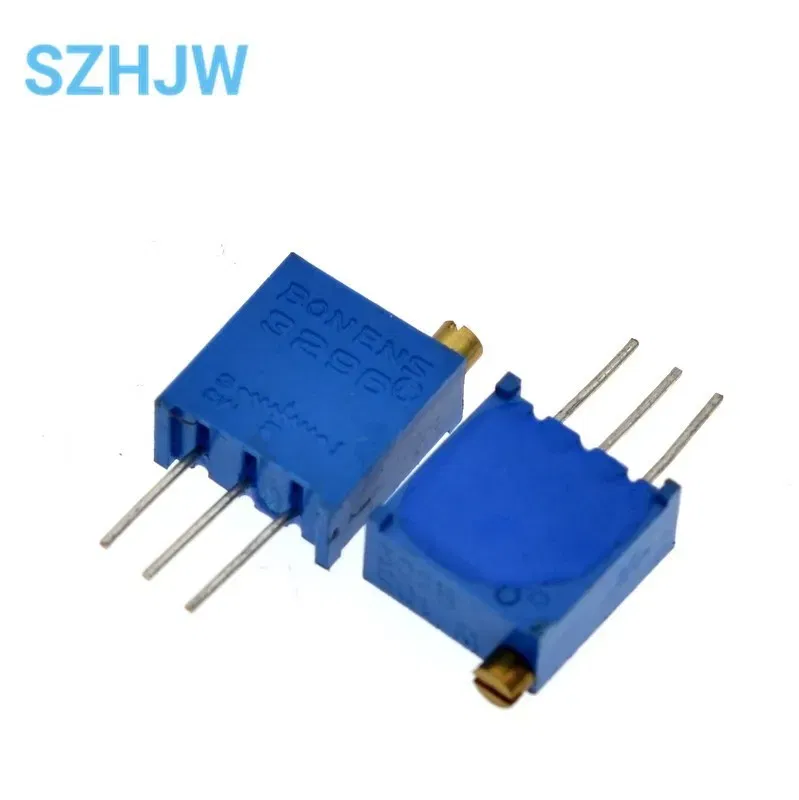

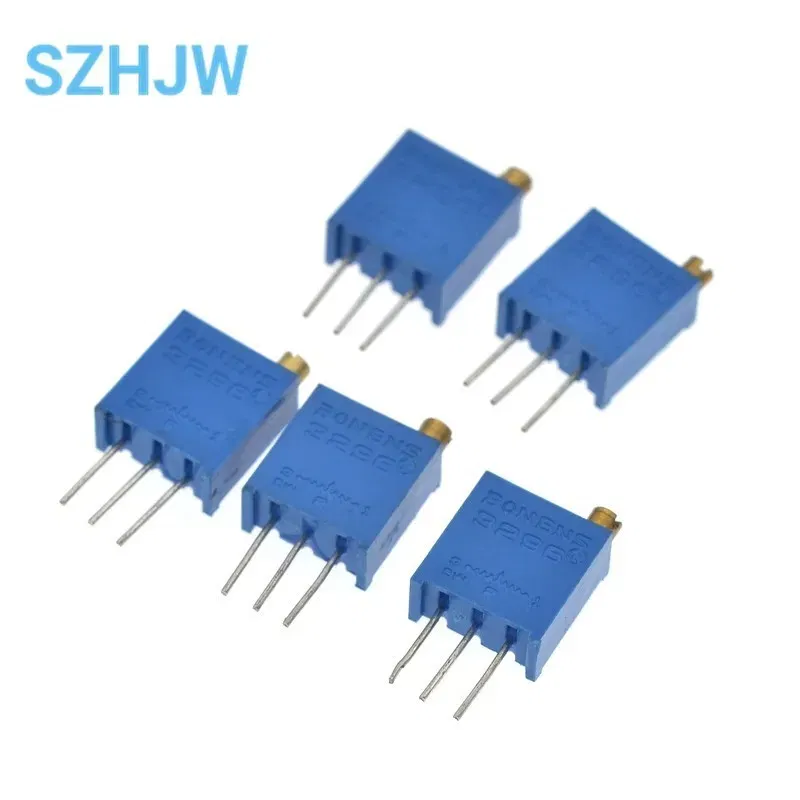

Resistance: 10K Ohm - 10PCS 3296 potentiometer Kit High Precision 3296W Variable Resistor 100R -1M 200R 500R 1k 2k 5K 10K 20K 50K 100K 200k 500k

Product Description

Potentiometers usually consist of a resistor body and a movable brush.

When the brush moves along the resistor body, the resistance value or voltage that has a certain relationship with the displacement is obtained at the output end.

Potentiometers can be used as both three-terminal components and two-terminal components.

Because its function in the circuit is to obtain an output voltage that has a certain relationship with the input voltage (applied voltage), it is called a potentiometer.

1. Used as a voltage divider

The potentiometer is a continuously adjustable resistor. When the handle or slide of the potentiometer is adjusted, the movable contact slides on the resistor body.

⒉. Used as a varistor

When the potentiometer is used as a varistor, it should be connected as a two-terminal device to obtain a smooth and continuously changing resistance value.

3. Used as a current controller

When the potentiometer is used as a current controller, one of the selected current outputs must be a sliding contact terminal.

Installation method: Insert the lead end of the potentiometer into the hole of the printed board, and tighten it

paste, fix with solder

Rated power consumption: 0.5W

Nominal resistance range: 100~1mQ

Resistance series: E3 series in 1EC63 is preferred, take 1 significant figure, namely 1, 2, 5

Resistance tolerance: soil 10%TCR≤±250×10-6/℃

Resistor body limit voltage: 315V (DC or AC RMS)

Moving contact limit current: 100mA

Withstand voltage (AC peak voltage with a frequency of 40~60Hz)

Under normal atmospheric pressure: 640V

Low voltage 8.5KPa (85mbar): 450V

Climate Category: 55/125/04

Total mechanical stroke: 28±2 turns

Stability rating: 10%

Starting torque: ≤35mN.m

Load wear cycles: 200 weeks

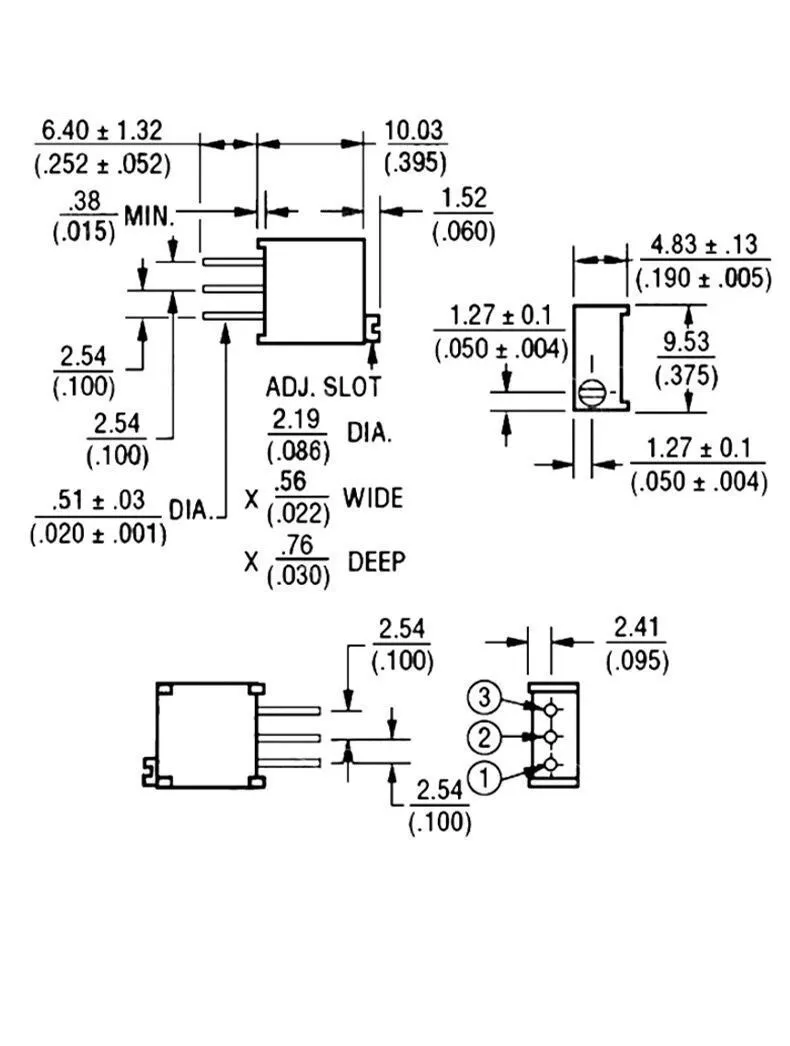

Package: 3296w

Type: Multi-turn adjustable precision resistance standard

Weighing resistance range: 10Q-2m

Resistance tolerance: ±10%

Termination resistance: ≤1%R or 10Q

Contact resistance change: CRV≤±3%R or 5R

Insulation resistance: R≥1GQ (100vdc)

Withstand voltage: 640Vac

Limit moving contact electricity: 100mA

Effective electrical travel:>70% of total mechanical travel>70% of Total mechanical travel

Rated power: 0.5w@70℃, 0W@100℃

Temperature range: -55℃~+100℃

Temperature coefficient: ±250ppm/°C ± 100ppm/°C
