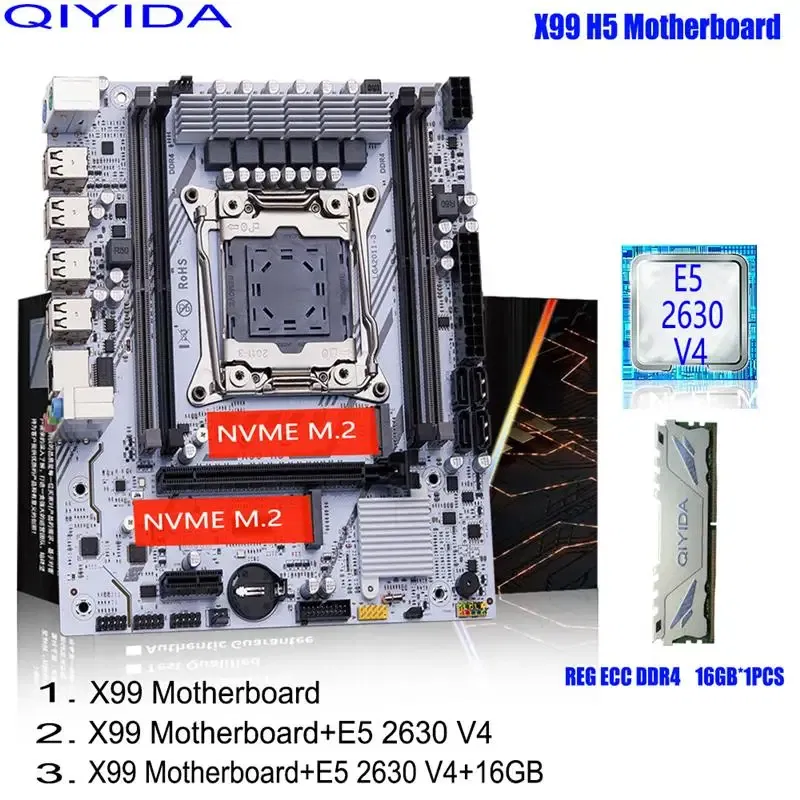

Color: WHITE, Ships From: CHINA - To X99 Motherboard Set Kit With LGA2011-3 Xeon E5 2630 V4 CPU DDR4 16GB REG ECC memory PCI 16x NVME M.2 SATA x99 H5

Notice:

ALL RAM needs to install in slot (grey slot)priority

The front USB needs to be correctly inserted into the designated USB pin position (yellow pin).

Attention: A 2032 battery needs to be installed to start the computer, otherwise it cannot be started

If inserted in the wrong location, it can cause the computer to not start.

You can choose from three specifications: motherboard or motherboard+CPU or motherboard+CPU+memory

1. (motherboard x1)

2. (motherboard x1+CPU x1)

3. (motherboard x1+CPU x1+16GB memory x1)

Please choose according to your needs

CPU:

Processor Series: Intel Xeon

Model number: E5 2630 V4

Processor Speed: 2.2GHz

Processor Socket: 2011-3

stepping: SR2R7

The number of CPU cores: 10

The number of threads: 20

L3 cache size (MB): 25MB

Wattage: 85Watt

Memory:

Chip: SEC / HY/ MIC and others (ship at random)

Type: ECC REG (server memory)

Frequency: DDR4 2133

Capacity: 16GB (1PCS*16GB)

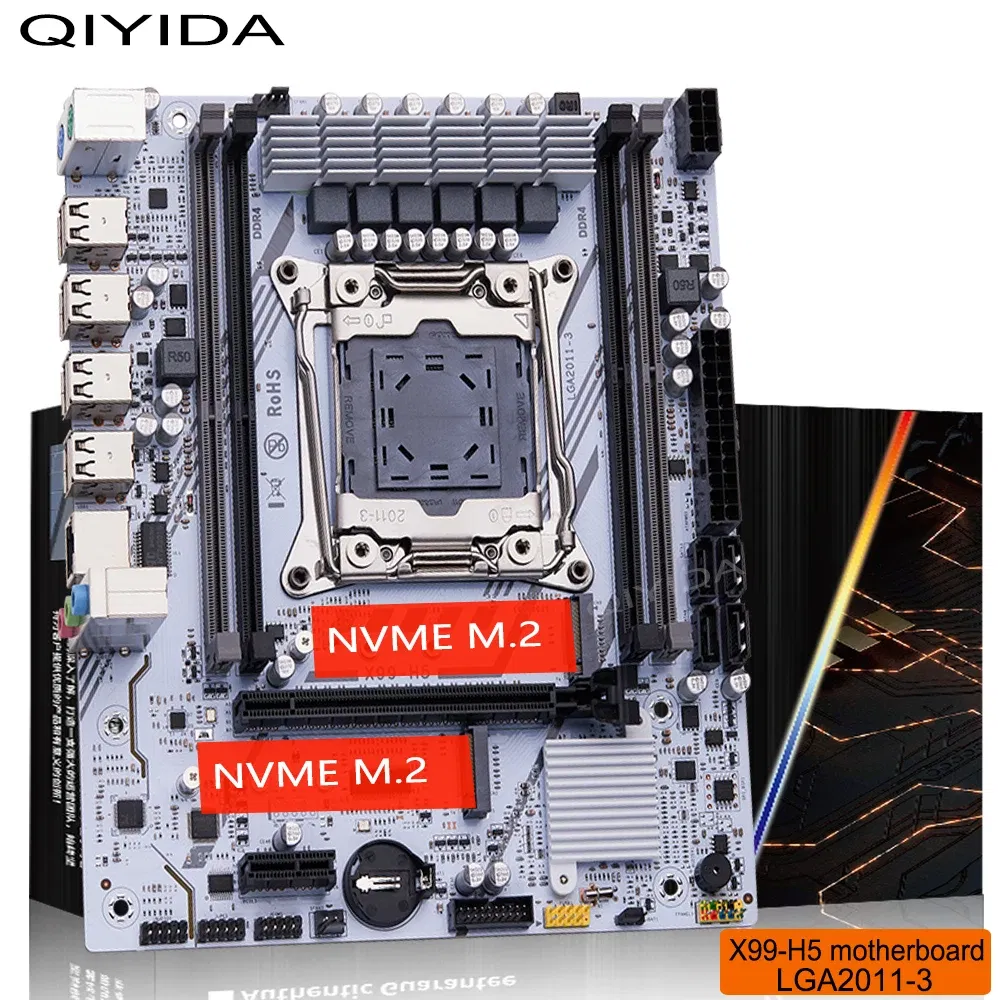

X99 motherboard slot LGA2011-3 SATA USB2.0 NVME M.2 SSD support DDR4 REG ECC memory and Xeon E5 V3 V4 processor

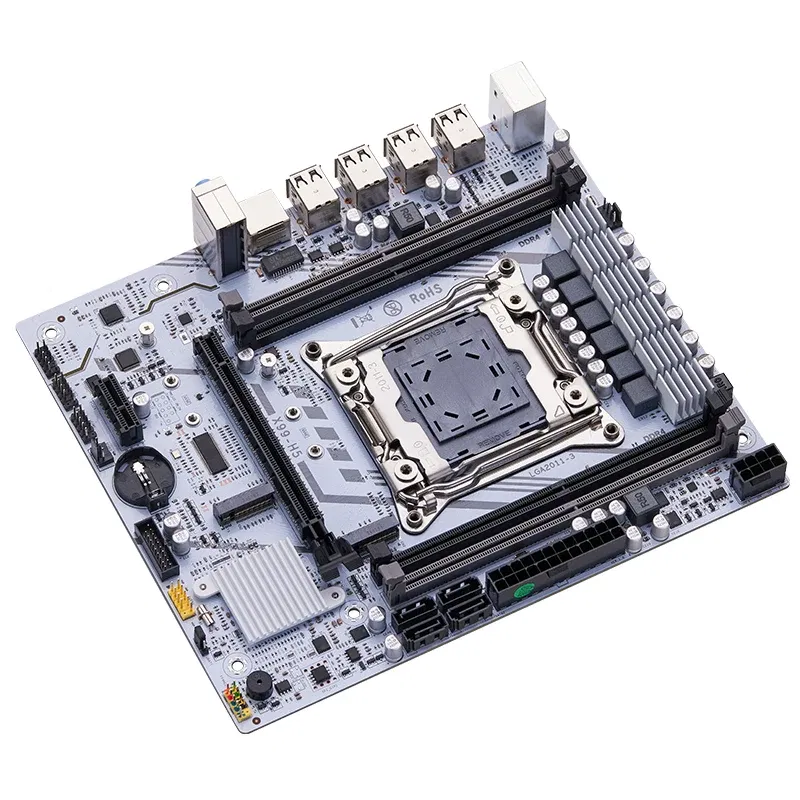

Motherboard:

Model: Qiyida

Chipset:H51/H55/H5,etc

Condition: Full new

CPU socket: LGA 2011-3

Structure: M-ATX

VGA socket: PCI-E X 16

Power port: 24Pin+8pin

CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)

Memory socket: 4* DDR4

Max memory capacity: 4* 16G DDR4 2133/2400MHz/2666MHz/3200MHz

Memory type supported: non-ecc/reg ecc/ecc

Integrated video card: No

Support NVME M.2

Motherboard dimension: 22cm*19cm

The motherboard chipset is H55 or H51,etc,If you can't accept, please don't buy.

For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°). The actual temperature can be tested with a body thermometer, and the normal use does not exceed 50°.

Note:

1:The motherboard chips have difference band chips,because of the different product batches,we will send the goods by random,please refer to the actual product.

2:this planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500wbrand power supply)

3: Due to different memory particles. There may be compatibility issues when different brands of memory modules are installed on the motherboard at the same time. It is recommended to use the same brand of memory.

4:The grey memory slot is the main slot. The black ones are the sub-slots. The memory should be installed in the main slot first.

Due to different production batch, X99H5 motherboard might probably have slightly different design, such as different memory slots color or SATA ports position or motherboard version etc. Our aim is to gradually make it more powerful.

We will not make any further notice.

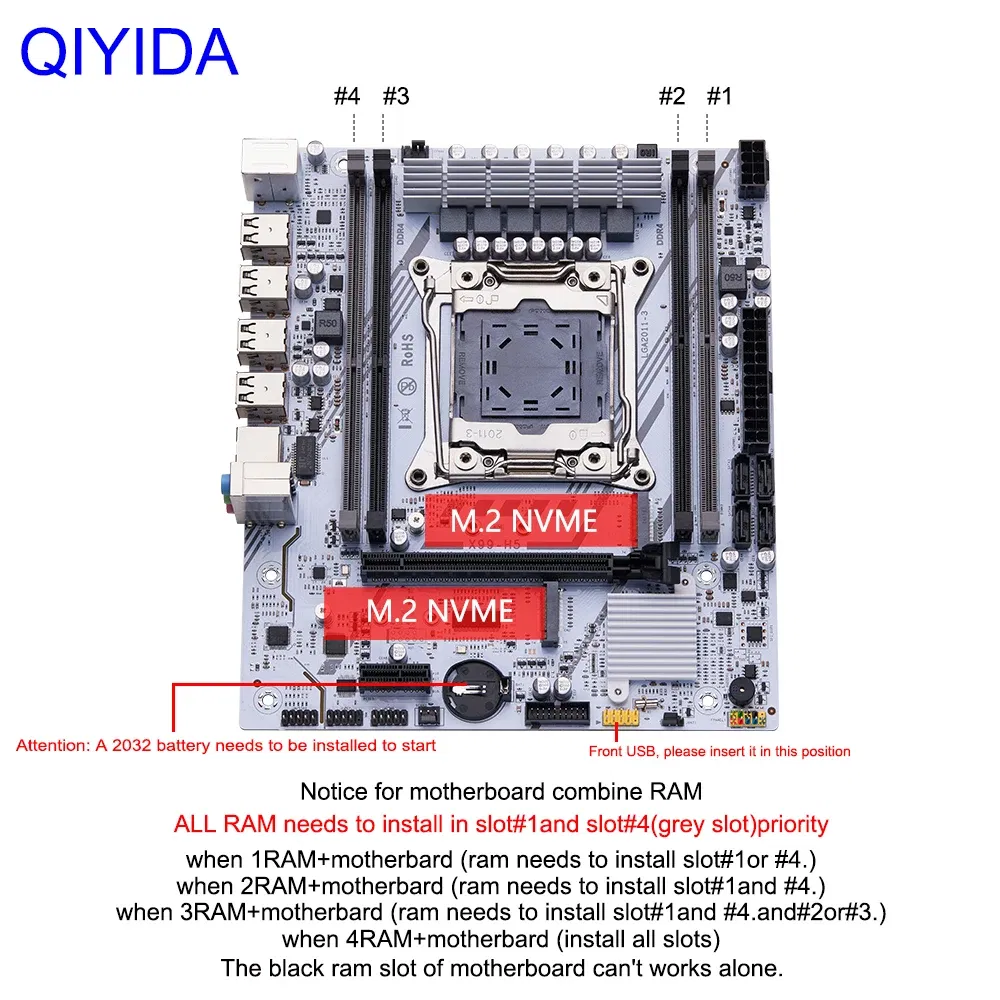

Notice for motherboard combine RAM

ALL RAM needs to install in slot#1and slot#4(grey slot)priority

when 1RAM+motherbard (ram needs to install slot#1or #4.)

when 2RAM+motherbard (ram needs to install slot#1and #4.)

when 3RAM+motherbard (ram needs to install slot#1and #4.and#2or#3.)

when 4RAM+motherbard (install all slots)

The black ram slot of motherboard can't works alone.The memory needs to be inserted into the grey main slot first.

Attention: A 2032 battery needs to be installed to start the computer, otherwise it cannot be started

==========

Hign-concerned Chemical : None

RAID Supported : no

Processor compatibility : Intel Xeon,Intel 0thers,Intel Xeon E Series

Usage Scenario : Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Industrial Computer,Workstation,Server,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC

Special Function : Cooling Armor

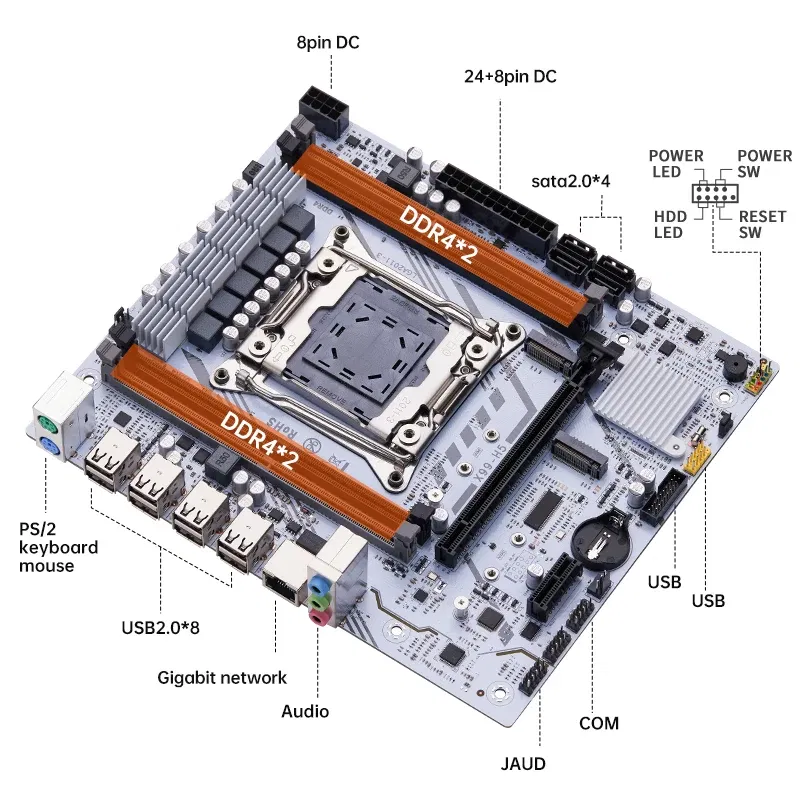

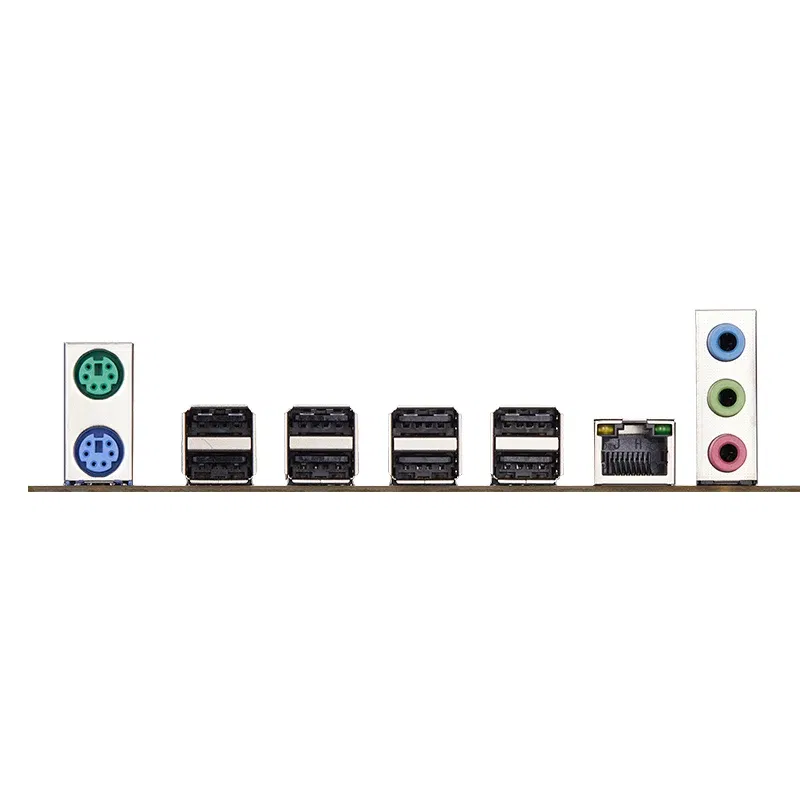

Back I/O Ports : 1x RJ45

Onboard LAN : 1x RJ45

Number of M.2 : 2

Number of SATA Ports : 4

Storage Interface Type : SATA 2,M.2 (NVMe)

Number of PCI : 2

Number of PCIe x 1 : 1

Number of PCIe x 16 : 1

PCI - E standards : PCI - E 3.0

Number Of Memory Slots : 4

Support Memory Type : DDR4

Memory channel : Double

Package : Yes

Maximum Ram Capacity : 128 GB

Form Factor : Micro-ATX

Chipset Manufacturer : Intel

With CPU : No

Chipset : Intel Others

Application : Desktop

Socket Type : LGA 2011-3

Origin : Mainland China
