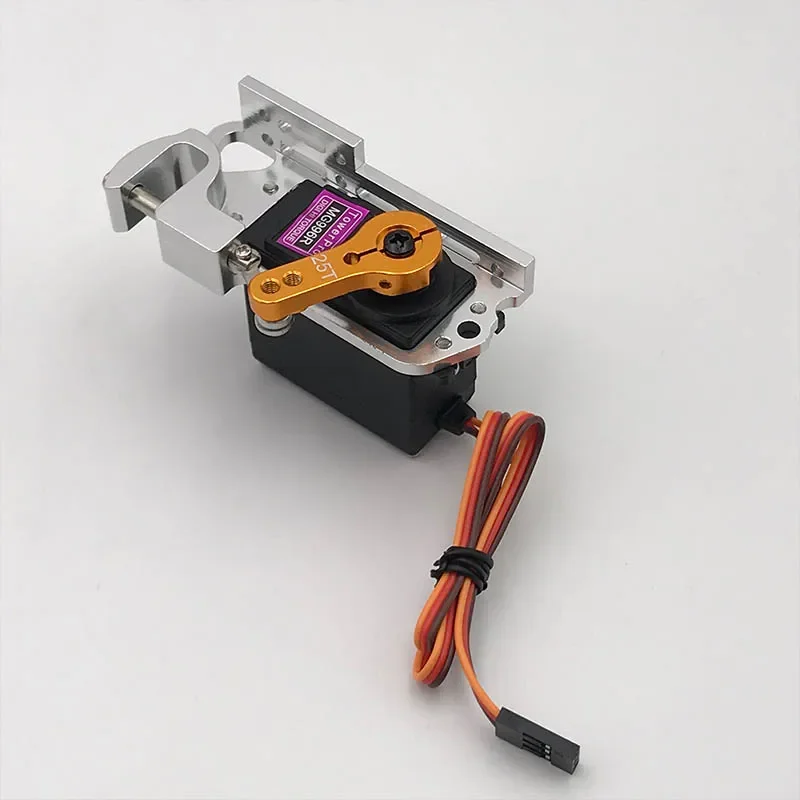

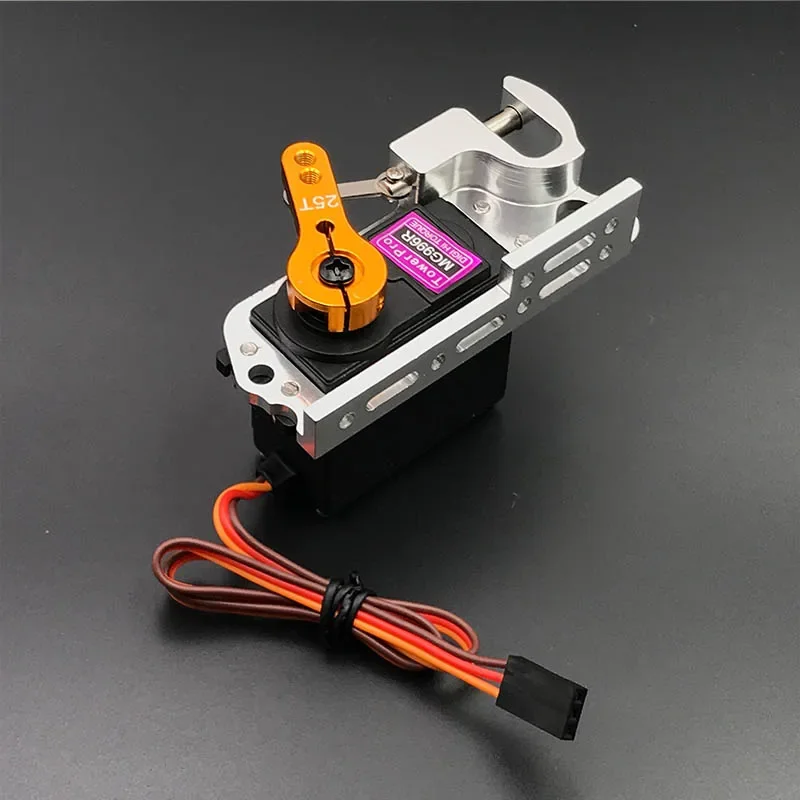

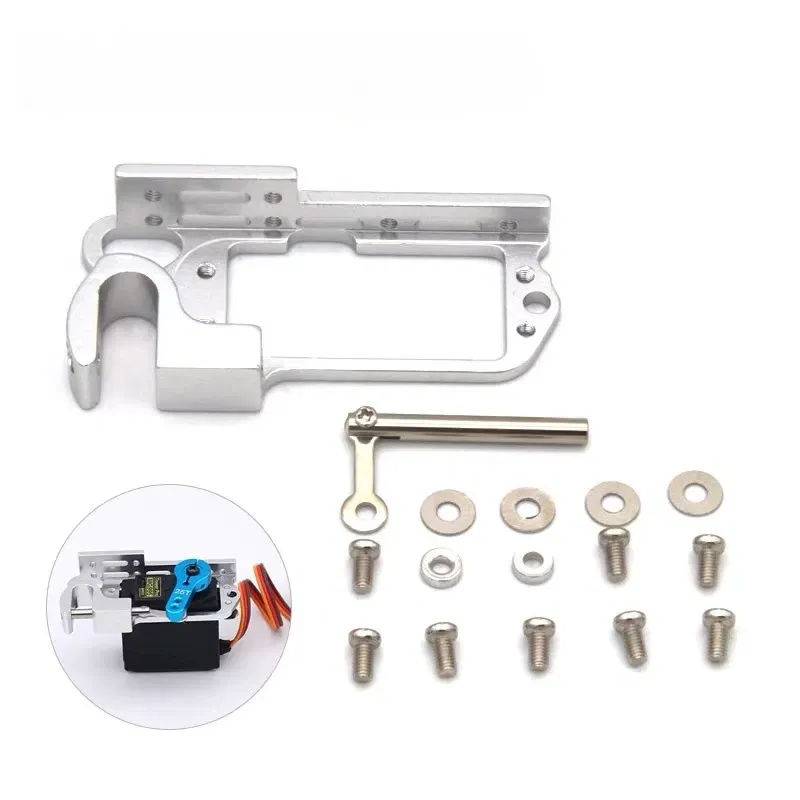

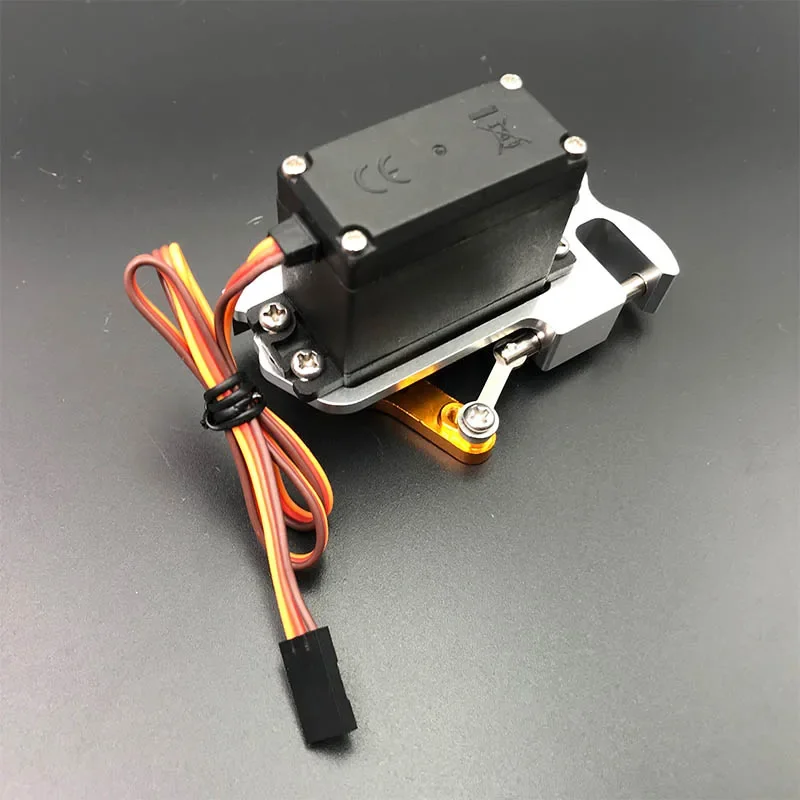

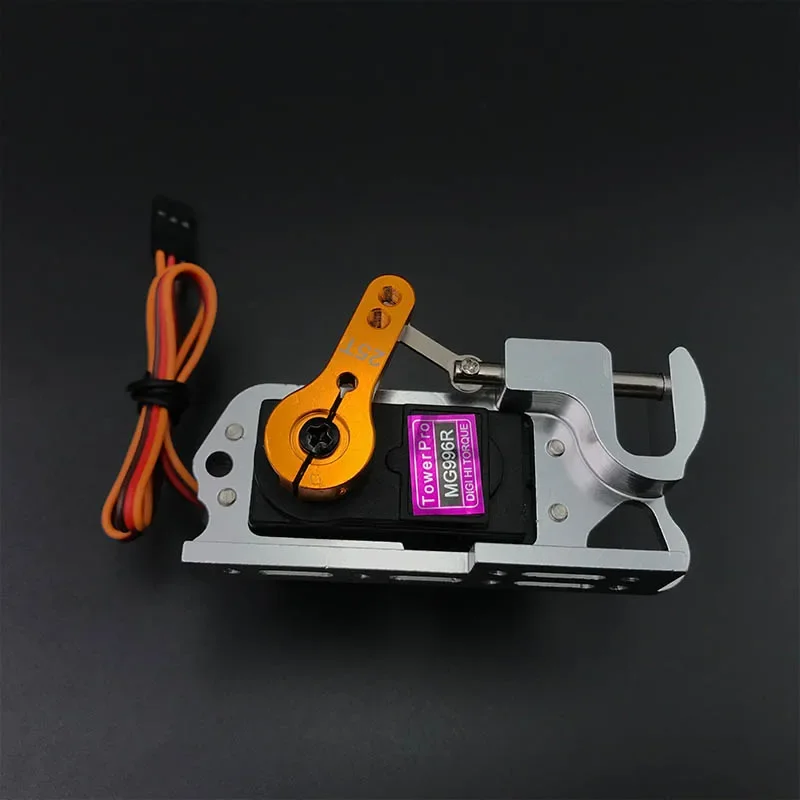

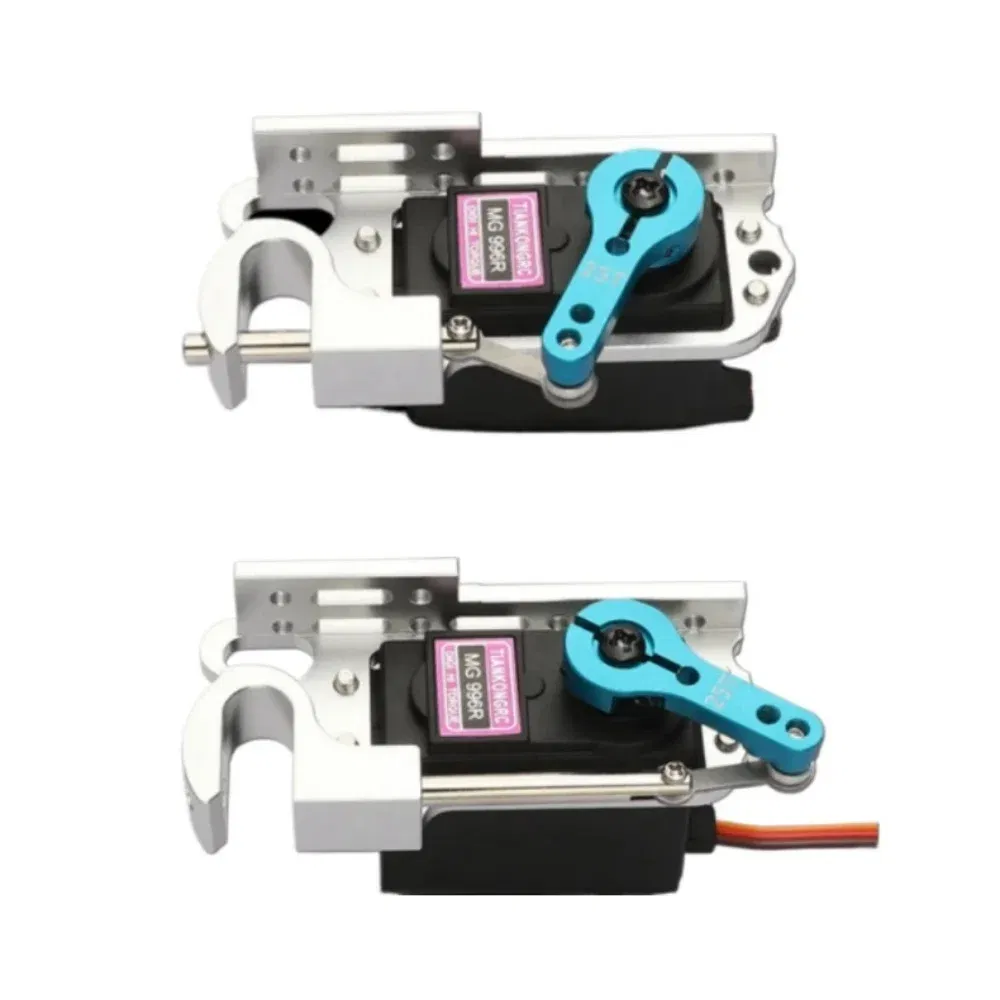

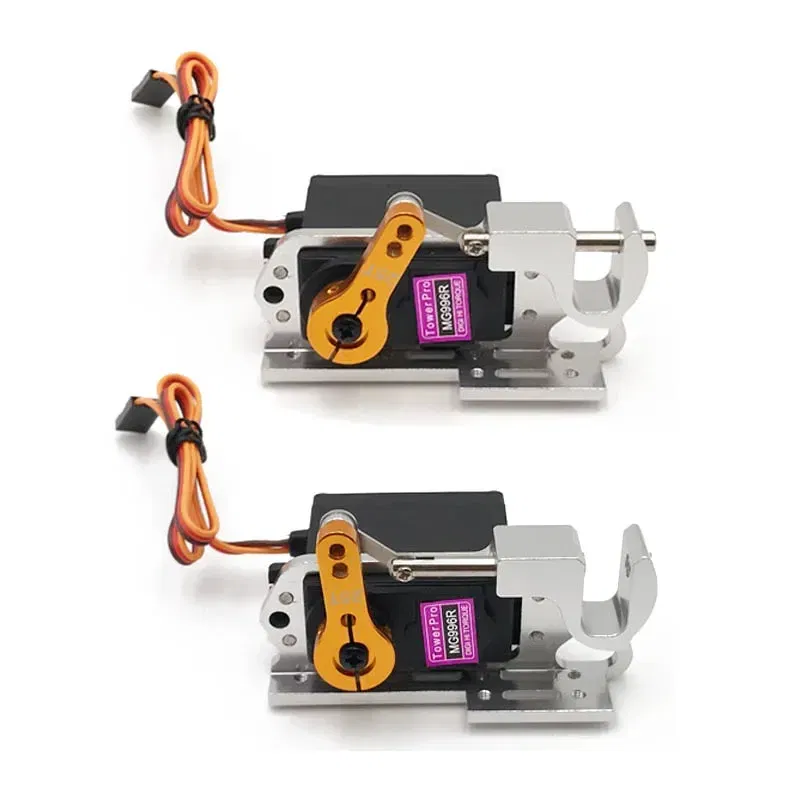

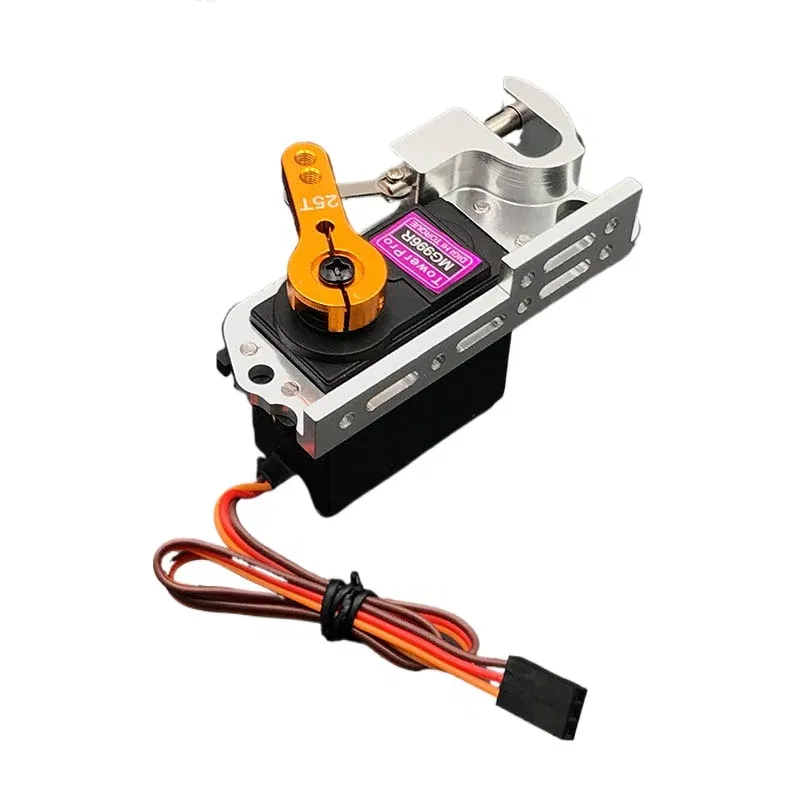

Color: WHITE - Servo Parabolic Switch Device Aerial Vehicle Throw Device Tarot Dispensers With Servo Arm For Remote Controller Cars Drone MG996
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Origin: Mainland China
Is Batteries Included: No
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Servos
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Remote Control Peripherals/Devices: Servos
Tool Supplies: Tools
Quantity: 1 pcs
Technical parameters: value 3
Model Number: As show
Four-wheel Drive Attributes: Assemblage
Wheelbase: Upper Shell
Choice: yes
semi_Choice: yes
Note
MG996R Servo 90-180 degrees
Remember to debug the working schedule of the steering gear.
It is common sense that the work of the trip will be stuck and the steering gear will be damaged.
The total weight is about 87g
Using voltage 5V
It is recommended to use a separate UBEC to power the thrower. Do not take power directly from the receiver to avoid affecting the flight voltage fluctuations!
Specifications

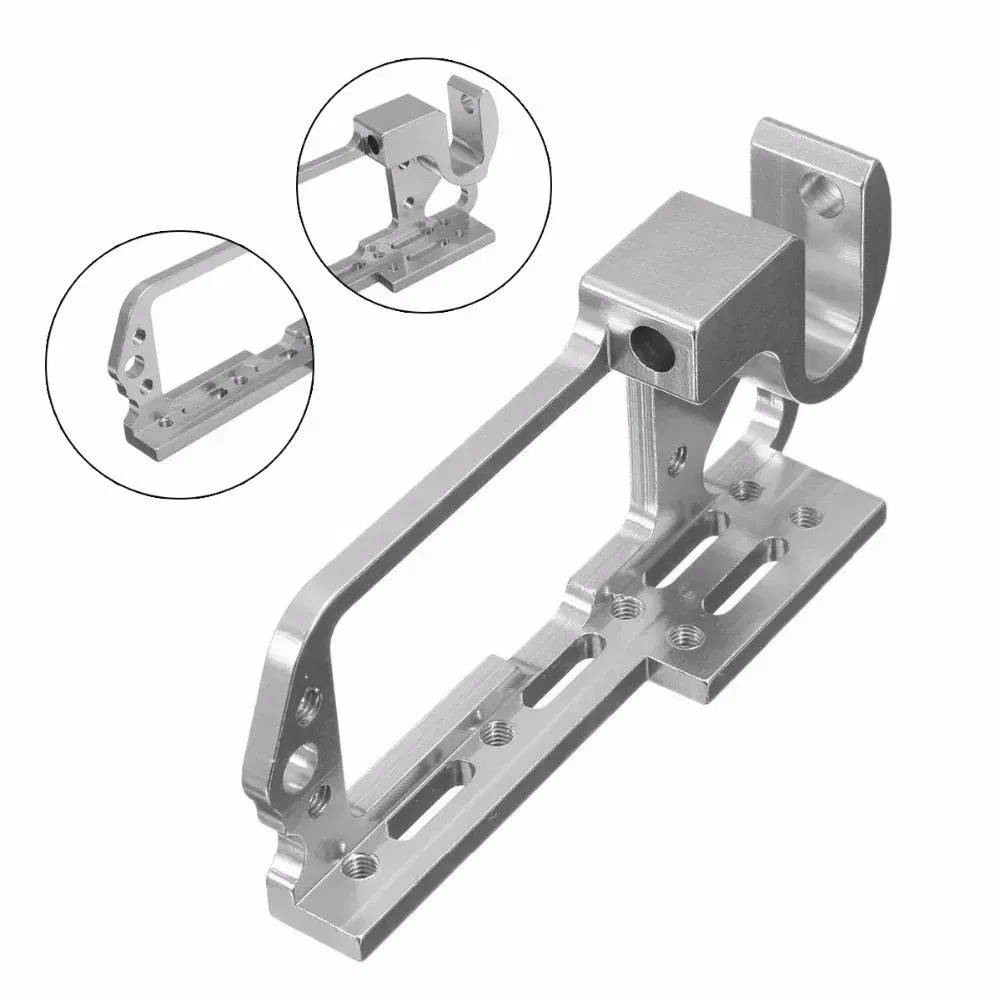

Material: 7075 Aluminum alloy
Ultra high strength, light weight
Enhanced version, Can throw 4-6kg goods
Suitable for helicopters, multicopter, fixed-wing aircraft, robots, etc.
ON and OFF is controlled by the servo, which is controlled by one channel of the remote controller.
(You can use the light sensor or sound sensitive component to control the light or sound through the remote control, and link the steering gear to open or close the switch.)
The measured size can be equipped with standard size servo such as 996 S3003 995 946 3001 946 servo.
for Servo Arm:
Fits for Standard Servo MG995 MG946R MG996R MG945 S3003 25T

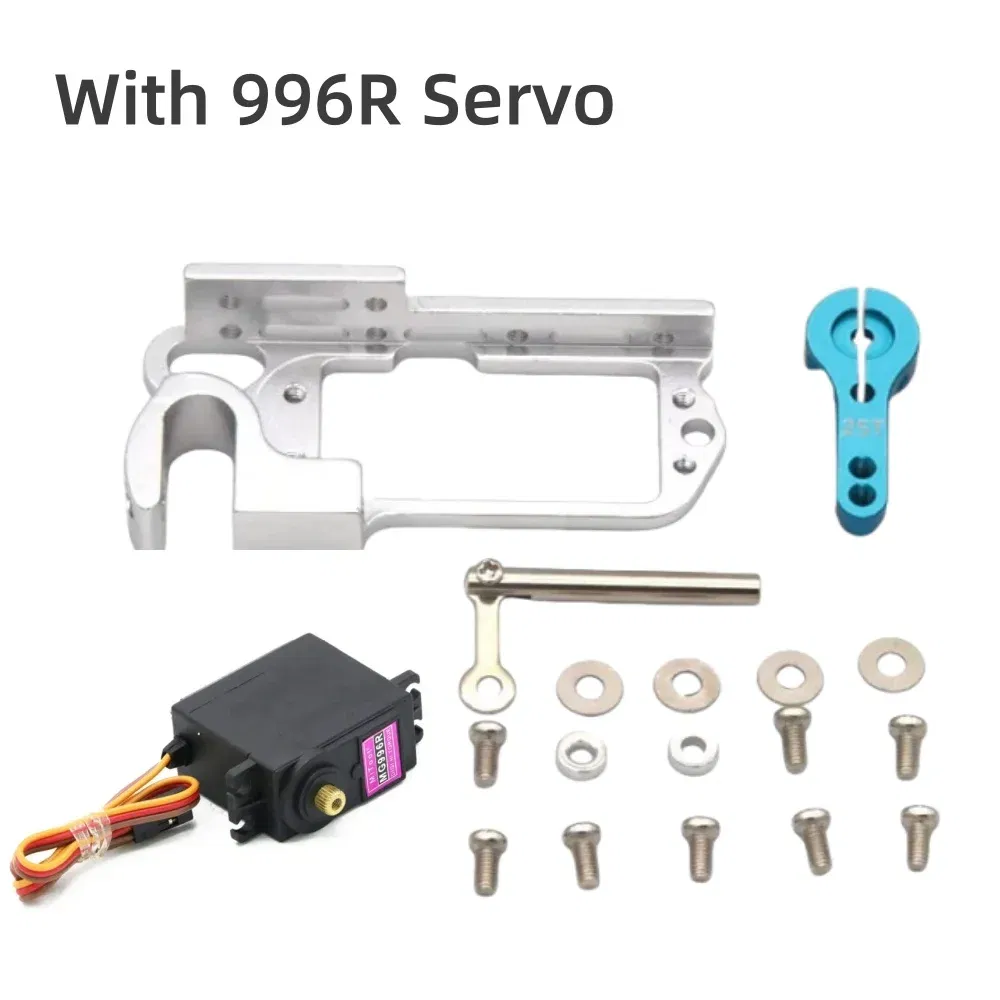

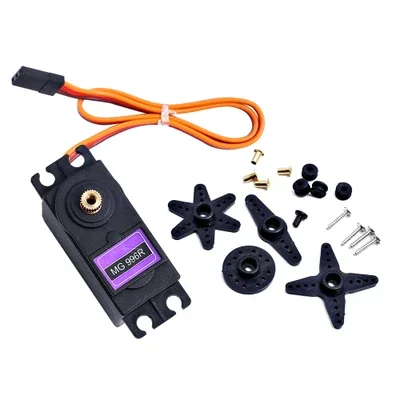

MG996R Metal Gear RC Servo
Features:
Gear Type: Plastic and metal gears
Stall torque:12kg/cm(6V)
Power Supply: Through External Adapter
Operation Voltage : 4.8 - 7.2 V
Temperature range: 0'C to 55'C
Operating Speed: 0.17sec / 60 degrees (4.8V no load)
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Stable and Shock Proof. - Double Ball Bearing - Connector Wire
Length 300mm
Great for truck, Boat, Racing Car, Helicopter and Airplane
Specifications:
Connector wire length:300 mm
Package Dimension: 54 x 38 x 20 mm
Net weight:61 g
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
