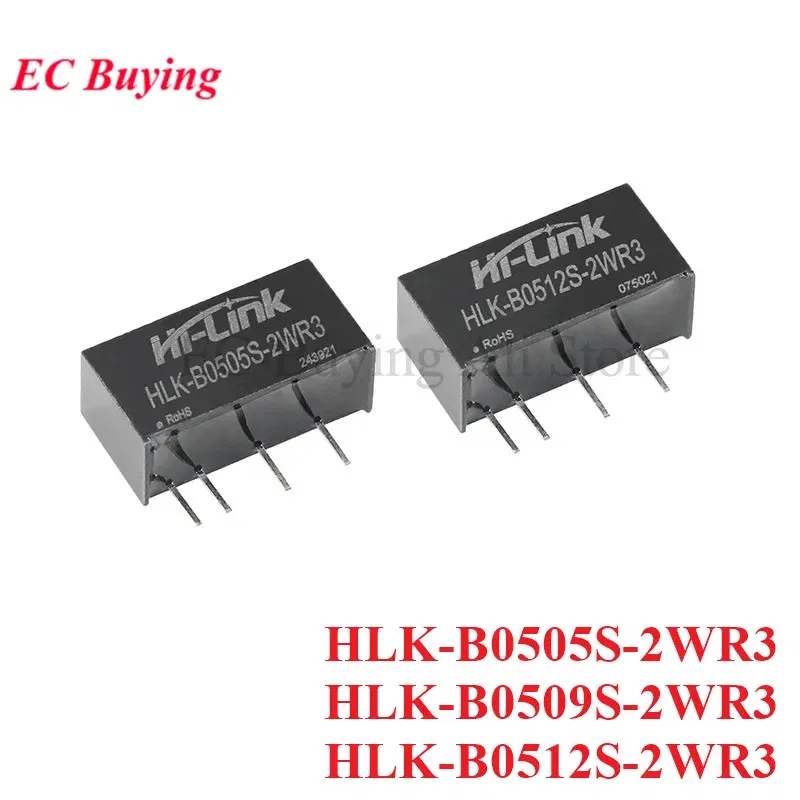

Color: MAROON - DC-DC Isolated Switching Power Module 5V to 5V 9V 12V 2W Power Supply Short Circuit Protection HLK-B0505S-2WR3 HLK-B0512S-2WR3
Hign-concerned Chemical: None
Condition: New
Type: Voltage Regulator
Supply Voltage: 5V to 5V 9V 12V 2W
Dissipation Power: low
is_customized: Yes
Operating Temperature: -40-+85℃
Application: Computer
Package: Module
Smart Electronics Experiment: Switch And Sensor For Arduino STM32

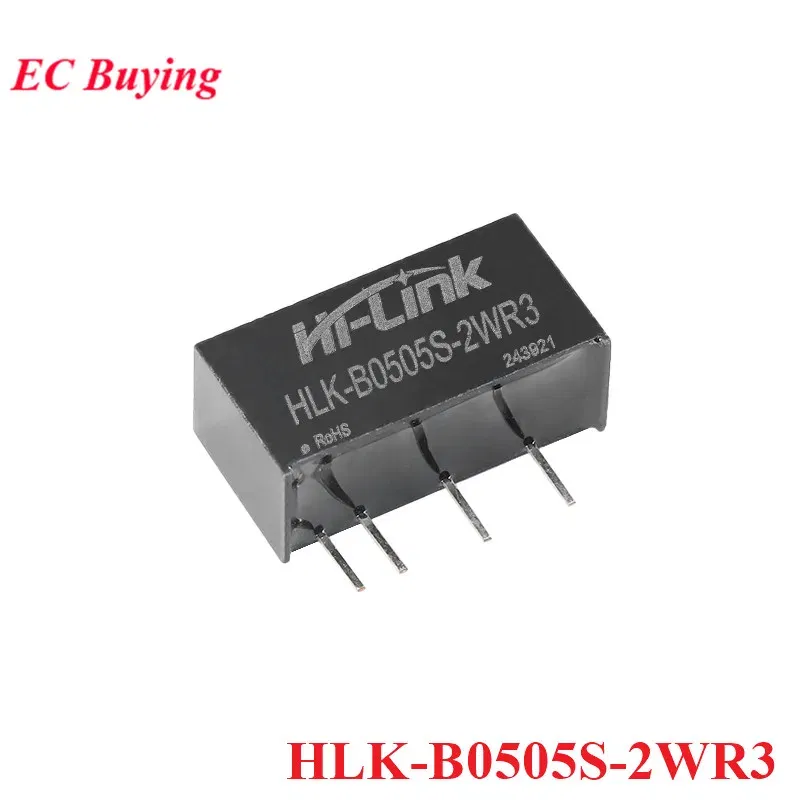

Hi-Link HLK-B0505S-2WR3: 5V to 5V 400mA 2W

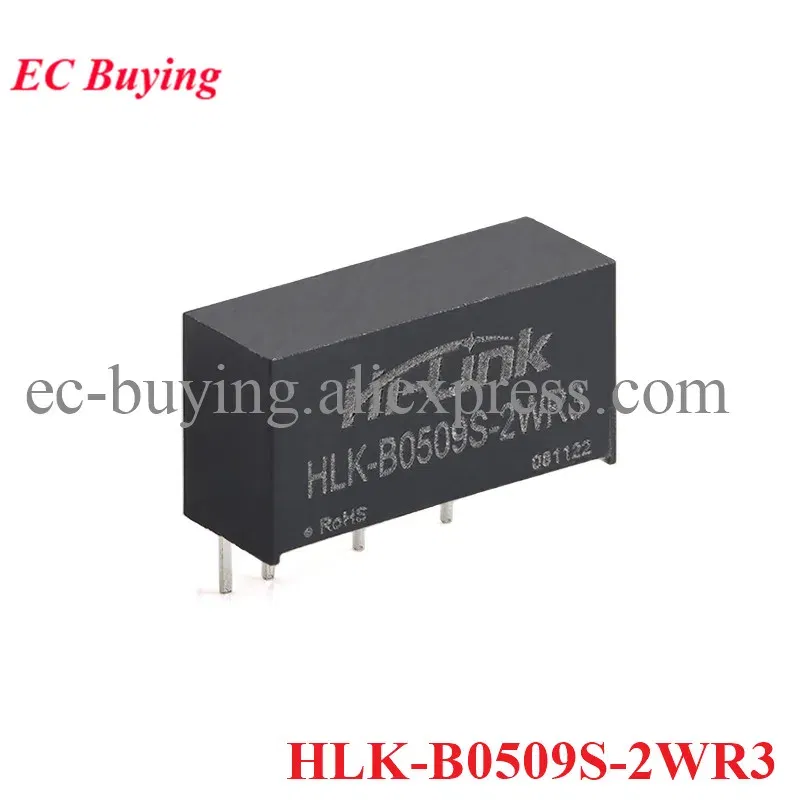

HLK-B0509S-2WR3: 5V to 9V 222mA 2W

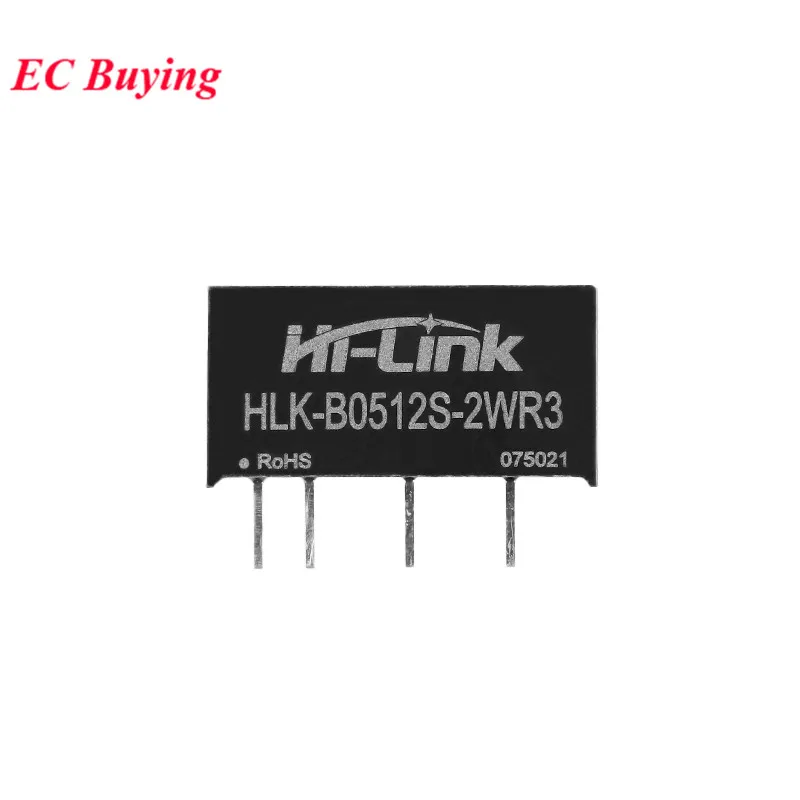

HLK-B0512S-2WR3: 5V to 12V 166mA 2W
●Ultra-miniature standard package SIP package and standard pins
●Constant voltage input (10% Vin), isolated unregulated single output, 2W
●Low standby power consumption, input and output isolation withstand voltage 1 500VDC
●Low ripple noise (20MH bandwidth)<100mVp-p
●High efficiency, conversion efficiency can reach 90% (Typ.)
●Operating temperature range: -40°C~+85°C
●Good output short-circuit and over-current protection and self-recovery,
●High reliability, long life design, MTBF≥3500000H
●It is potted with high-quality waterproof and thermally conductive adhesive, which is dust-proof, moisture-proof, shock-proof and flame-retardant
●Comply with UL/CE/EMC and safety test requirements
●Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
Operating temperature: -40~+85°C
Storage temperature: -40~+125°C
Relative humidity: 5~95%RH
Cooling method: natural cooling
Atmospheric pressure: 80~160Kpa
Altitude:≤2000m
Vibration: Vibration coefficient 10-55Hz, 10G, 30 Min.along X, Y and Z
Input characteristics (room temperature test)
Rated input voltage: 24VDC nominal input series
Input voltage range: 21.6~26.4VDC
Maximum input current: ≤0.1A
Reflected ripple current: 15mA
Impulse voltage (lsec.max) :≤30VDC
Start voltage: 21.6VDC
Input Filter Type: Capacitive Filter
Hot plug: not supported
Output Characteristics (Public)
Output load (load percentage): 10%-100%
Output voltage accuracy: ±15.0%(MAX)
Linear adjustment rate: (input voltage ±1%) ±1.2% (other outputs)
Load regulation rate: (10%~100% load)
Output ripple and noise (mVp-p): ≤ 100mVp-p
Temperature drift coefficient (full load): ±0.03%/°C
Output short circuit protection: support
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
