Color: GRAY, Size: 4XL - Tact Push Button Switch 12V Copper 2PIN DIP2 SMD Micro Switch 6X6X5 4.3 5 5.5 6 7 8 9 10 11 12 13 15MM TV Toys home use Button
Current: 1A
Features: Middle leg
Material: Copper
Item Type: SWITCHES
Warranty: 50000 times
Switch Type: MICRO SWITCH
Certification: RoHS
Certification: CE
Certification: ce
Certification: ROHS
Model Number: 6*6*4.3mm micro switch
Is Smart Device: No
Choice: yes
semi_Choice: yes
PACKAGE FOR 20Piecs/lot and 50Pieces/lot

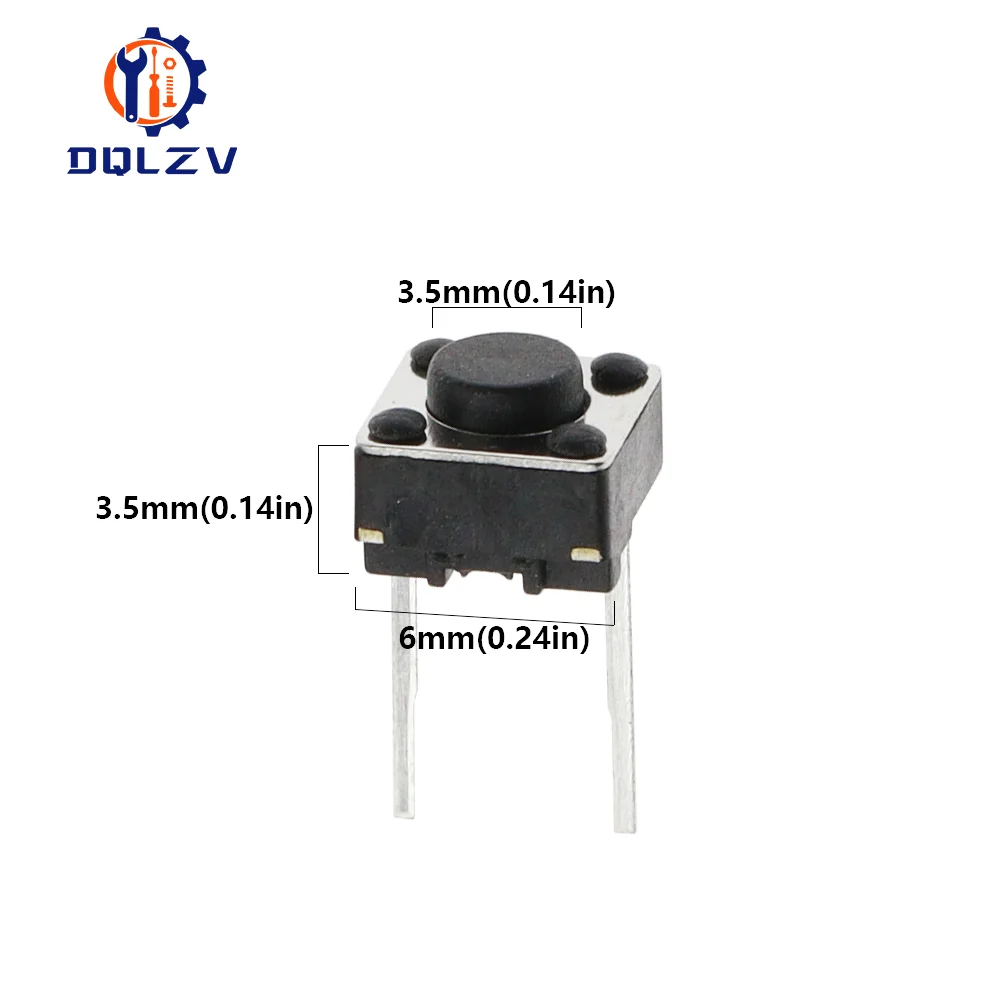

High Quality Tactile Button Switch Momentary Tact 6X6mm 2 PIN DIP SMD Series

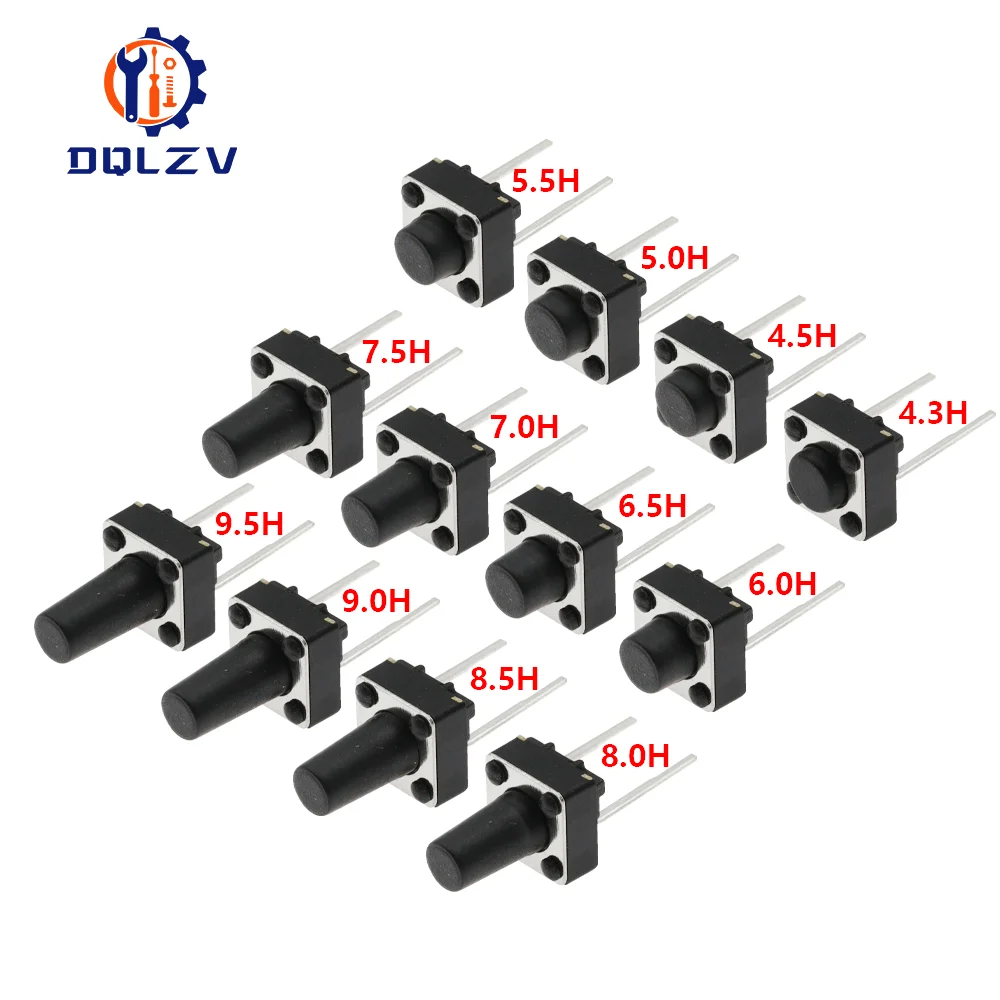

Height Includes:4.3mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm/7.5mm/8mm/8.5mm/9mm/9.5mm/10mm/11mm/12mm/13mm/14mm/15mm/16mm
Main technical indicators of tact switch series
(Specification of TACT switch Series)
Operating temperature range Temperature: -25°~+-85°C
Rated Load: DC12V 0.1A
Contact Resistance: <=0.03Ω
Withstand Voltage: AC250 V (50Hz) /MIN
Actuation Force: 1.3+-0.5N
Insulation Resistance Lnsulation Resistance :>=100MΩ
Life: 100000 times (times)

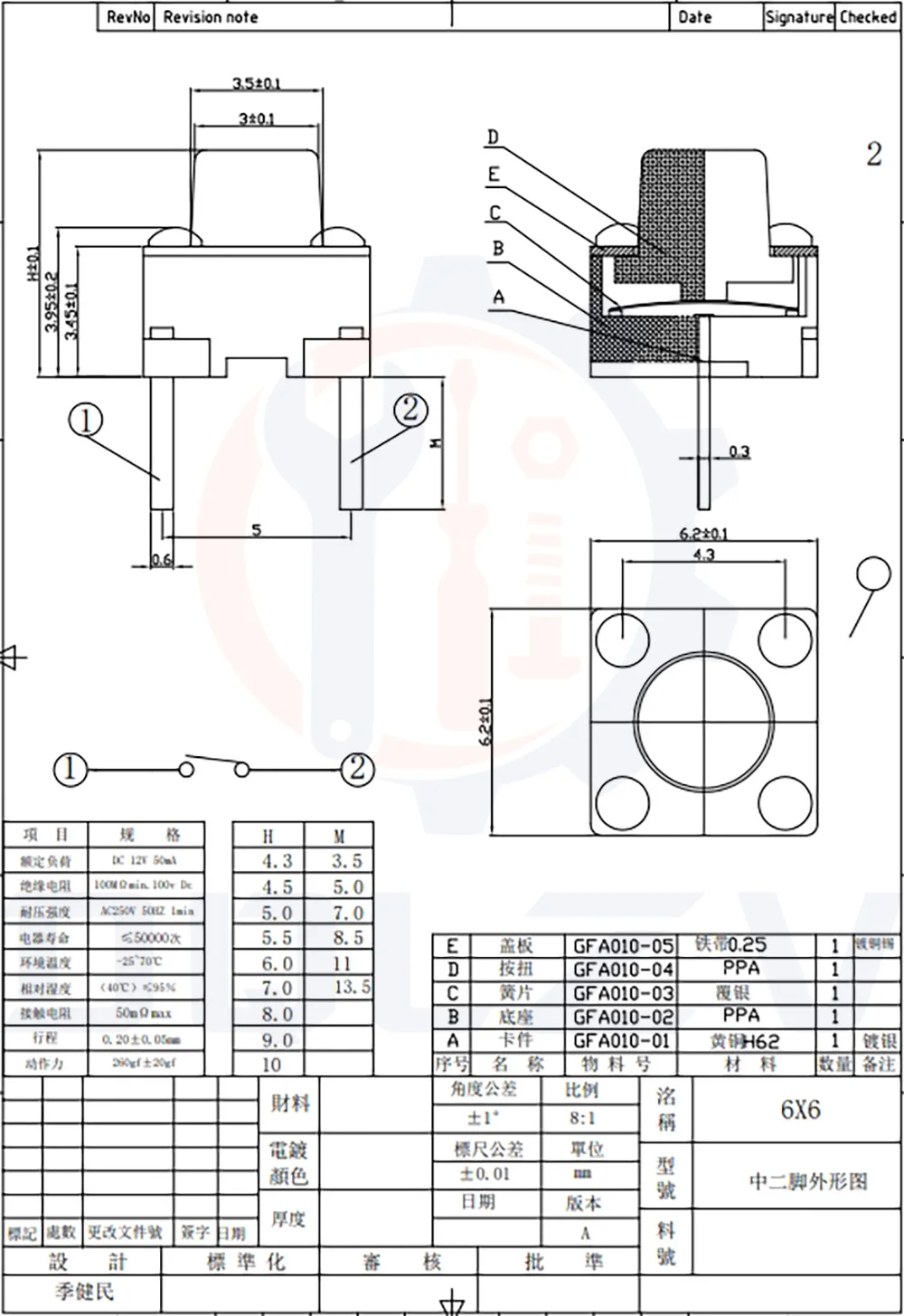

Reference size drawing:
Note (Remark): In the figure below, h represents height and the unit is millimeters.
For example, 6*6*7, that is, the height is 7mm (millimeters)
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
