Color: Blue - MG90D 10/20/30/40/50Pcs Micro Digital Servo Motor Full Metal Gear 180/270/360 Degree For RC Airplane Helicopter Car Boat Model
$231.14 NZD
or 4 payments of $57.79 with
High-concerned chemical: None
Choice: yes
Choice: yes
p{margin-block-start: 0; margin-block-end: 0}
Item Specifcation

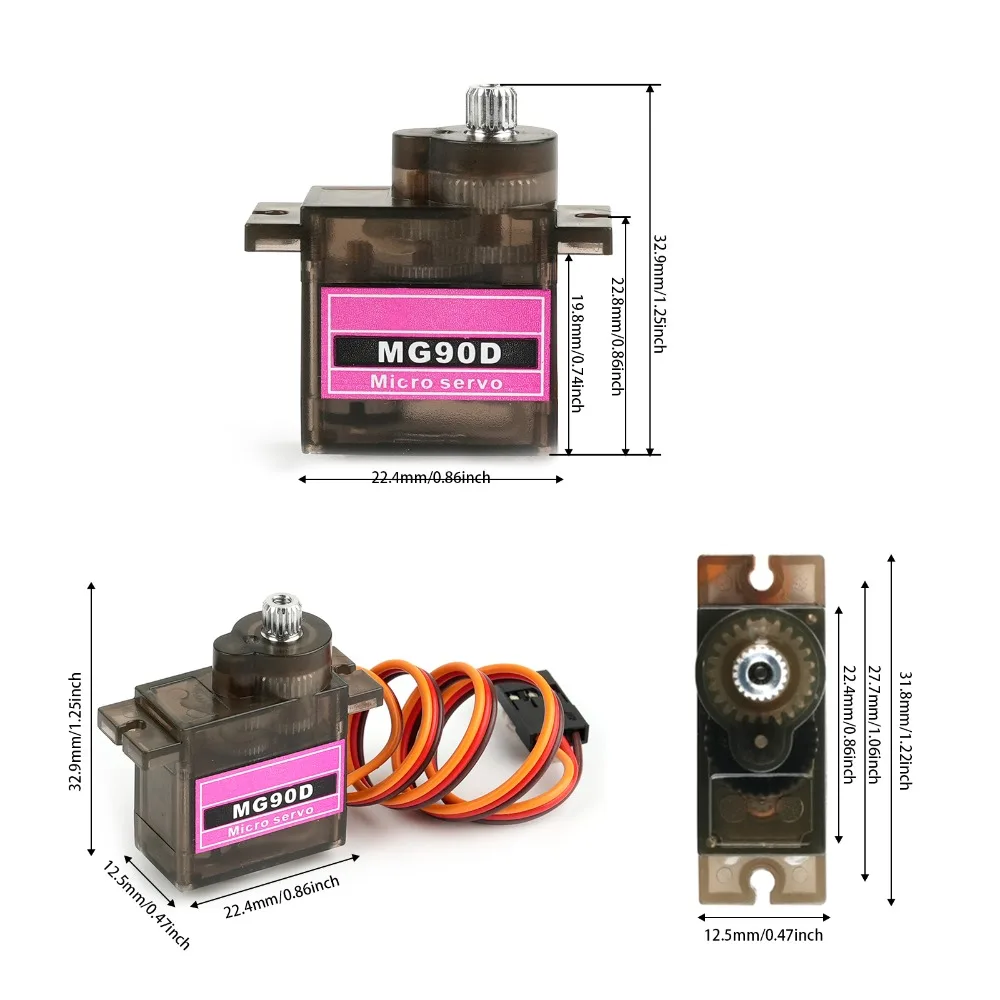

Size : 22.4*12.1*22.8mm
Weight : 13.5g
Gear type: Metal
Limit angle 2005
Bearing NO
Horn gear spline : 20T 4.9mm
Horn type : Plastic, POM
Case : Engineering plastics(PBT)
Connector wire : 250mm 5mm
Motor : Carbon brush motor
Splash water resistance : No
Operat voltage 4.8V 6.0V
No load speed 0.12sec/60 0.09sec/60
Peak stall torque 1.8kg.cm 2.0kg.cm
Stall current 750mA ± 10% 860mA ± 10%
Command signal Pulse width modification
Amplifier type : Analog controller
Pulse width range :500-2500usec
Neutral position :1500usec
Dead band width 8 usec
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
