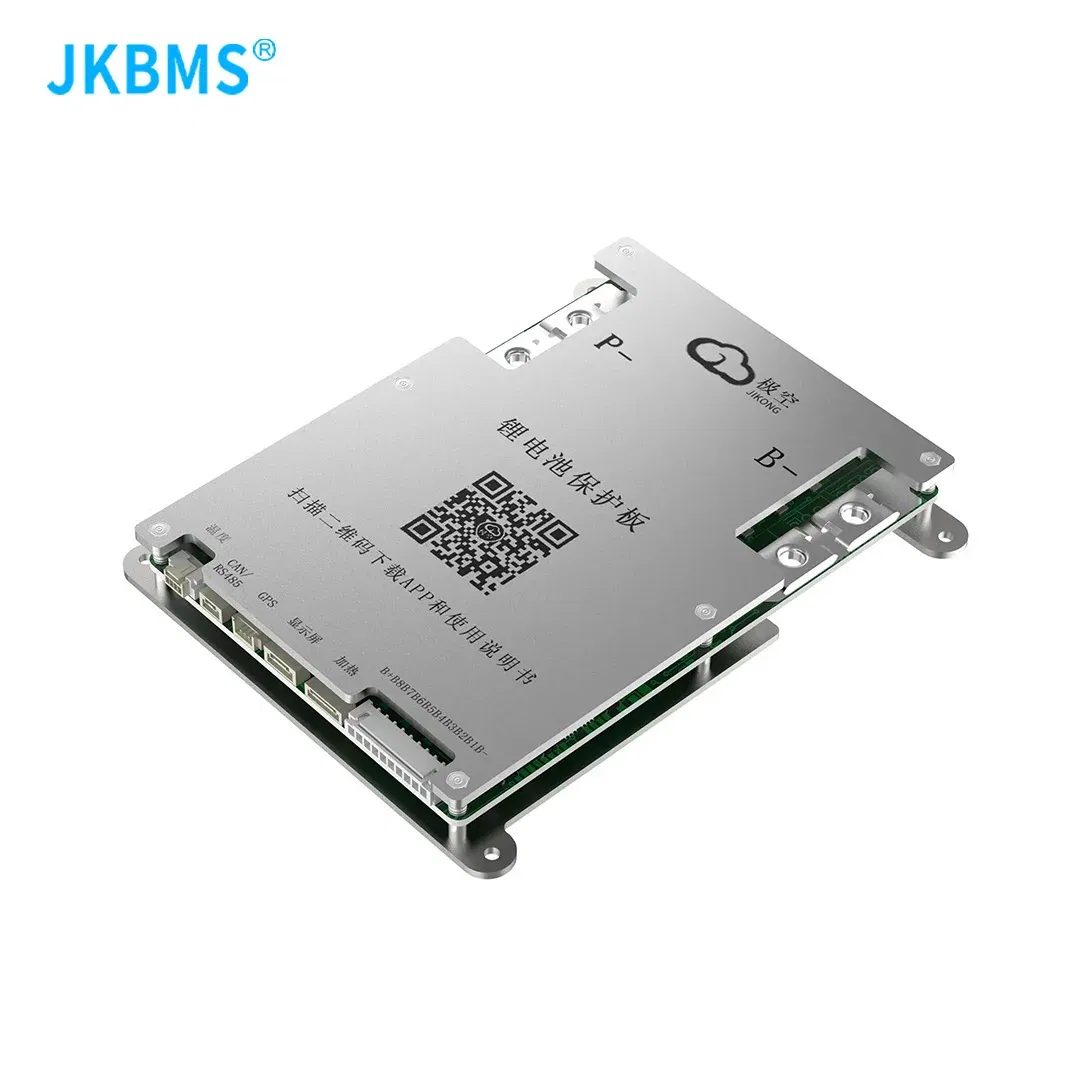

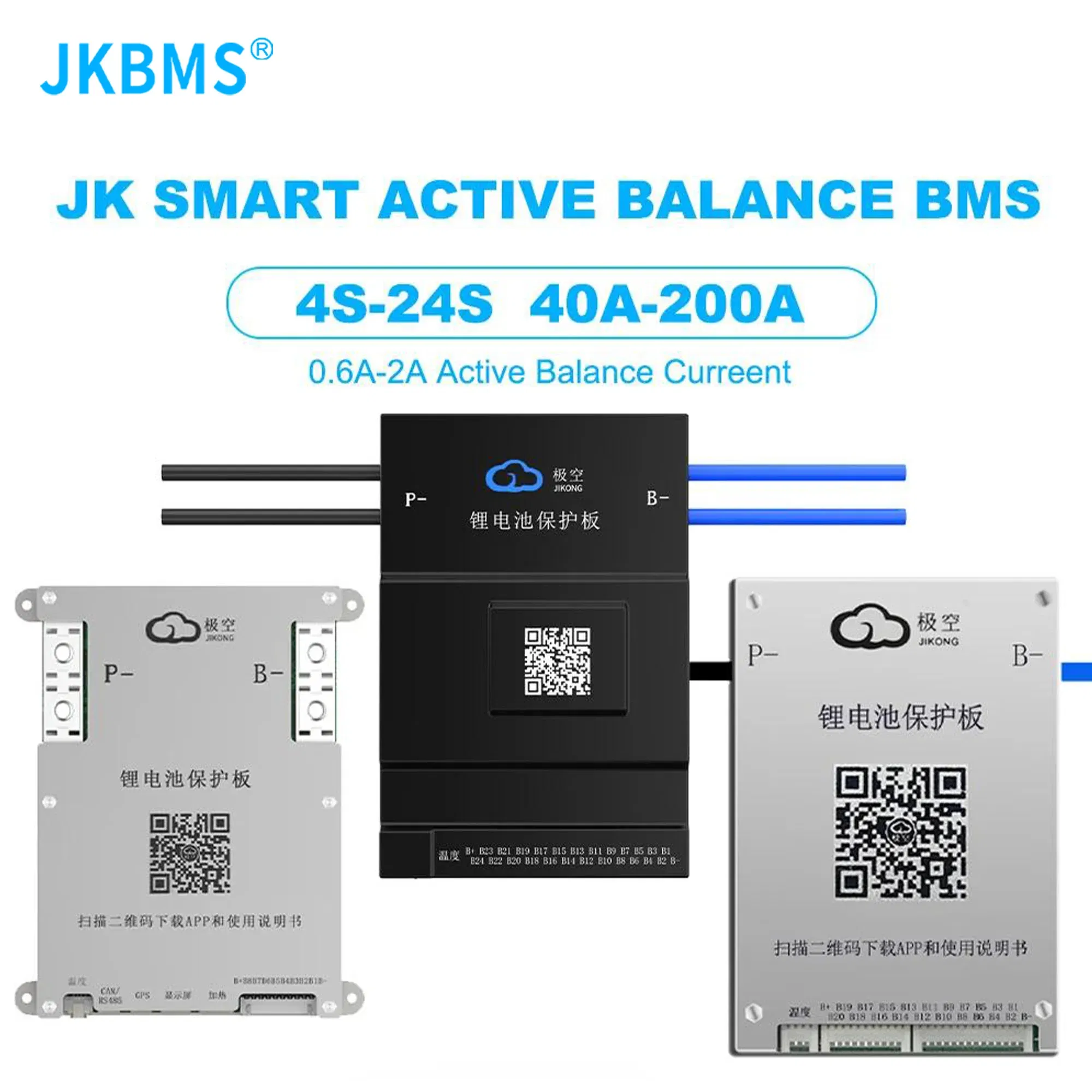

Color: Black, Ships From: CHINA - JKBMS SAMRT BMS 4S 5S 6S 7S 8S 12V 24V BATTERY WITH 1A ACTIVE BALANCE HEAT FUNCTION ON SALE
$83.44 NZD
or 4 payments of $20.86 with
Balance Function: Active Balanced BMS

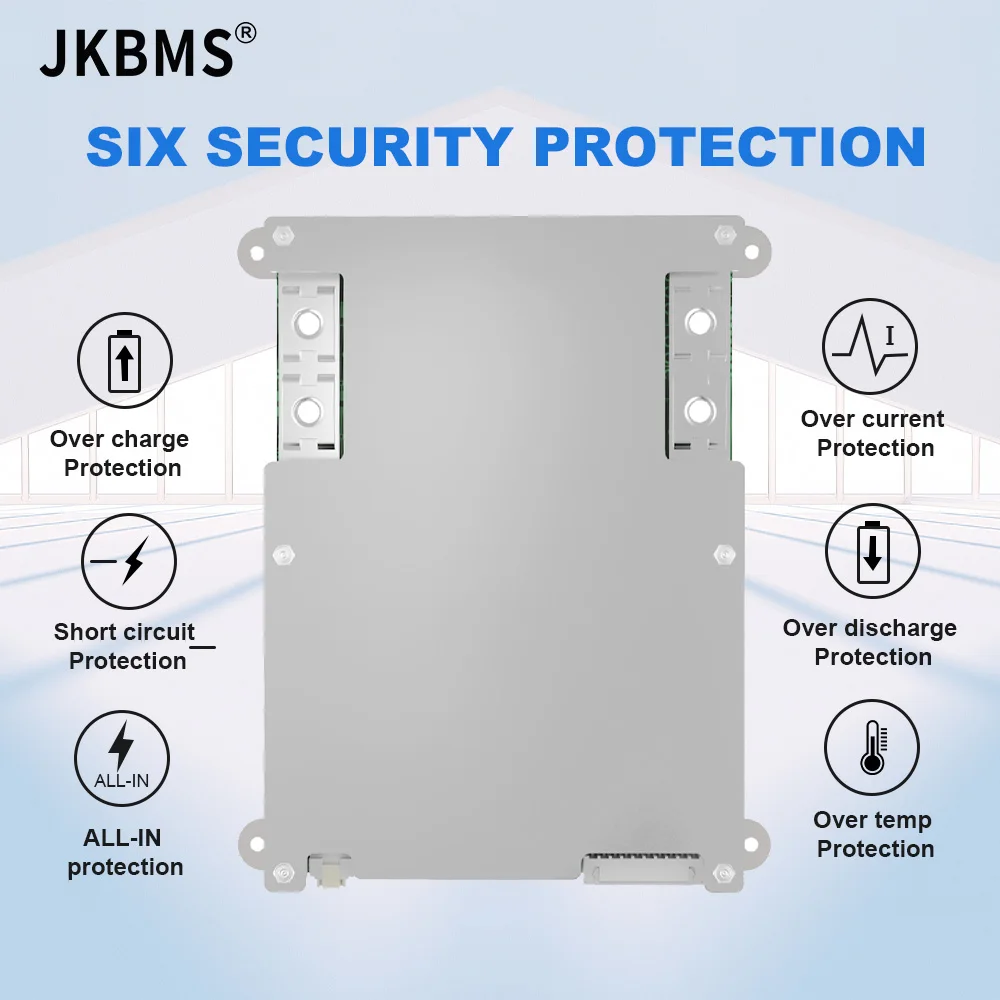

Function: Overcharge Protection
Function: Over Discharge Protection
Function: Overcurrent Protection
Function: Short Circuit Protection
Usage Scenario: Power BMS
Charge and Discharge Port: Common Port BMS
Type: LIFEPO4 Battery BMS
Handware or Smart: SMART BMS
Charging Current: 200A
Certification: CE
Certification: FCC
Certification: RoHS
Origin: Mainland China

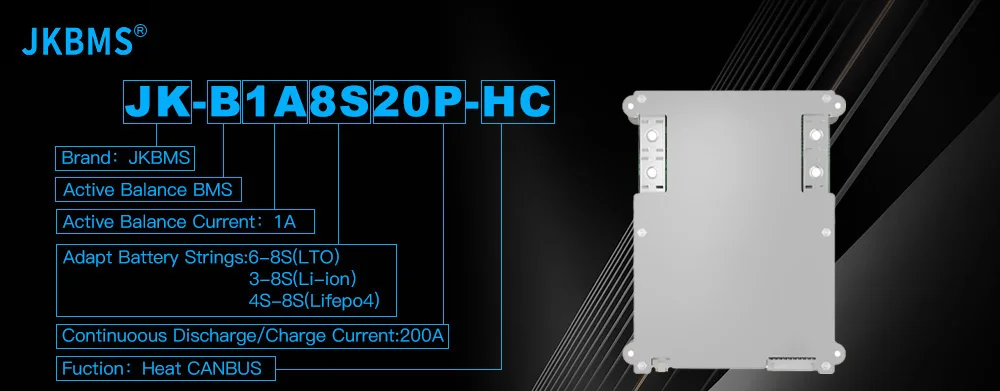

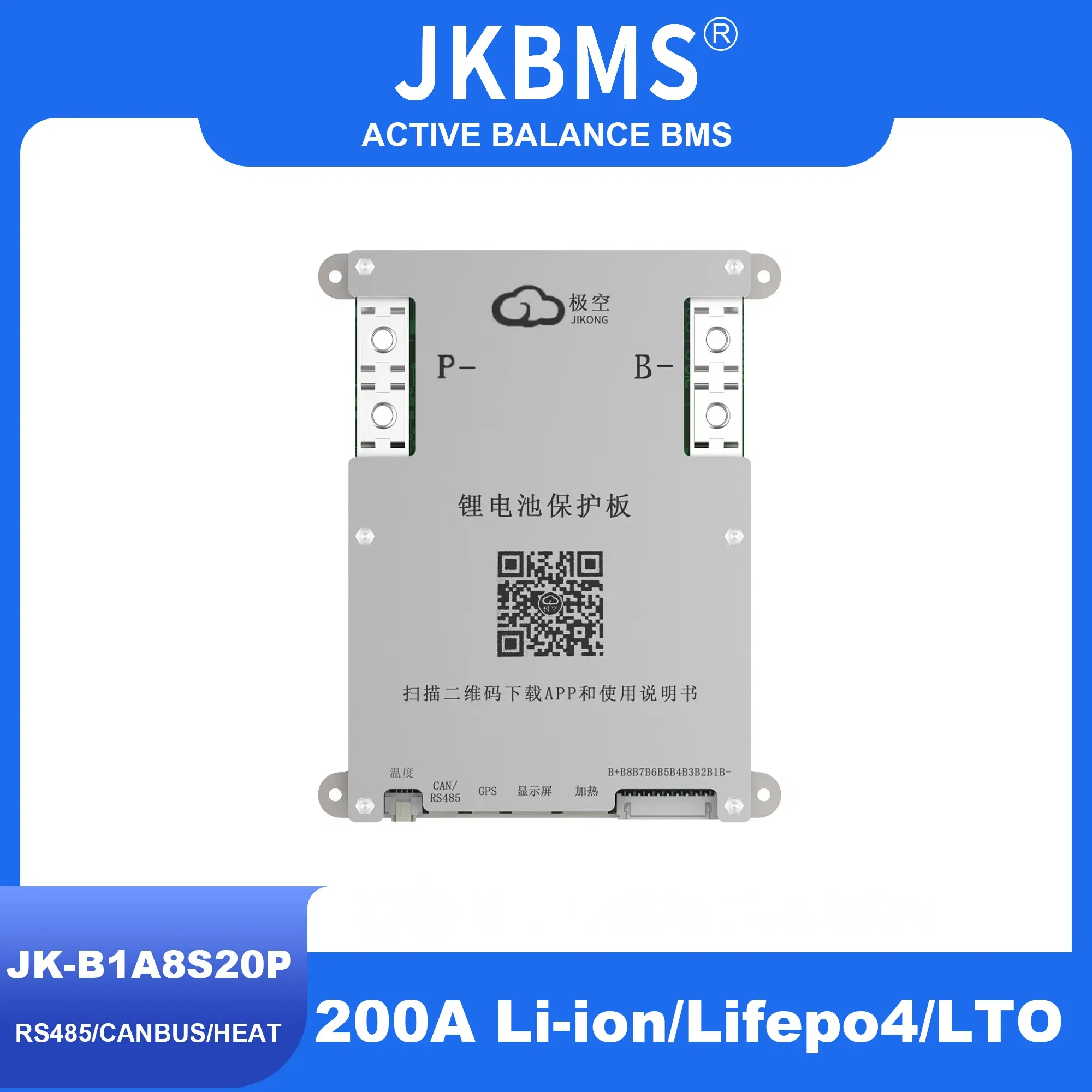

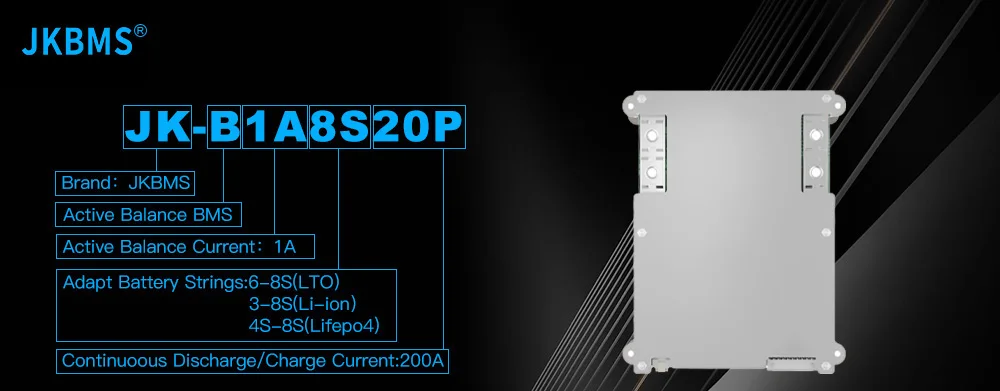

Name: JK-B1A8S20P
Over charge protection: YES
Over discharge voltage: YES
Short circuit protection: YES
Balance function: YES
Bluetooth: YES
RS-485: YES
CANBUS: YES
Accessory: Wire cable is free
LCD Display: According to Cusotmer need
Choice: yes
semi_Choice: yes

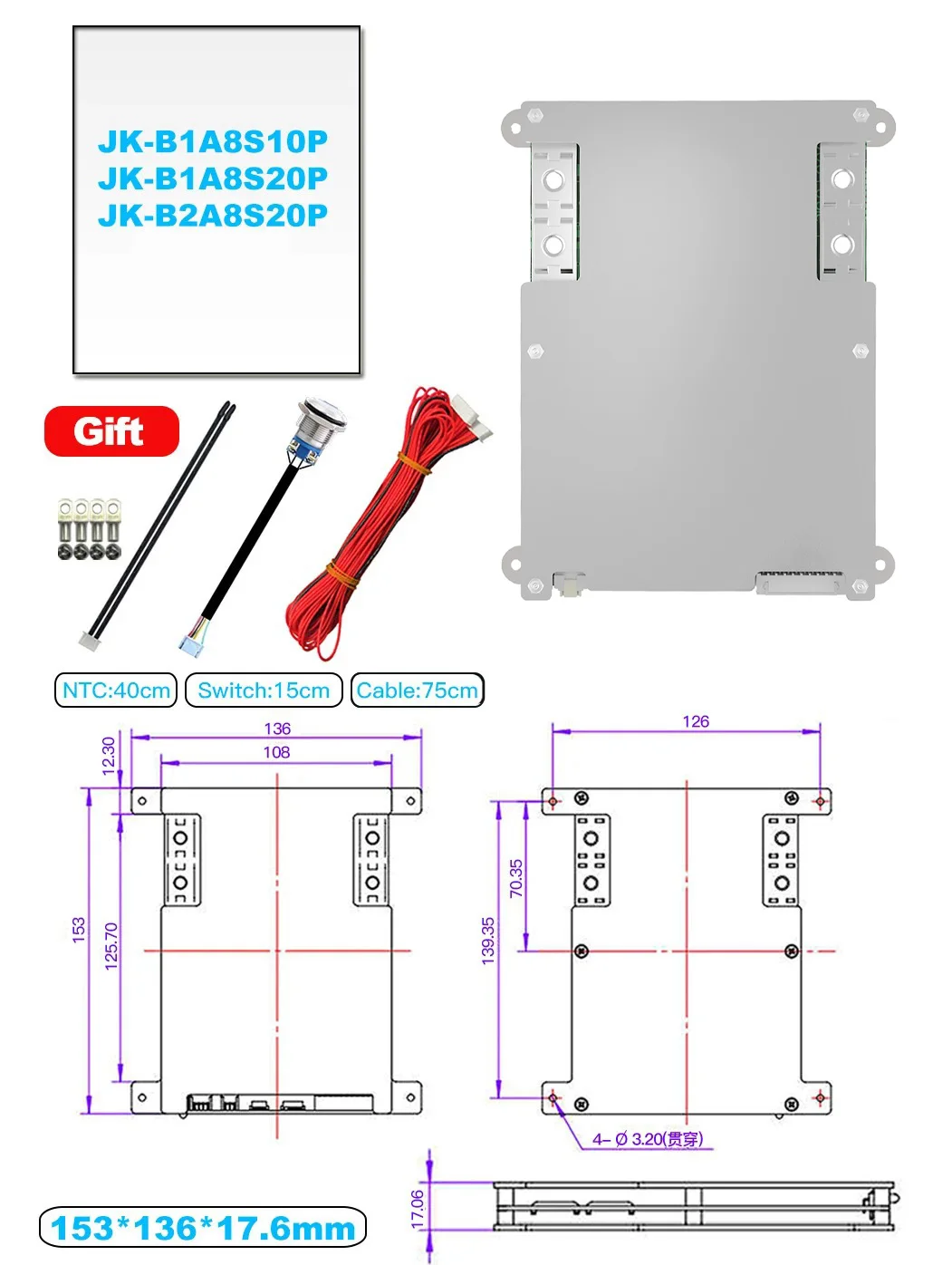

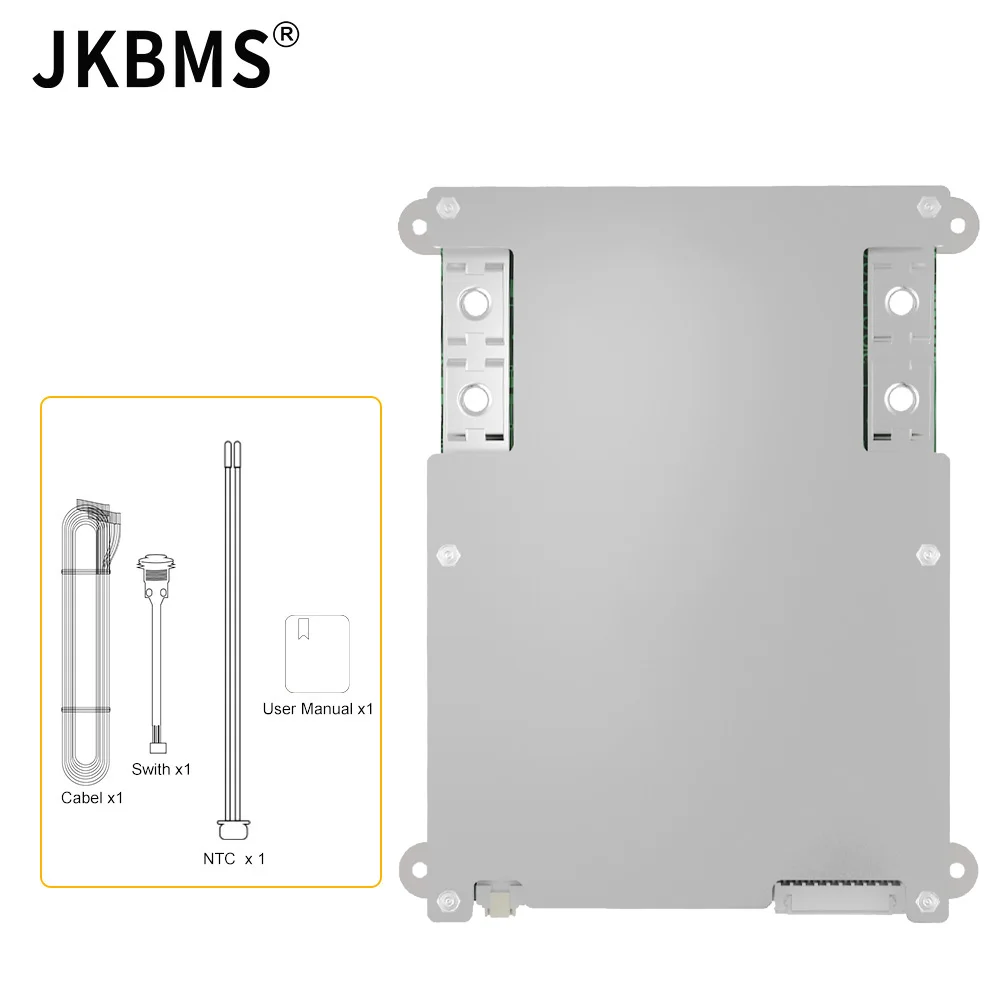

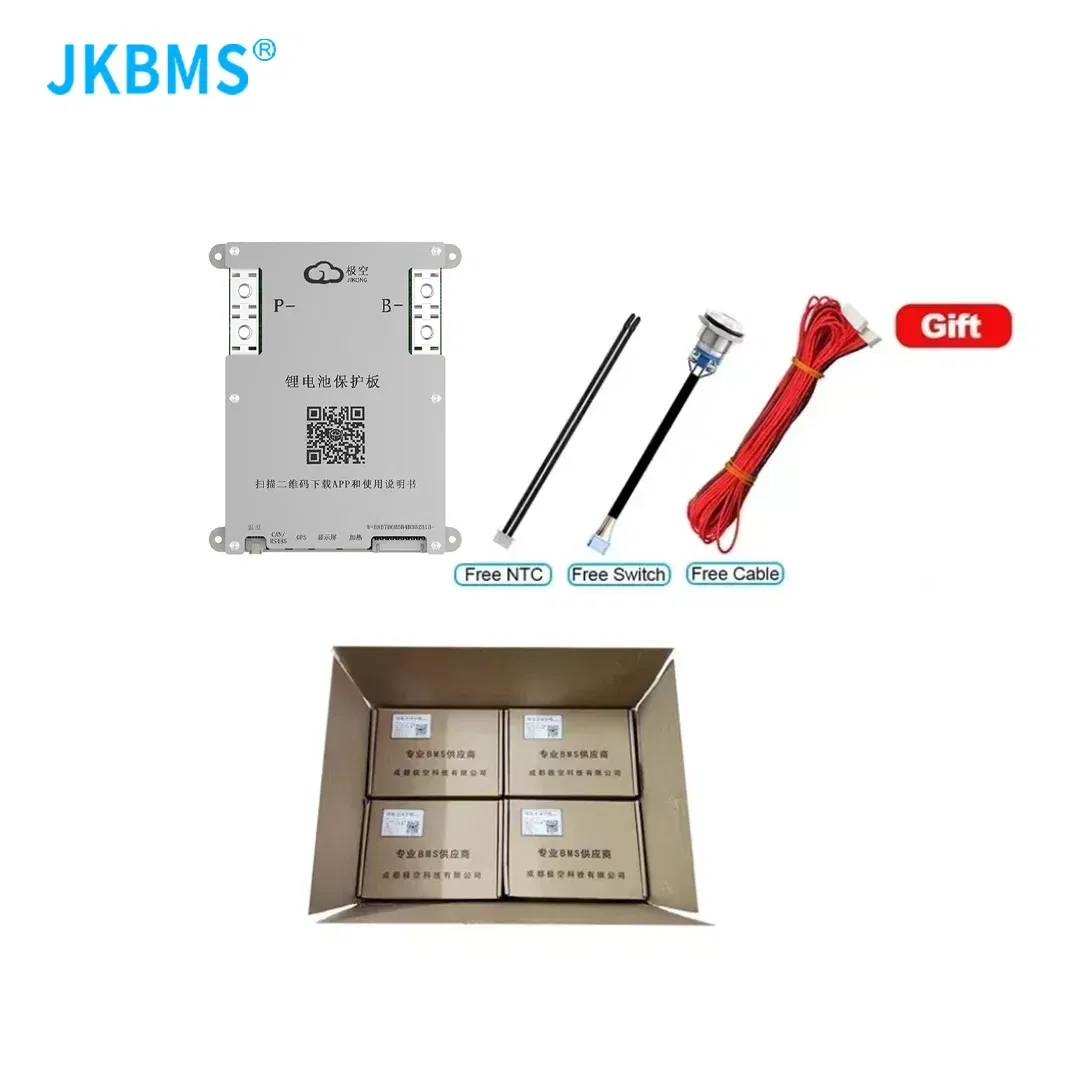

☆Package
BMS{Bluetooth bulit-in}
* Temperature sensor(40cm)
* Balance Wires(75cm)
* Active Switch(15cm)
*Heating cable(Only for BMS With Heat Function)
H:BMS With Heat Function
C:BMS With CANBUS chip Bulit-in

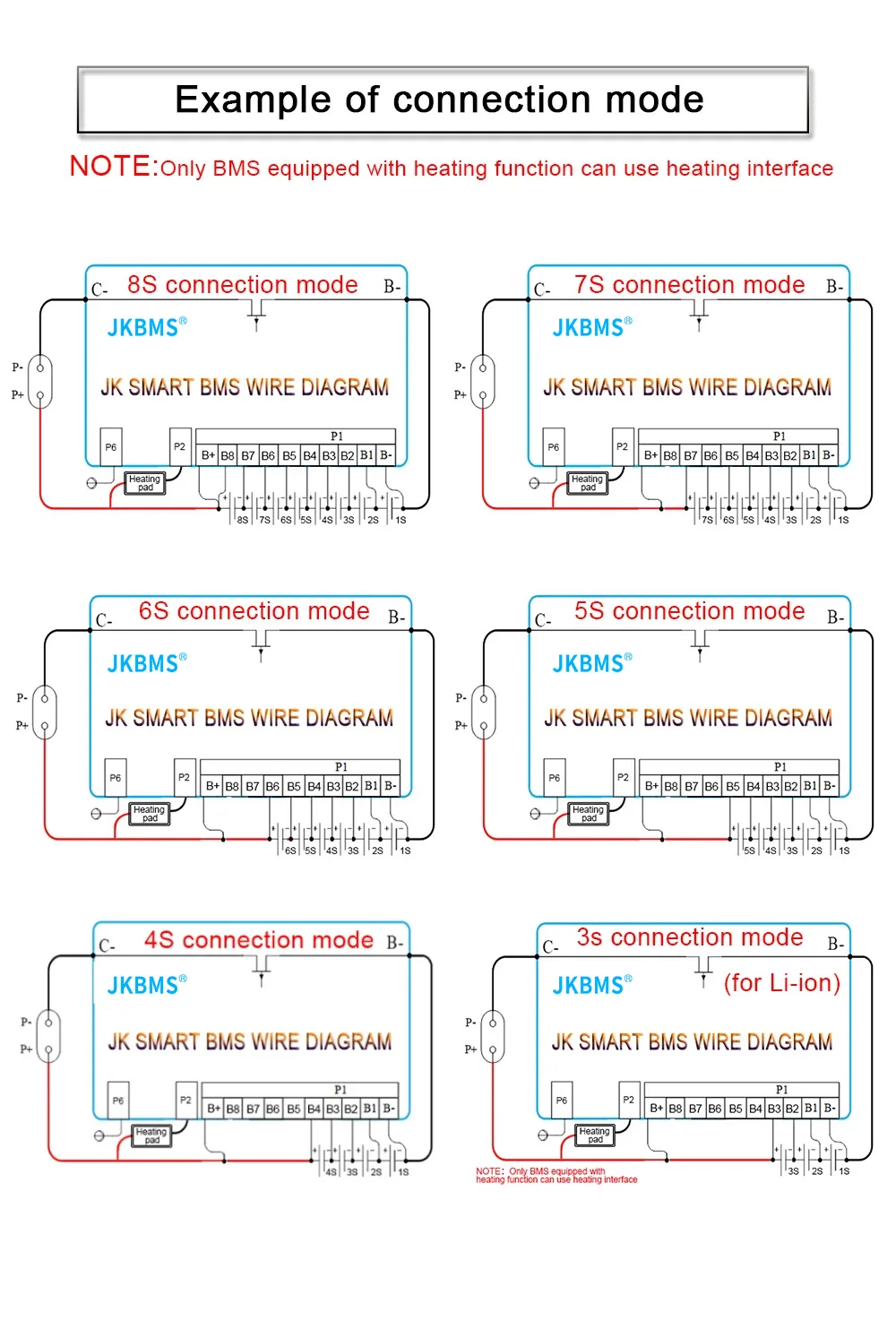

NOTE: Â For instructions on heating cables,
the green 5PIN cable of the heating cable needs to be linked to the heating pad,
and the rest of the black and red cables are linked to the smart charger
(after the smart charger links the BMS,
it detects the temperature of the battery through the BMS,
which automatically monitors the charging status of the battery)

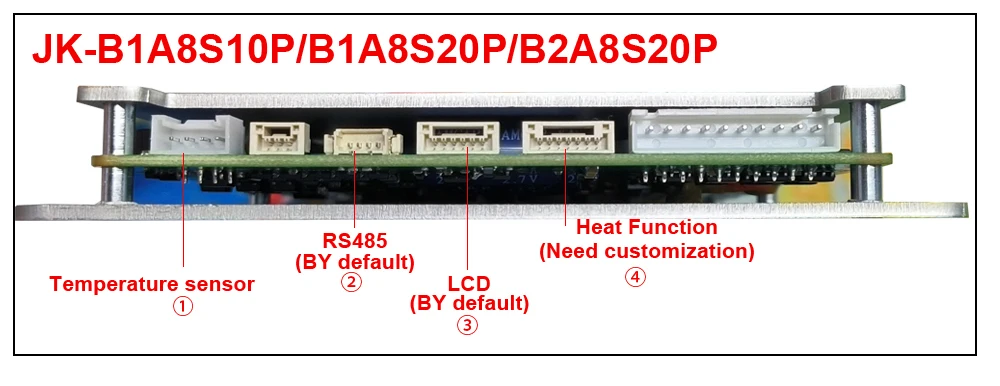

Heat Function interface
Description of heating function:
Battery temperature is below low temperature charge protection, turn off charging, turn on heating.
Cryogenic charge protection is a parameter that can be set within APP
The heating power depends on the battery voltage and the resistance value of the heating film.
Battery voltage U.
Heating resistance R.
Power equals U*U/R
Heating current I=U/R;
The maximum I (current) of the board design is 3A.
MAX heating power 200W(100W OF B2A8S20P).
☆  Pls buy the accessory from the following link.
https://www.aliexpress.com/item/1005006031699580.html

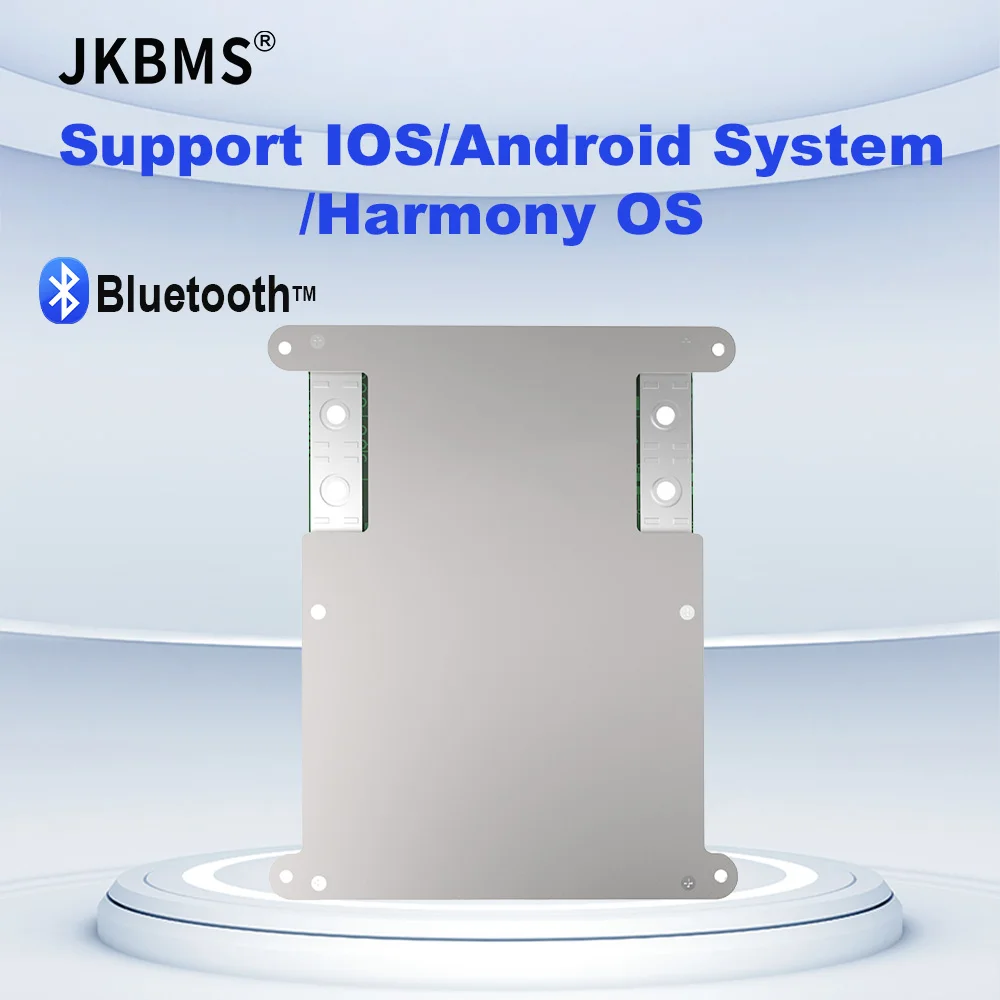

☆  Bluetooth link for Phone-JK BMS
Function: Overcharge Protection
Function: Over Discharge Protection
Function: Overcurrent Protection
Function: Short Circuit Protection
Usage Scenario: Power BMS
Charge and Discharge Port: Common Port BMS
Type: LIFEPO4 Battery BMS
Handware or Smart: SMART BMS
Charging Current: 200A
Certification: CE
Certification: FCC
Certification: RoHS
Origin: Mainland China
Name: JK-B1A8S20P
Over charge protection: YES
Over discharge voltage: YES
Short circuit protection: YES
Balance function: YES
Bluetooth: YES
RS-485: YES
CANBUS: YES
Accessory: Wire cable is free
LCD Display: According to Cusotmer need
Choice: yes
semi_Choice: yes
☆Package
BMS{Bluetooth bulit-in}
* Temperature sensor(40cm)
* Balance Wires(75cm)
* Active Switch(15cm)
*Heating cable(Only for BMS With Heat Function)
H:BMS With Heat Function
C:BMS With CANBUS chip Bulit-in
NOTE: Â For instructions on heating cables,
the green 5PIN cable of the heating cable needs to be linked to the heating pad,
and the rest of the black and red cables are linked to the smart charger
(after the smart charger links the BMS,
it detects the temperature of the battery through the BMS,
which automatically monitors the charging status of the battery)
Heat Function interface
Description of heating function:
Battery temperature is below low temperature charge protection, turn off charging, turn on heating.
Cryogenic charge protection is a parameter that can be set within APP
The heating power depends on the battery voltage and the resistance value of the heating film.
Battery voltage U.
Heating resistance R.
Power equals U*U/R
Heating current I=U/R;
The maximum I (current) of the board design is 3A.
MAX heating power 200W(100W OF B2A8S20P).
☆  Pls buy the accessory from the following link.
https://www.aliexpress.com/item/1005006031699580.html
☆  Bluetooth link for Phone-JK BMS
Download link-IOS :Â Search (JKÂ BMS) in the APP STORE
Download link-Andriod :Search (JKÂ BMS) in the Google STORE
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
