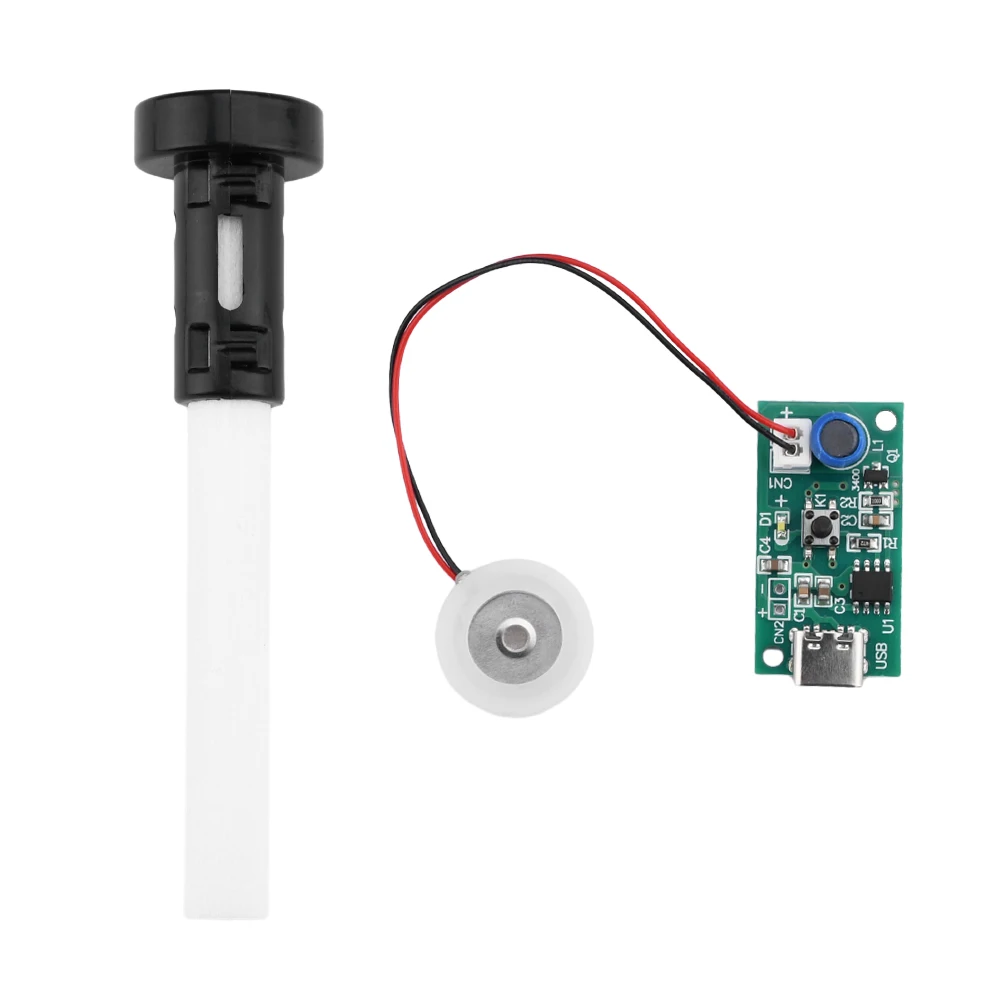

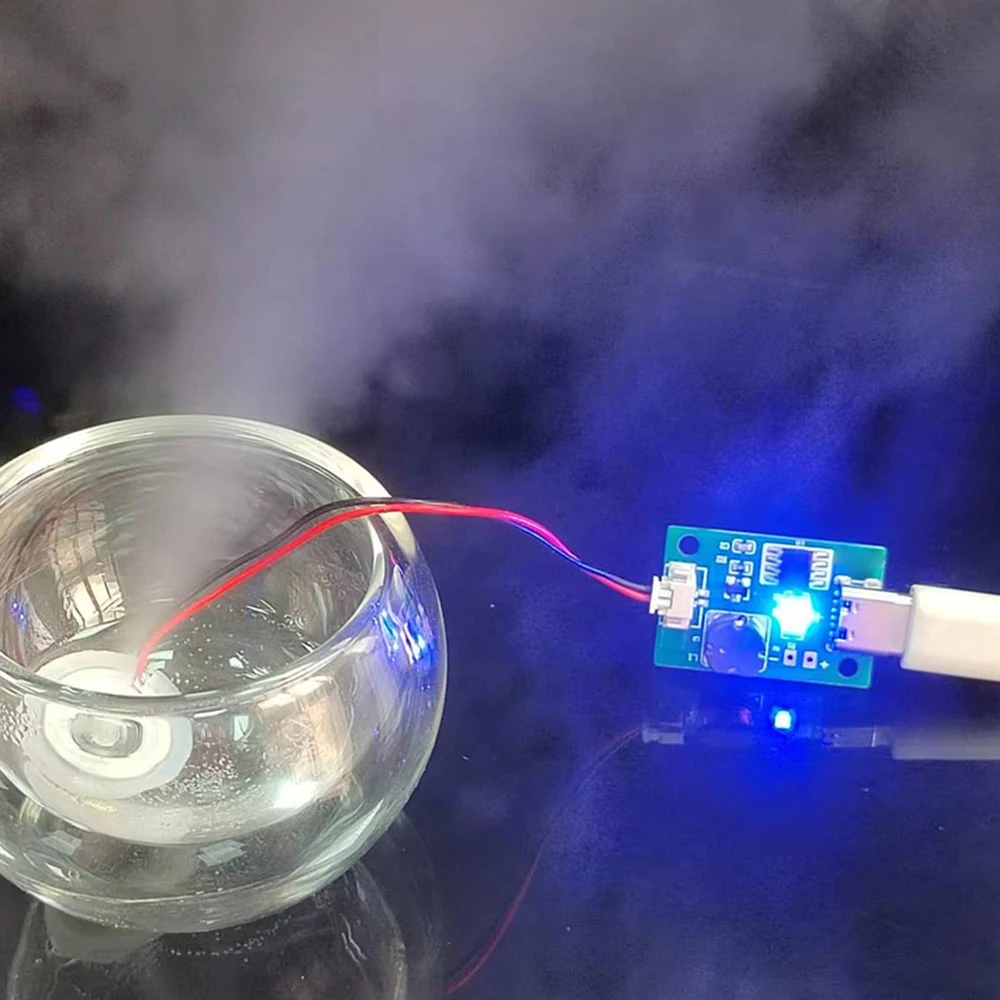

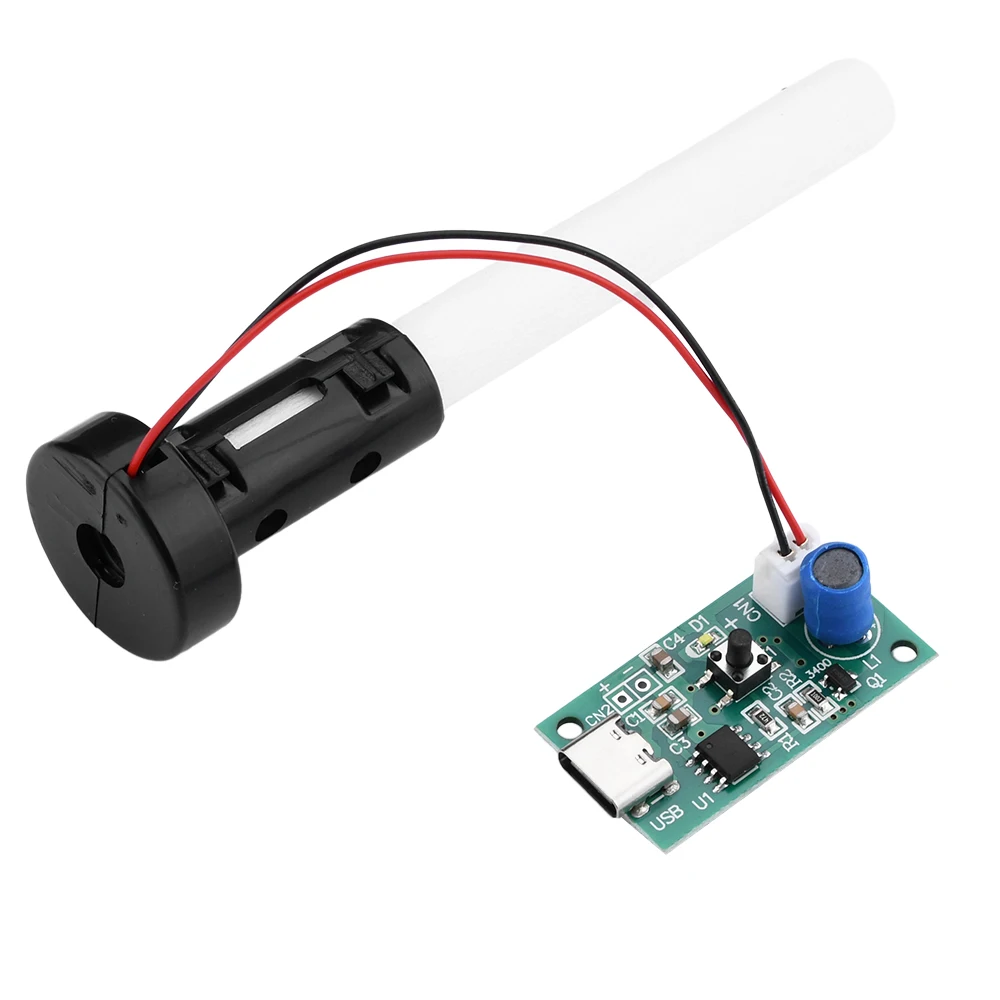

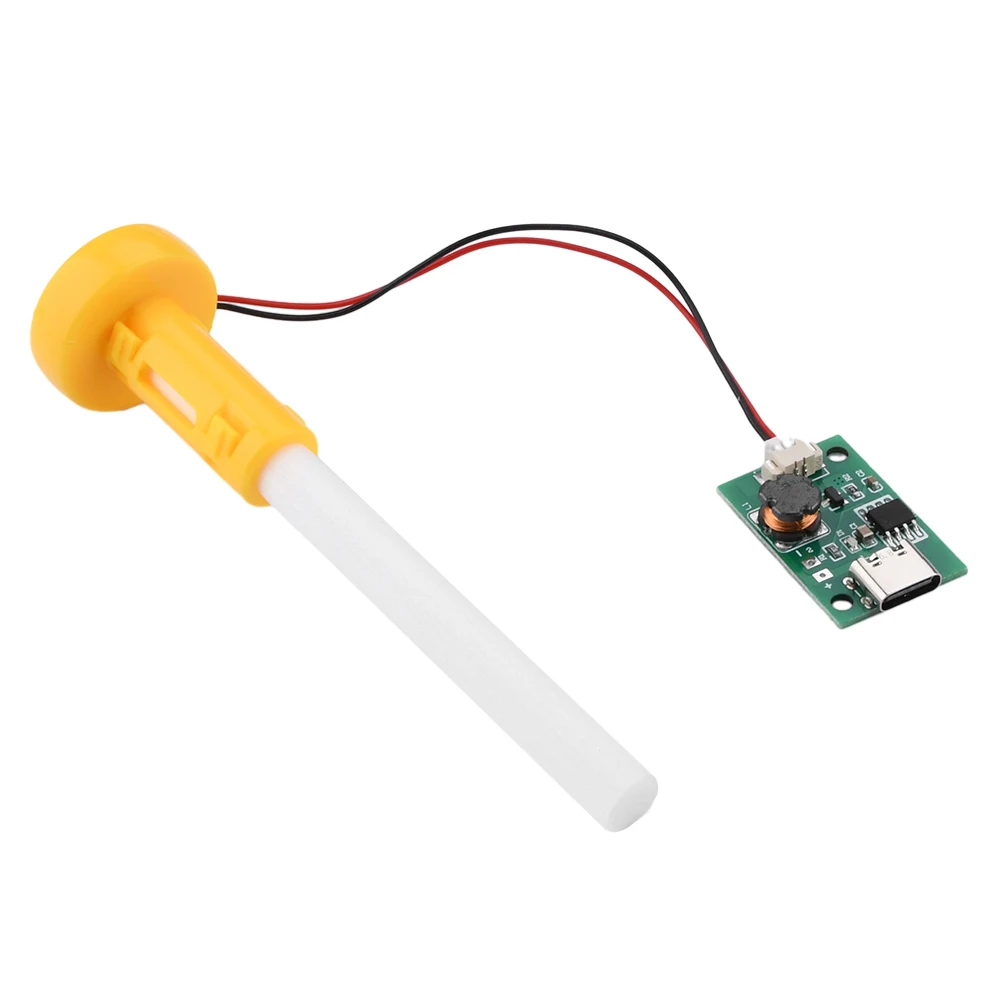

Bundle: Bundle5 - DC5V Ultrasonic Spray Humidifier Electronic Atomization Module Set Universal Humidification Module TYPE-C

Parameter:

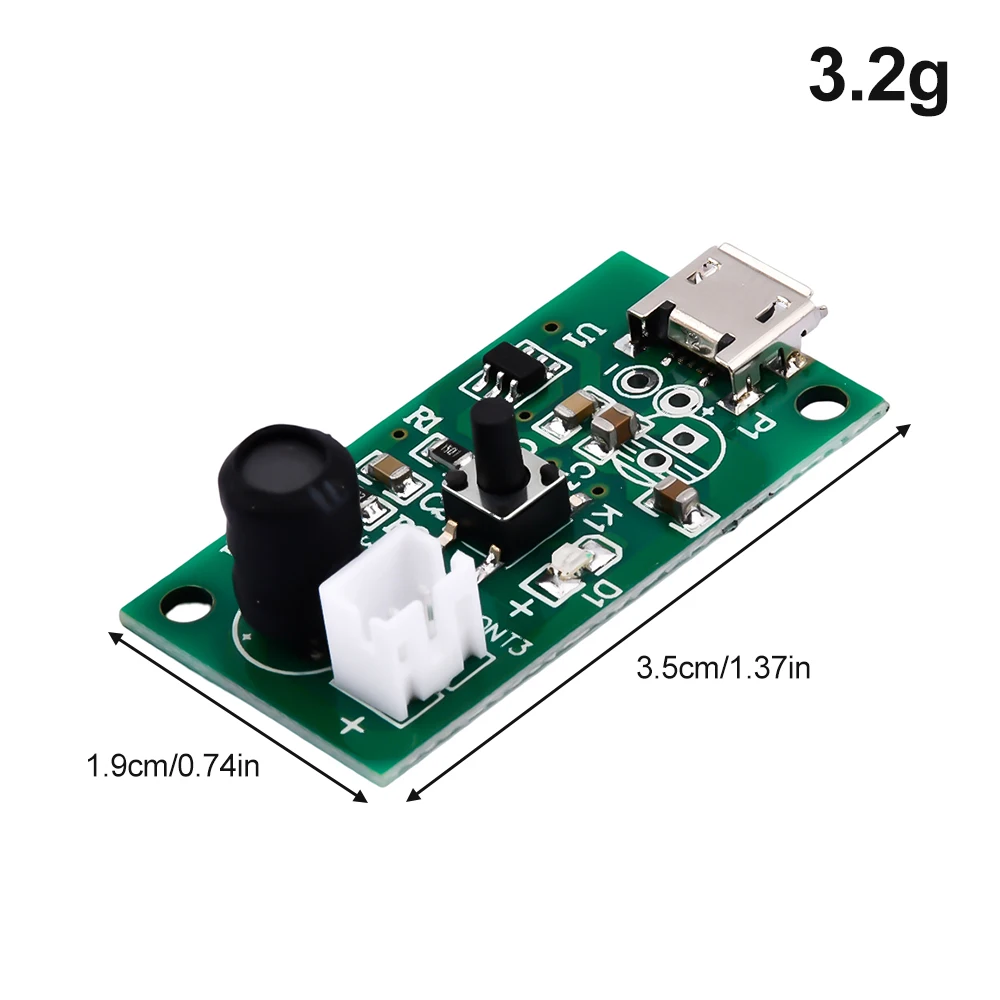

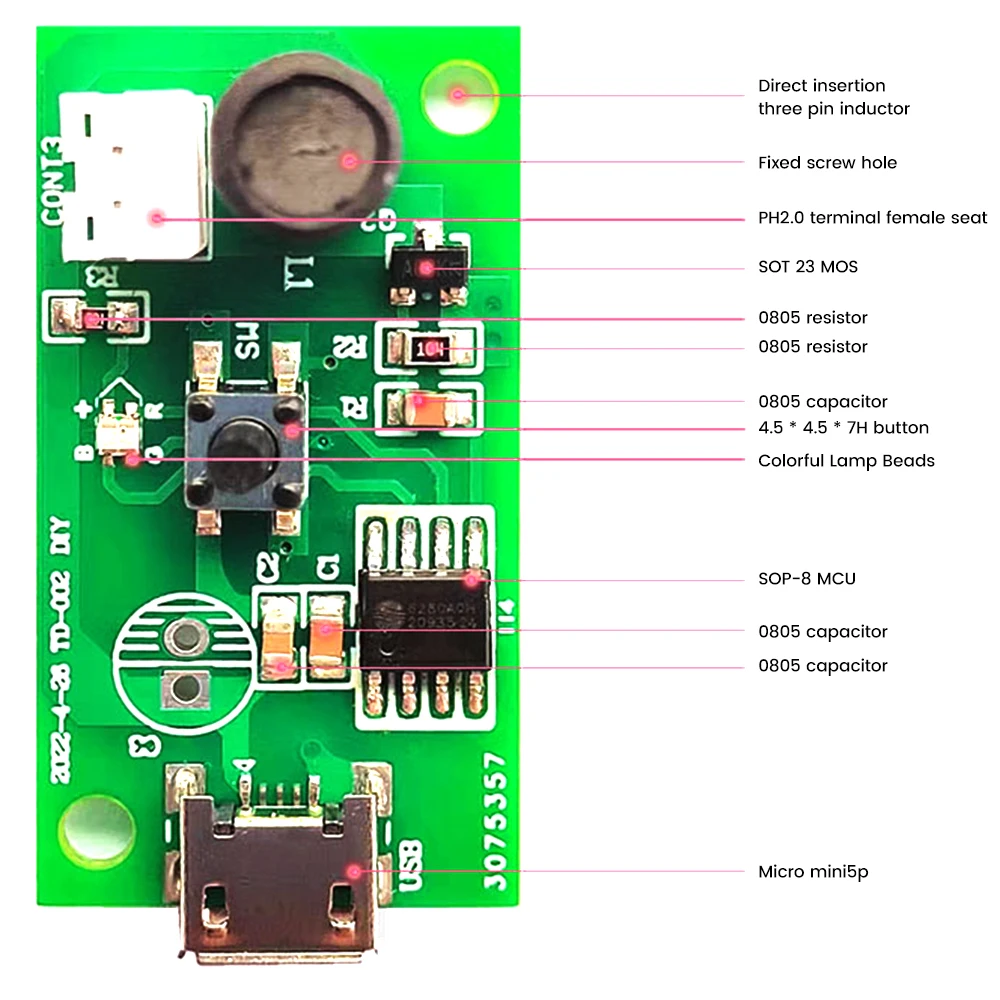

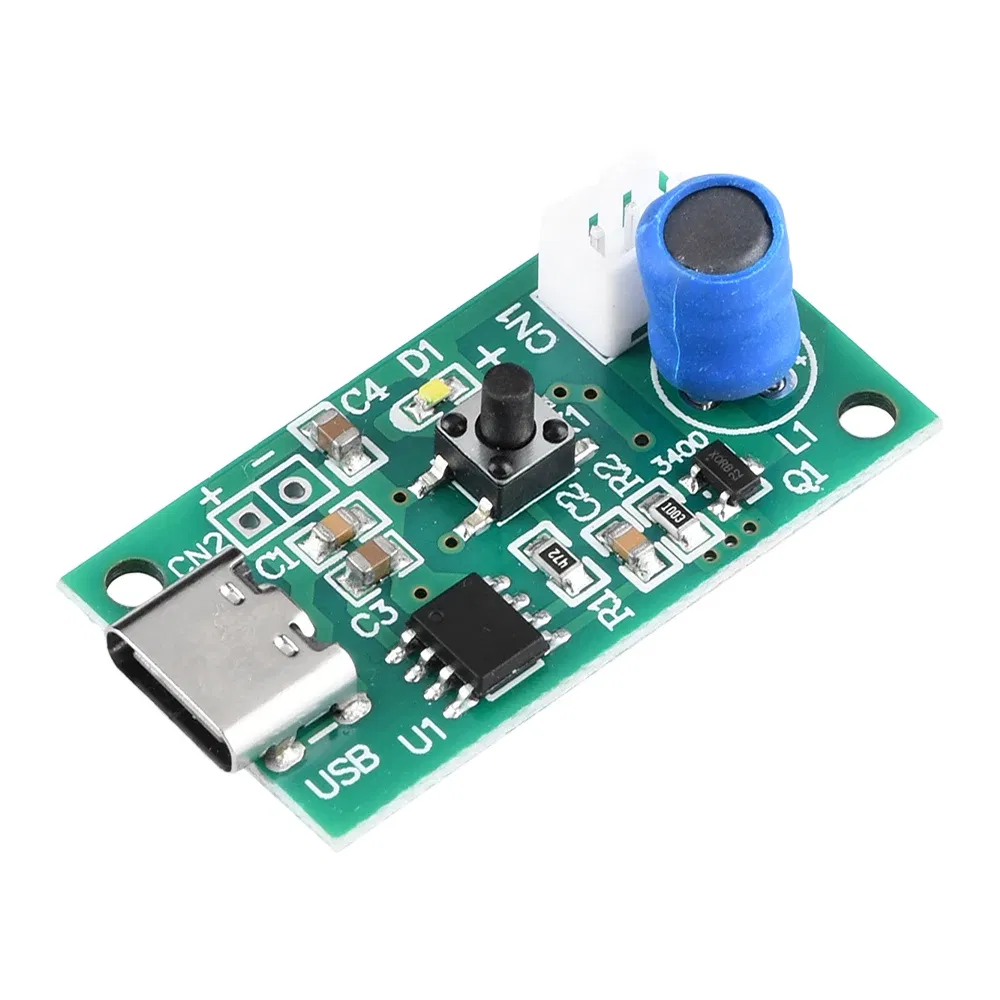

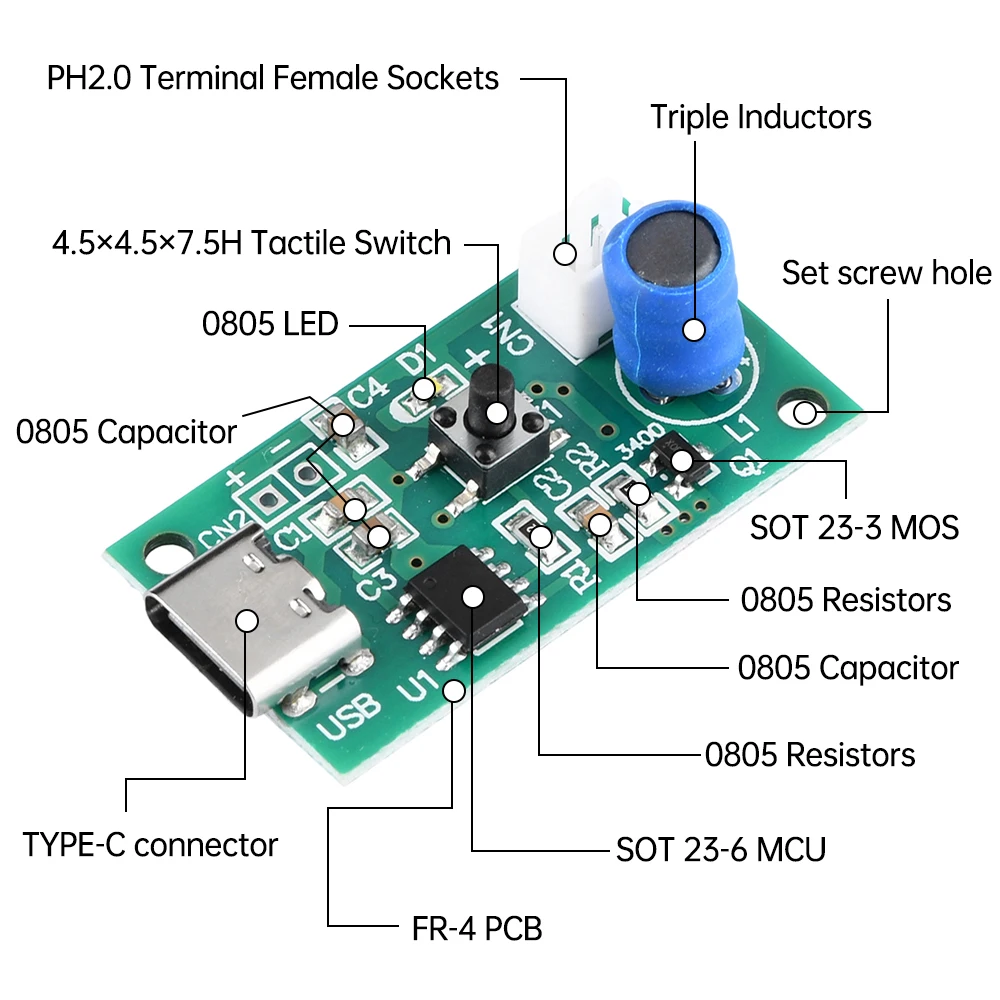

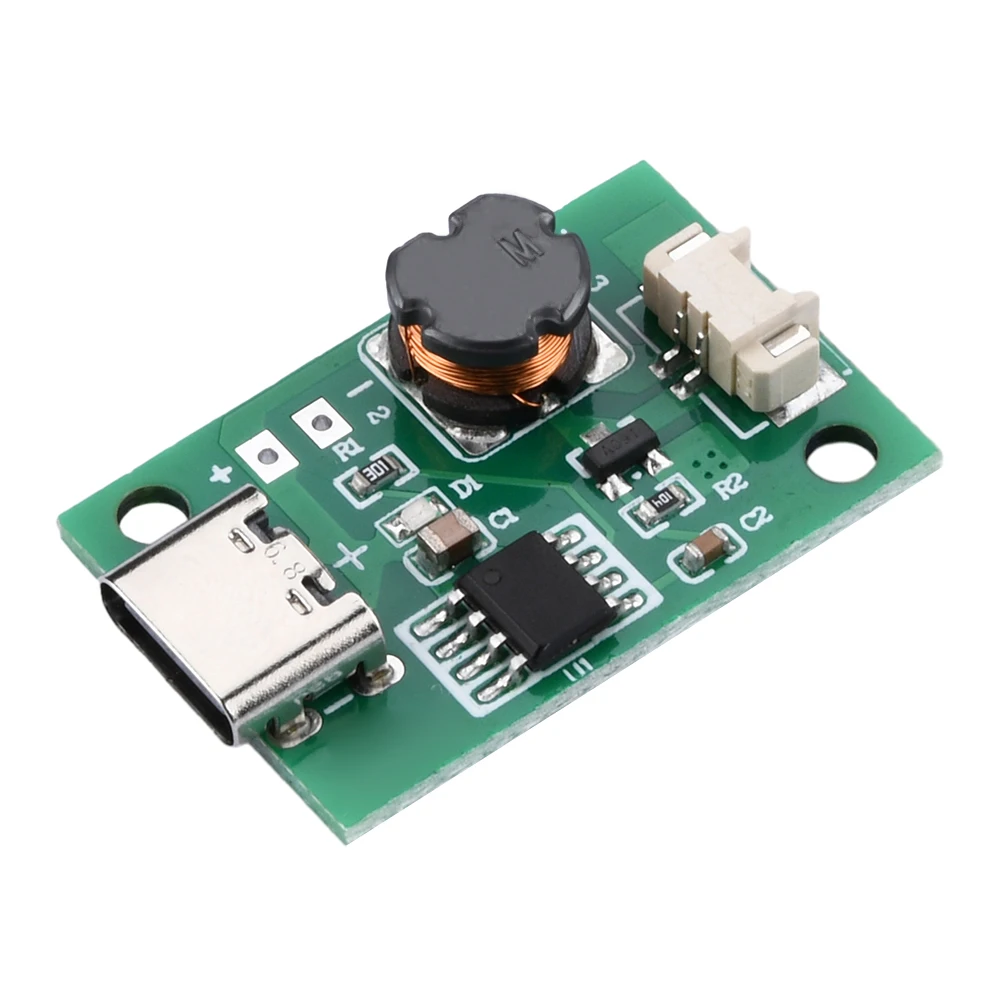

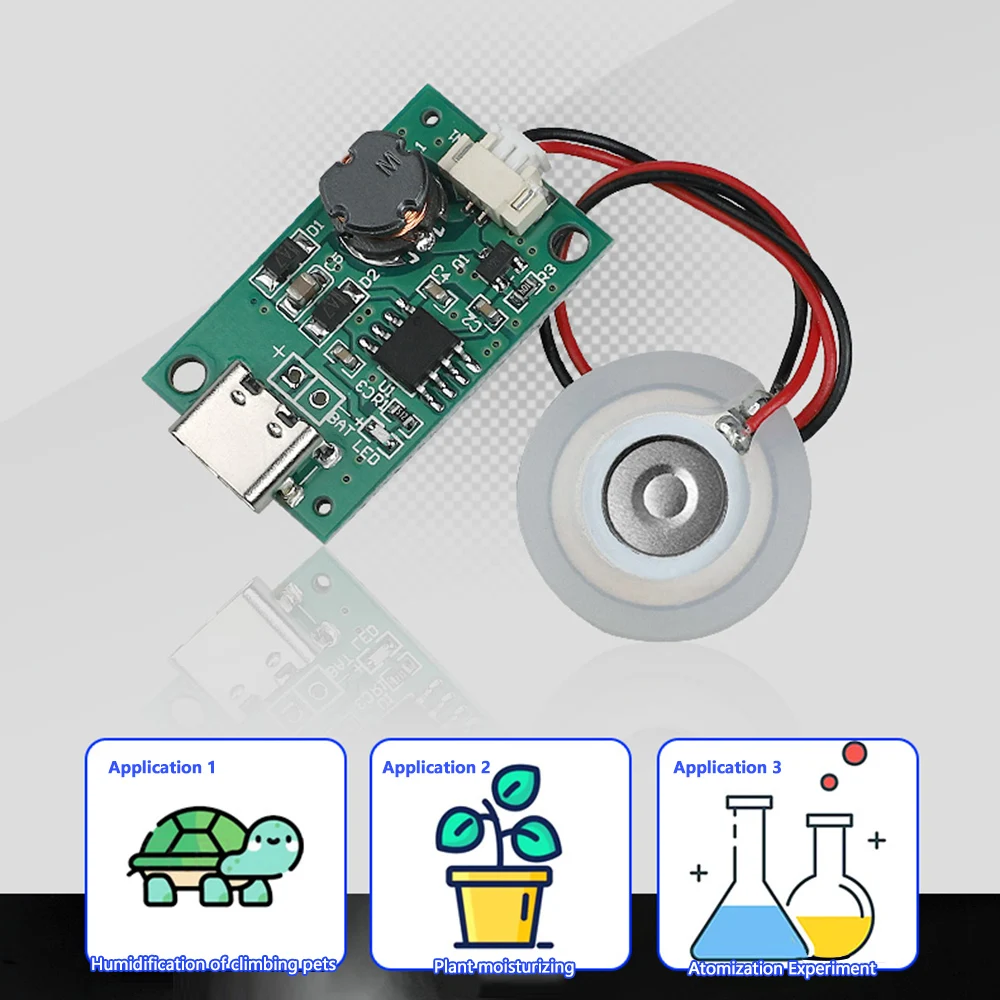

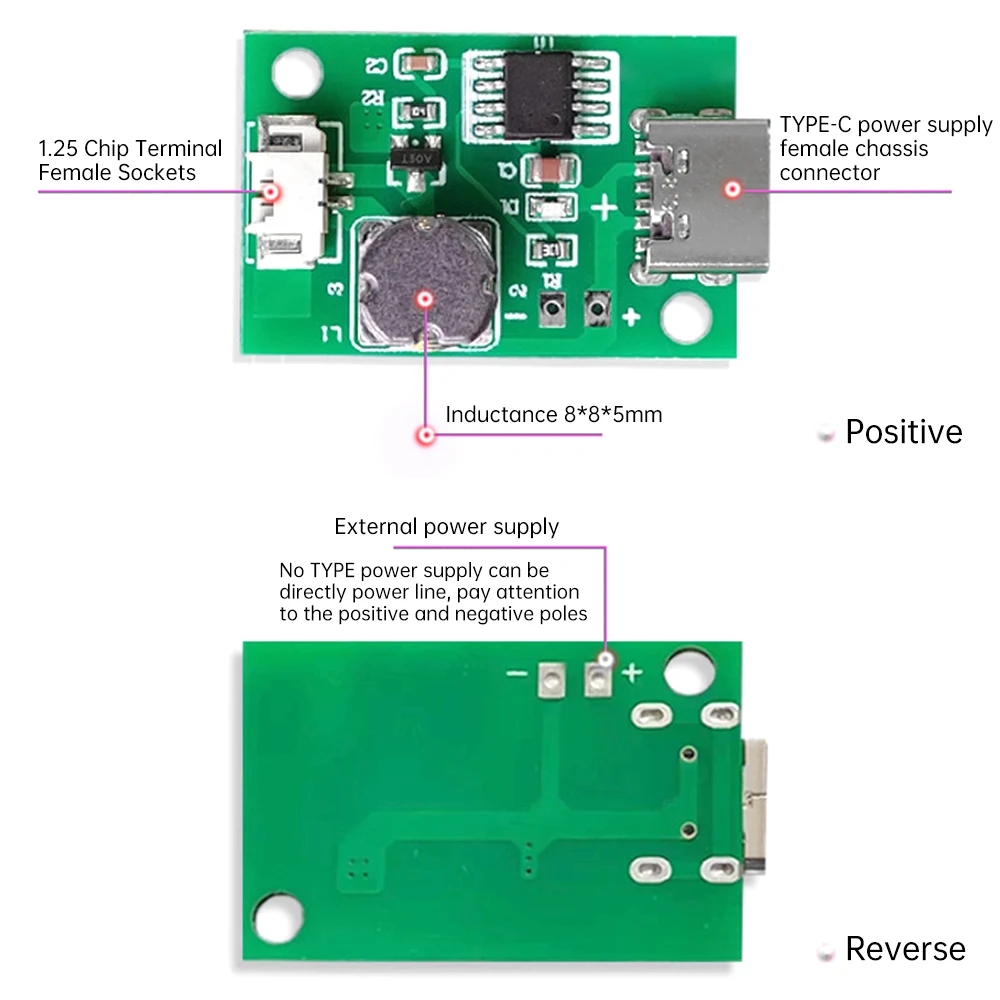

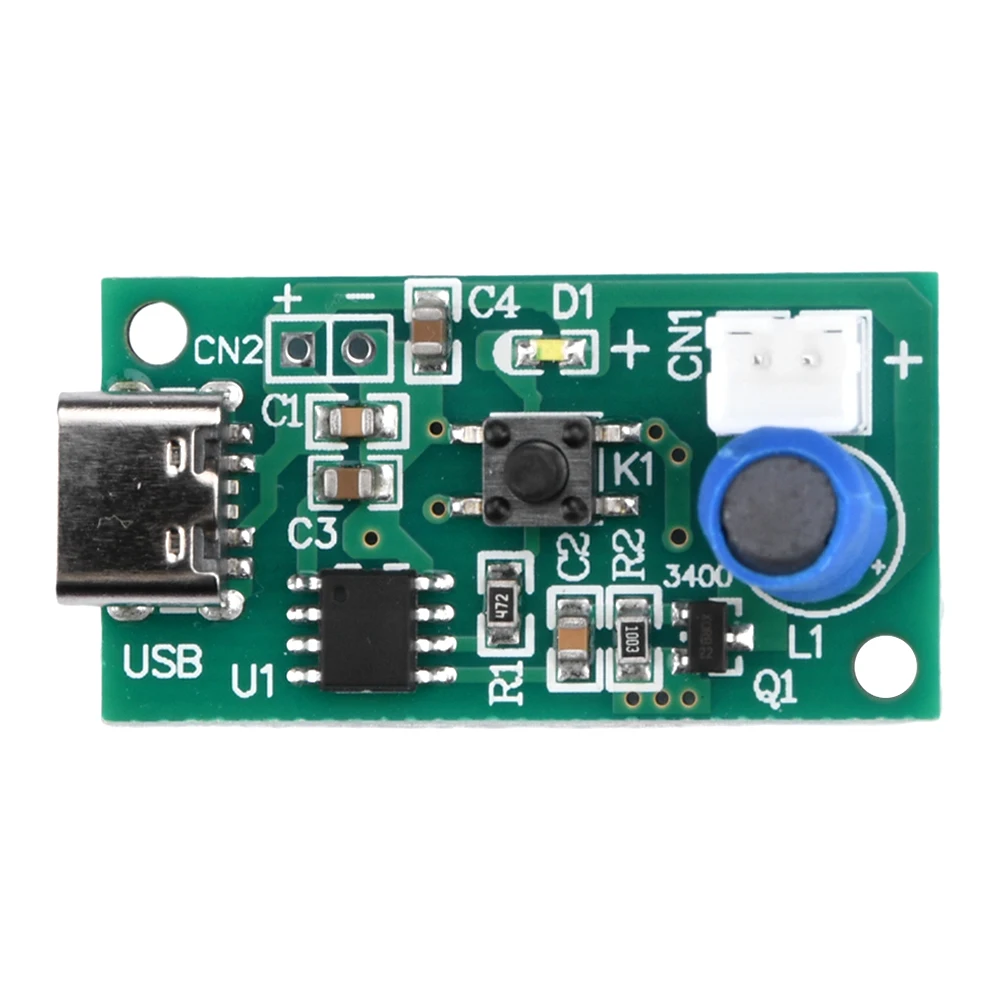

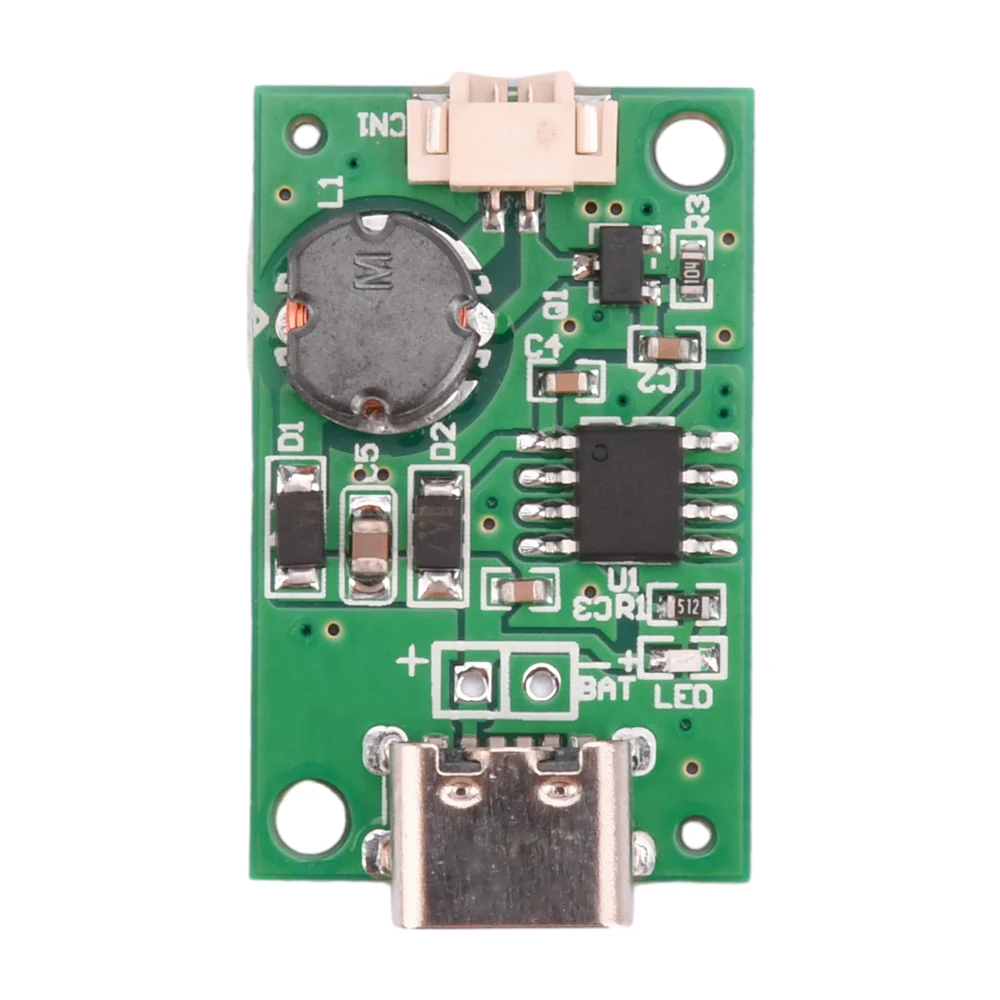

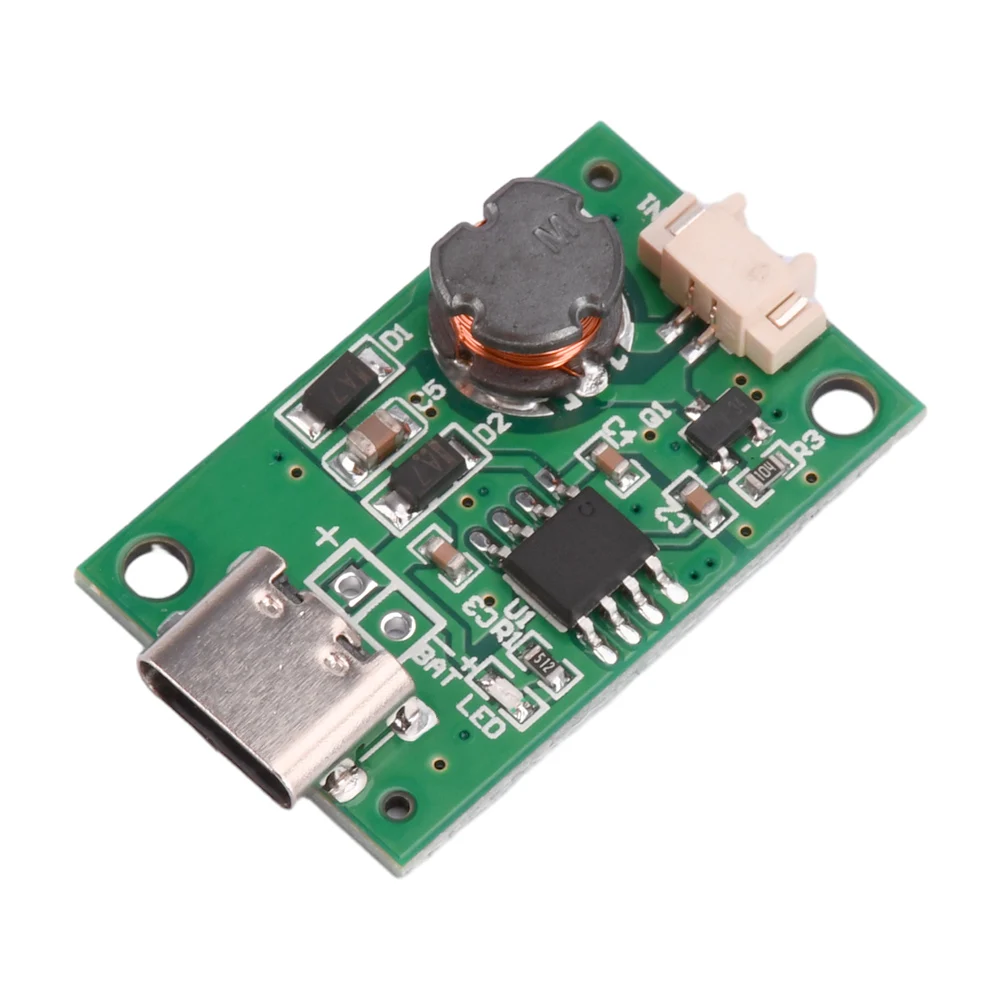

Driver circuit board:
Material: 1.2mm FR-4
Rated voltage: DC 5V
Rated current: 300mA
Power: 1.5-2W
Resonant frequency: 108-110KHz
Aperture: 2.3mm

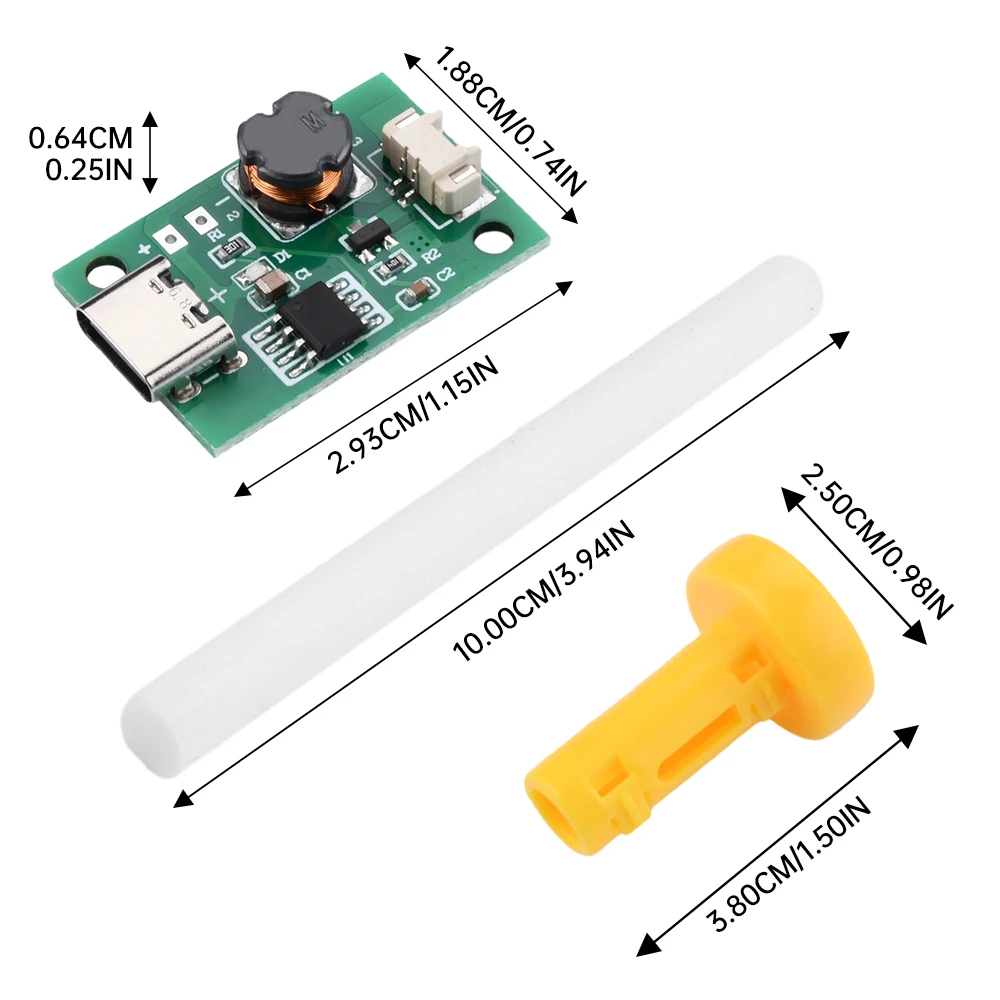

Size: 34.8 x 18.6 x 13mm (with slight errors)

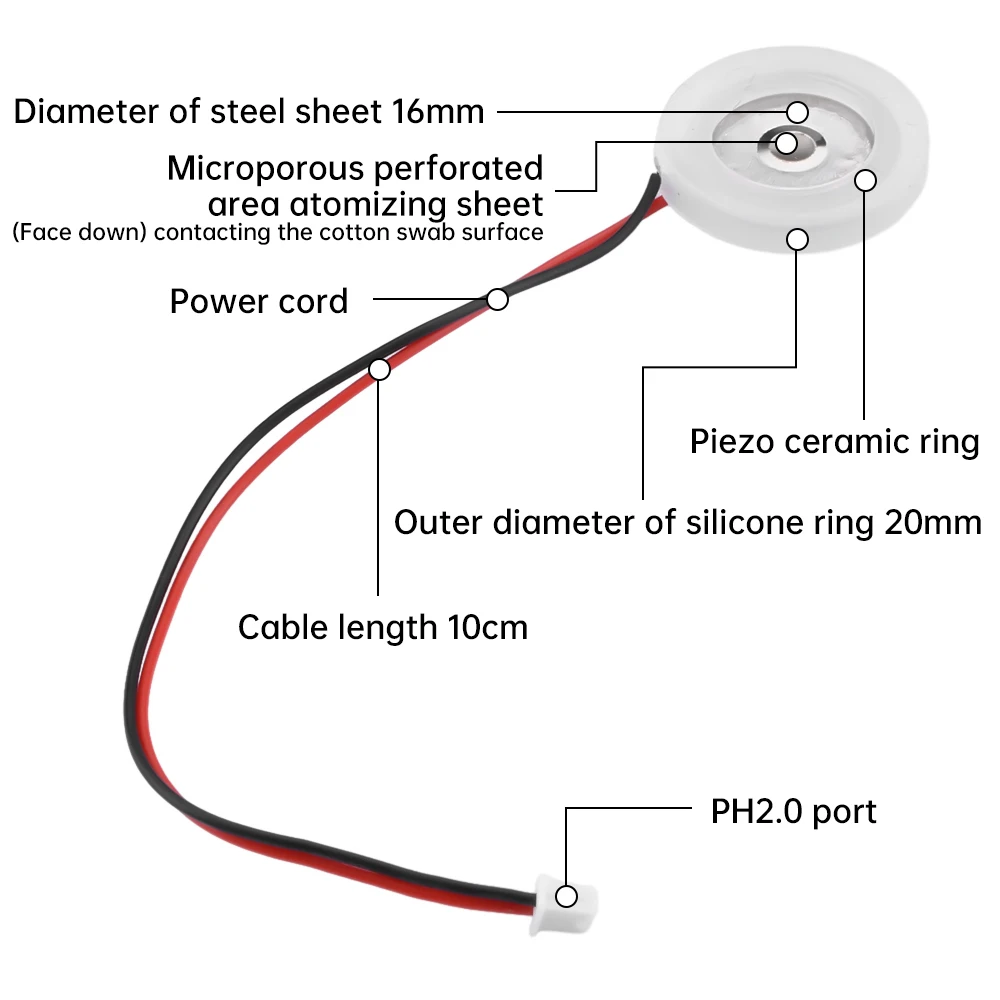

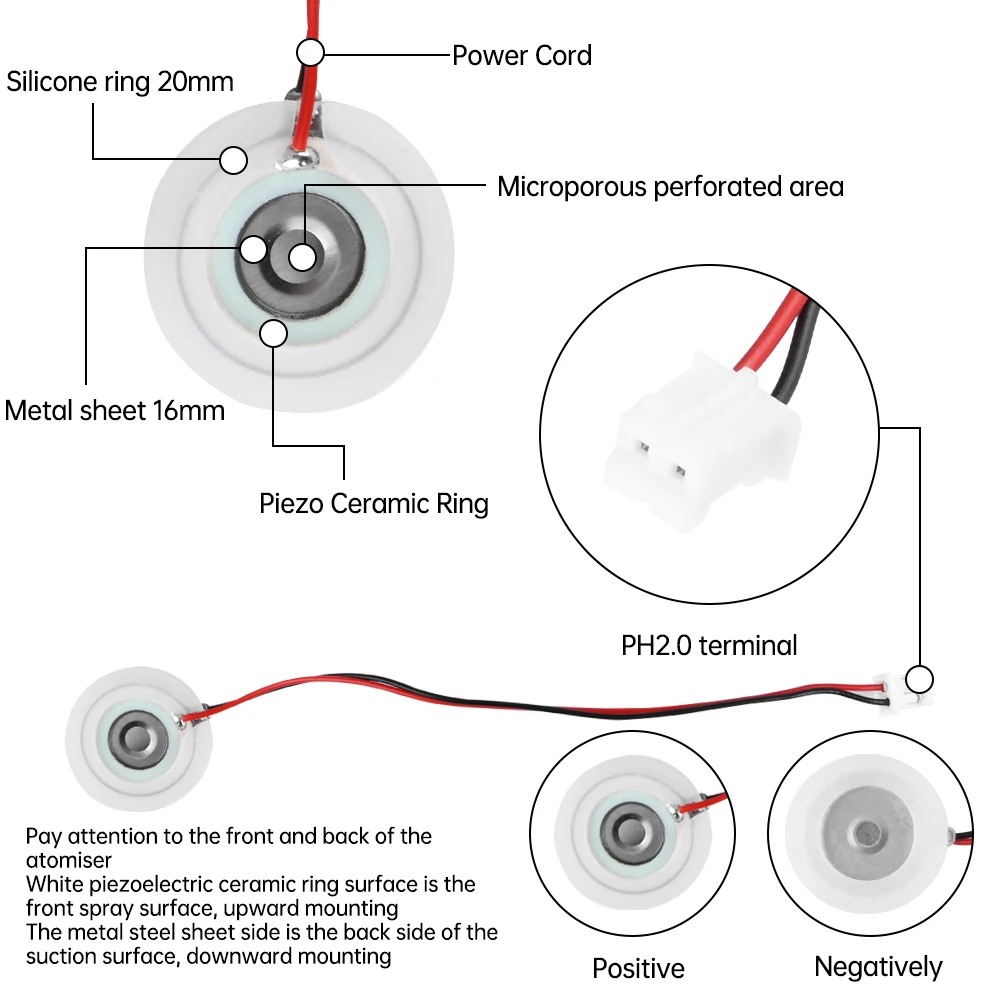

Microporous atomization tablets:
Material: Piezoelectric ceramic ring+304 stainless steel plate
Terminal head: PH2.0
Steel plate diameter: 16mm
Outer diameter of silicone ring: 20mm, thickness 3.5mm
Wire length: 10mm
Voltage: DC 5V,
Current 300mA,
Power 2W,
Resonant frequency: 108-110KHz
Number of holes: 1100 holes
Aperture: 5um
Bracket size: 24mm x 38mm (with slight errors)
Cotton swab size: 10mm x 100mm (there may be slight errors)

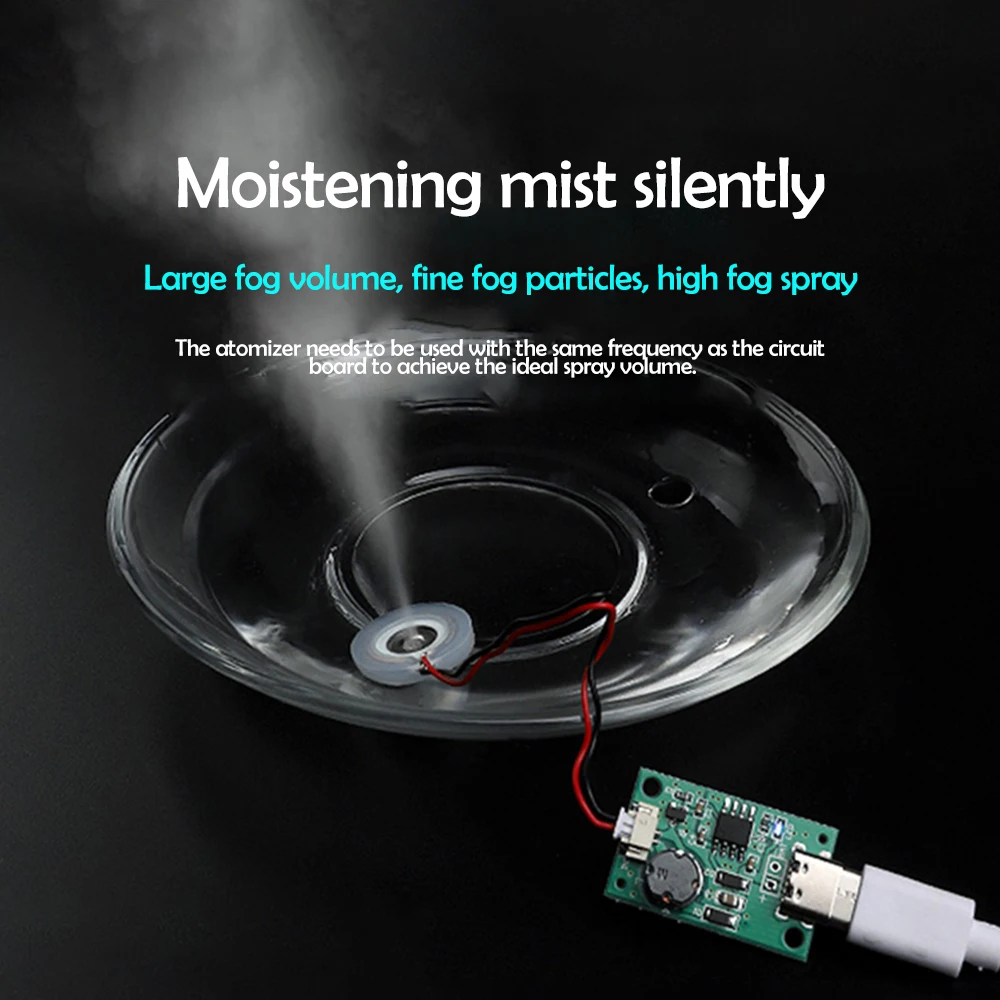

Product Description:
1.The micro porous atomization sheet is coated with a special glaze layer protective layer on the surface of the ceramic sheet, which is acid and alkali resistant and prevents the silver layer from being corroded and oxidized by liquid.
2.Microporous atomization sheet is composed of a piezoelectric ceramic ring and a metal steel sheet. By driving the circuit board to output PWM pulse width modulation, the piezoelectric ceramic generates hundreds of thousands of high-frequency resonances per second, driving the vibration of the metal sheet. Spray water from thousands of micropores in metal steel sheets to form 4-6 micrometer water molecules, which disperse the structure of liquid water molecules and produce water mist.

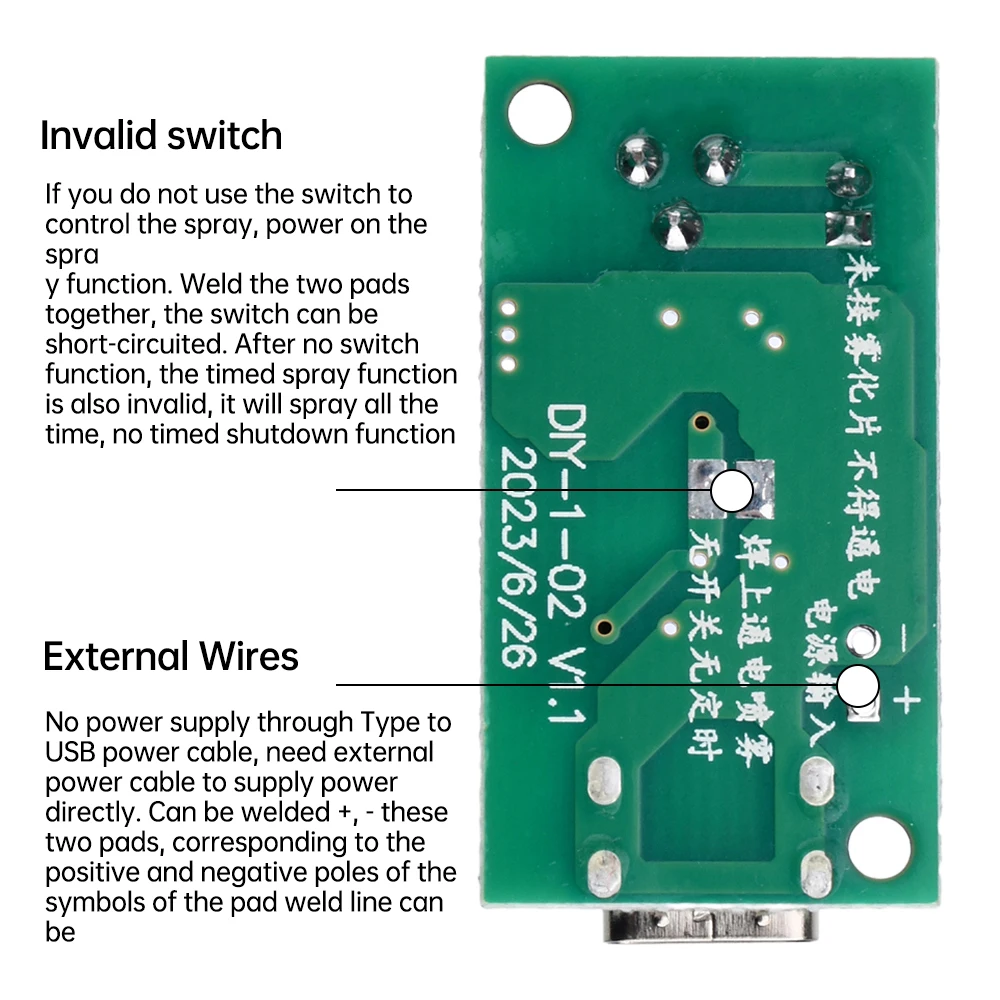

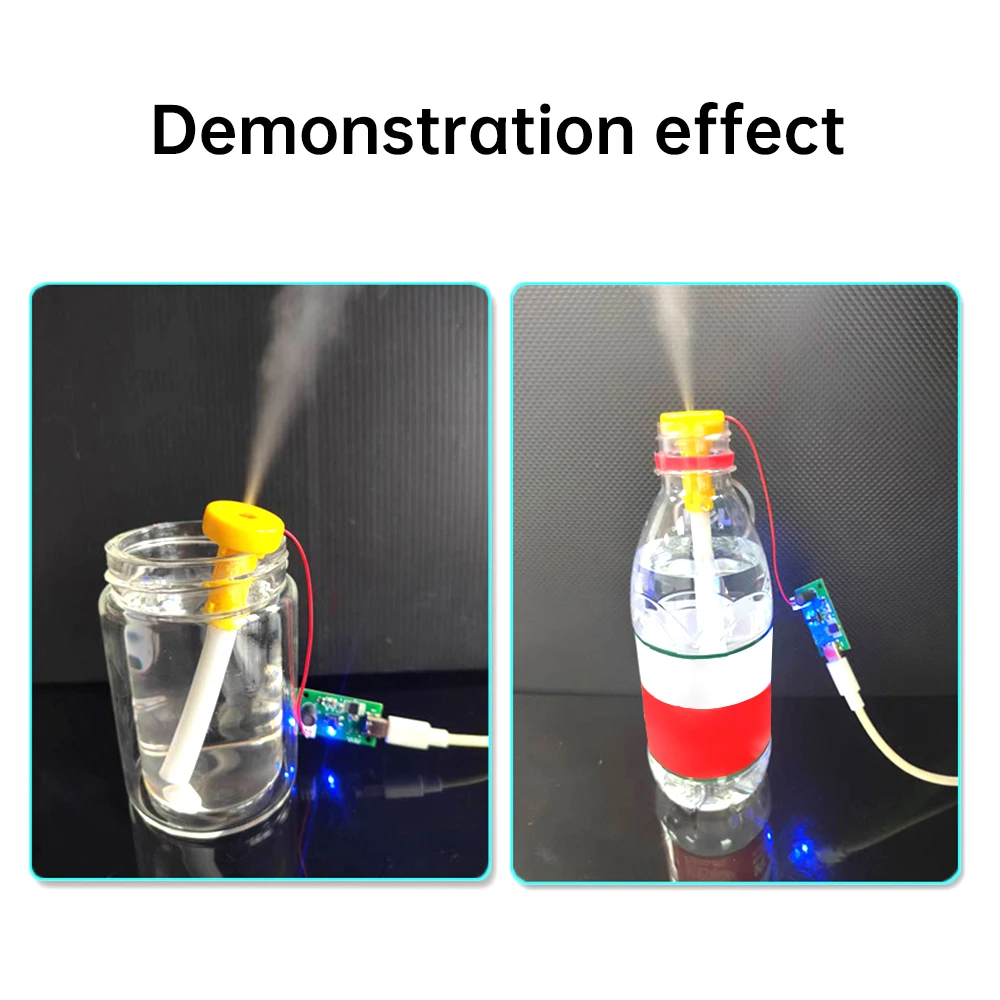

Spray mode:
1. Continuous spray mode: press the switch for the first time, the LED light is always on, continuous spray mode, continuous spray, spray 4 hours later, automatic shutdown protection.
2. Intermittent spray mode: press the switch for the second time, the LED light flashes, intermittent spray mode, spray for 10 seconds, stop spraying for 5 seconds, cycle in sequence, spray for 12 hours, automatic shutdown protection.
3. Shutdown: Press the switch for the third time to shut down.
Note: If necessary, the corresponding operations can be performed again in the above order.

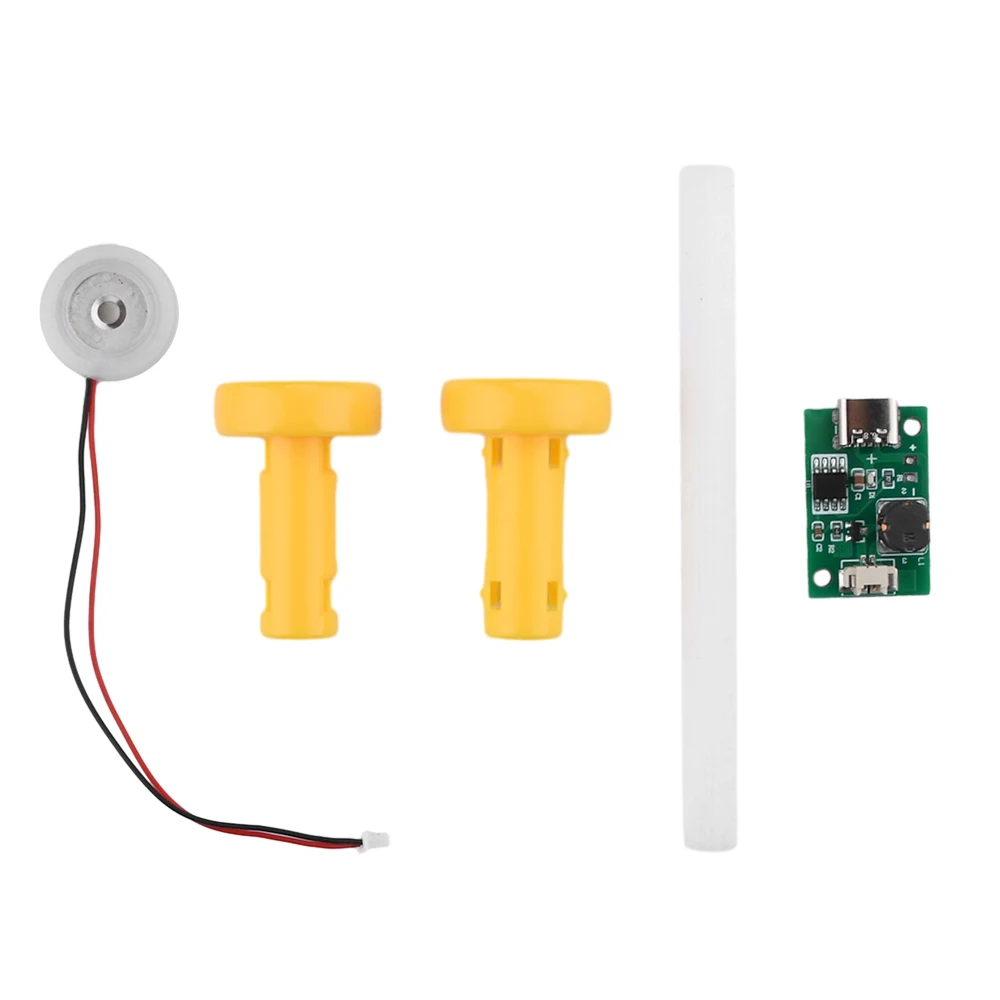

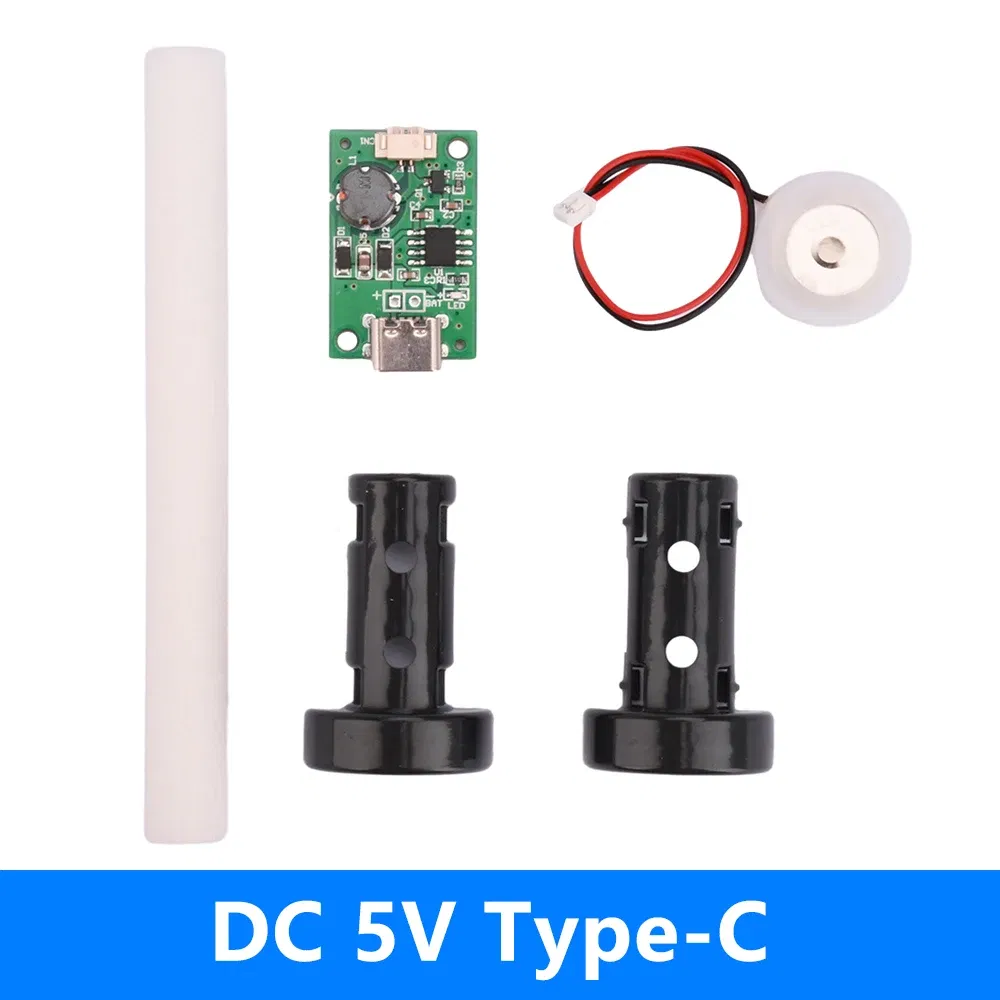

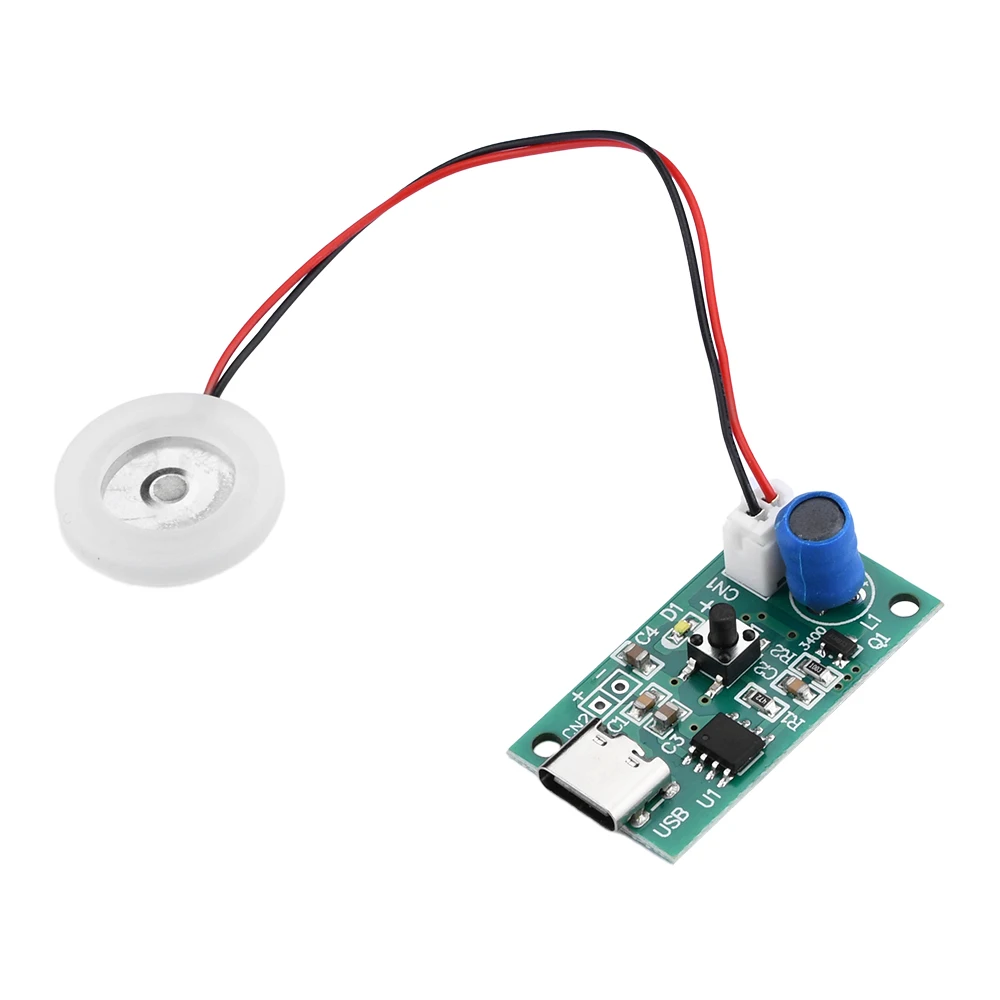

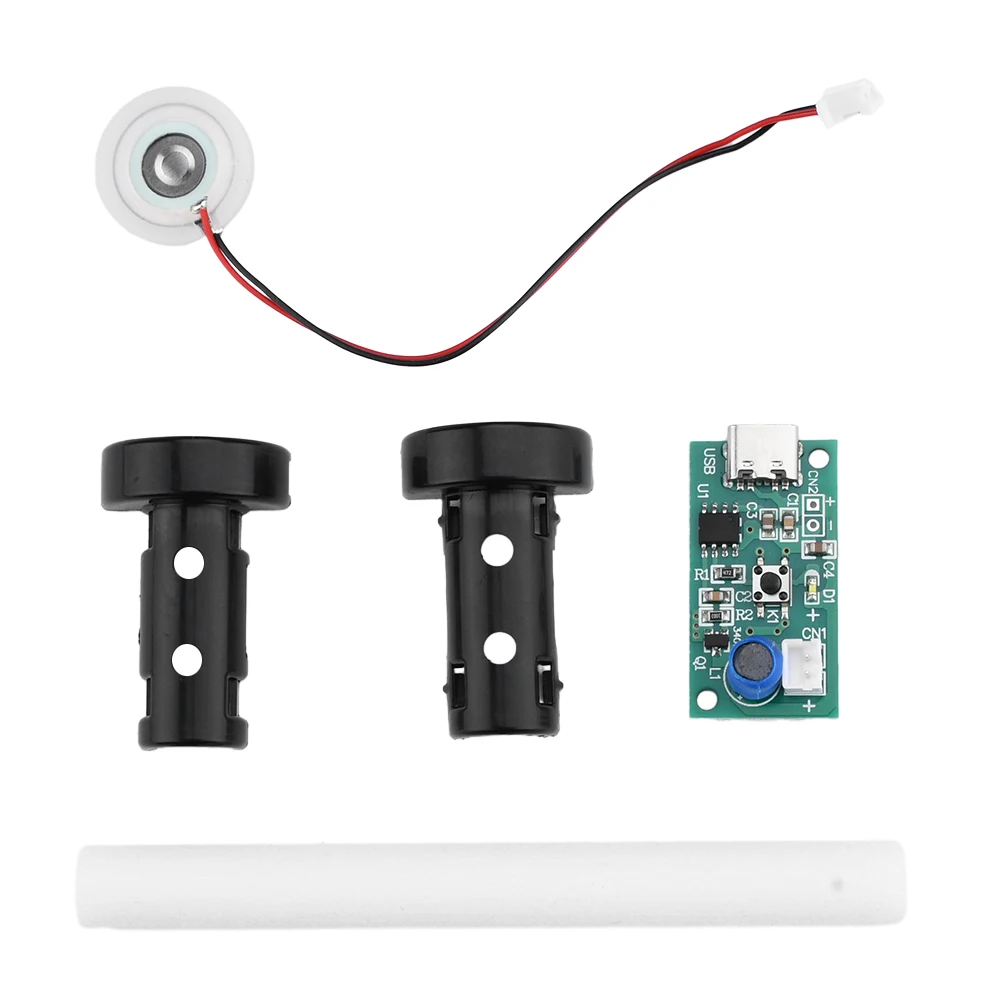

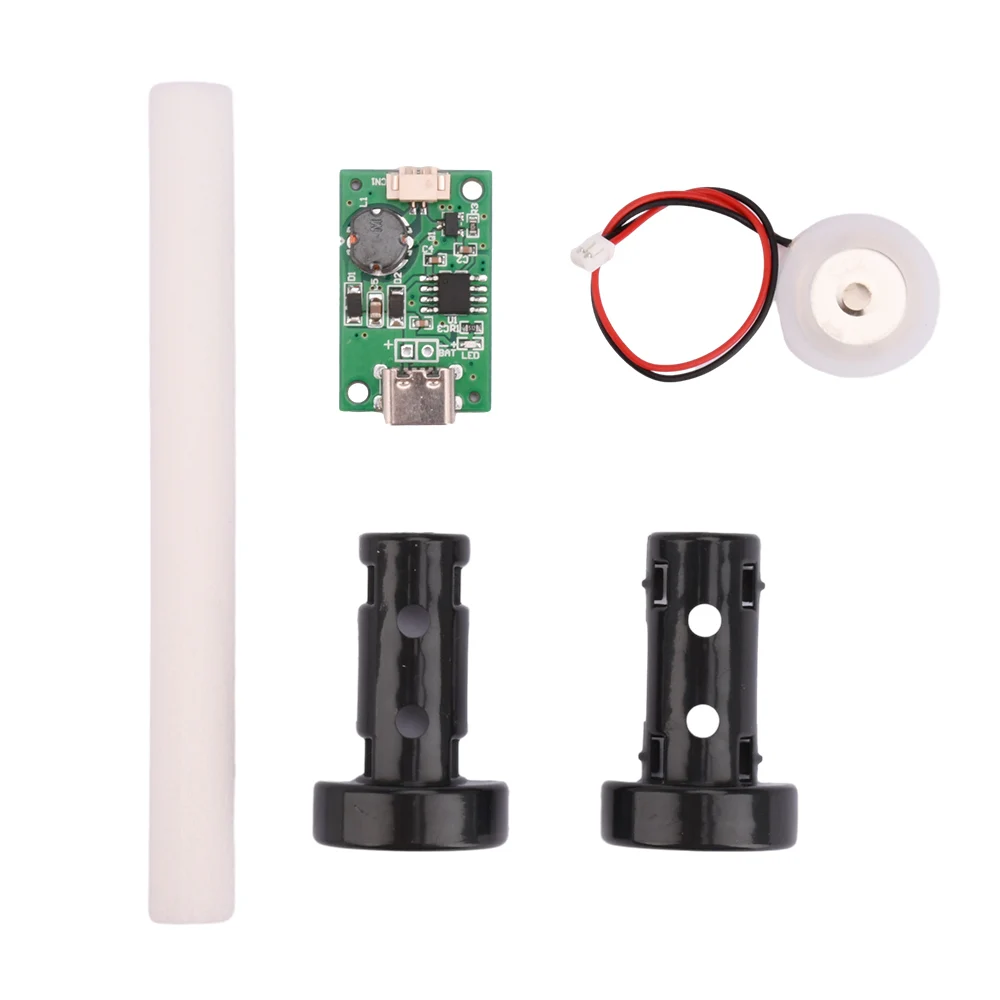

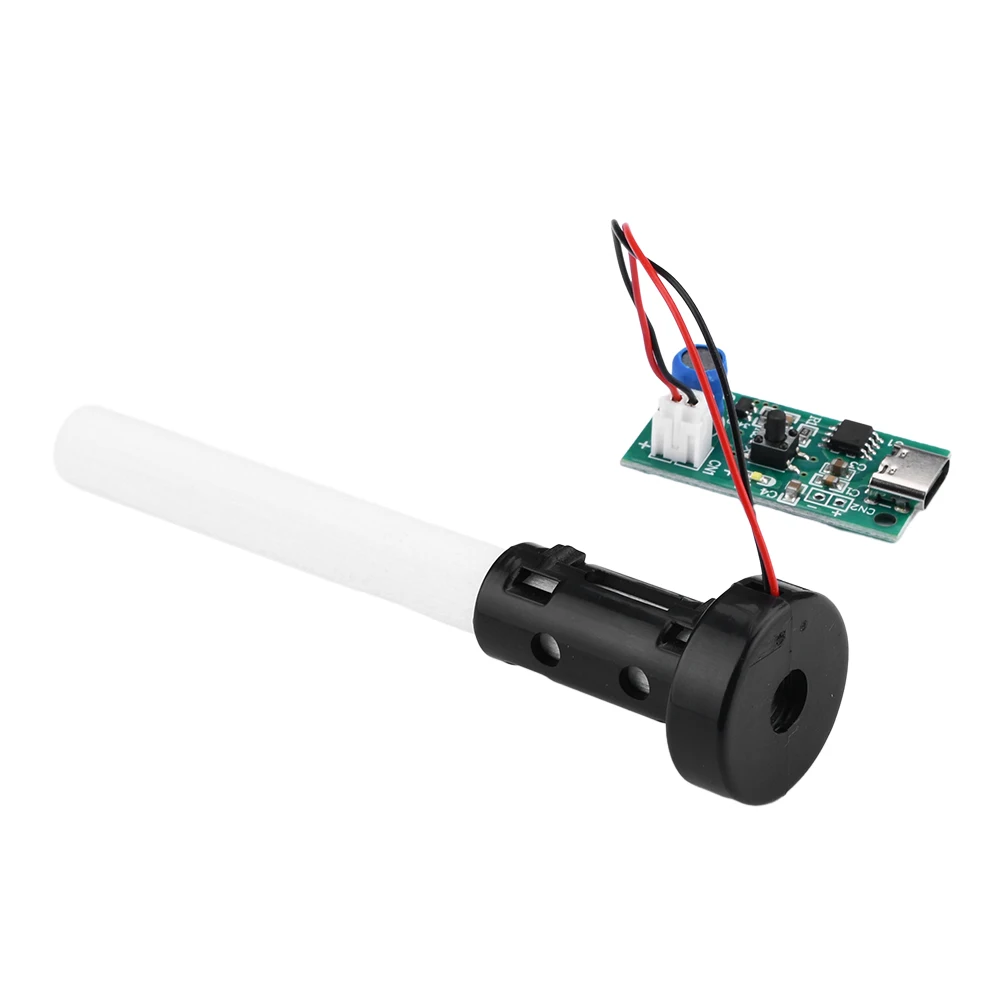

Package include:
Circuit board X1

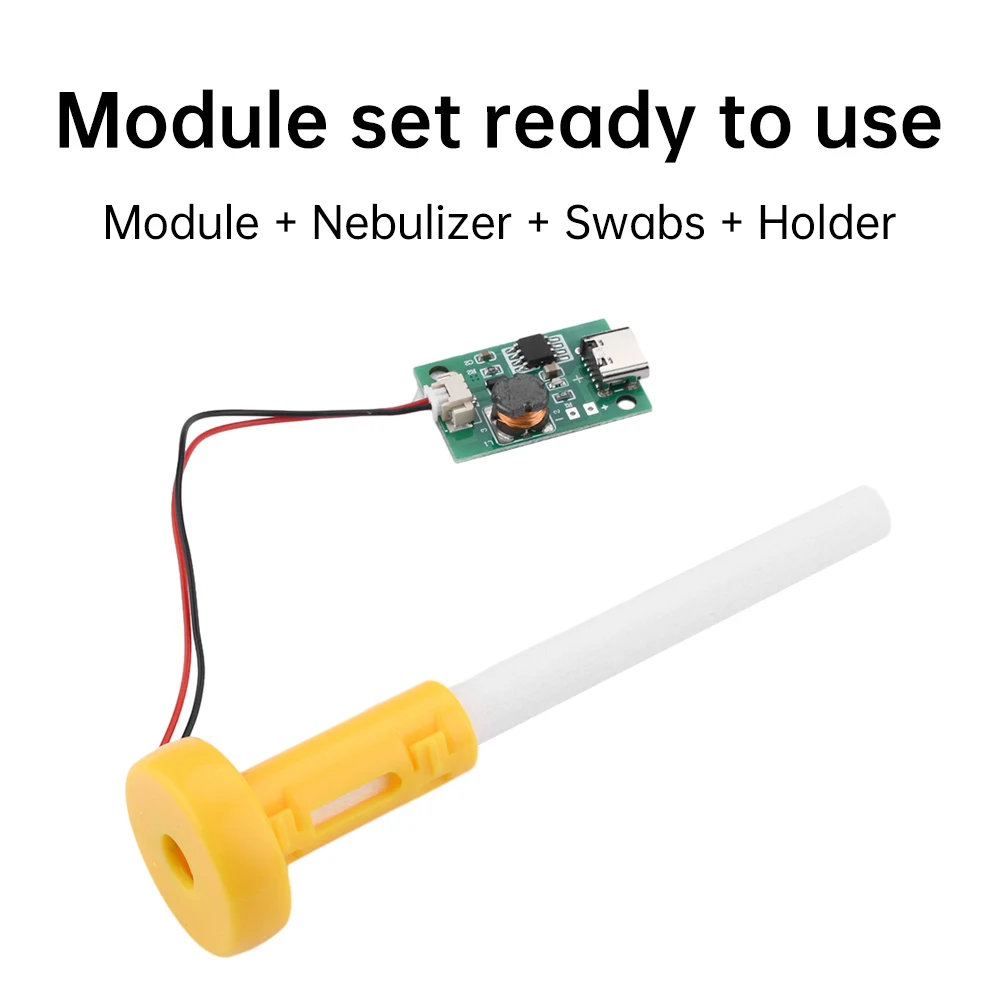

Nebulizer X1
Support X1
Absorbent cotton core X1

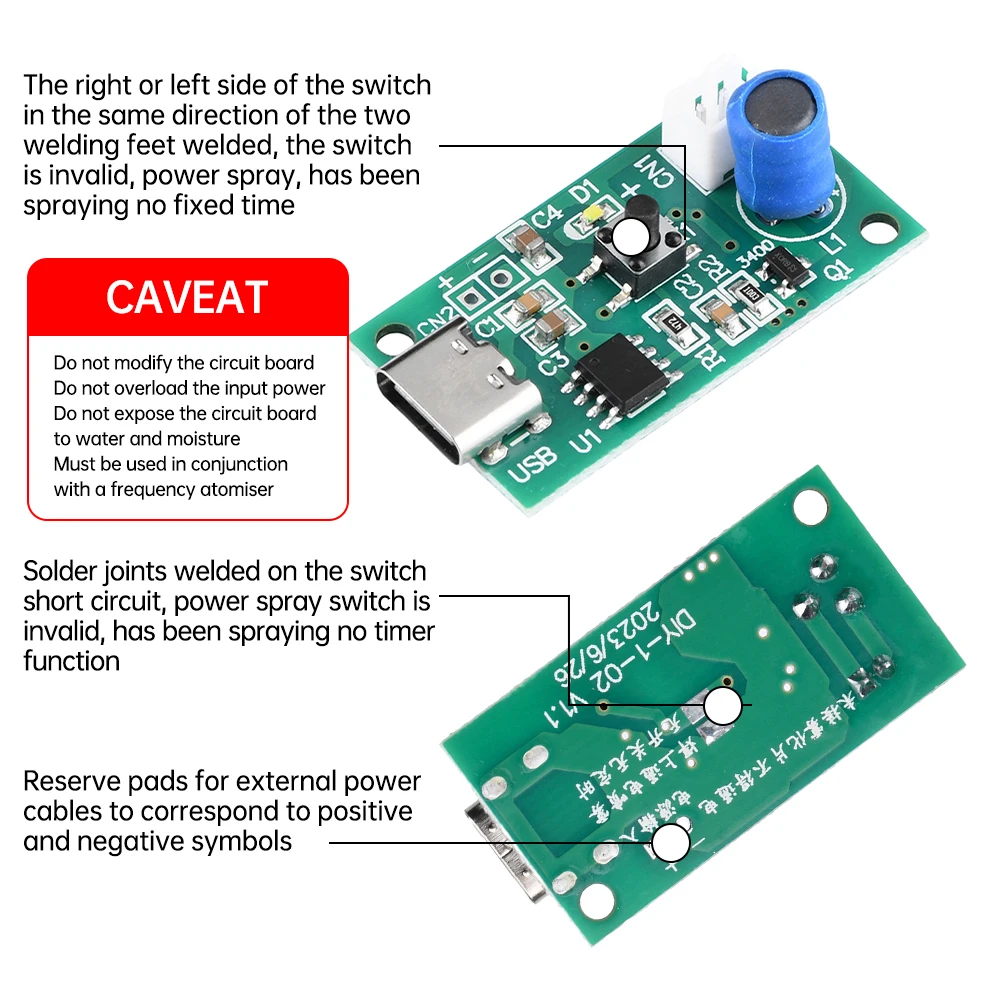

Notes:
1. It is not allowed to modify the circuit board without authorization
2. Do not overload the input power supply
3. The circuit board should not be exposed to water or moisture
4. Must be used in conjunction with the same frequency atomizer

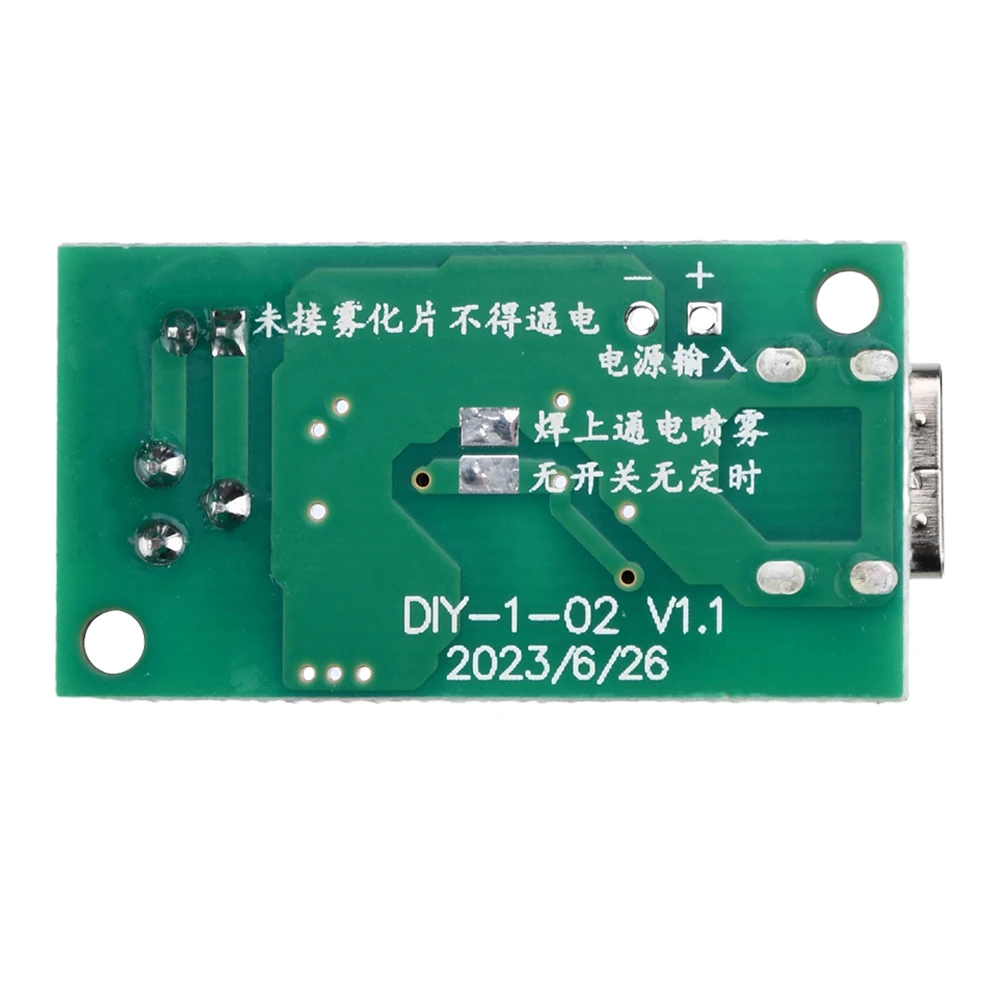

Style B

Parameter:
Name: Unswitched single spray humidification module
Material: 1.2MM FR-4
Rated voltage: DC5V (power supply)
Rated current: 300MA
Power: 1.5-2W
Atomization frequency: 108KHZ ± 2KHZ
Module: 28 * 18.6mm
Support: 25 * 38MM
Cotton swab: 8 * 100mm
Nebulizer parameters:
Name: Micro porous atomizing tablets
Drive voltage: 5V
Resonant frequency: 108-110KHZ ± 5
Rated power: 2W
Punch count: 1100
Aperture: 4-5UM
Outer diameter of silicone sleeve: 20MM
Rubber ring thickness: 3MM
Steel plate diameter: 16MM
Line length: 100MM
Wire terminal: PH2.0
Spray module:
1. Continuous spray mode: no switch, power on is spray, input DC5V power supply, immediately spray, LED light is always on, continuous spray mode, always spray.
2. Shutdown: unplug the power input to shut down.

Package include:
1X module
1X cotton swab
1X bracket
1X atomization plate

Style C & Style D

Module parameters:
Rated voltage: DC5V
Rated current: 300mA
Power: 1.5-2W
Resonant frequency: 108-110KHZ

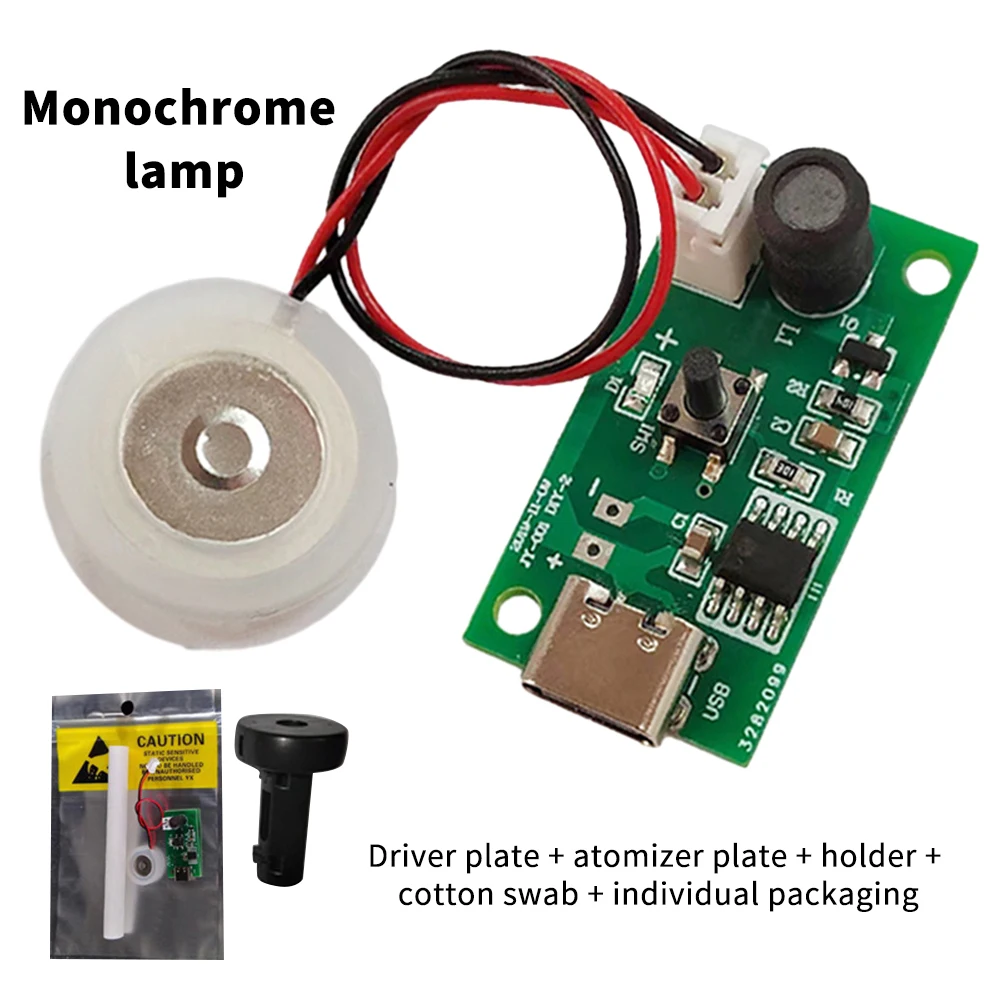

Ambient lighting: Micro USB port for seven-colour gradient light, Type-C USB port for monochrome light

Atomiser Parameters:
Driving voltage: DC3-12V
Rated power: 1.5W
Power range: 0.6-3W
Fogging volume: 25-660M/H
Resonant frequency: 103-113KHZ±5
Silicone sleeve outer diameter: 20mm
Wire length: 80-100mm
Wire terminal: 2.0

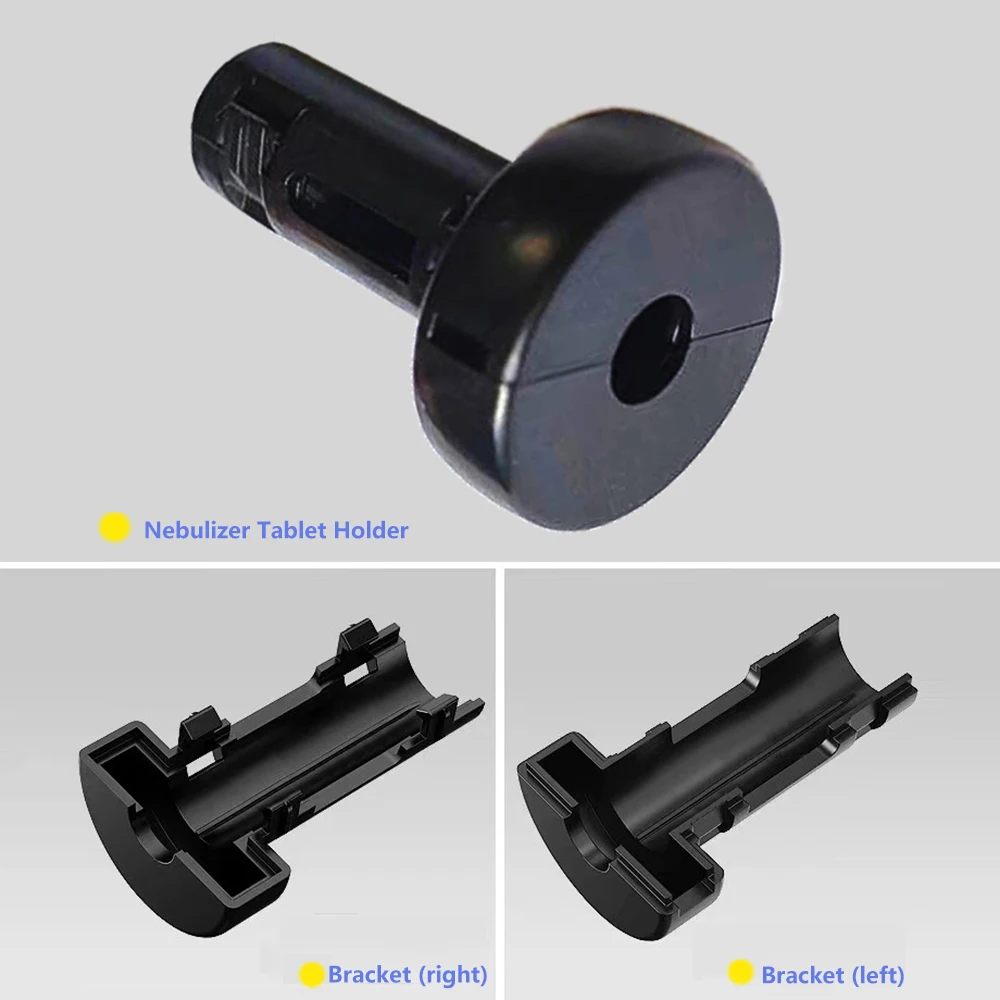

Bracket parameters:
Colour: black
Material: ABS
Size: 25*38MM (±1)

Package include:
Package 3: Module*1+Fogging tablet*1+Cotton swab*1+Stand(left and right)*1

Style E

Parameter:

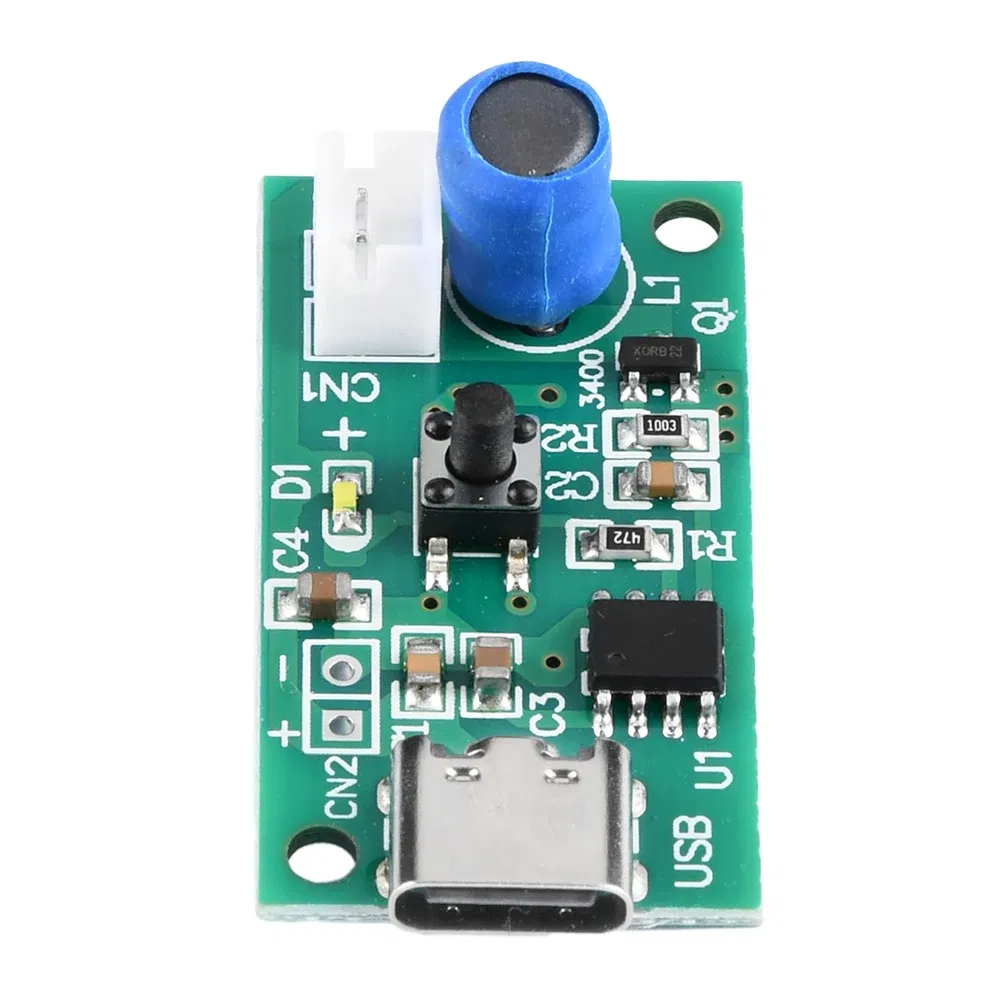

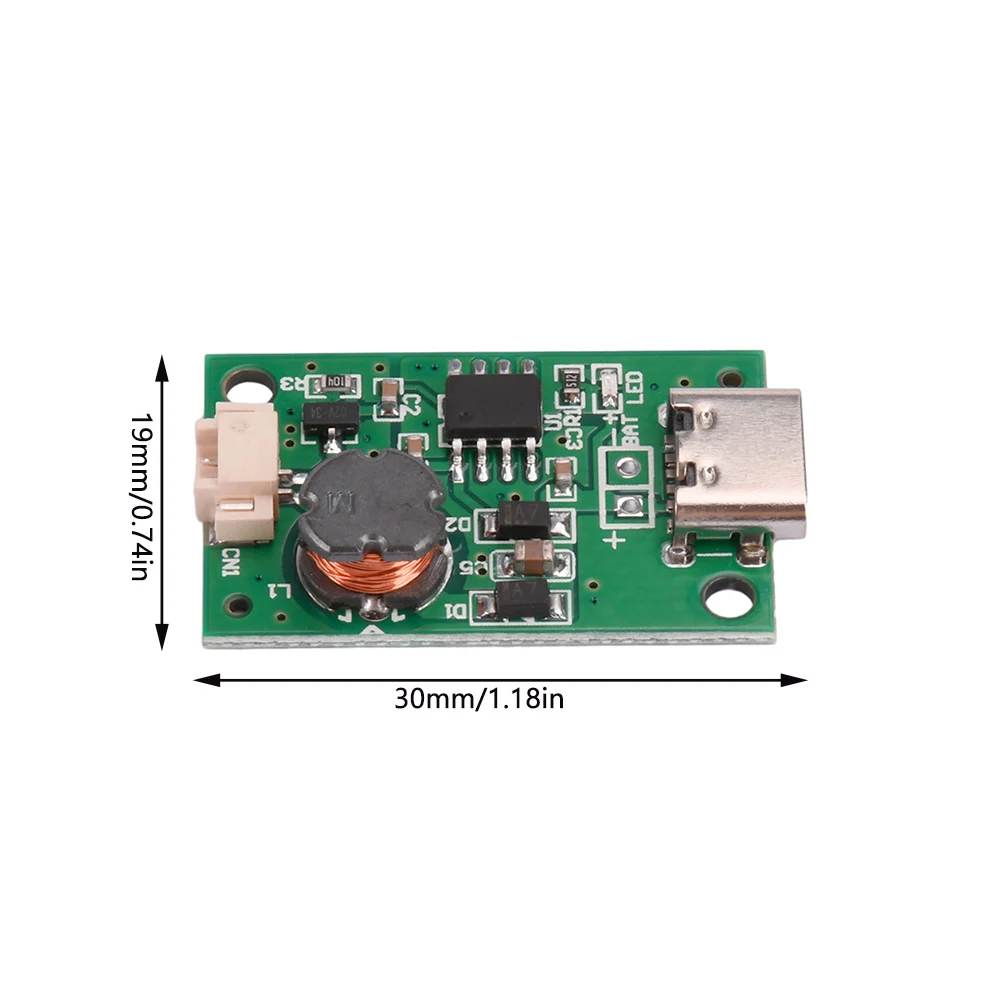

Product name: Atomization drive circuit board
Model: QDB-1
USB interface: Type-c
Rated voltage: DC5V
Rated current: 300mA
Power: 1.5-2W
Resonant frequency: 108-110KHz
Material: 1.2mm FR-4
PCB size: 29.5 × eighteen point six × 7mm

Precautions:
1. Do not turn on the atomizer without connecting it
2. It is not allowed to modify the circuit board without permission
3. Do not overload the input power supply
4. The circuit board should not be exposed to water or moisture
5. Must be used together with the same frequency fog film

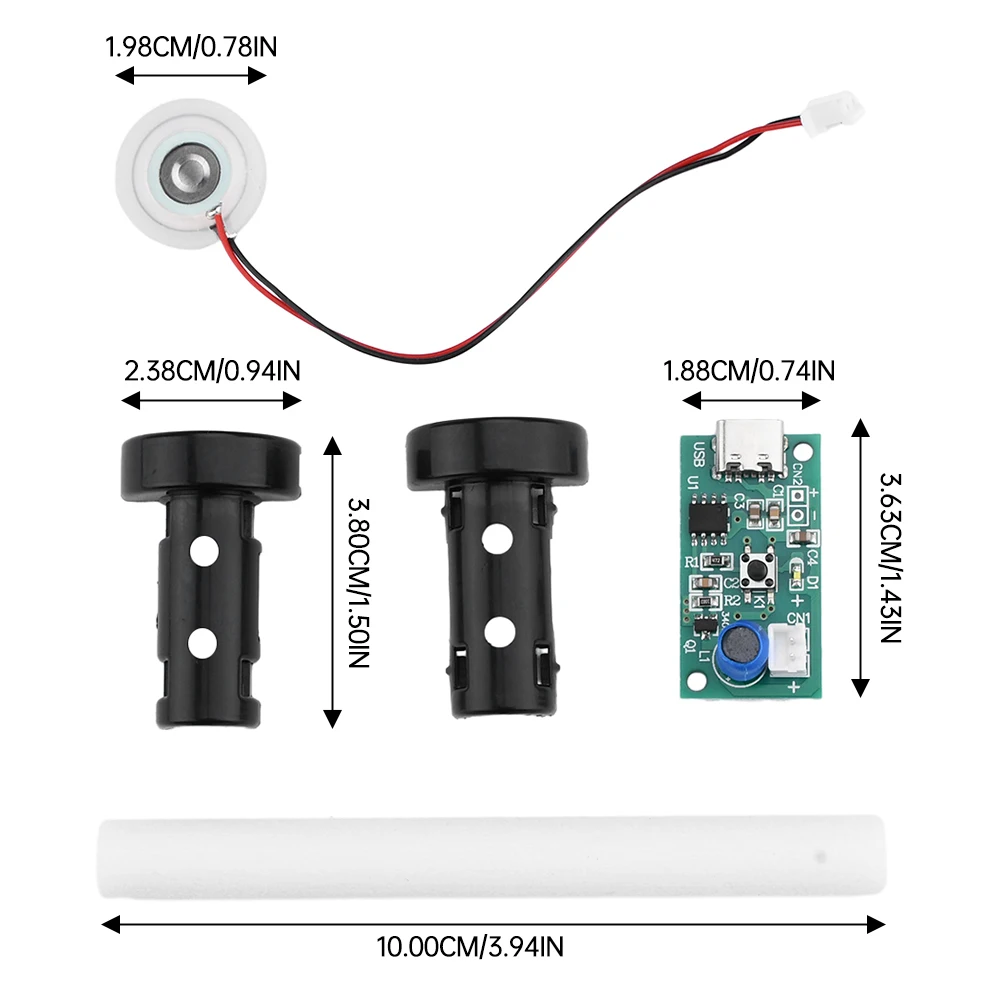

Package include:
Module X1
Atomiser X1
Cotton core X1
Shell Accessories X2

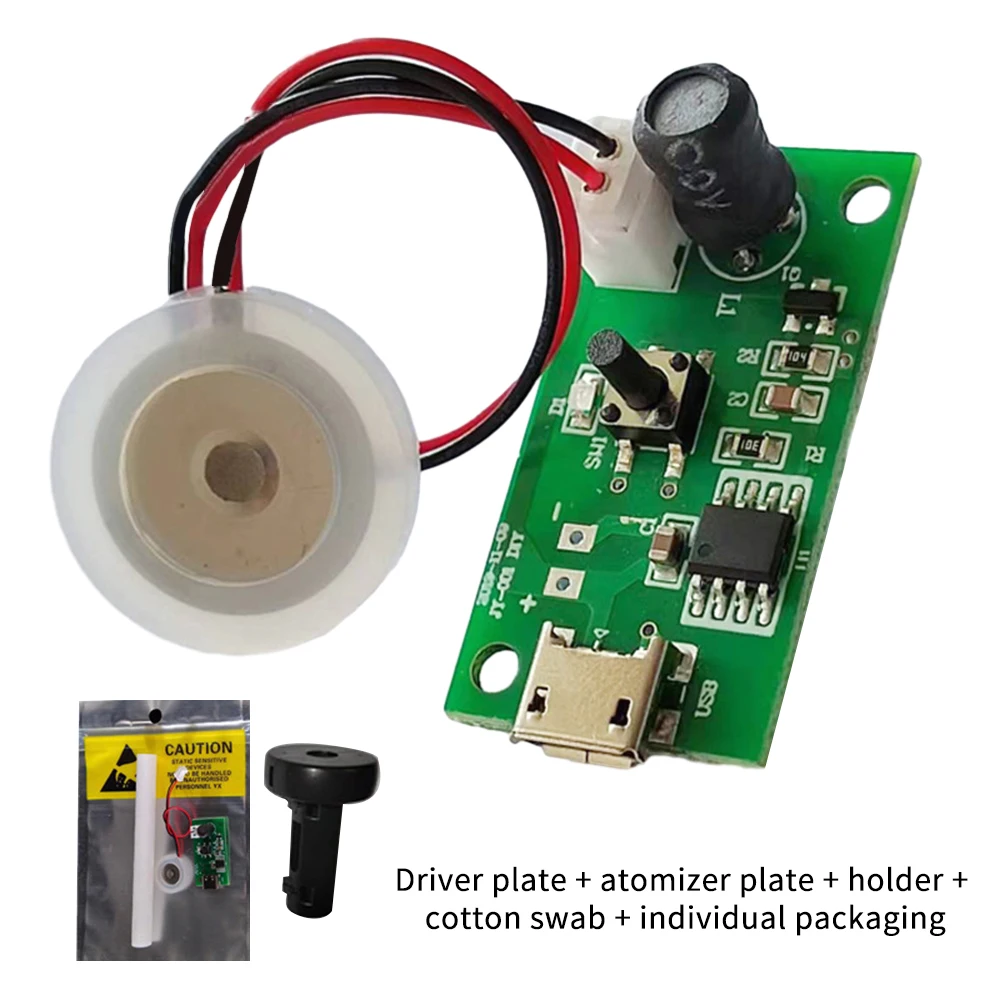

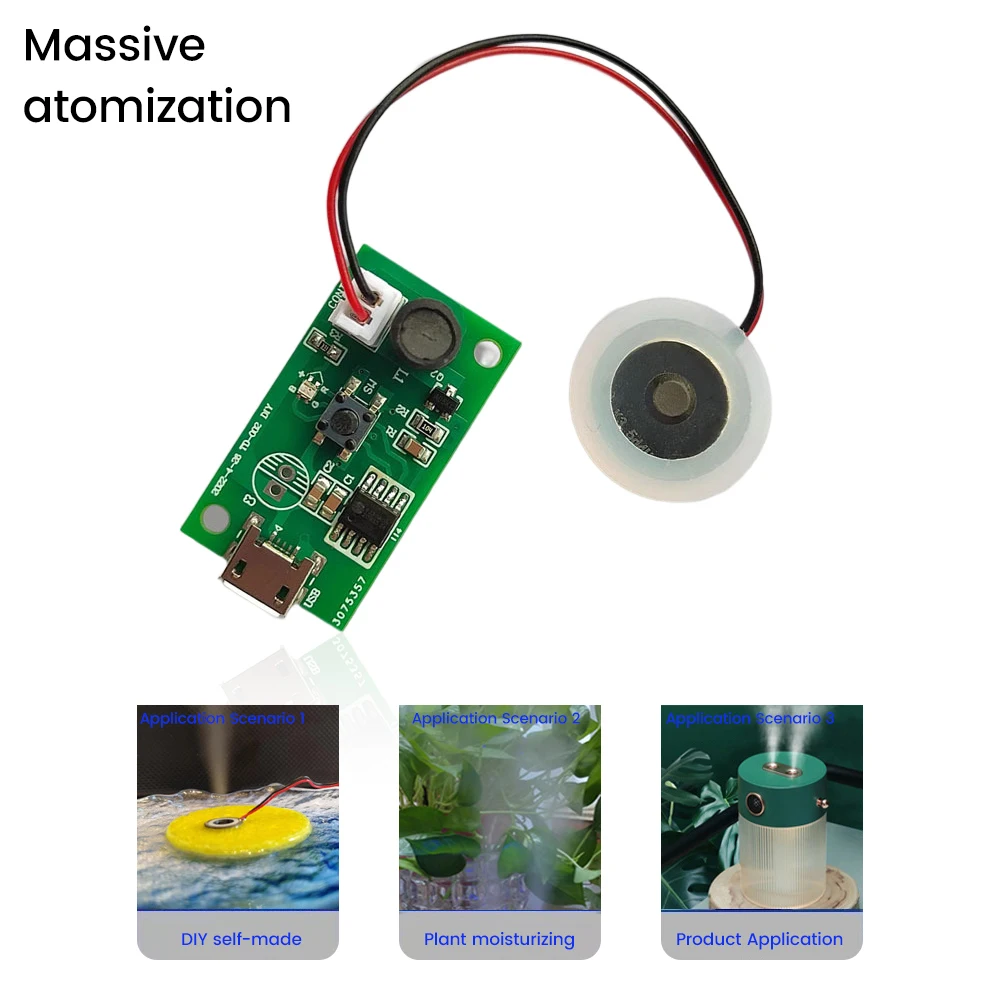

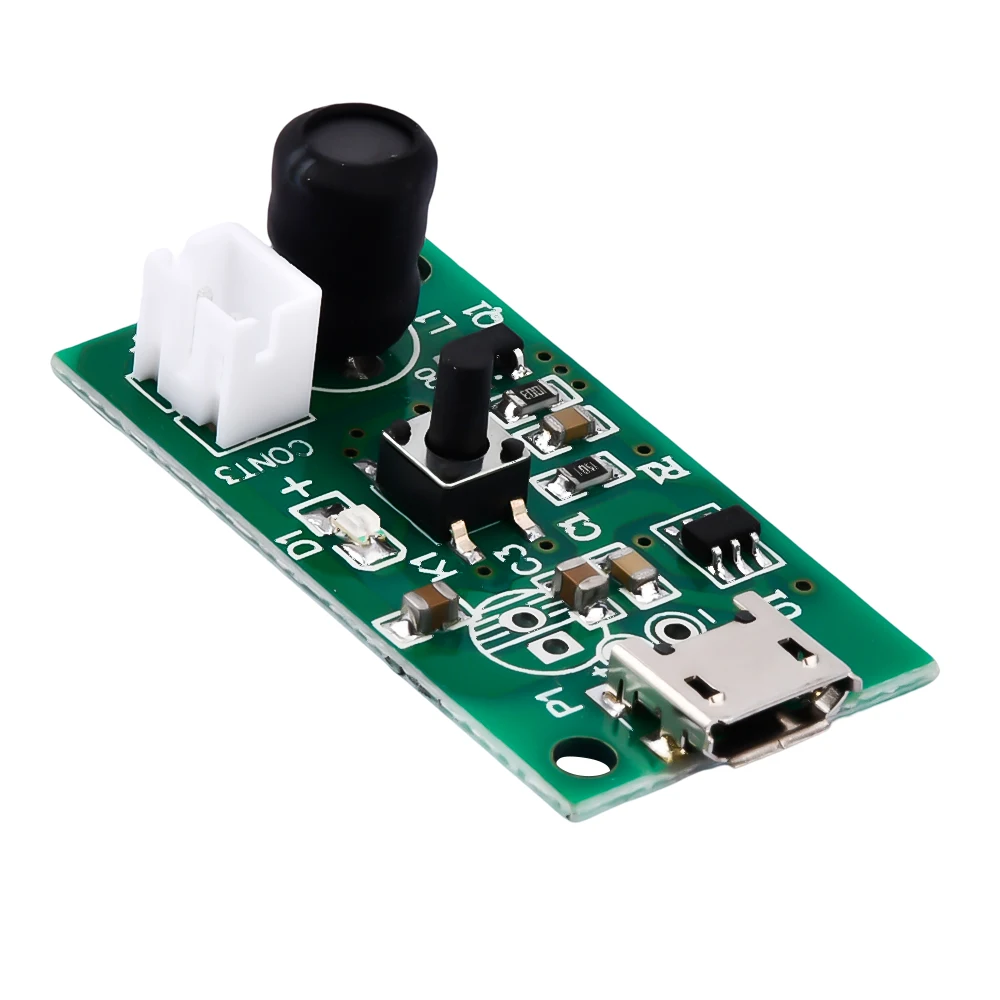

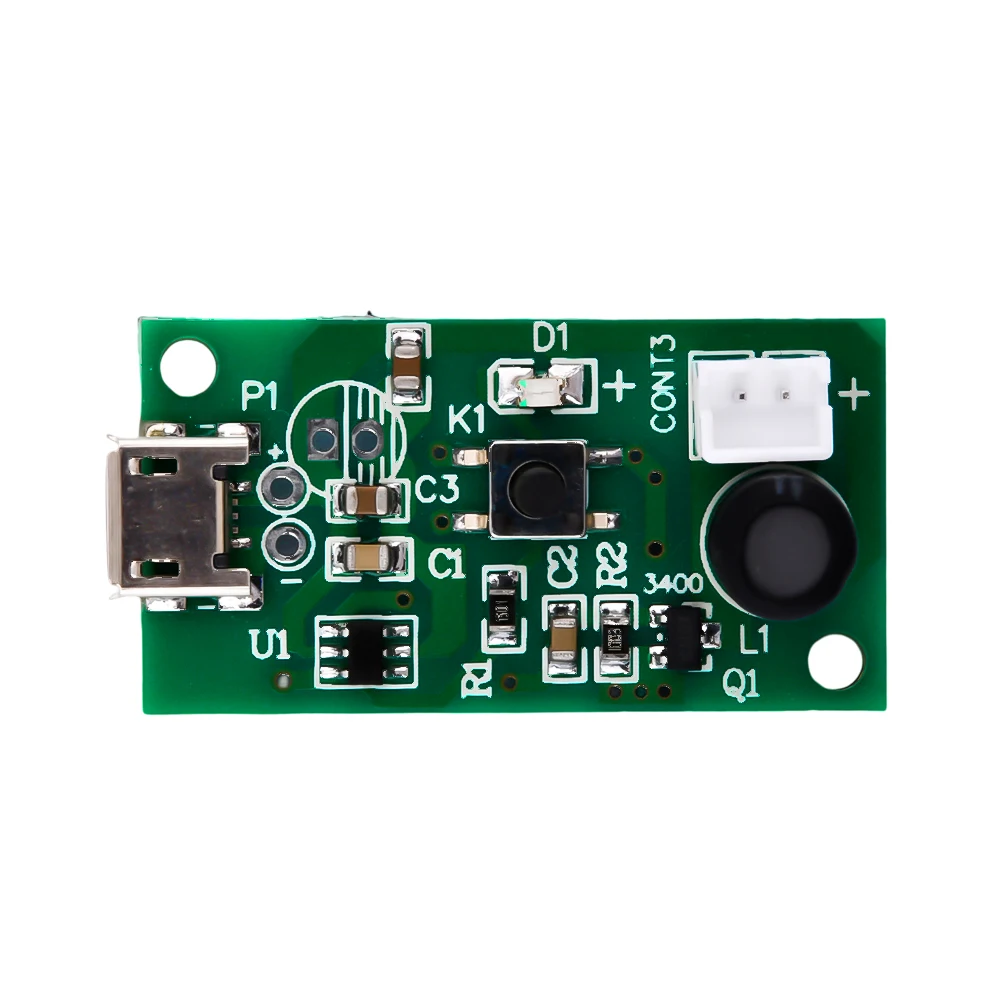

Style F

Parameters:
Circuit board product voltage DV 5V
Current 300mA
Power 2W
Frequency 108KHz, fixed frequency microcontroller
Driver board size: 35 long × Width 20 × 17mm high (with slight errors)
Strong versatility, high fog output, and stable performance. The chip has an automatic timed shutdown function (it will automatically shut down for protection after working continuously for 4 hours, and if you need to restart it, you can press the power button again). 5V USB power supply mode, can be powered by a MICRO charging cable.
Atomizer parameters
The net diameter of the atomized steel sheet is 16mm, the outer diameter of the silicone ring is 20mm, and the length of the wire is 8cm.
Product voltage DV 5V, current 300mA, power 2W, frequency 108KHz, number of holes 740, aperture 5um
The microporous atomization sheet is coated with a special glaze layer protection layer on the surface of the ceramic sheet, which is acid and alkali resistant and prevents the silver layer from being corroded and oxidized by liquid.

Package includes:
Circuit board X1
Atomizer X1
Absorbent cotton core X1
