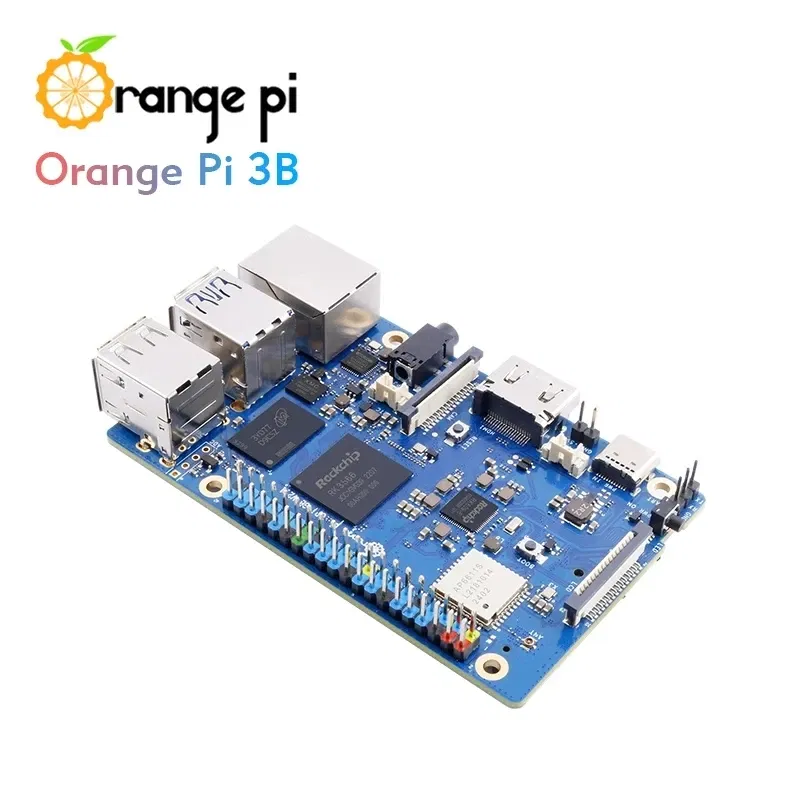

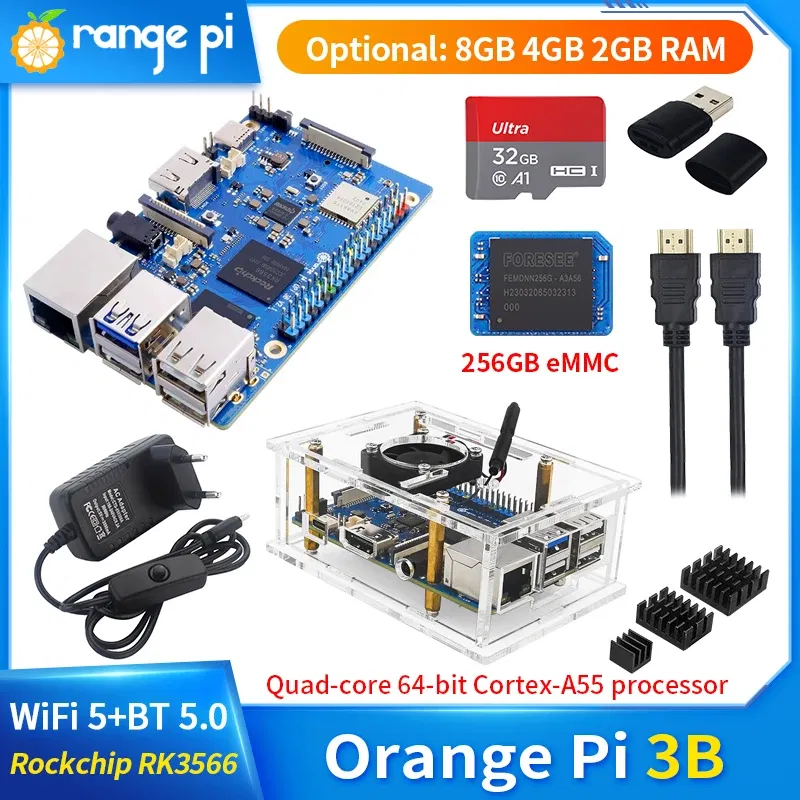

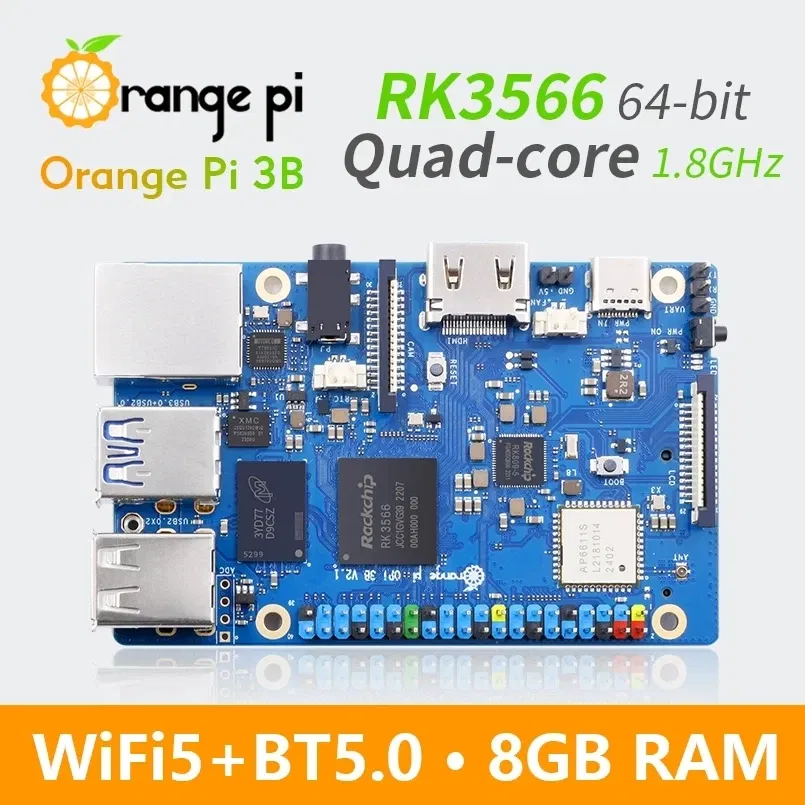

Bundle: Bundle 9, Color: Beige - Orange Pi 3B 8GB 4GB 2GB RAM Rockchip RK3566 WiFi5+BT 5.0 Gigabit LAN Port Single Board Run Android Linux OpenHarmony OS Mini PC

Demo Board Type: ARMOrigin: Mainland ChinaModel Number: Orange Pi 3BProcessor Brand: RockchipIntergrated Feature: 10/100/1000MbpsIntergrated Feature: WiFi 802.11b/g/nInterface: 3 x USB2.0SoC: RockchipRK3566CPU: Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHzGPU: ARM Mali G52 2EE graphics processor;upport OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1;Embedded high performance 2D acceleration hardwareNPU: Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance;Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture modelsVPU: 4K@60fps H.265/H.264/VP9 video decoding;1080P@100fps H.265 video encoding;1080P@60fps H.264 video encodingPMU: RockChip RK809-5RAM: 2GB/4GB/8GB (LPDDR4/4x)Memory: Support eMMC module:16GB/32GB/64GB/128GB/256GB;SPI Flash: 16MB/32MB;M.2 M-KEY slot (optional): SATA3 or PCIe2.0 NVME SSDs;Micro SD slotWi-Fi+BT: Wi-Fi 5+BT 5.0,BLE (20U5622)Ethernet: 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C)Video Output: 1* HDMI TX 2.0 , up to 4K@60fps;1*MIPI DSI 2 lane;eDP1.3Camera: 1*MIPI CSI 2 lane camera interfaceUSB: 1*USB 2.0 support Device or HOST mode;1*USB 3.0 HOST;*USB 2.0 HOSTAudio: 3.5mm headphone jack audio in/outButton: 1* MaskROM key, 1* RESET key, 1 *POWER keyFAN: 2Pin 1.25mm size 5V fan connectorRTC: 2Pin 1.25mm size battery backup connector40Pin: 40Pin functional expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWMPower Source: Type-C 5V3ASupported: Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.PCB Dimension: 85mm x 56mm x 17mmWeight: 49gChoice: yessemi_Choice: yesAcrylic CaseAluminum Heatsinks5V 3A Power SupplyOptional EU / US / UK / AU PlugOrange Pi eMMC ModuleOther AccessoriesPacking ListOption 1：1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）Option 2：1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）1 x 32GB eMMC ModuleOption 3：1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）1 x 64GB eMMC ModuleOption 4：1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）1 x 256GB eMMC ModuleOption 5：1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）1 x Acrylic Case1 x Cooling Fan3 x Aluminum HeatinksOption 6：1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）1 x Acrylic Case1 x Cooling Fan3 x Aluminum Heatinks1 x 5V 3A Type-C Power Supply1 x 1M HDMI-compatible CableOption 7：1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）1 x Acrylic Case1 x Cooling Fan3 x Aluminum Heatinks1 x 5V 3A Type-C Power Supply1 x 1M HDMI-compatible Cable1 x 32GB Micro SD-compatible Card1 x Card ReaderOption 8：1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）1 x Acrylic Case1 x Cooling Fan3 x Aluminum Heatinks1 x 5V 3A Type-C Power Supply1 x 1M HDMI-compatible Cable1 x 32GB Micro SD-compatible Card1 x Card Reader1 x 32GB eMMC ModuleOption 9：1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）1 x Acrylic Case1 x Cooling Fan3 x Aluminum Heatinks1 x 5V 3A Type-C Power Supply1 x 1M HDMI-compatible Cable1 x 32GB Micro SD-compatible Card1 x Card Reader1 x 64GB eMMC ModuleOption 10：1 x Orange Pi 3B（2GB / 4GB / 8GB RAM）1 x Acrylic Case1 x Cooling Fan3 x Aluminum Heatinks1 x 5V 3A Type-C Power Supply1 x 1M HDMI-compatible Cable1 x 32GB Micro SD-compatible Card1 x Card Reader1 x 256GB eMMC Module
