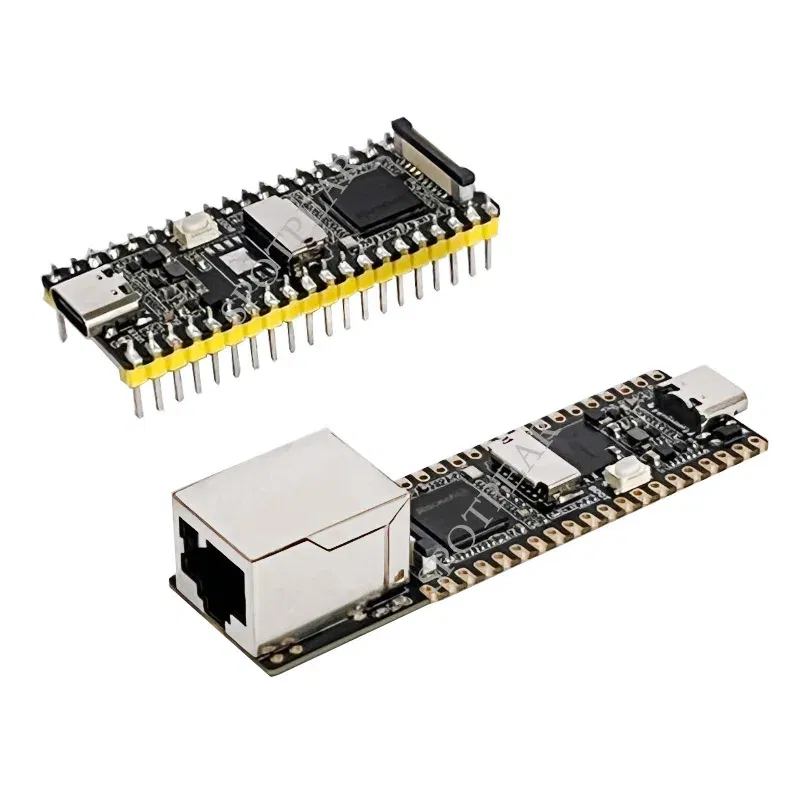

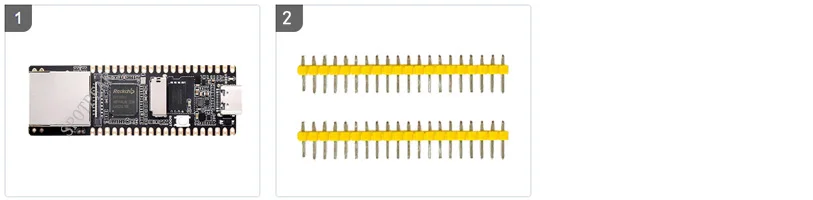

Bundle: Bundle 1 - 【First-level Authorized Agency?‘LuckFox Pico Linux board RV1103 Rockchip AI Board ARM Cortex-A7 better than Raspberry Pi Pico
Hign-concerned Chemical: None
Origin: Mainland China
Certification: CE
Choice: yes
semi_Choice: yes
【Luckfox Pico Recommend】
【First-level Authorized Agency Certificate】
【Note】

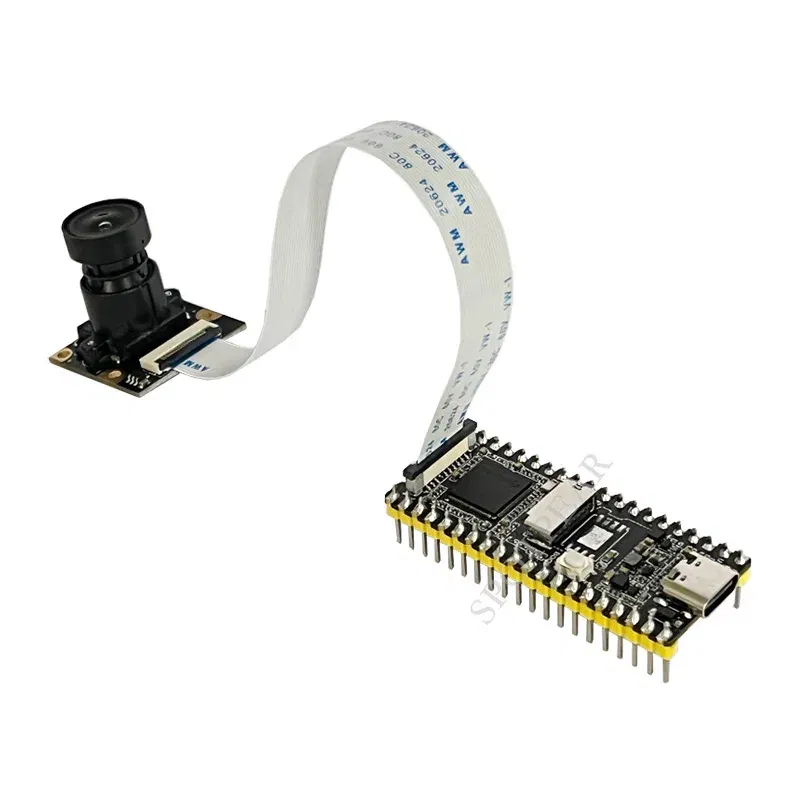

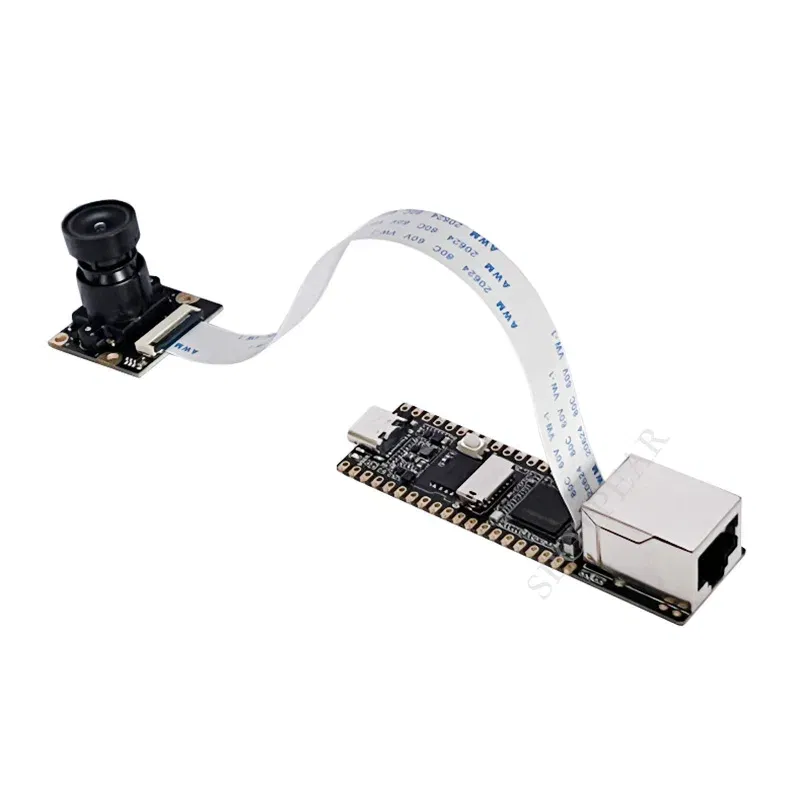

[] Do not include Camera Module
[] 'Plus Version' Onboard 1Gb SLC NAND FLASH
【Overview】
[] LuckFox Pico Plus is a cost-effective Linux micro development board, based on the Rockchip RV1103 chip to provide a simple and efficient development platform for developers; Supports a variety of interfaces including MIPI CSI, GPIO,UART,SPI, I2C, USB, etc., which is convenient for developing and debugging quickly.

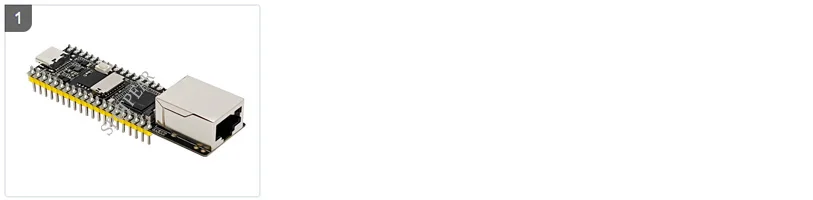

【Ethernet Port Version Option】
【Specifications】
[] Processor : Cortex A7@1.2GHz + RISC-V
[] NPU : 0.5TOPS, supports int4, int8 and int16
[] ISP : Input 4M @30fps (Max)
[] Memory : 64MB
[] USB : USB 2.0 Host/Device
[] Camera : MIPI CSI 2-lane

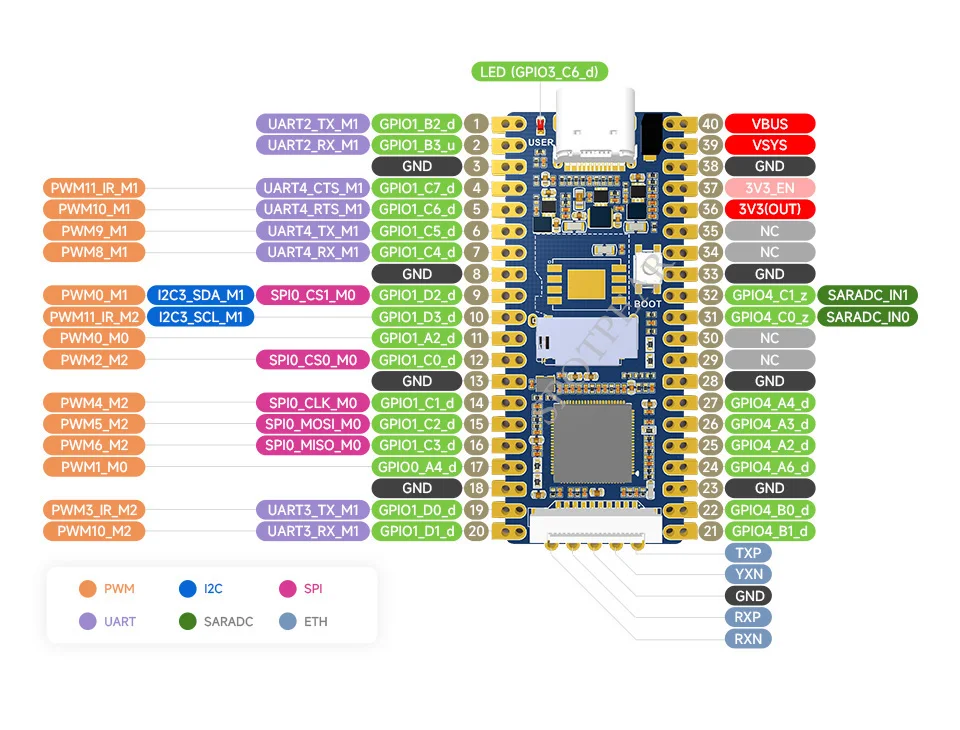

[] GPIO : 25 × GPIO pins
[] Ethernet port : 10/100M Ethernet controller and embedded PHY
[] Luckfox-Pico：Micro SD Slot
[] Luckfox-Pico-Plus：SPI NAND FLASH (1Gb)
【Easier To Develop】

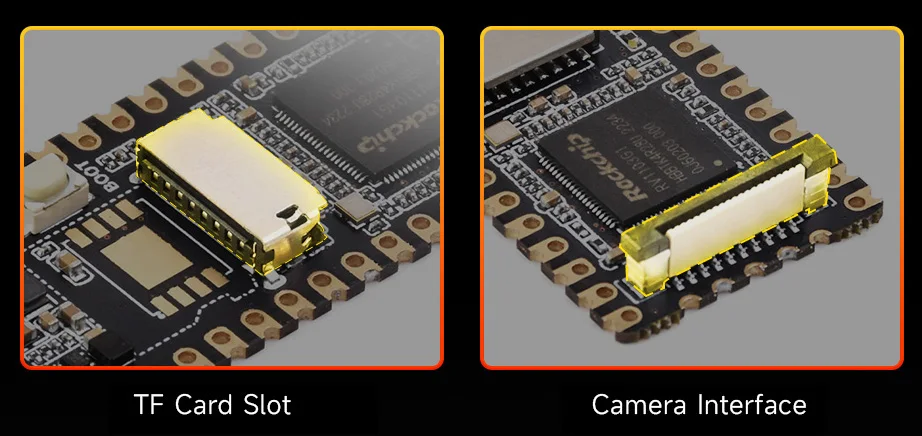

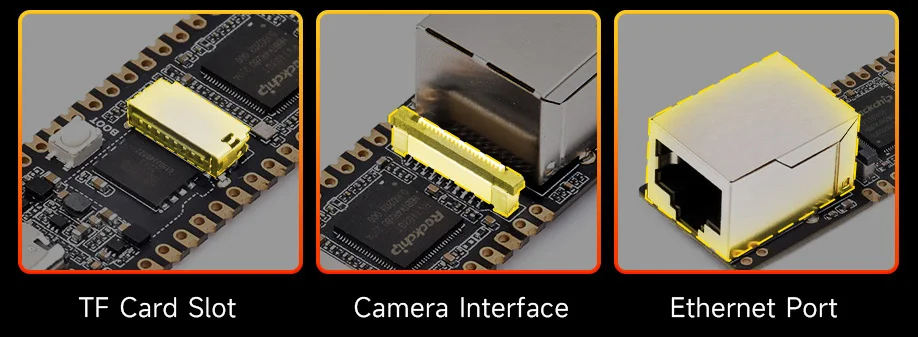

[] Luckfox-Pico Integrates TF Card Slot, Camera Interface
[] Luckfox-Pico-Plus Integrates TF Card Slot, Camera Interface And Ethernet Port
【Suitable For More Application Examples】

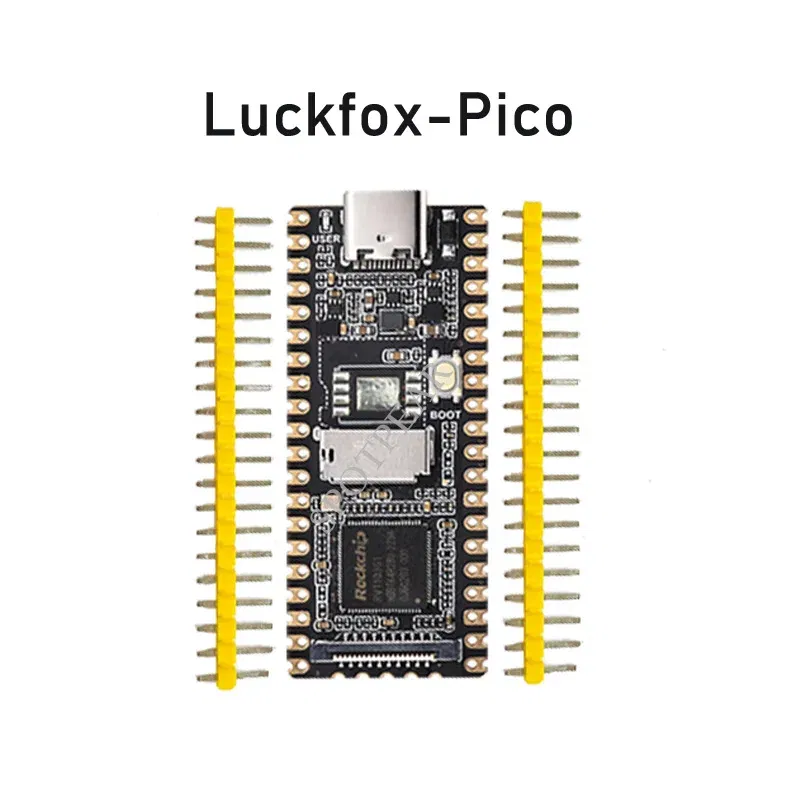

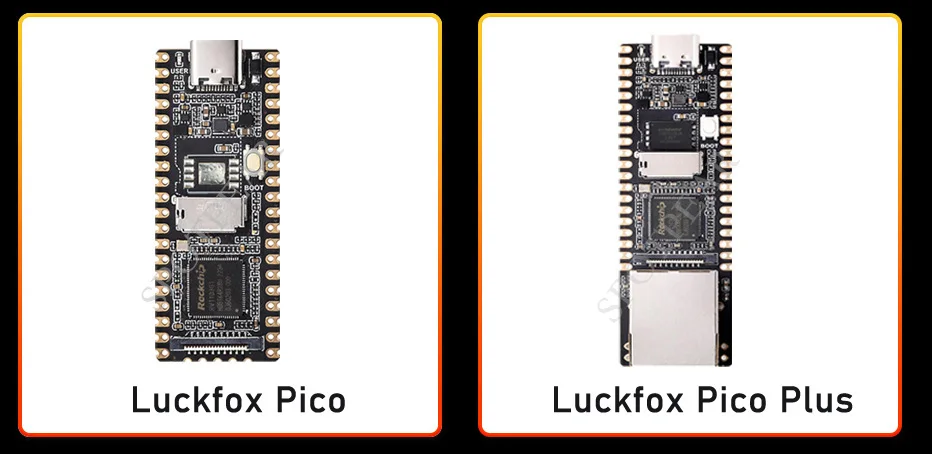

[] Luckfox-Pico

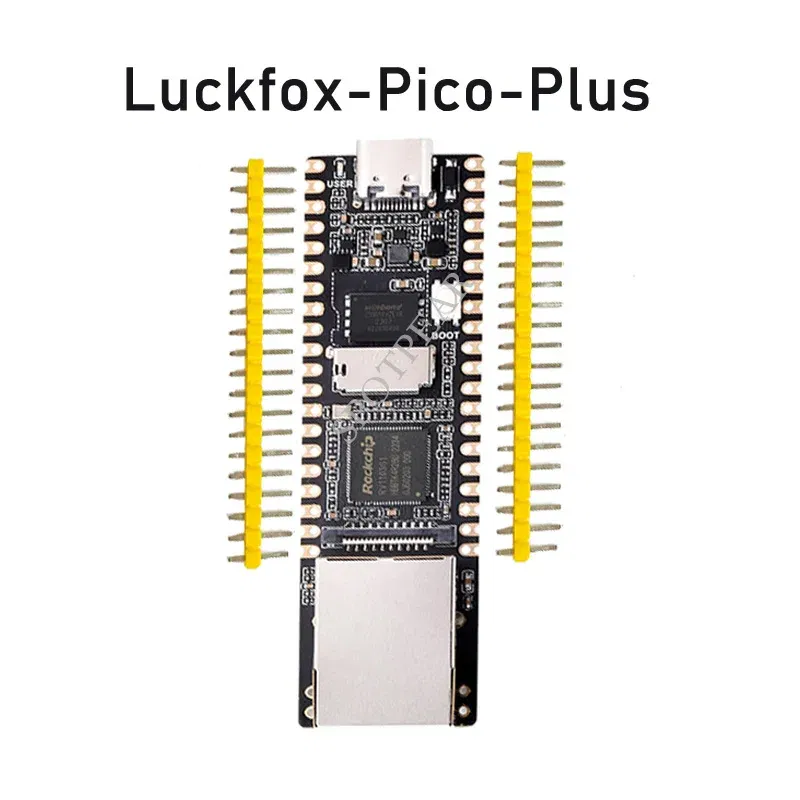

[] Luckfox-Pico-Plus
【Introduction Resources】

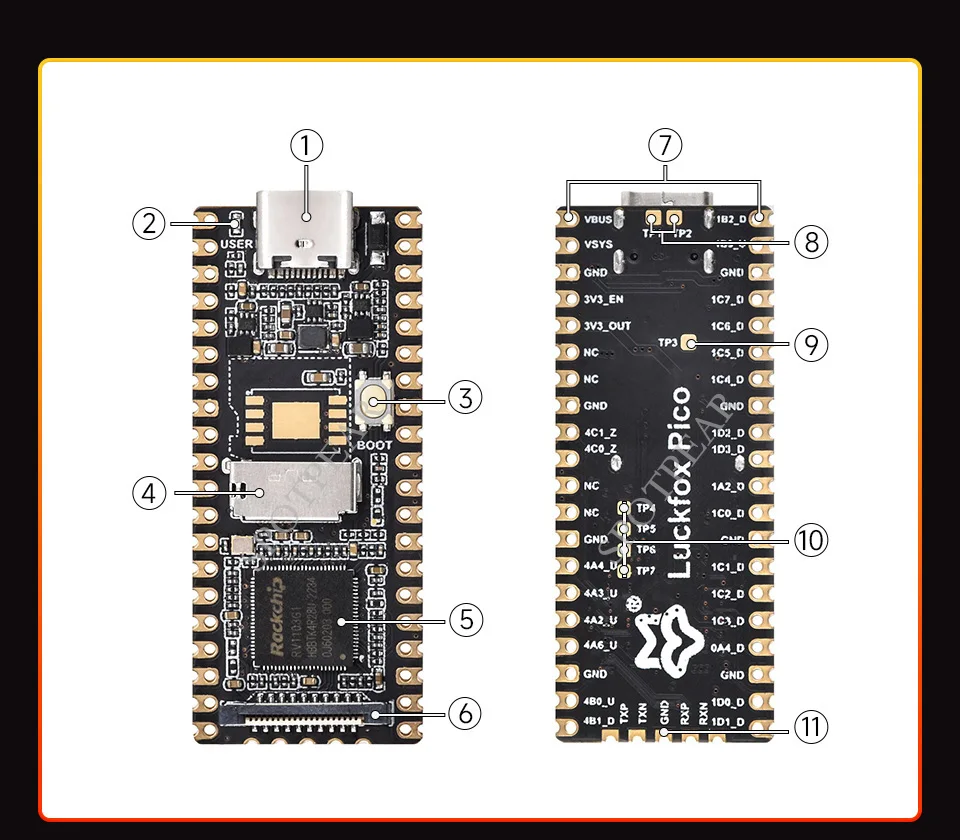

[] Luckfox-Pico
1. USB Type-C connector
2. ACT-LED
3. BOOT button : Press it when powering on to enter download mode
4. TF card slot
5. RV1103 : Vision processor SoC with built-in ARM Cortex-A7 core
6. CSI camera interface : MIPI CSI 2-lane
7. GPIO header
8. USB test pads
9. BOOT test pad
10. Microphone test pads
11. Ethernet interface pads

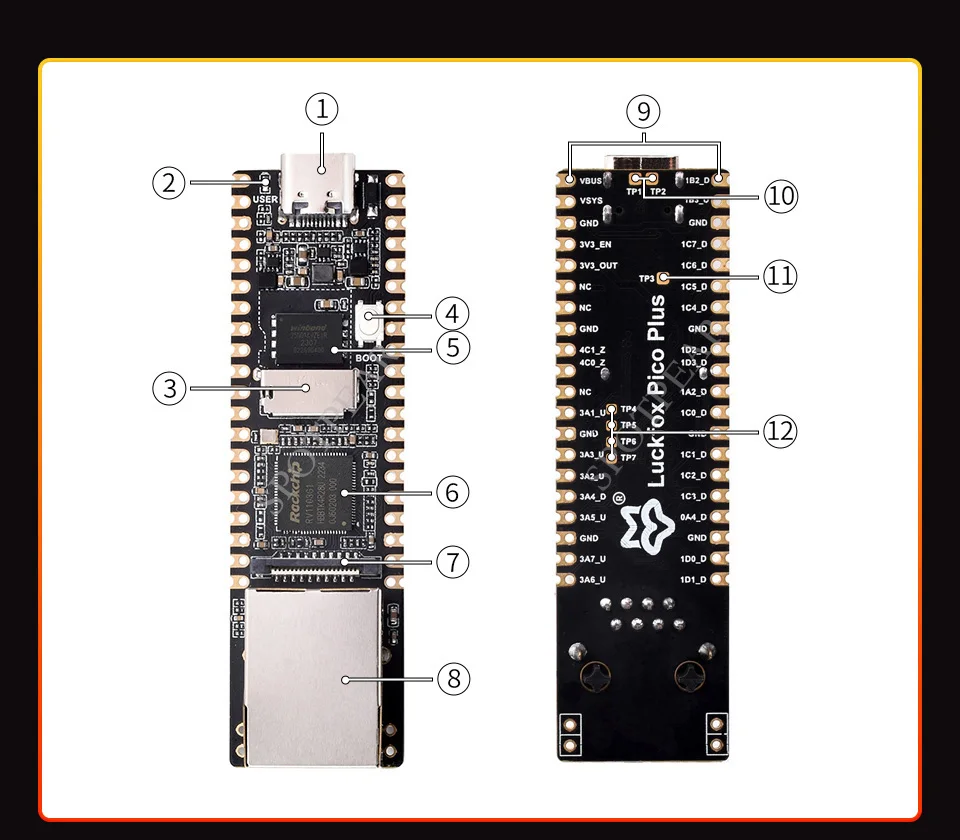

[] Luckfox-Pico-Plus
1. USB Type-C connector
2. ACT-LED
3. TF card slot
4. BOOT button : Press it when powering on to enter download mode
5. W25N01GV : 1Gb SLC NAND FLASH
6. RV1103 : Vision processor SoC with built-in ARM Cortex-A7 core
7. CSI camera interface : MIPI CSI 2-lane
8. RJ45 Ethernet port
9. GPIO header
10. USB test pads
11. BOOT test pad
12. Microphone test pads
【Outline Dimensions】

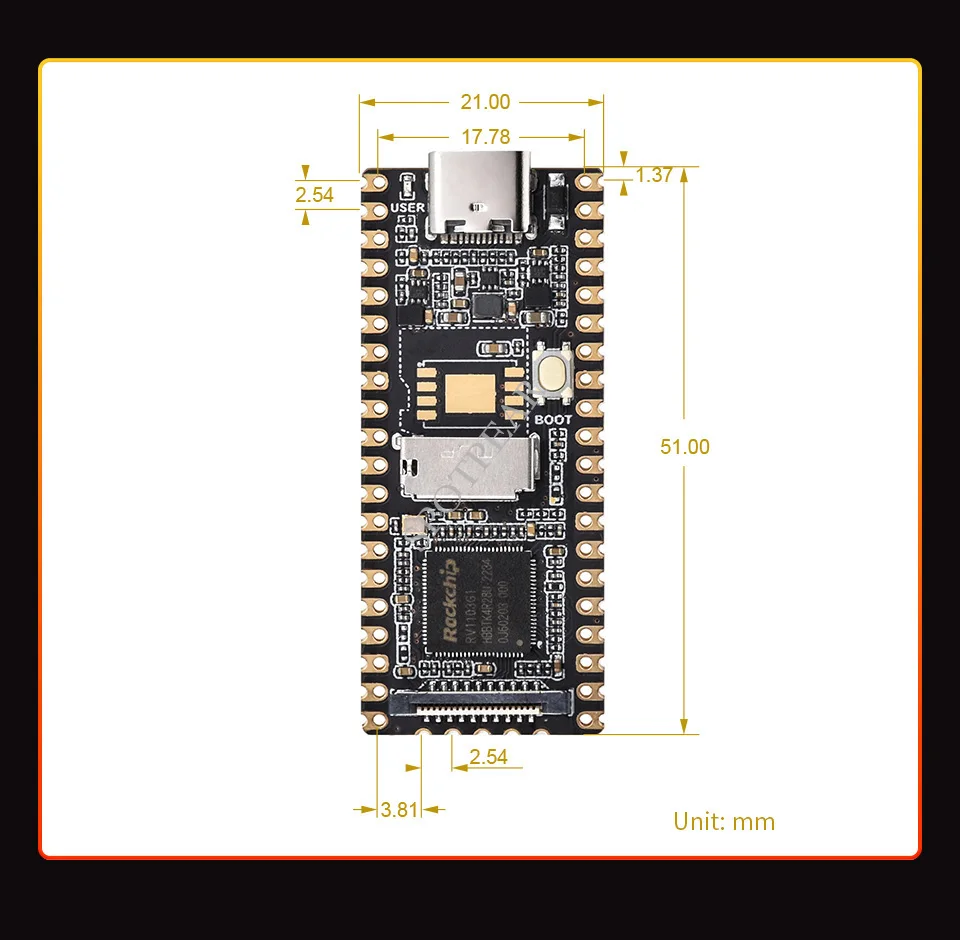

[] Luckfox-Pico

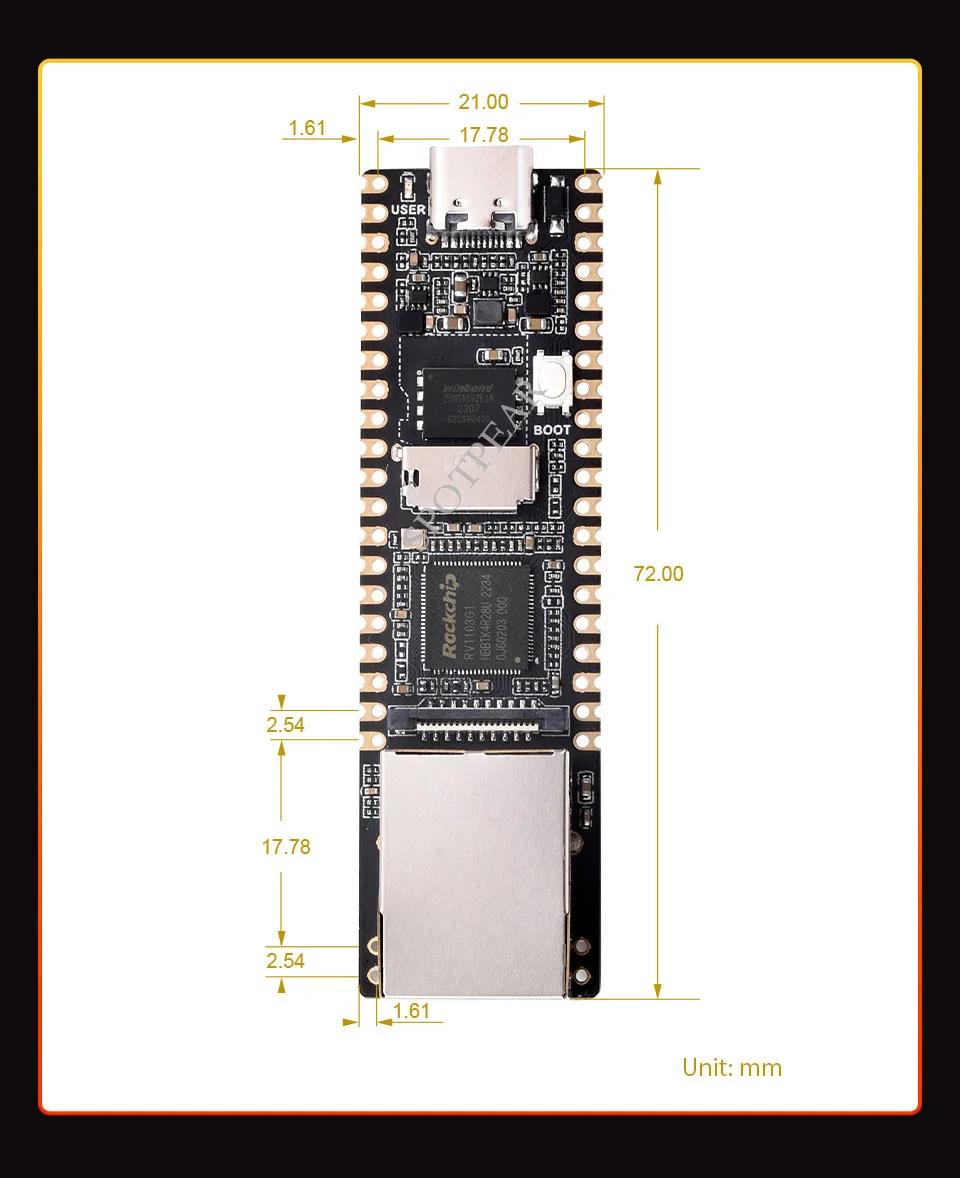

[] Luckfox-Pico-Plus
[] Luckfox-Pico
[] Luckfox-Pico-M
[] Luckfox-Pico-Plus
[] Luckfox-Pico-Plus-M
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
