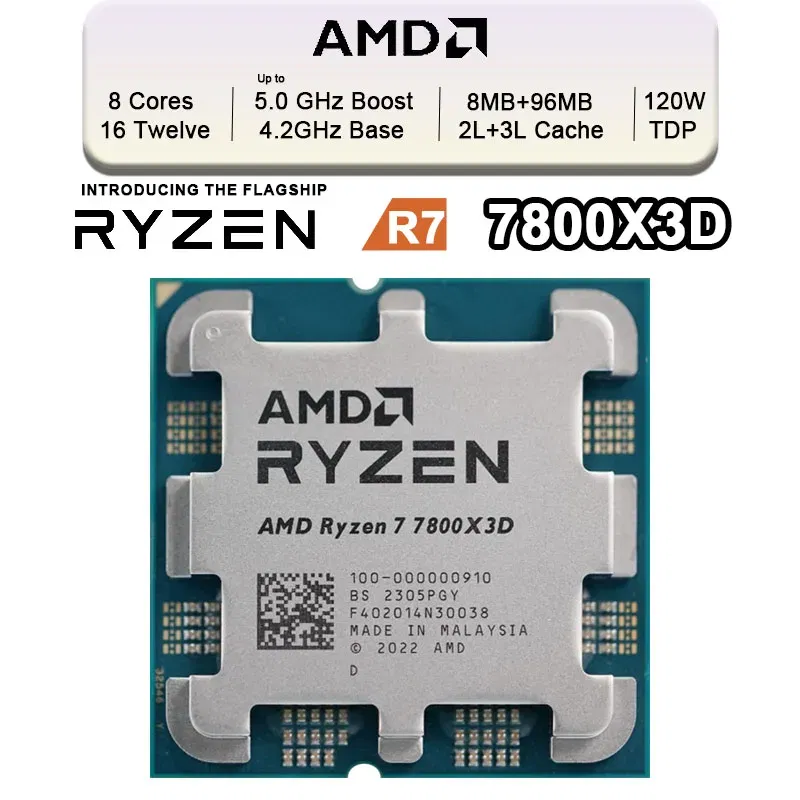

AMD Ryzen 7 7800X3D

CPU brand is brand new and genuine. CPU manufacturing site is randomly sent and cannot be specified (China Malaysia)

AMD Ryzen 7 7800X3D specifications

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Ryzen 7

Model number?

7800X3D

CPU part numbers

100-100000910is an OEM/tray microprocessor

100-100000910WOFis a boxed processor without fan and heatsink

Maximum turbo frequency

5 GHz / 5000 MHz

Package

1718-pin lidded Land Grid Array (LGA)

Socket

Socket AM5

Estimated release date

January 04, 2023 (announcement)

February 2023 (availability)

Architecture / Microarchitecture

Instruction set

x86

Microarchitecture

Zen 4

Processor core?

Raphael

Manufacturing process

TSMC 0.005 micron FinFET process (CPU die)

TSMC 0.006 micron FinFET process (I/O die)

Die

71mm2(CPU die)

122mm2(I/O die)

Data width

64 bit

The number of CPU cores

8

The number of threads

16

Floating Point Unit

Integrated

Level 1 cache size?

8 x 32 KB instruction caches

8 x 32 KB data caches

Level 2 cache size?

8 x 1 MB caches

Level 3 cache size

96 MB shared cache

Physical memory

128 GB

Multiprocessing

Uniprocessor

Extensions & Technologies

MMX instructions

Extensions to MMX

SSE Streaming SIMD Extensions

SSE2 Streaming SIMD Extensions 2

SSE3 Streaming SIMD Extensions 3

SSSE3 Supplemental Streaming SIMD Extensions 3

SSE4 SSE41 SSE42 Streaming SIMD Extensions 4

SSE4a?

AES / Advanced Encryption Standard instructions

AVX / Advanced Vector Extensions

AVX2 / Advanced Vector Extensions 2.0

AVX-512 / Advanced Vector Extensions 512

BMI / BMI1 + BMI2 / Bit Manipulation instructions

F16C / 16-bit Floating-Point conversion instructions

FMA3 / 3-operand Fused Multiply-Add instructions

SHA / Secure Hash Algorithm extensions

AMD64 / AMD 64-bit technology?

SMT / Simultaneous MultiThreading

AMD-V / AMD Virtualization technology

Precision Boost 2

Security Features

EVP / Enhanced Virus Protection?

Low power features

Pure Power[1]

Integrated Graphics Processing Unit

GPU Type

Radeon

Shader cores

128

Base frequency (MHz)

400

Maximum frequency (MHz)

2200

Integrated peripherals / components

Memory controller

Memory channels (total): 2

Supported memory: DDR5-5200

ECC supported: Yes

Other peripherals

PCI Express 5.0 interface (24 lanes)

Supported interfaces

USB-C interface

USB 3.2 Gen 2 (4 ports)

USB 2.0 (1 port)

Electrical / Thermal parameters

Maximum operating temperature?

89°C

Thermal Design Power?

120 Watt

Notes on AMD Ryzen 7 7800X3D

The CPU package contains 1 CPU die and 1 I/O die

[1] - Information is not confirmed

==========

Hign-concerned Chemical : None

Cooling system : no

Usage Scenario : Gaming

MAX BOOST CLOCK : 5GHz

PCIe VERSION : PCIe 5.0

Support Memory Channels : 2

Support Memory Type : DDR5

Support Chipset Models : AMD Others

Default TDP / TDP : 120W

Number OF Therads : 16

L3 Cache Capacity : 96MB

L2 Cache Capacity : 8MBMB

Unlocked : no

GPU-built : YES

Number of Cores : Eight Core

Chip Process : 7nanometers

Package : Yes

Processor Type : AMD Ryzen 7000 Series-R7

Type : Octa Core

Socket Type : AM5

Application : Desktop

AMD Model : R7-7800X3D RYZEN 7 7800X3D

Origin : MY(Origin)

Warranty : Three years warranty

Chip Process : 5 Nanometers
