HIROYASU Walkie Talkie IC-980 Pro UHF VHF Dual Band Dual Watch 25W AI Noise Reduction FM Scrambler Vox Mini Mobile Radio with Cigarette Lighter Power Cable

Troubleshoot:

1.Q: How to turn the FM Broadcast Radio Station ON?

A: Press "FUN" key on the microphone momentarily, then press Numeric key"7" subsequently to turn the Commercial FM Radio ON. repeater the procedure to turn FM radio off.

2. Q: does this transceiver have 1750Hz Tone for Repeater Access in E.U

A: Yes,we re-designed the PCB board, and added a 1750Hz Tone Module in it basd on the demands from E.U customers. and all production batch of radios starting from April 19 are configuatedwith1750Hz Tone.

3. Q: How to save a memory channel?

A: 1st. Press V/M button on the front panel to switch your radio in VFO Mode,

2nd: Input the desired frequency by the numeric key on the microphone

3rd: Press "FUN" key on the microphone momentarily, then press Numeric key"0" subsequently, and press "Up" or" Down" Key on the microphone to select your desired channel number . (Notes:the LCD will display Cover->001, "Cover->001 " means that the channel 1 is occupied, you can save your frequency to cover the previous memory channel., SAVE->234 means that the channel youselectedis empty, you can directly save your frequency to it. )

4th: Press "FUN" key on the microphone to save the frequency to channel,.When the data is stored, the word OK will be displayed.

5th: you can recall the memory channel in channel model.

4.Q: where can i get the HIROYASU IC-980Pro programming software and detailed User's Manual?

A: send us your email address by order message , then we will email them to you immediately when we read your message.

5.Q: How does the built-in cooling fans initiate?

A:The cooling fan works intelligently when radiator of the RF power amplifier reaches a certain high temperature even if the transceiver is receiving still.

Features:

Frequency Range:

FM:76-108MHz (Rx)

VHF:136-174MHz (Tx&Rx

UHF400-470MHz (Tx&Rx

Output PowerH/L Power Switchable): High=25W, LOW=10W

Memory Channels: 200

Background noise Canceling

1750Hz Tone

Mini Size, light weight

Compandor

Scrambler

Busy Channel Lock

TOT

TOA

Repeater SFT-D

SFT Frequency

Sep:2.5/5/6.25/10/12.5/20/25/30K

CTCSS/DCS and special DCS

Display Mode: Frequency/Ch/MR

Roger Beep (end of transmission tone)

Double Watch

VOX( Voice-activated transmission)

Keypad lock

Priority Channel Scan

Cigarette Lighter Power cable

Dc 13.8V power Supply

Specifications:

General

Frequency Range:

FM Radio:76-108MHz (Receive only)

VHF:136-174MHz (Tx& Rx

UHF 400470MHz TxRx

Memory Channel

200

Frequency Step

255/6.25/10/12.5/20/25/30/50KHz

Working Voltage

13.8V±15%

Squelch Mode

Carrier/CTCSS/DCS

Frequency Stability

±2.5ppm

Working Temperature

-20°cto 60°c

Dimensions

108mm*40mm*102mm

Weight

450g

Receiver

Wide Band

Narrow Band

Sensitivity(12dB SINAD)

0.2uV

0.14uV

AdjacentChannel Selectivity

70dB

60dB

Inter-modulation

65dB

60dB

Spurious Response

70dB

70dB

Signal to Noise Ratio

45dB

45dB

Audio Distortion

5%

Audio power

2W±10%

Transmission

Wide Band

Narrow Band

Output Power

H: 25/20W (VHF/UHF), L: 10W/8W(VHF/UHF)

Modulation

16KF3E

11KF3E

AdjacentCh.power

70dB

60dB

Signal to Noise Ratio

40dB

40dB

Parasitics and harmonics

60dB

60dB

Audio Distortion

5%

Note: Specifications are subject to change without notice due to technical improvement.

Package Contains:

1×IC-980 Pro MniRadio Body

1×Speaker Mic

1×Bracket

1×Cigarette Light Power Cable

1×Screw Sets

1×Hook for Speaker Mic

1×ENG Manual

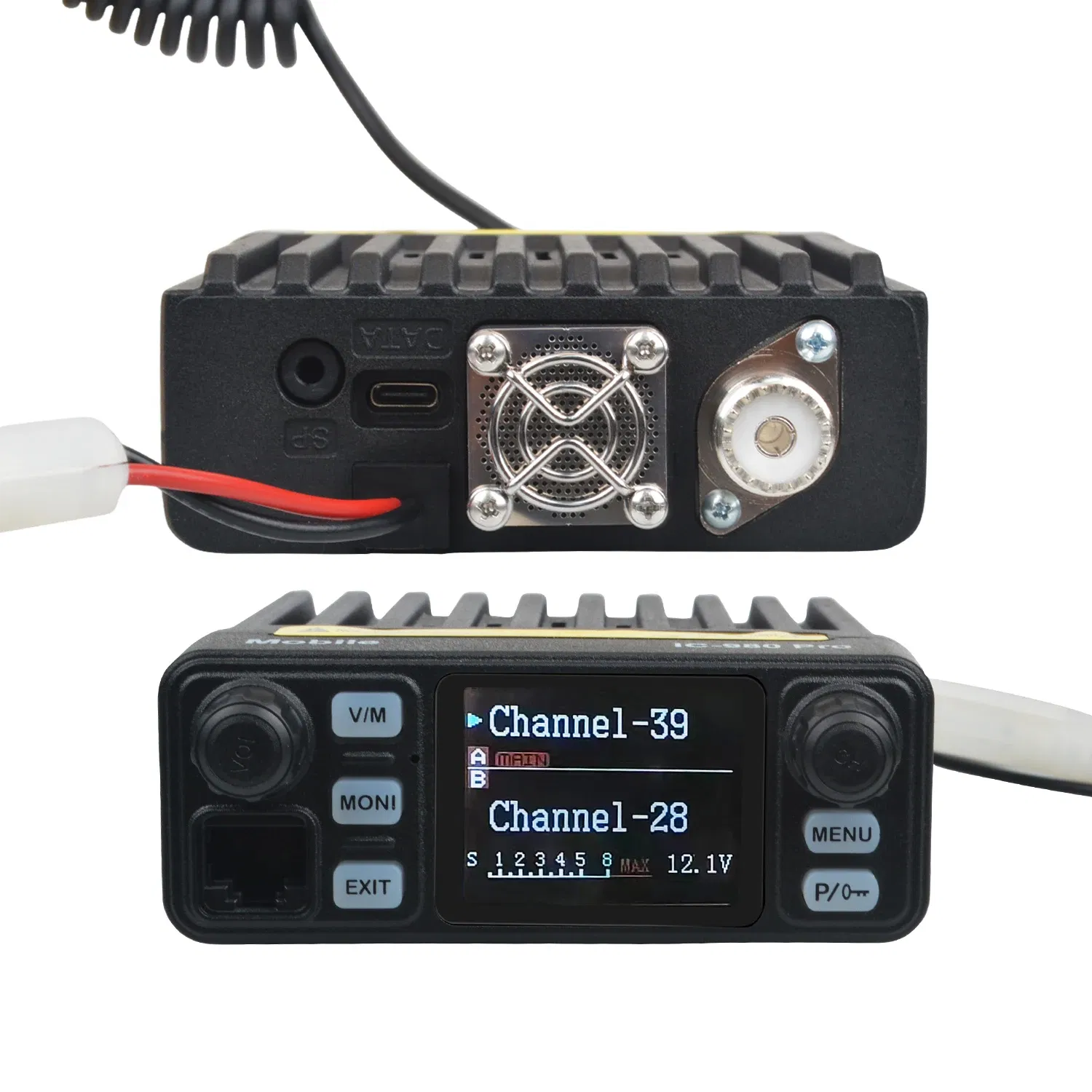

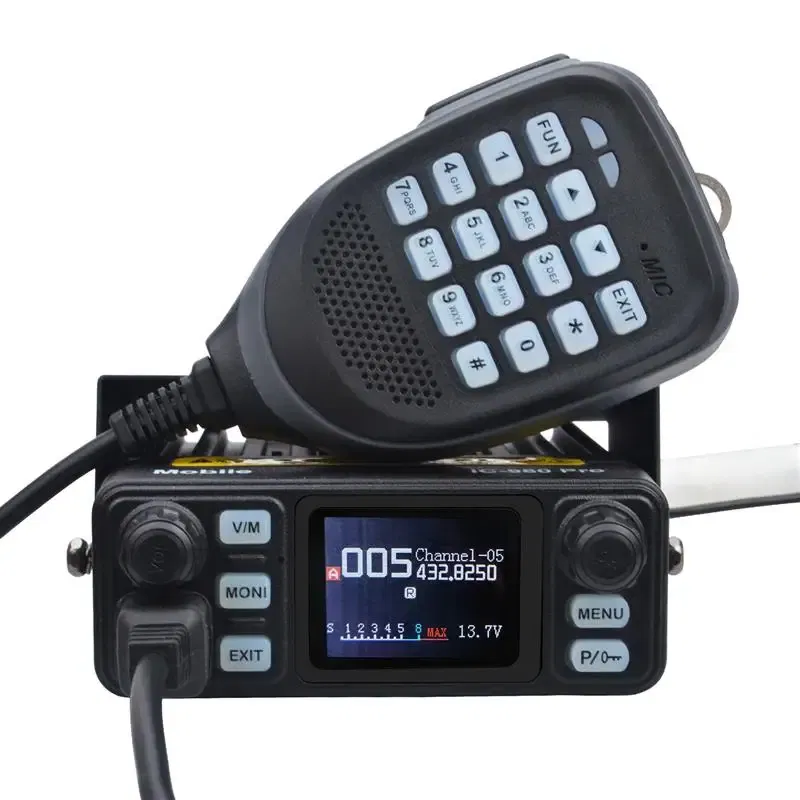

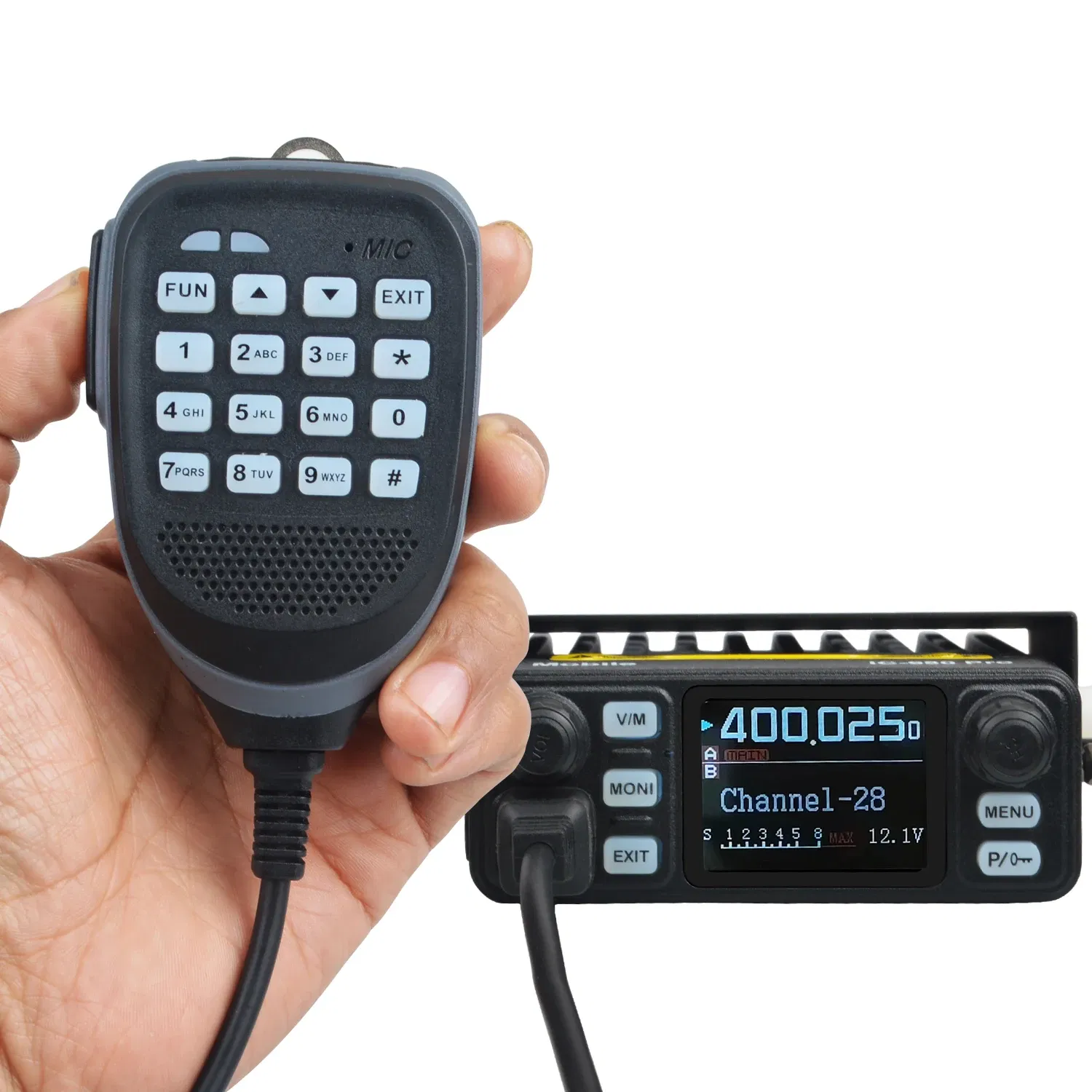

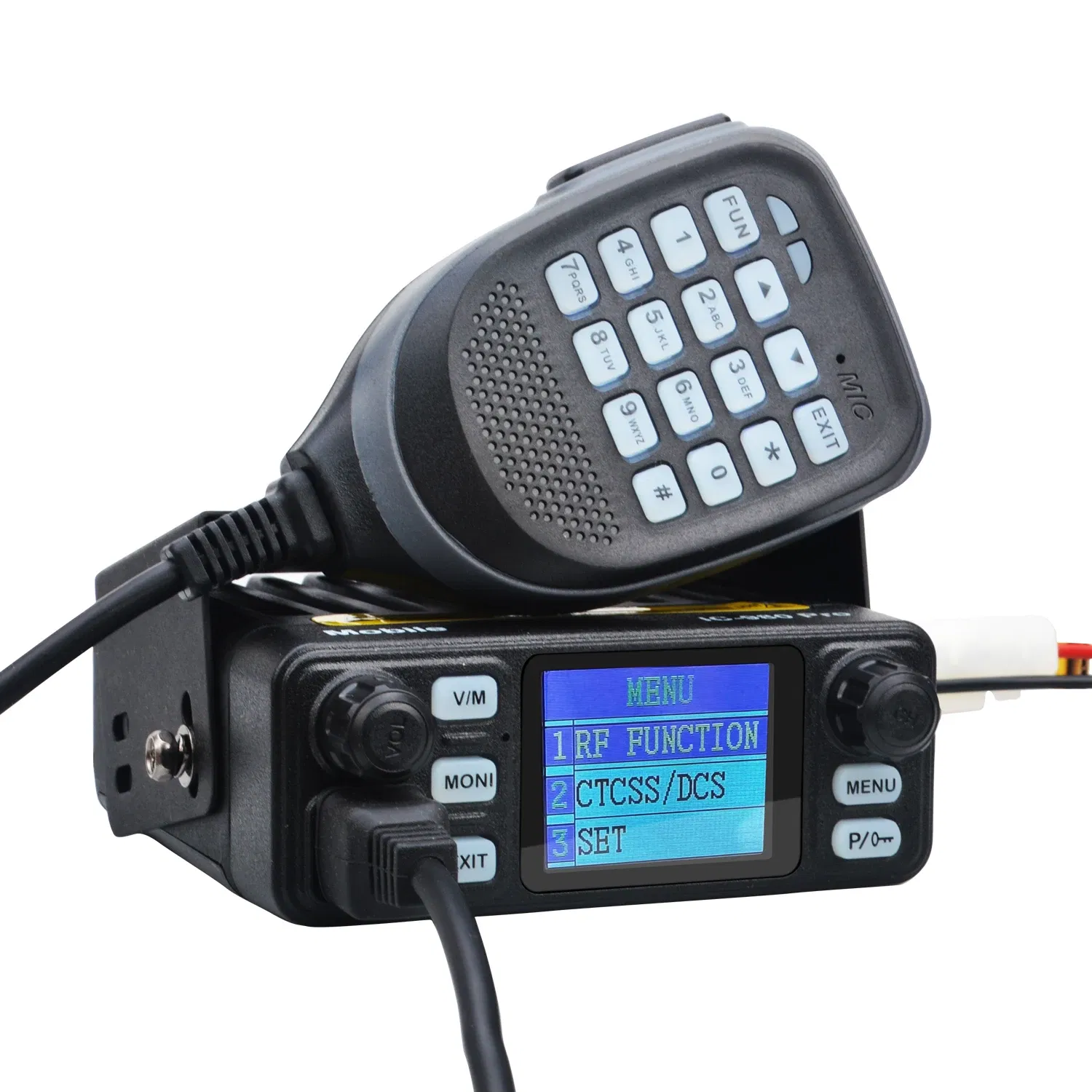

Photos:

==========

Output Power(w) : 10w-25w

Battery Capacity(mAh) : 0

Waterproof / Water-Resistant : No

Material : Plastic

Storage Channel : 200

Frequency Range : VHF:136-174MHz & UHF: 400-470MHz

Dimensions : 108mm*40mm*102mm

Model Number : IC-980 Pro

Walkie Talkie Type : Car

Is_Display : Yes

Maximum Range : 5km-10km
