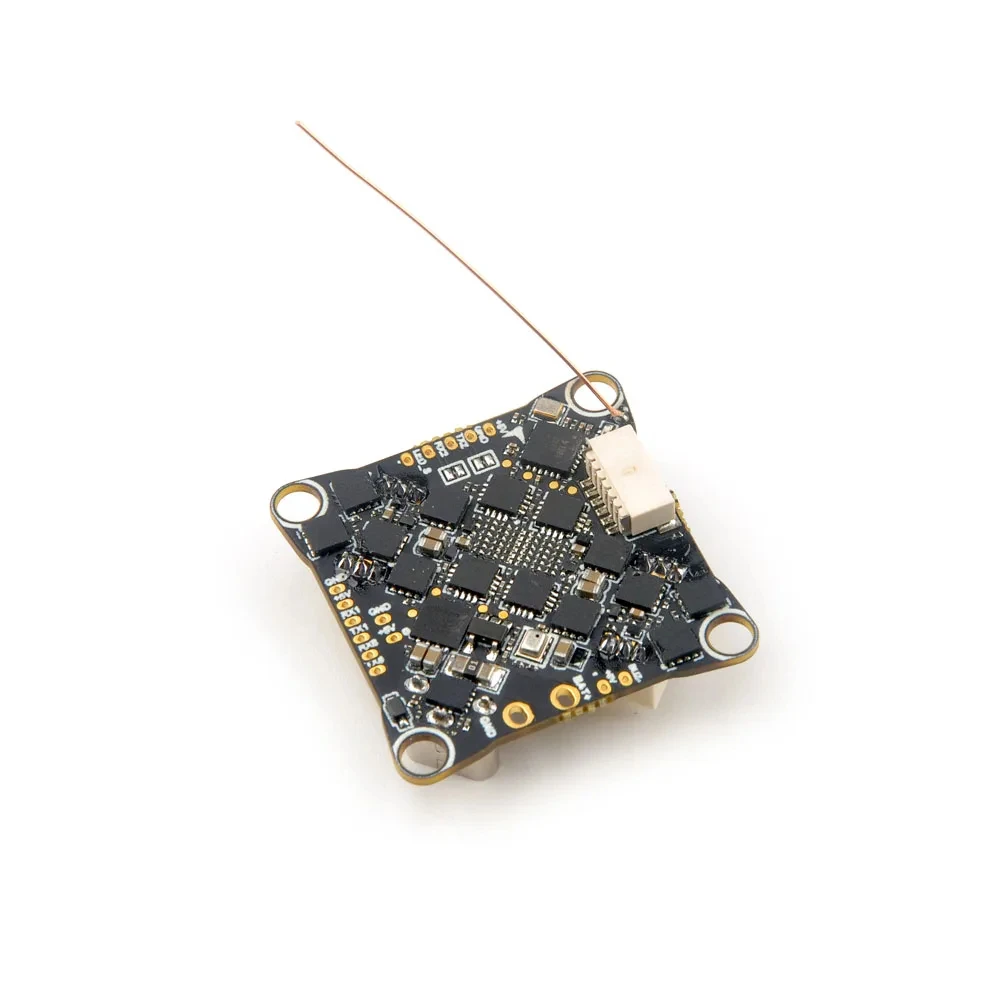

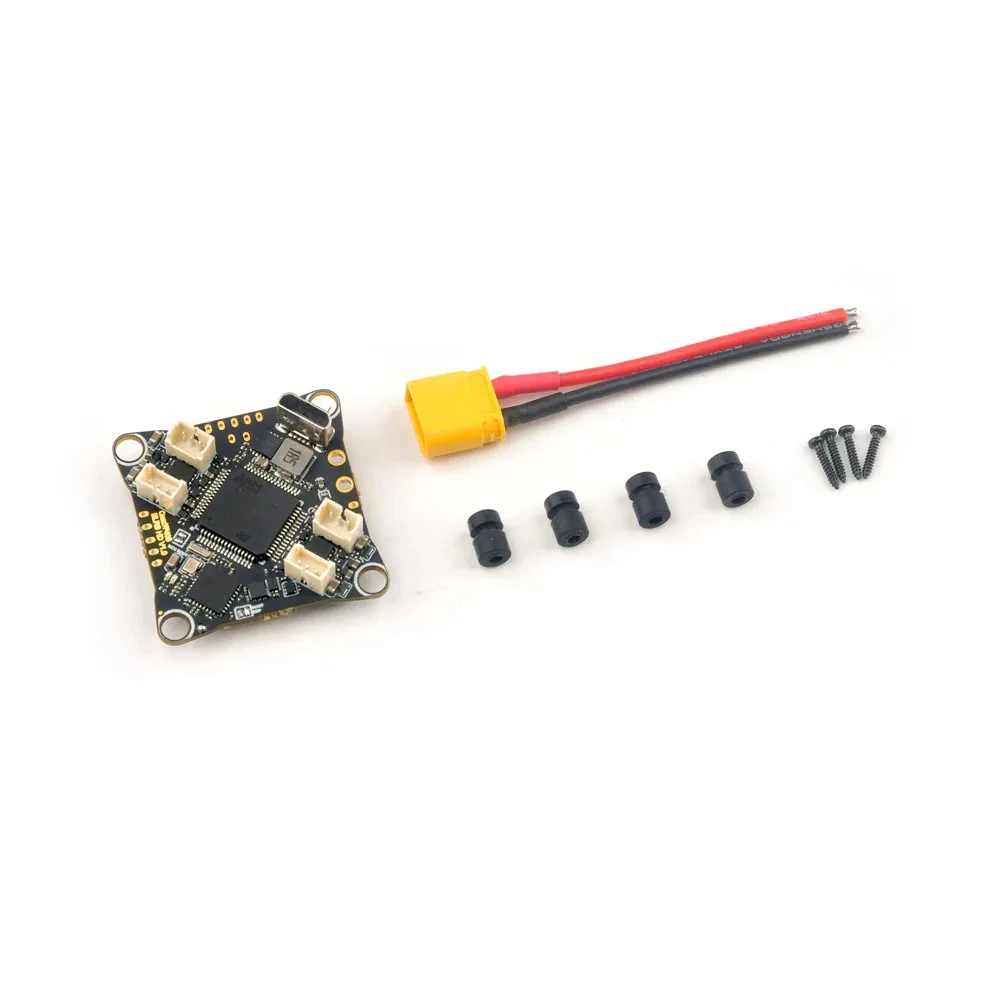

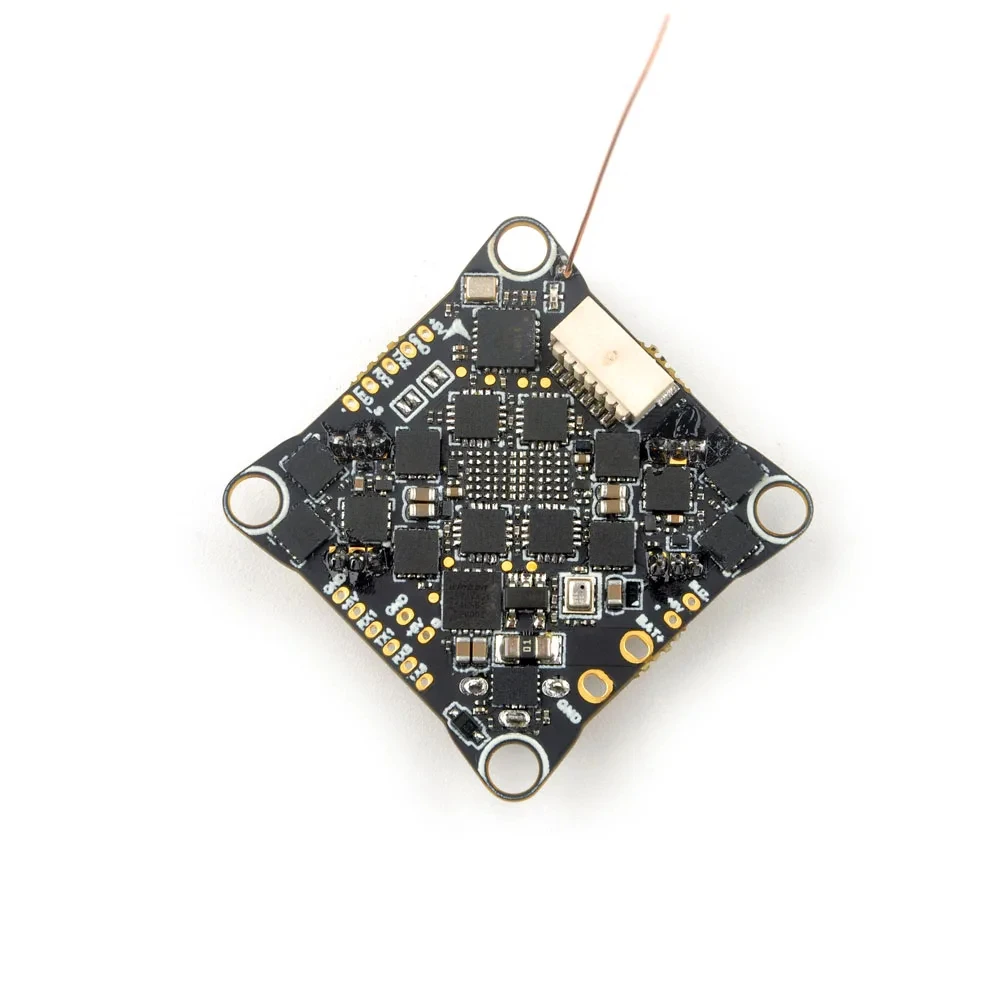

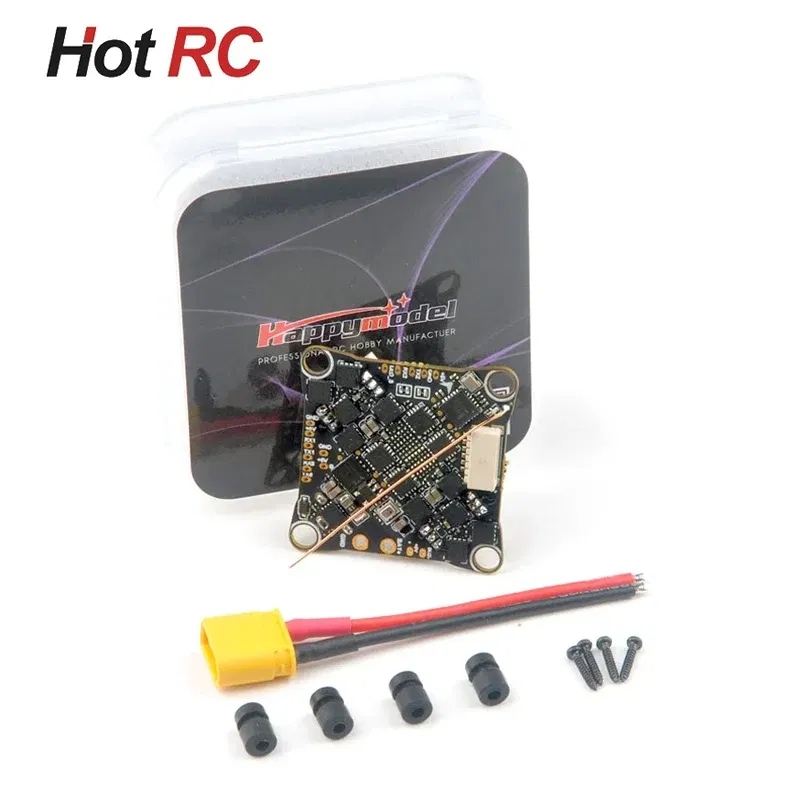

A flight controller with a built-in Serial ELRS receiver and 4-IN-1 Blheli_S 12A ESC specially developed for Digital HD FPV, which removes the analog OSD chip 7456, optimizes the PCB layout, and supports 1-2S Lipo/LiHV lithium batteries, very Suitable for Digital HD Tinywhoop/Cinewhoop/Toothpick and other small FPV drones. The flight controller uses the F405 chip, supports Betaflight/INAV firmware, has 3 sets of complete UARTs available, and integrates a BMP280 barometer and 8Mbp blackbox, which greatly enhances the playability of the flight controller.
Specifications:
Brand Name: Happymodel
Item Name: CrazyF405HD ELRS 1-2S AIO Flight controller
Mount size: 25.5mmx25.5mm

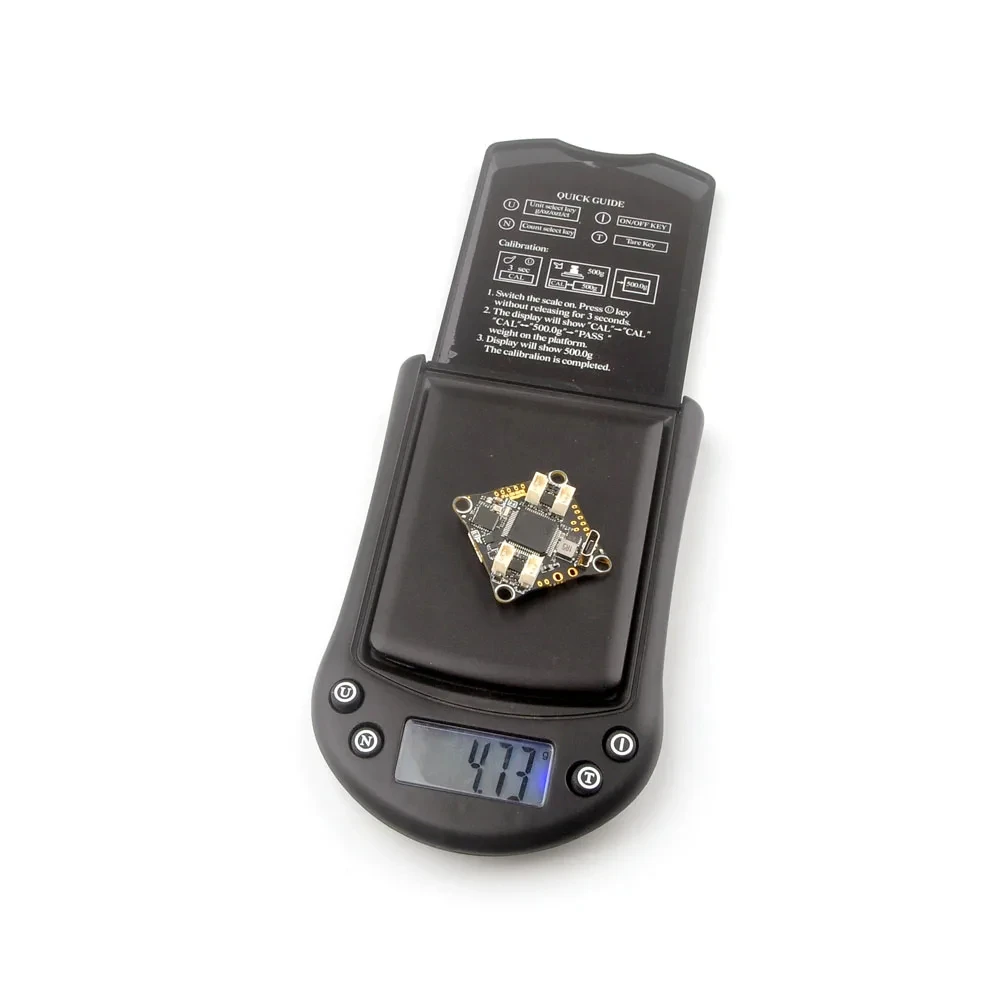

Weight: 4.8g without power lead wire
Firmware target: BetaflightF4
Support 1-2s Lipo/LiHV battery

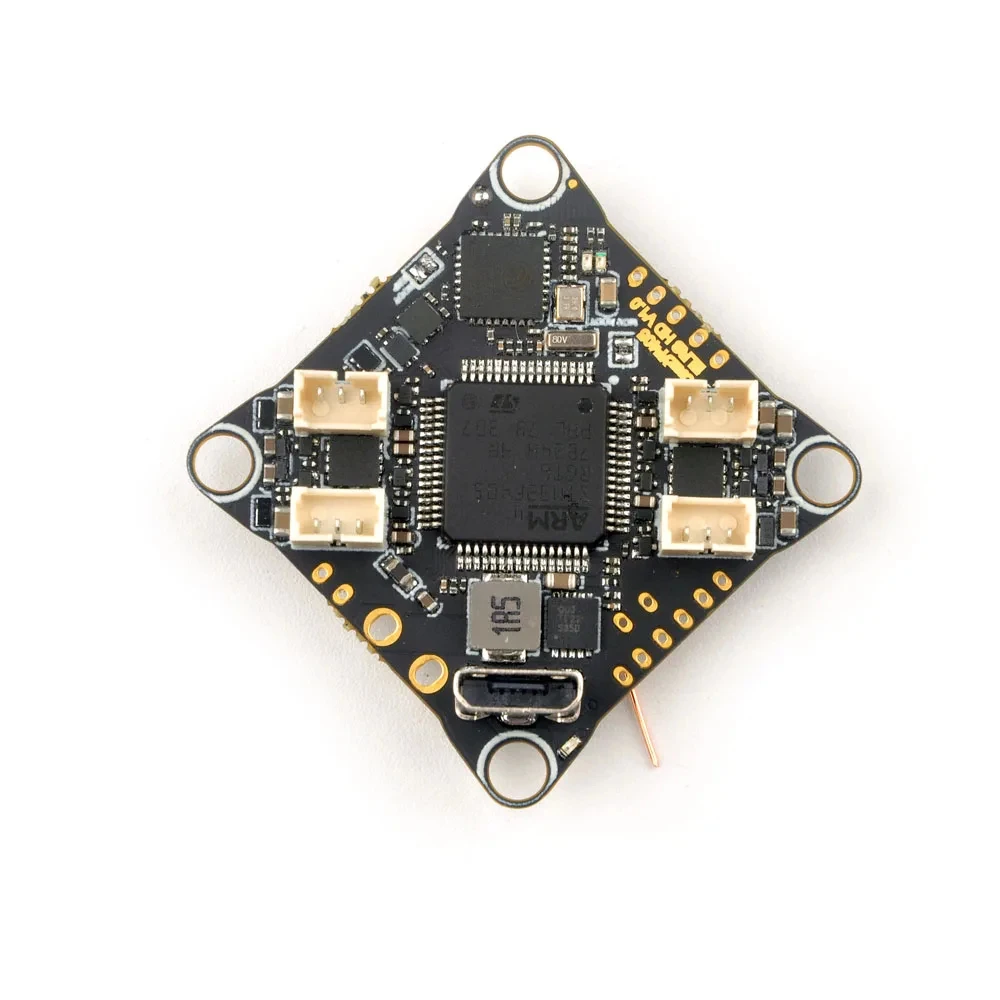

Flight controller | MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) |
Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV |

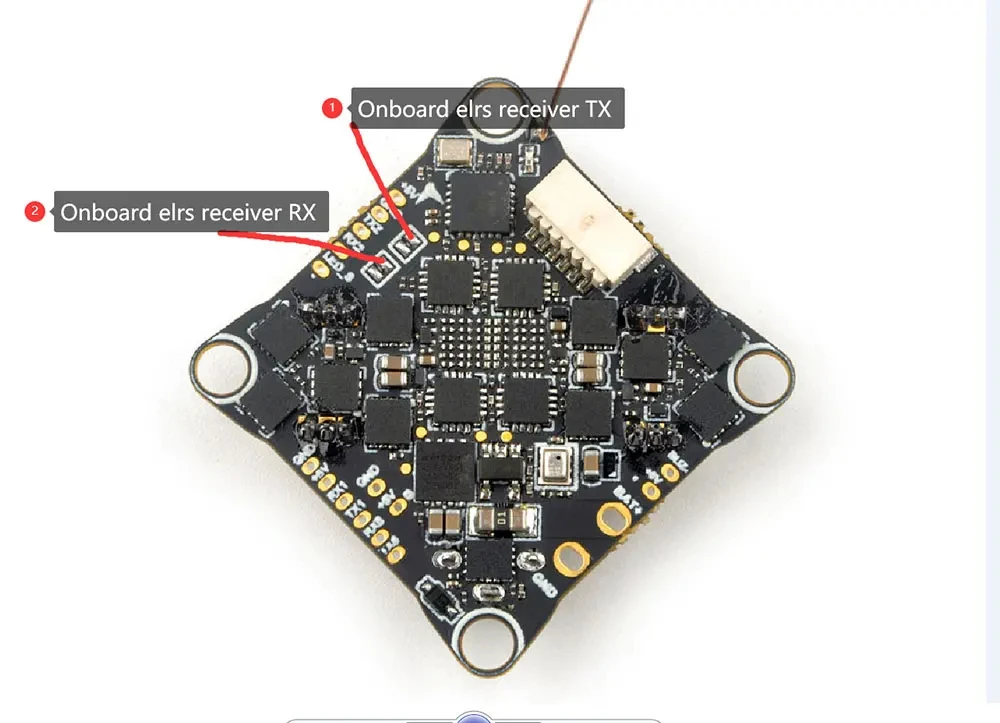

Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz |
For original factory 4.3.2 version firmware,if you want to use BMP280 barometer,please connect to betaflight configurator and then move to CLI command, then type the following command:
resource I2C_SDA 2 B11
set baro_bustype = I2C
set baro_i2c_device = 2
2. Add BARO_BMP280 to custom defines
3. Flash the board
4.Configure resources for external BARO device for the flight controller in CLl:
resource I2C_SDA 2 B11
set baro_bustype = I2C
set baro_i2c_device = 2

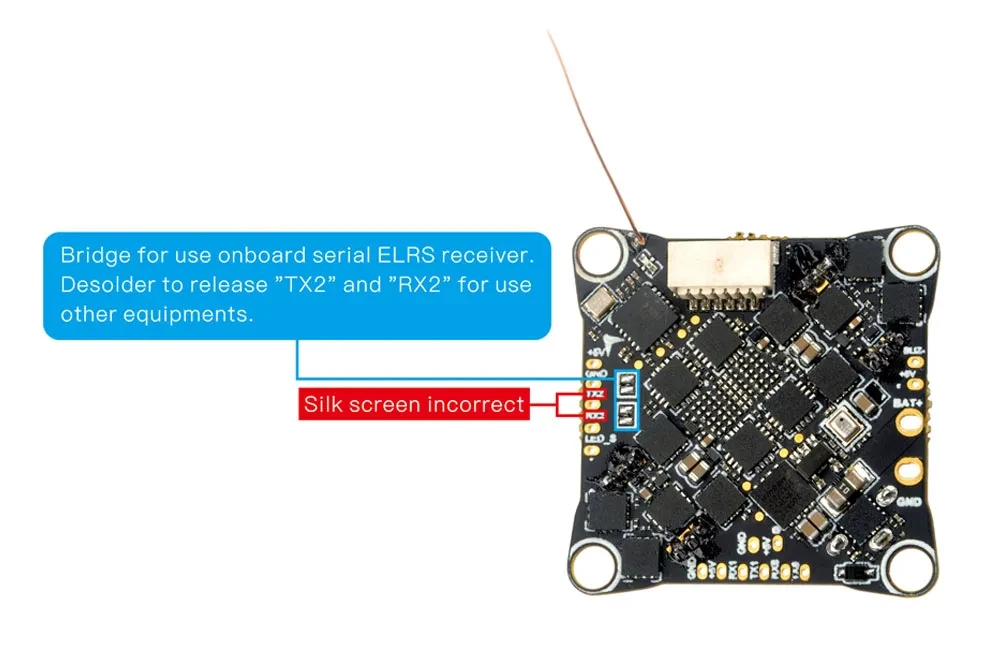

Only the v1.0 version of the CrazyF405 flight controller has silk screen printing errors, and the V1.1 and V2.0 versions have been fixed
