FENVI 300Mbps Wireless Wi-Fi Repeater 2.4Ghz 802.11N WPS Long Range Expander AP Router signal Amplifier Booster Plug Access Point

Warm Tip:

The Wi-Fi Repeater Is to Help These Devices with Weak Wi-Fi Signal at The

Location Like Kitchen, Washing Room, Bedroom, Yard, Garage, Etc.

Don't Use to Compare the Wi-Fi Speed with Router's, It Would Be Useless, Don't Buy on This Purpose.

Specifications:

Material: ABS + PC

Frequency: 2.4GHz to 2.4835GHz

Power requirements: 110V-230V socket

WPS: Just press the WPS button to surf more safely.

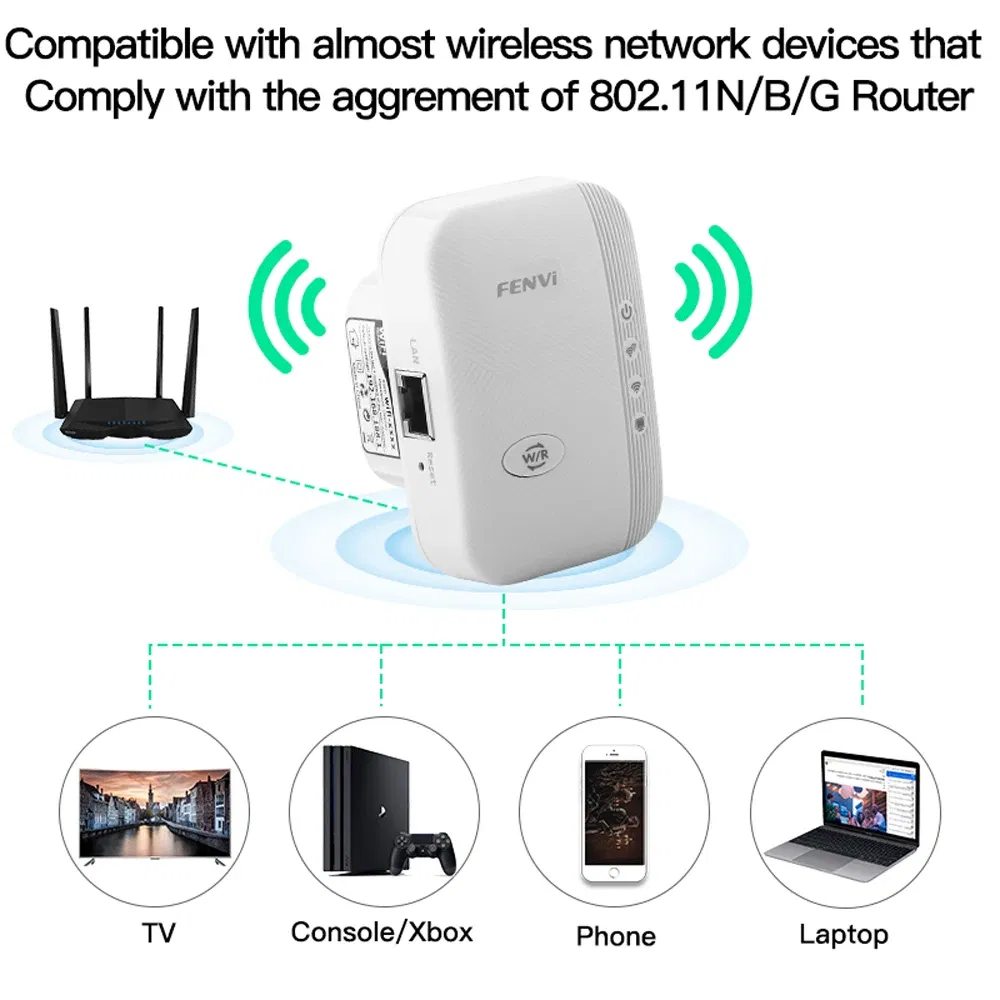

Compatibility: compatible with 802.11n/g/b devices

Standards: EU/US Plug

Color: white

Package included:

1x WIFI Wireless Repeater

1x English Manual

Note:

1.Please check whether the Wi-Fi-Repeater accord with factory default settings once you can't download if you are still not sure what reasons, you can reset the Wi-Fi-Repeater just need to press the reset button for 10 seconds,then try again.

2.In order to protect the life of the repeater, reduce the loss of product use. Please do not use the repeater for a long time (more than 24 hours). When you do not need to use it, please take it out from the power supply.

3.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Q&A

Q1: What is a 300M repeater?

A1：300M repeater is a wireless network device used to expand the coverage and signal strength of existing wireless networks. It receives the original wireless signal and forwards it to different locations to extend the distance of the wireless signal and achieve greater coverage.

Q2: Can using a repeater improve network speed?

A2: Repeaters add a signal source to expand the coverage of WiFi, but have no effect on improving the network speed

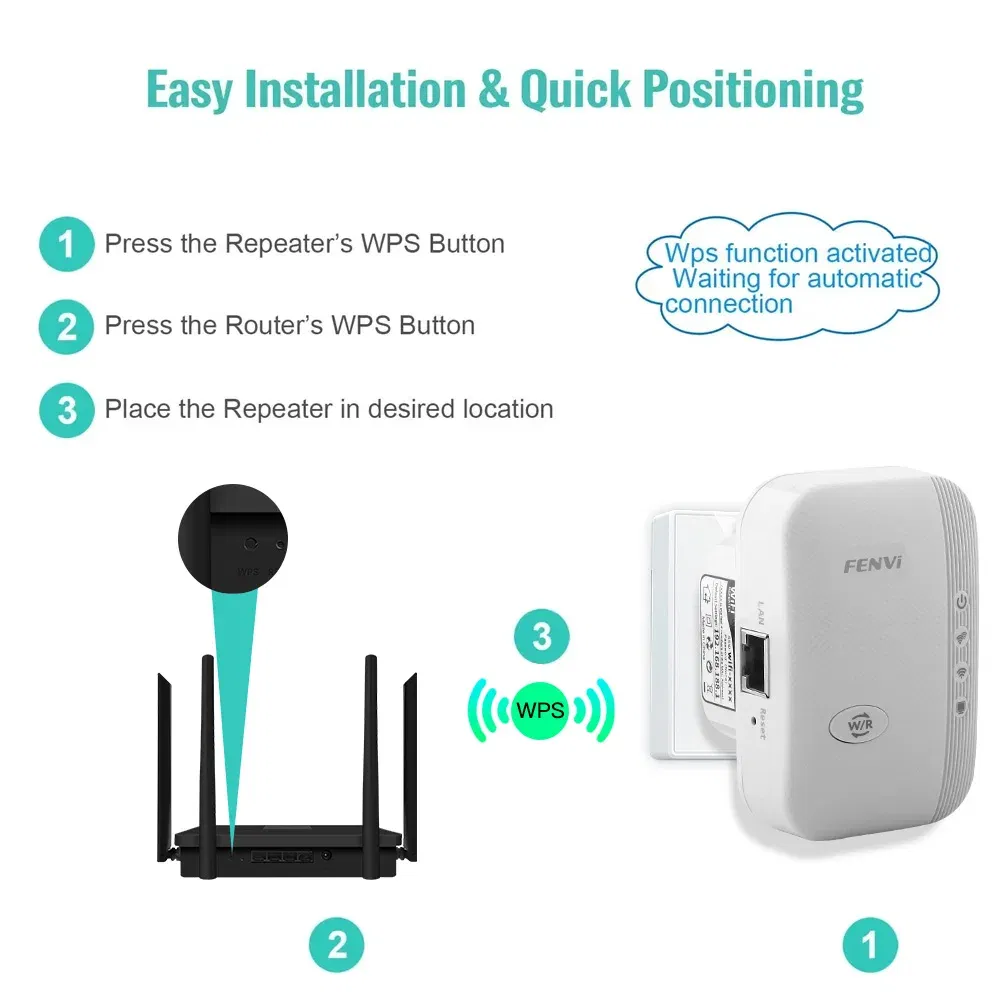

Q3: How to set up a 300M repeater?

A3: Setting up a 300M repeater usually requires pairing it with an existing wireless router and configuring it through the settings interface. You need to connect to the wireless signal of the relay (the specific steps are described in the operation manual, and the details page also has relevant steps), and use your computer or mobile device to access the management interface of the relay to set it up.

Q4: How far can it be used from the router? How far can the signal be transmitted and can the partition be used?

A4: After the repeater is set up, the signal emitted is approximately 20-30 square meters. It can be compared and referenced according to the actual situation. If there are partitions during use, it will have a attenuation effect on the signal and affect the network speed. The specific needs to be tested during actual installation and use

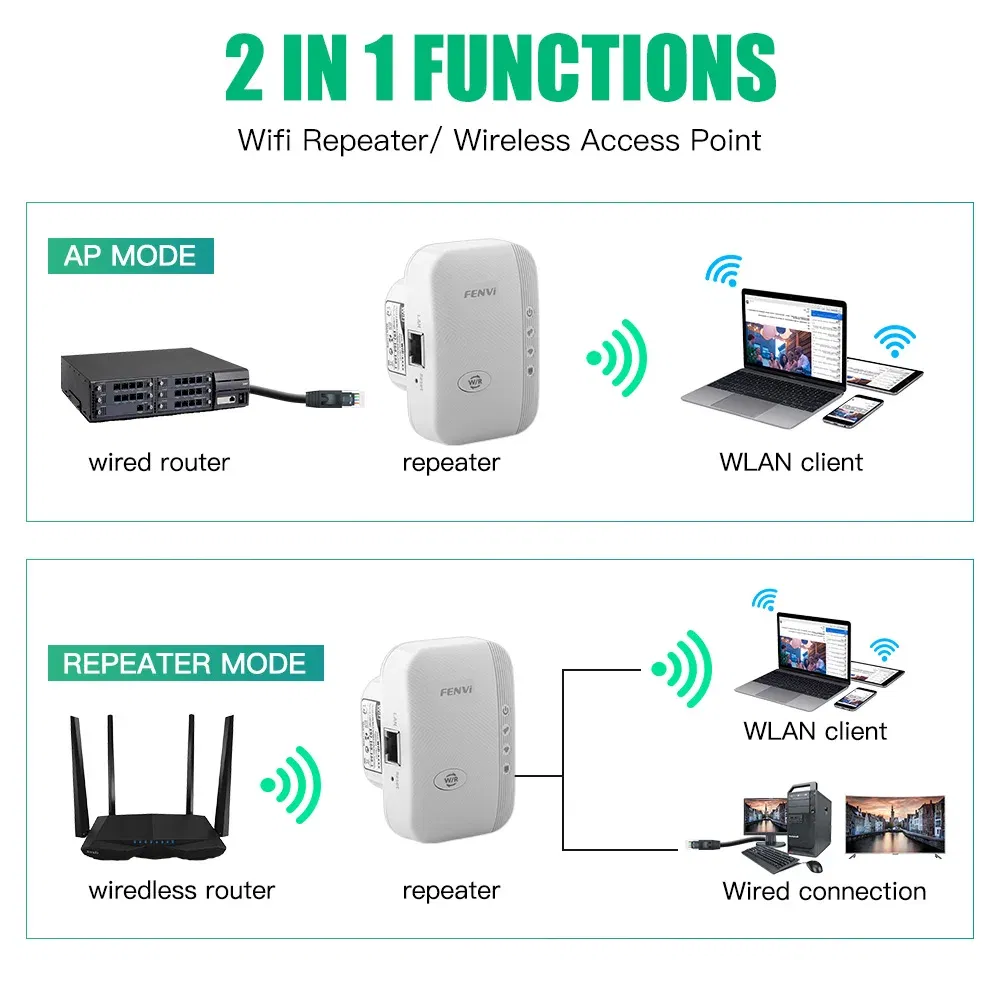

Q5: Can a repeater be used as an AP? Can I make a router?

A5: The product has two functions: one is a relay function, which connects wirelessly to the home router's WiFi and outputs a new WiFi for the phone; Another method is to pull the network cable from the router to the product's network port, and the product is set to AP mode to transmit a WiFi to the phone as a hotspot.

Q6: How to set AP mode

A6: ① The relay should first be plugged into a socket to power on, and then connected to a network cable. It can be connected directly to the WiFi connection sent by the relay to access the internet

② To set the WiFi name and password, first plug the relay into the socket, then connect the WiFi sent by the relay to the setting interface, select AP settings, set the WiFi name and password, and after setting, plug in the network cable, search for the WiFi name, and enter the password to connect

Q7: How to restore factory settings

A7: After the relay is plugged into the socket and powered on for one minute, press and hold the button on the front or side of the relay for 8-10 seconds to restore the factory settings (different relay buttons are different, according to the actual product introduction)

Q8: The relay is set and connected. The relay's wifi display shows no internet access/no IP allocation

A8: After troubleshooting the issue that is not related to optical cats, restart the router's power supply. After unplugging the power, wait for 2-3 minutes before connecting and using it. It may be that the higher-level router has not assigned an IP to the repeater and needs to be restarted

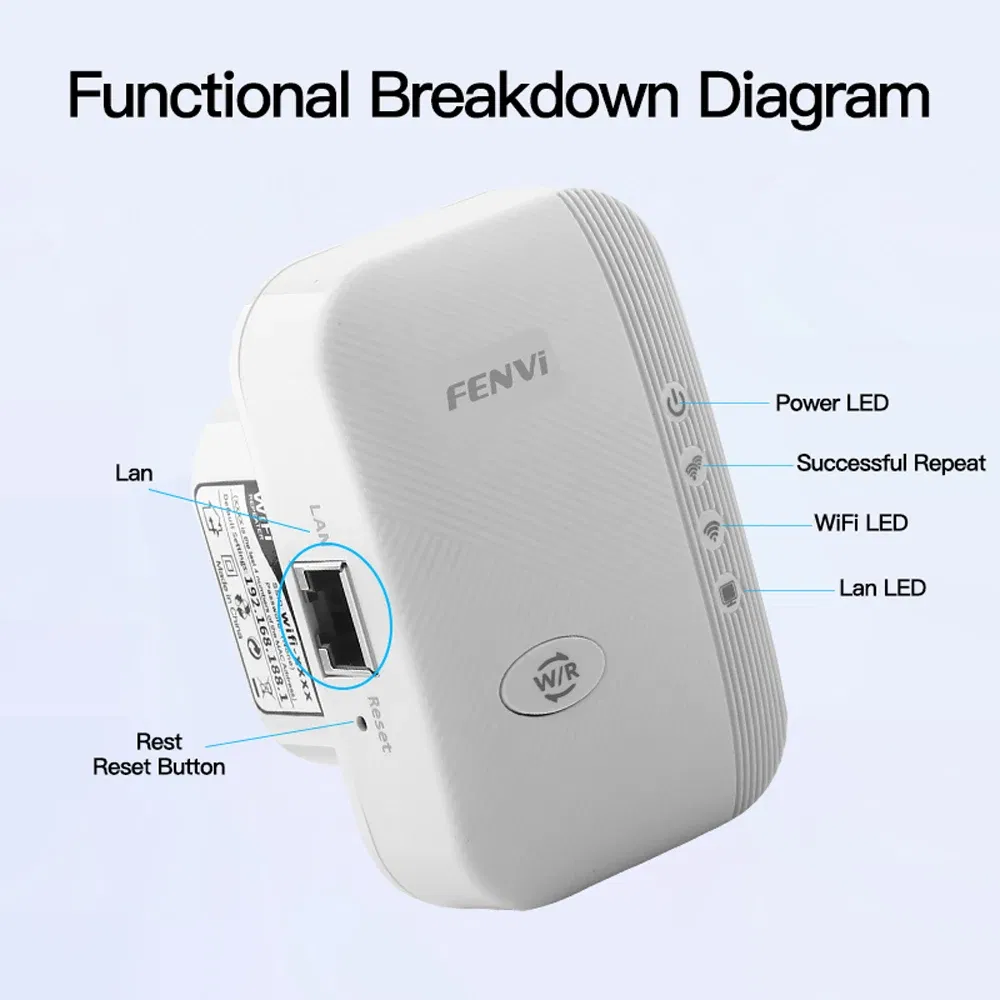

Q9: What do the indicator lights on the repeater mean

A9: The first is the power indicator light, the second is the relay successful indicator light, the third is the relay emitting WiFi indicator light, and the last is the network cable indicator light; After the setting is completed, we usually provide feedback that the WiFi connection cannot be connected. We can ask the customer to check if the second indicator light on the relay is on. If it is not on, it means that the relay has not been successful. We need to restore the factory settings

Q10: Which scenario is the 300M repeater suitable for?

A10:300M repeaters are suitable for scenarios that require expanding the coverage of existing wireless networks, such as large residential buildings, offices, hotels, or shopping malls.
