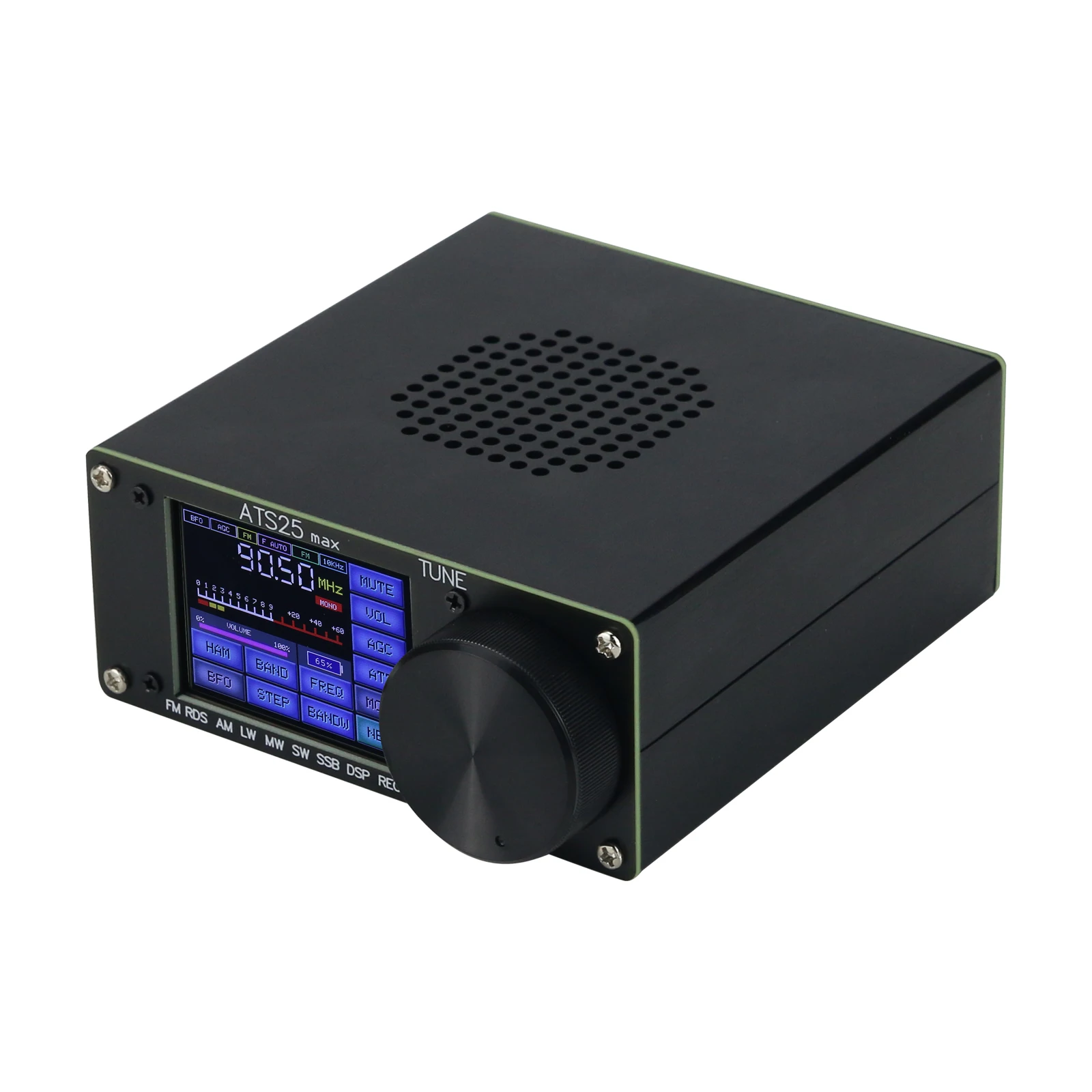

HamGeek ATS25 Max Si4732 All Band Radio Receiver FM RDS AM LW MW SW SSB DSP Receiver w/ 2.4" Touch Screen

Description:
Si4732 FM LW (MW and SW) and SSB full band radio receiver is designed with a 2.4" color touch screen. It is added with these functions:
1. Spectral scanning
2. Backlight adjustment
3. Backlight off
4. Battery voltage
5. Battery percentage

Features:

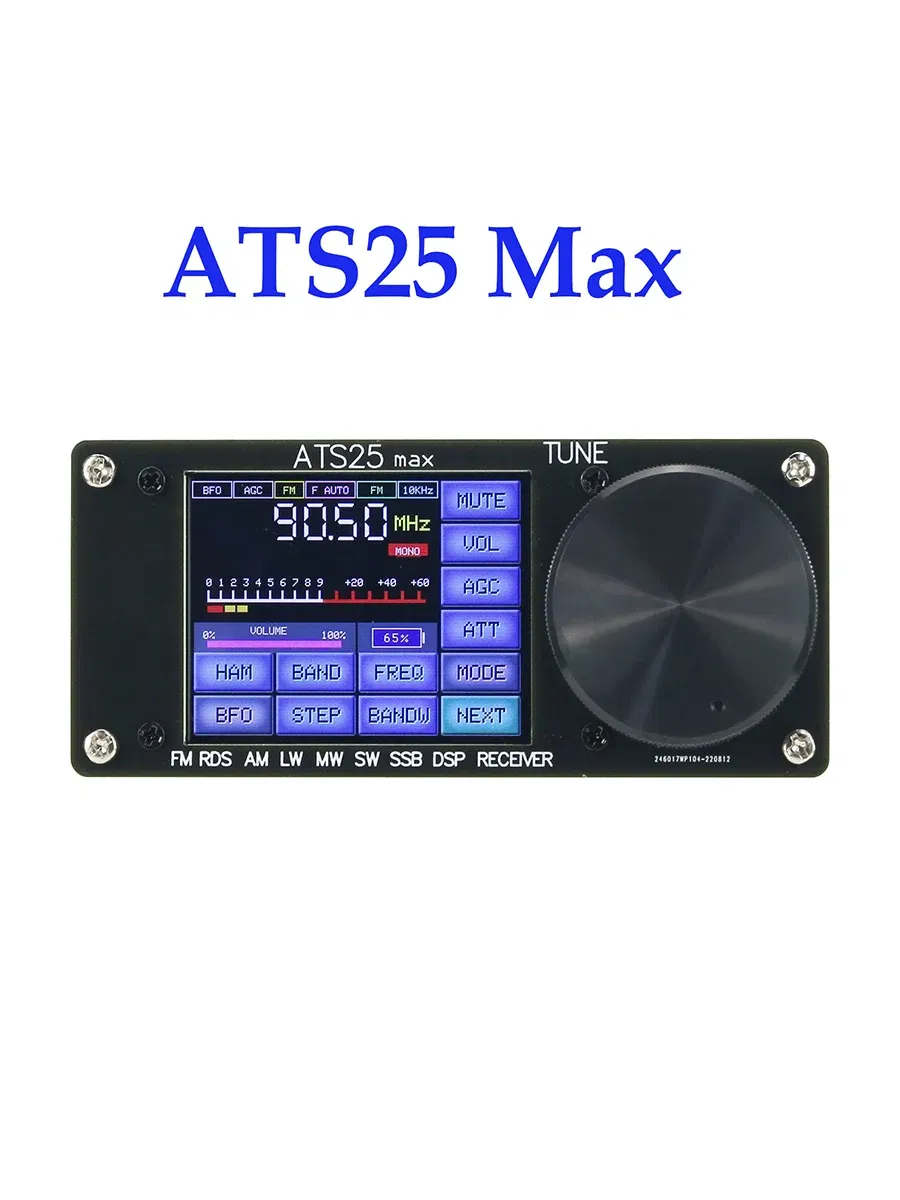

- A 2.4-inch color touch screen allows you to read data more smoothly and to have a better user experience
- Thanks to its built-in high-capacity lithium battery, there is no need to worry about sudden power failure affecting use

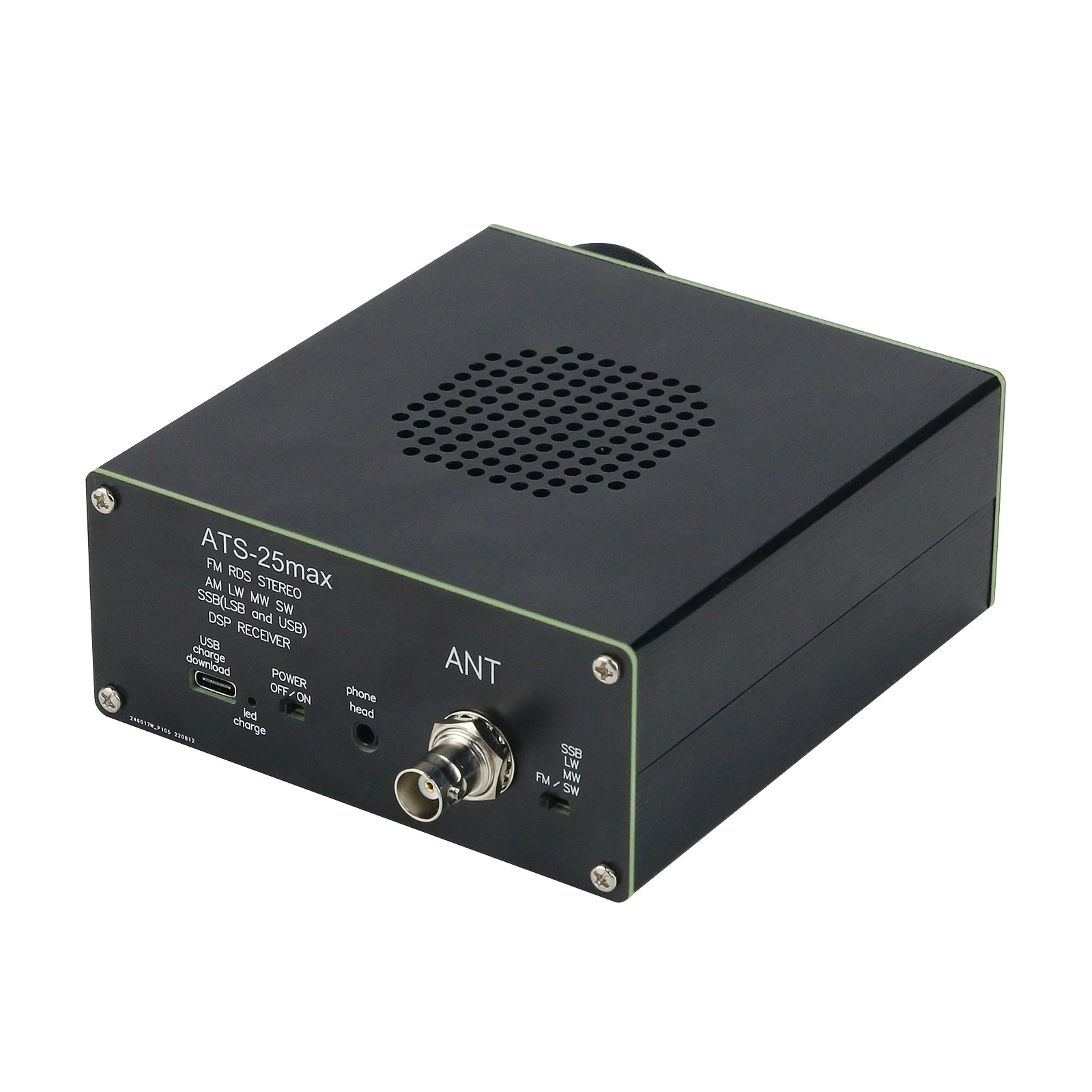

- Can upgrade program via TYPE-C interface; 3.5mm stereo audio output; also support 3.5mm audio FM antenna interface, with a maximum charging current of 1.5A
- Support AM band wide bandwidth: 1 6 6k; support SSB bandwidth band: 0.5 4 4k, audio output power 1.5w; support HAM band fast channel
- Features radio search and direct frequency entry on the number pad; also has a quick ham bar channel
- Small and portable: you can take it with you or share it with family and friends

Frequency:
- FM: 64 functions 108mhz/RDS functions
- LW: 153khz 500khz
- MW: 520khz 1710khz
- SW: 1730khz 30000khz
- SSB: 1730khz 30000khz
- Antenna Interface: BNC

Specifications:
- Shell material: aluminum alloy
- Built-in lithium battery: 3.7V/2000MA
- Shell size: 11.1 x 10.2 x 4.7cm/4.4 x 4 x 1.9" (without the size of protrusions)
- Product weight: 500G/LB

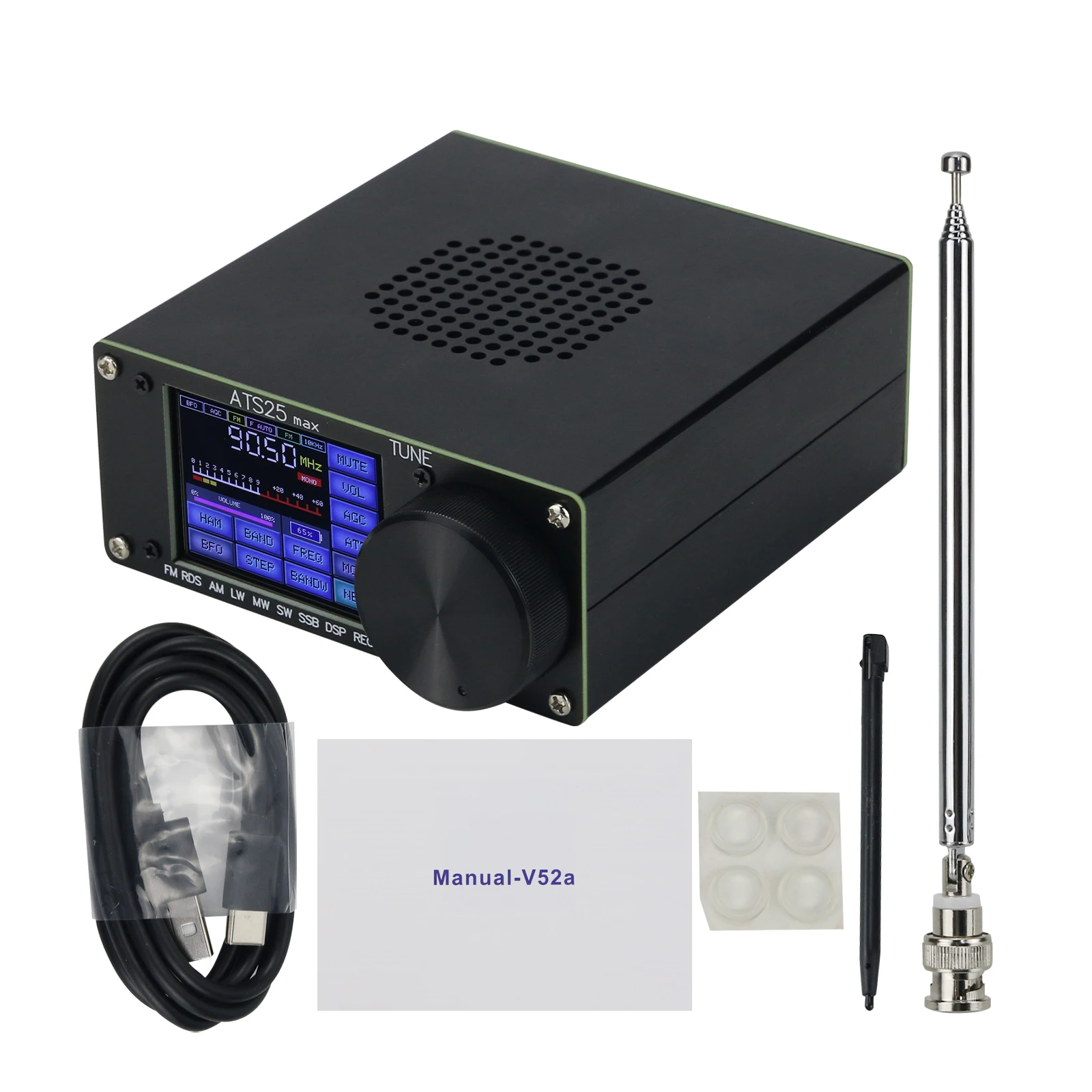

Package Included:
- 1 x Main Unit
- 1 x Telescopic Antenna
- 1 x Type-C Charging Data Cable
- 1 x Cleaning Cloth

Frequency Range:
Band band[] = {
{ "FM", FM_BAND_TYPE, FM, 6400, 10800, 9920, 10, 0, 0}, // FM 0
{ "LW", LW_BAND_TYPE, AM, 100, 514, 198, 9, 0, 0}, // LW 1
{ "MW", MW_BAND_TYPE, AM, 514, 1800, 1395, 9, 0, 0}, // MW 2
{"BACON", LW_BAND_TYPE, AM, 280, 470, 284, 1, 0, 0}, // Ham 800M 3
{ "630M", SW_BAND_TYPE, LSB, 470, 480, 475, 1, 0, 0}, // Ham 630M 4
{ "160M", SW_BAND_TYPE, LSB, 1800, 2000, 1850, 1, 0, 0}, // Ham 160M 5
{ "120M", SW_BAND_TYPE, AM, 2000, 3200, 2400, 5, 0, 0}, // 120M 6
{ "90M", SW_BAND_TYPE, AM, 3200, 3500, 3300, 5, 0, 0}, // 90M 7
{ "80M", SW_BAND_TYPE, LSB, 3500, 3900, 3630, 1, 0, 0}, // Ham 80M 8
{ "75M", SW_BAND_TYPE, AM, 3900, 5300, 3950, 5, 0, 0}, // 75M 9
{ "60M", SW_BAND_TYPE, USB, 5300, 5900, 5375, 1, 0, 0}, // Ham 60M 10
{ "49M", SW_BAND_TYPE, AM, 5900, 7000, 6000, 5, 0, 0}, // 49M 11
{ "40M", SW_BAND_TYPE, LSB, 7000, 7500, 7074, 1, 0, 0}, // Ham 40M 12
{ "41M", SW_BAND_TYPE, AM, 7200, 9000, 7210, 5, 0, 0}, // 41M 13
{ "31M", SW_BAND_TYPE, AM, 9000, 10000, 9600, 5, 0, 0}, // 31M 14
{ "30M", SW_BAND_TYPE, USB, 10000, 10200, 10099, 1, 0, 0}, // Ham 30M 15
{ "25M", SW_BAND_TYPE, AM, 10200, 13500, 11700, 5, 0, 0}, // 25M 16
{ "22M", SW_BAND_TYPE, AM, 13500, 14000, 13700, 5, 0, 0}, // 22M 17
{ "20M", SW_BAND_TYPE, USB, 14000, 14500, 14074, 1, 0, 0}, // Ham 20M 18
{ "19M", SW_BAND_TYPE, AM, 14500, 17500, 15700, 5, 0, 0}, // 19M 19
{ "17M", SW_BAND_TYPE, AM, 17500, 18000, 17600, 5, 0, 0}, // 17M 20
{ "16M", SW_BAND_TYPE, USB, 18000, 18500, 18100, 1, 0, 0}, // Ham 16M 21
{ "15M", SW_BAND_TYPE, AM, 18500, 21000, 18950, 5, 0, 0}, // 15M 22
{ "14M", SW_BAND_TYPE, USB, 21000, 21500, 21074, 1, 0, 0}, // Ham 14M 23
{ "13M", SW_BAND_TYPE, AM, 21500, 24000, 21500, 5, 0, 0}, // 13M 24
