3256806063061796
Function: LACP
Function: QoS
Function: SNMP
Function: VLAN Support
Number of Interfaces: 9
Certification: CE
Certification: FCC
Certification: RoHS
Switch Type: Gigabit Switch
Package: Yes
Communication Mode: Full-Duplex & Half-Duplex
Model Number: XPTN-9000-77-8GX8GT-M
Transmission Rate: 10/100/1000Mbps
VLAN: YES
Switch Capacity: 128G
Ethernet Interface: 8 x RJ45 100/1000Base-T 8 x 100/1000BASE-X 1 x RJ-45 Console 1 x USB Type A
Power interface: 1 x Terminal Block, 3-pin
LED Indicators: PWR, RUN, Link/ACT LE
Ring topology: Yes
Star topology: Yes
Bus topology: Yes
Spanning Tree Topology: Yes
Hybrid topology: Yes
Input voltage: DC 12 to 58V
Total Power consumption: < 20 W
Voltage Alarm: Yes
Switching capacity: 128G
Packet forwarding rate: 95.23 Mpps
MAC address: 16 K
Buffer: 12 M
Forwarding delay: < 10 us
MDI/MDIX: Yes
Flow control: Yes
Jumbo Frame: Yes
WatchDog: Yes
Port-based VLAN: Yes
Operating temperature: - 40 ℃ to +75℃
Storage temperature: - 40 ℃ to +85℃
Relative humidity: 5%~95% non condensing
Thermal methods: Fanless, natural cooling
MTBF: 100,000 h ours
Product size: 160 x 50 x 50 mm
Installation: DIN rail
Weight: 0.96 kg
IP Level: IP40
Surge protection of Power: IEC 61000 4 5 Level X 6KV/ 6 KV 8/20us
Surge protection of Ethernet port: IEC 61000 4 5 Level X 4KV/ 4 KV 10/700us
RS: IEC 61000 4 3 Level 3 10V/m
EFT: IEC 61000 4 4 Level 3 1V/2V
CS: IEC 61000 4 6 Level 3 10V/m
PFMF: IEC 61000 4 8 Level 4 30A/m
DIP: IEC 61000 4 11 Level 3 10V
ESD: IEC 61000 4 2 Level 4 8K/15K
Free fall: 0.5m
Authentication: CCC, CE, FCC, RoHS
IPv4: Yes
IPv6: Yes
ARP: Yes
Loopback Interface: Yes
VRRP: Yes
RIP: Yes
OSPFv2: Yes
DHCP Server: Yes
DNS Server: Yes

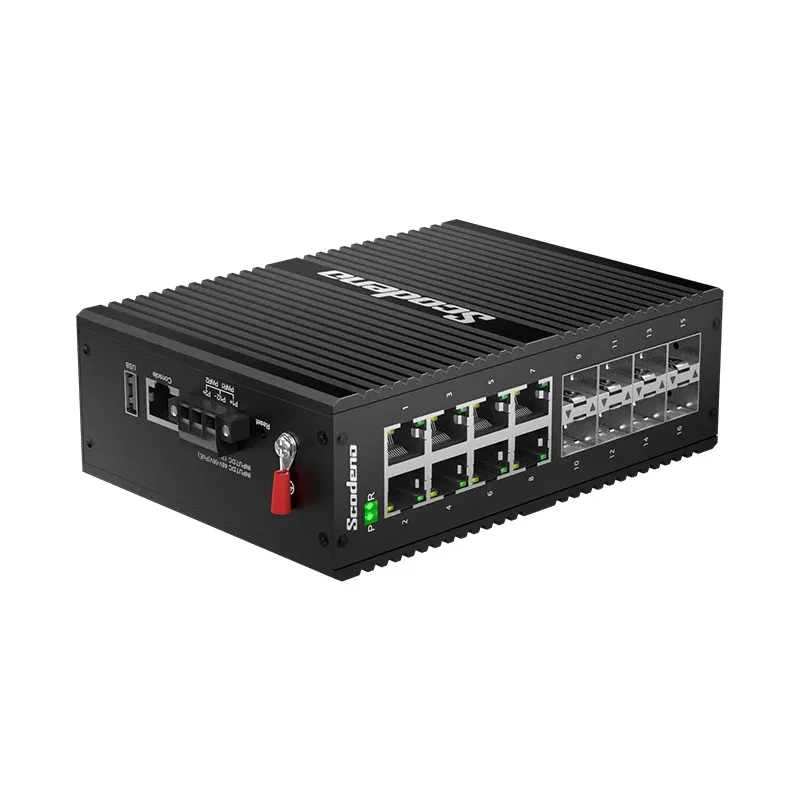

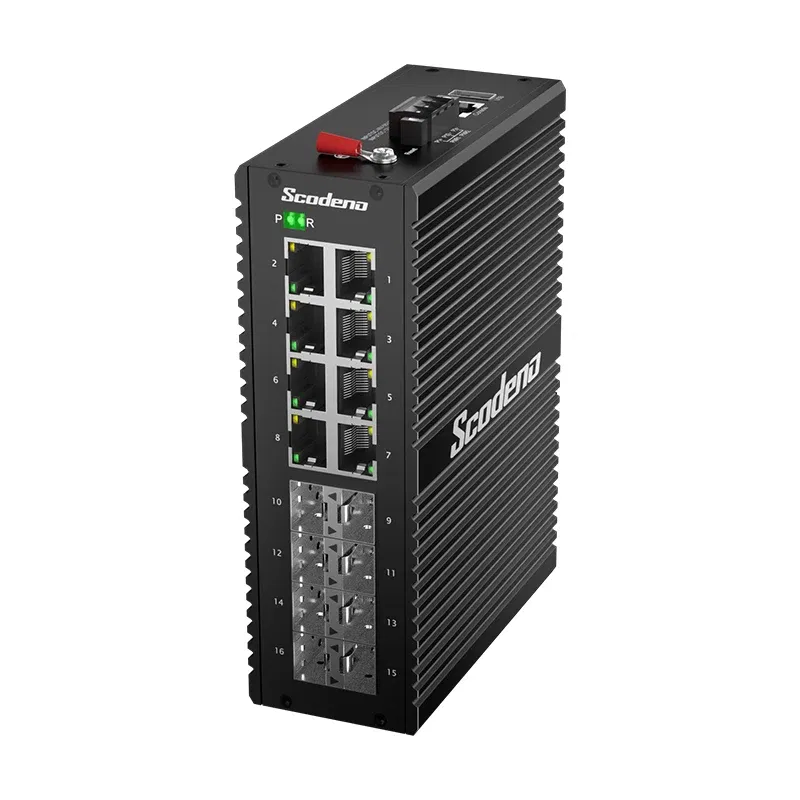

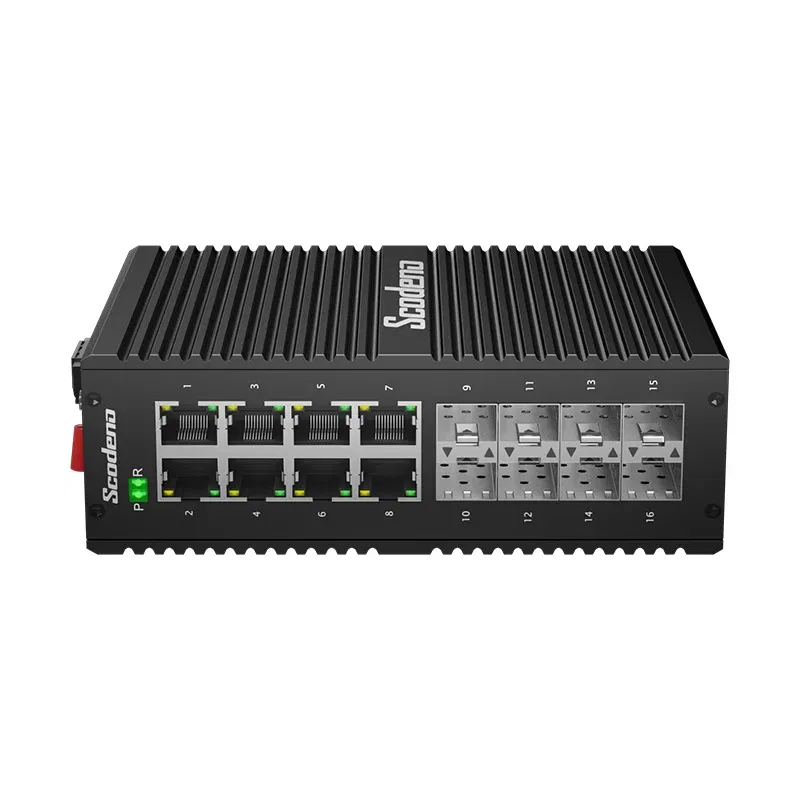

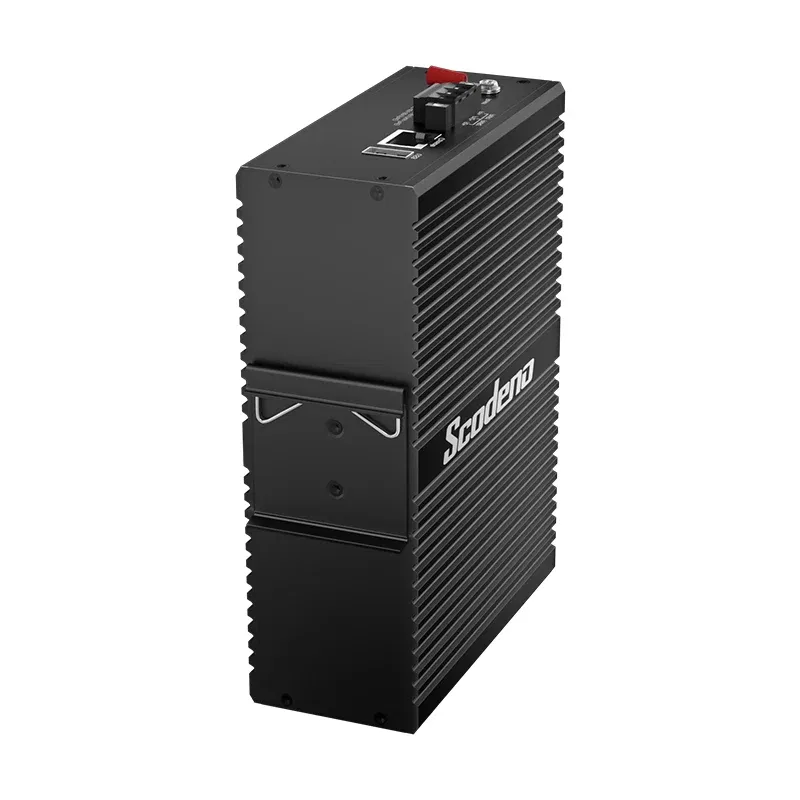

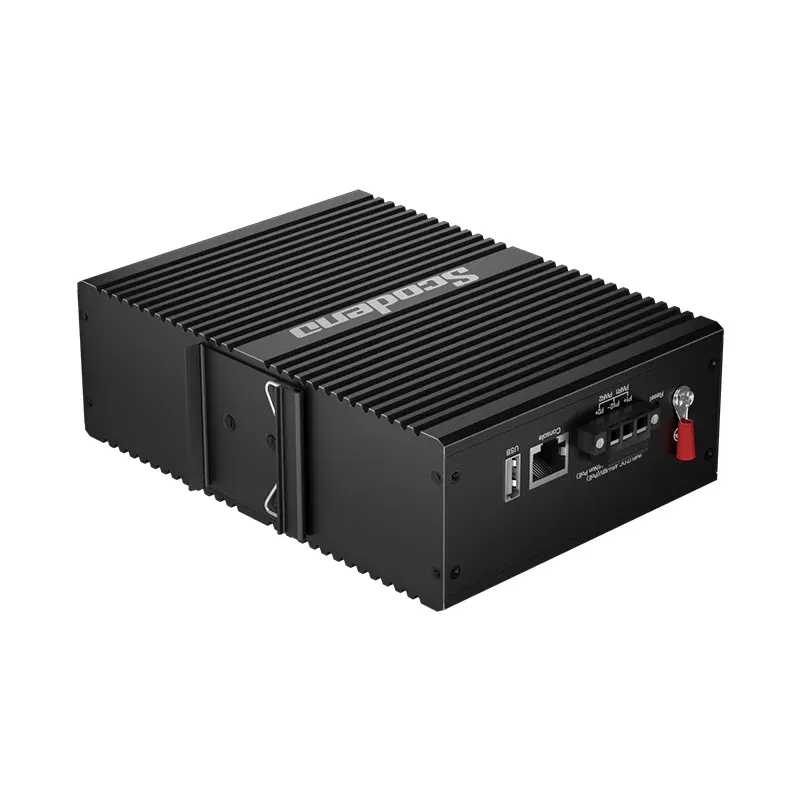

The XPTN-9000-77-8GX8GT-M features 8 x 10/100/1000BASE-T ports and 8 x 100/1000BASE-X SFP ports, which is designed especially for industrial application. Equipped with an IP40 rated metal enclosure, it can operate within a wide temperature range of -40 to 75°C (-40 to 167°F). This switch is ideal for harsh environments, such as traffic control cabinets, factory floors, and the outdoor places where temperature is extremely low or high.
The XPTN-9000-77-8GX8GT-M supports Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large-scale industrial networks.
The XPTN-9000-77-8GX8GT-M’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fan-less switch supports the LACP and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
