Package contains:

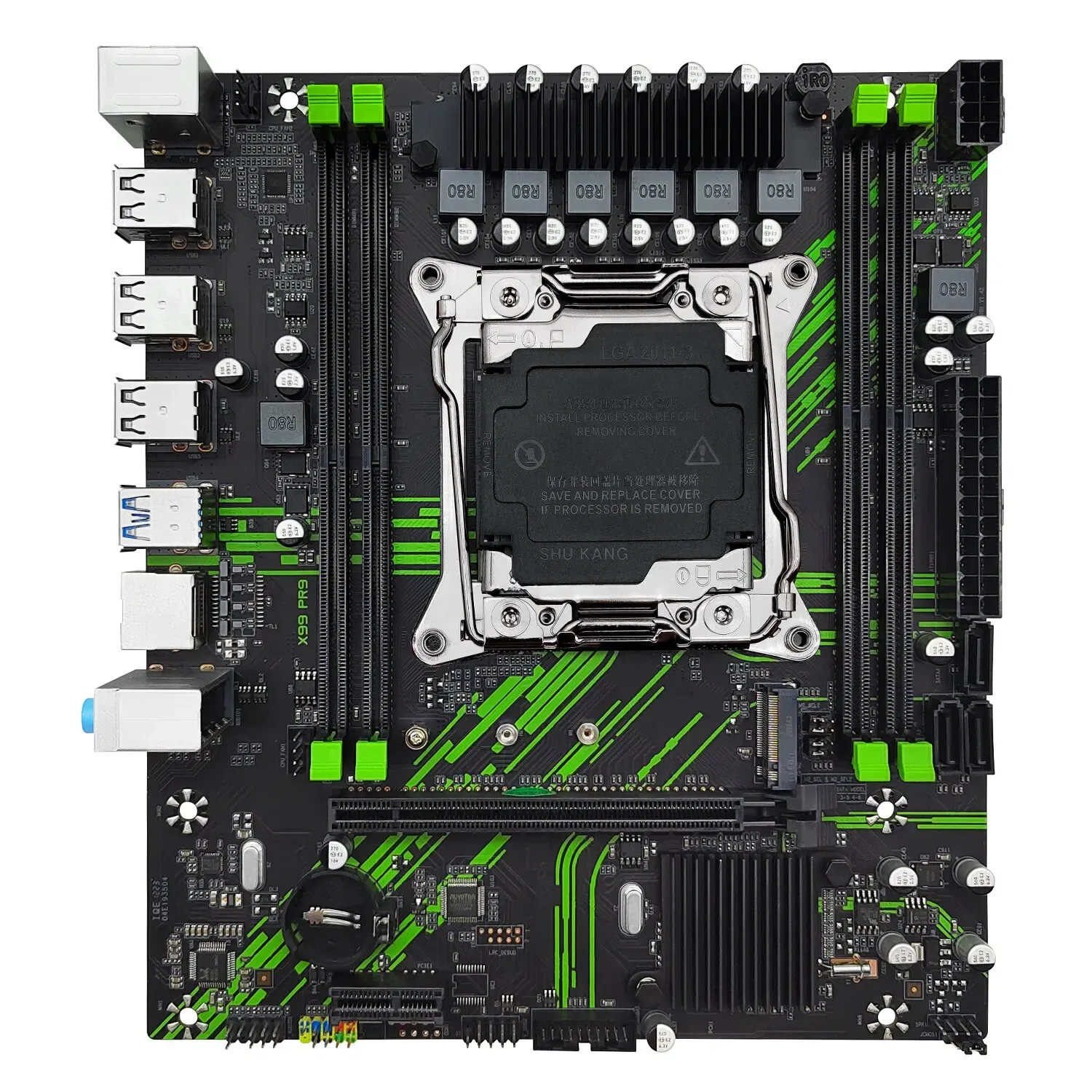

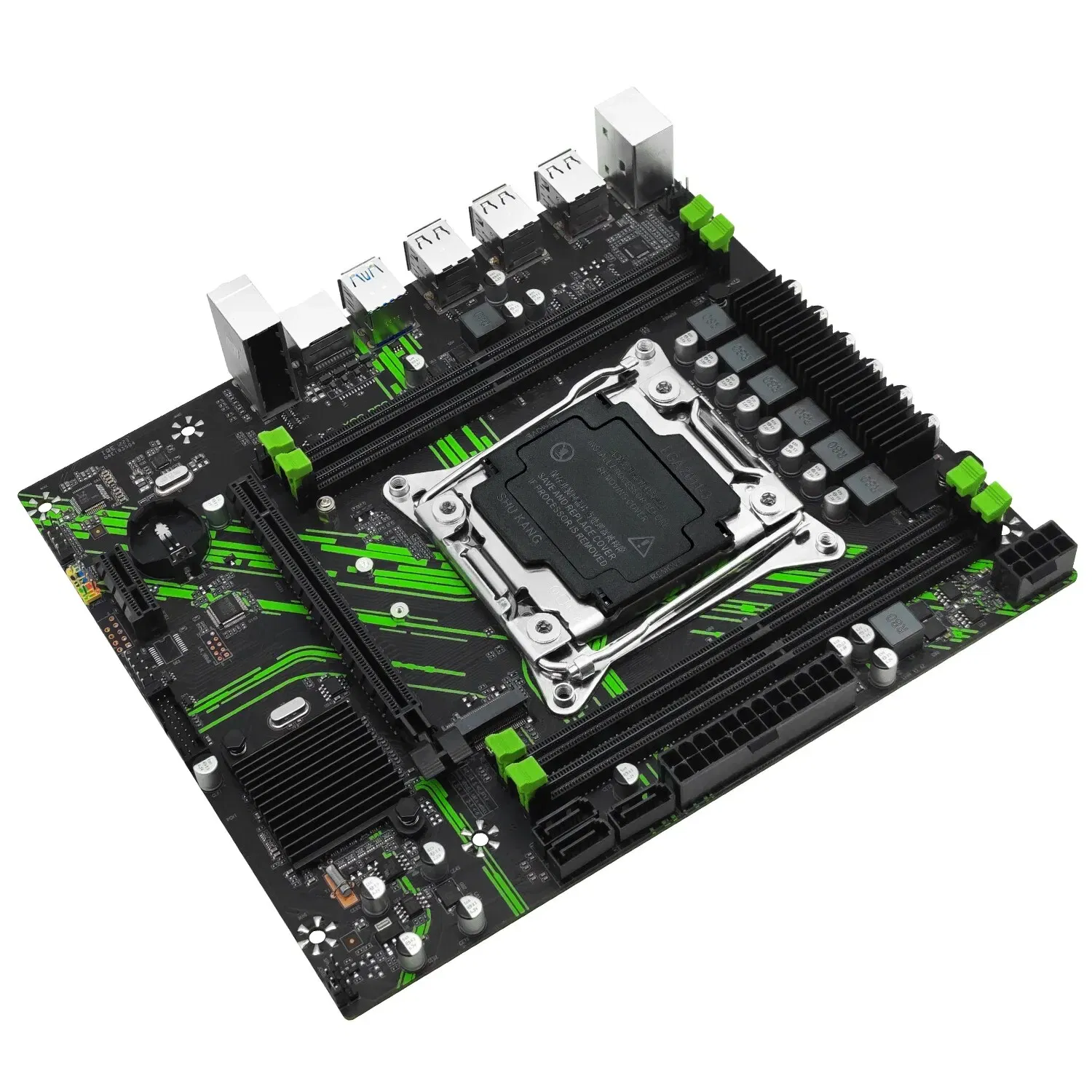

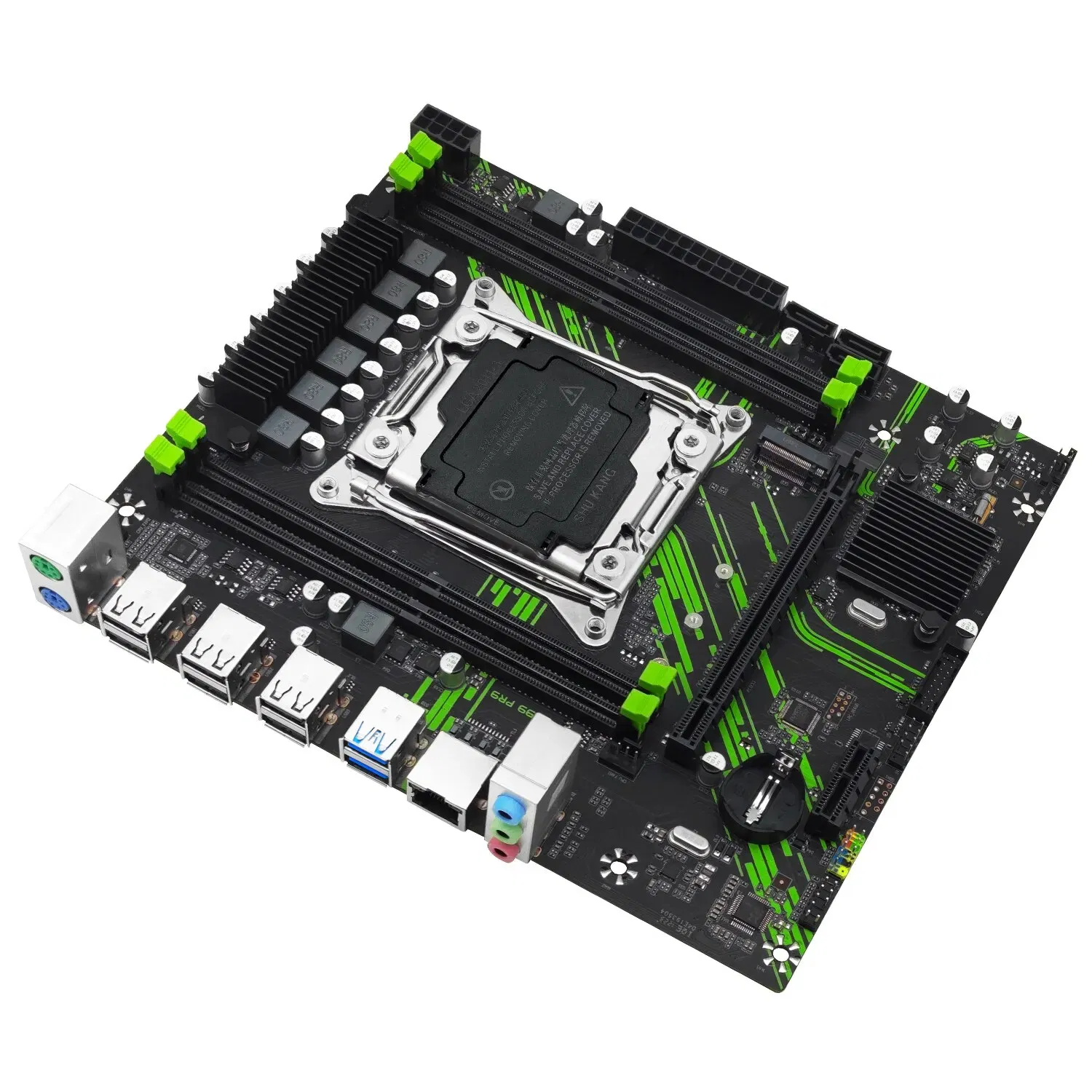

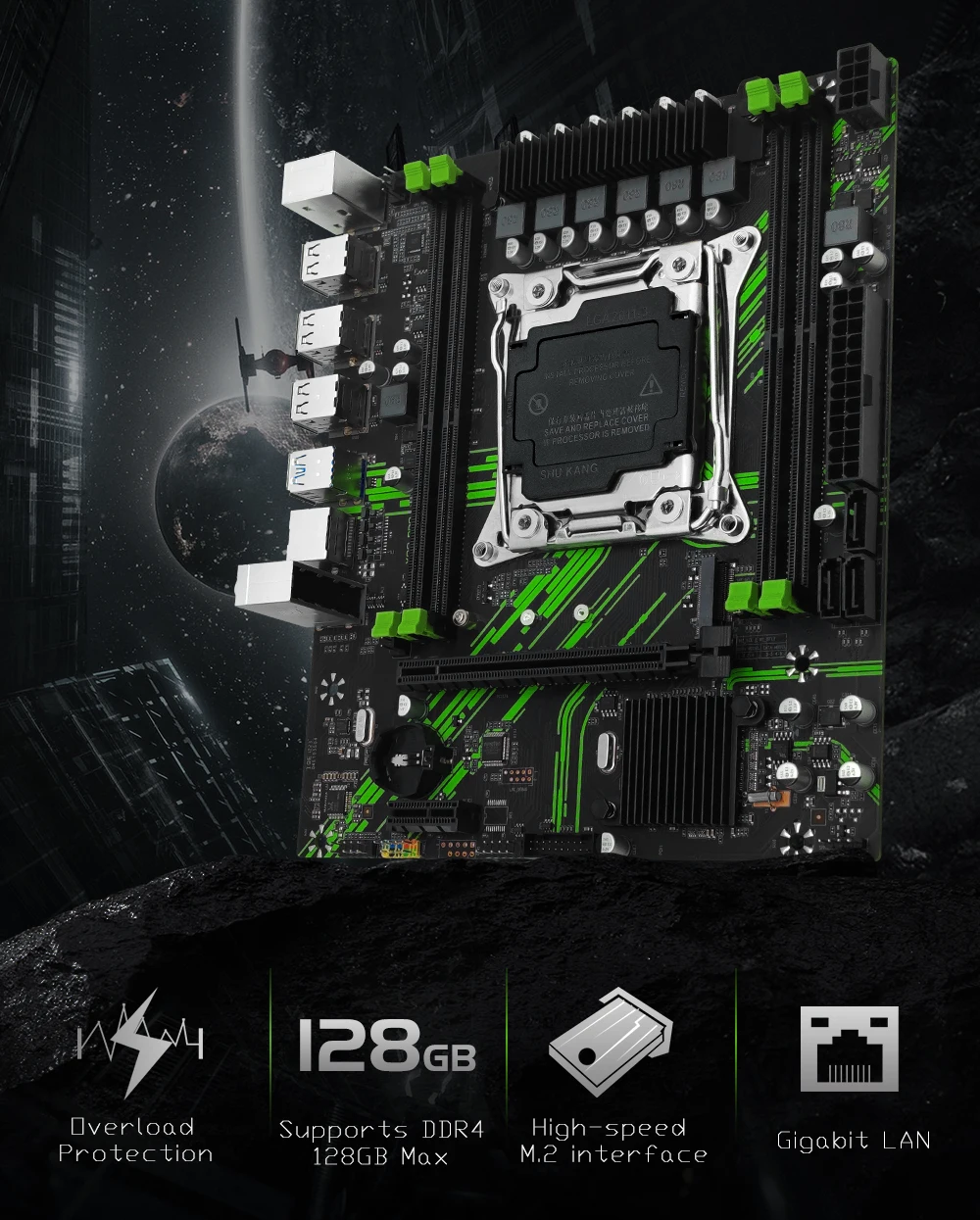

Motherboard: MACHINIST X99 PR9 2011-3 motherboard *1.

Free accessories: I/O shield *1, SATA cable *1, lga 2011 cooling bracket *1.

(>>Everything is manually tested before being packaged before sending. Please understand if there are any gifts missing!)

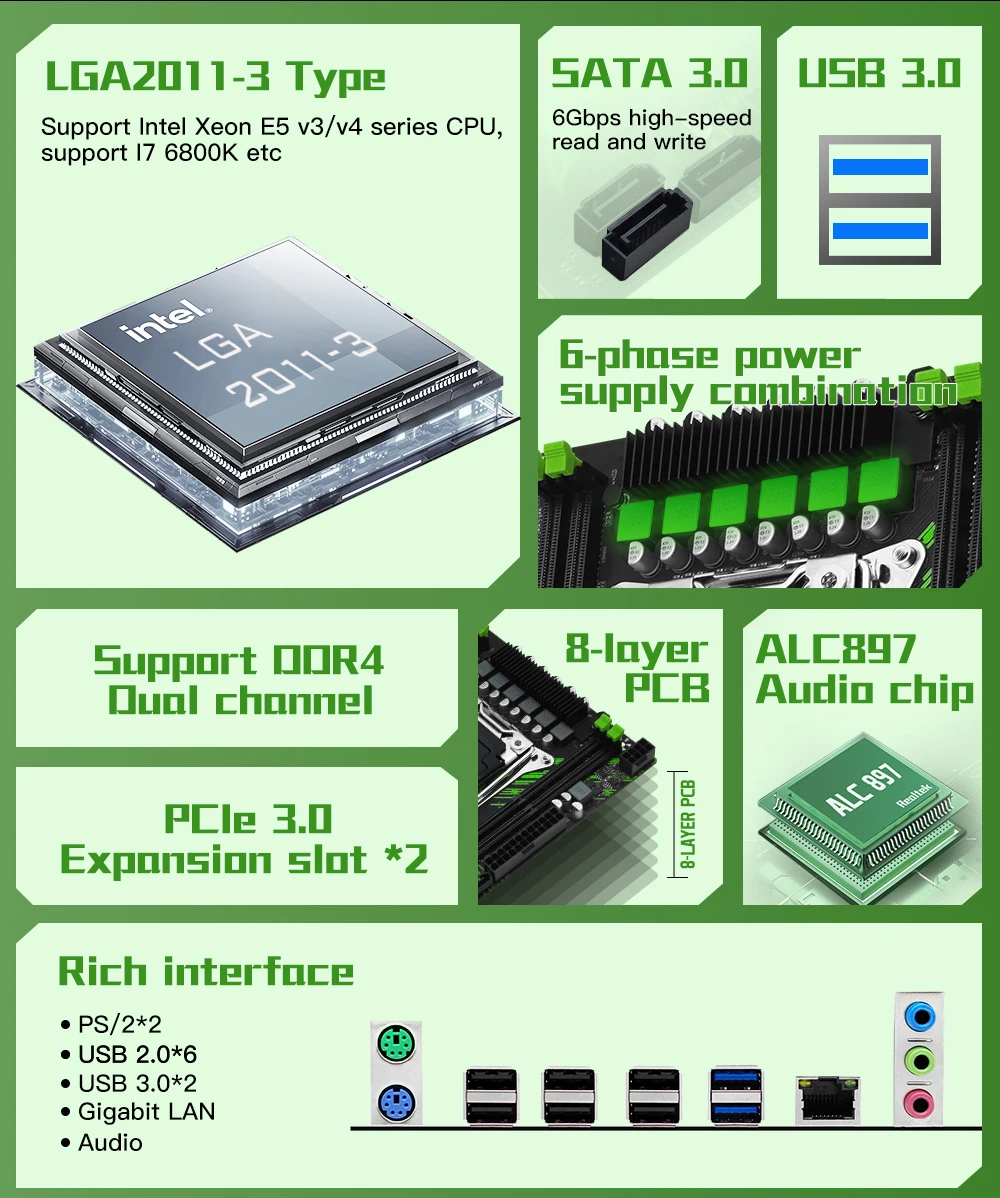

Motherboard information:

>>Brand:MACHINIST.

>>Motherboard model: X99 PR9.

>>Processor: Support LGA 2011-3 series,

>> Chipset: B85/Q87/c226 chipset.

>>Memory

Technology: Dual Channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.

Maximum capacity 128GB (32G × 4).

Memory slot: 4*288 PIN DDR4.

(Note: Please use international brands such as Samsung, Kingston, SanDisk, and Micron. Other brands may be incompatible.)

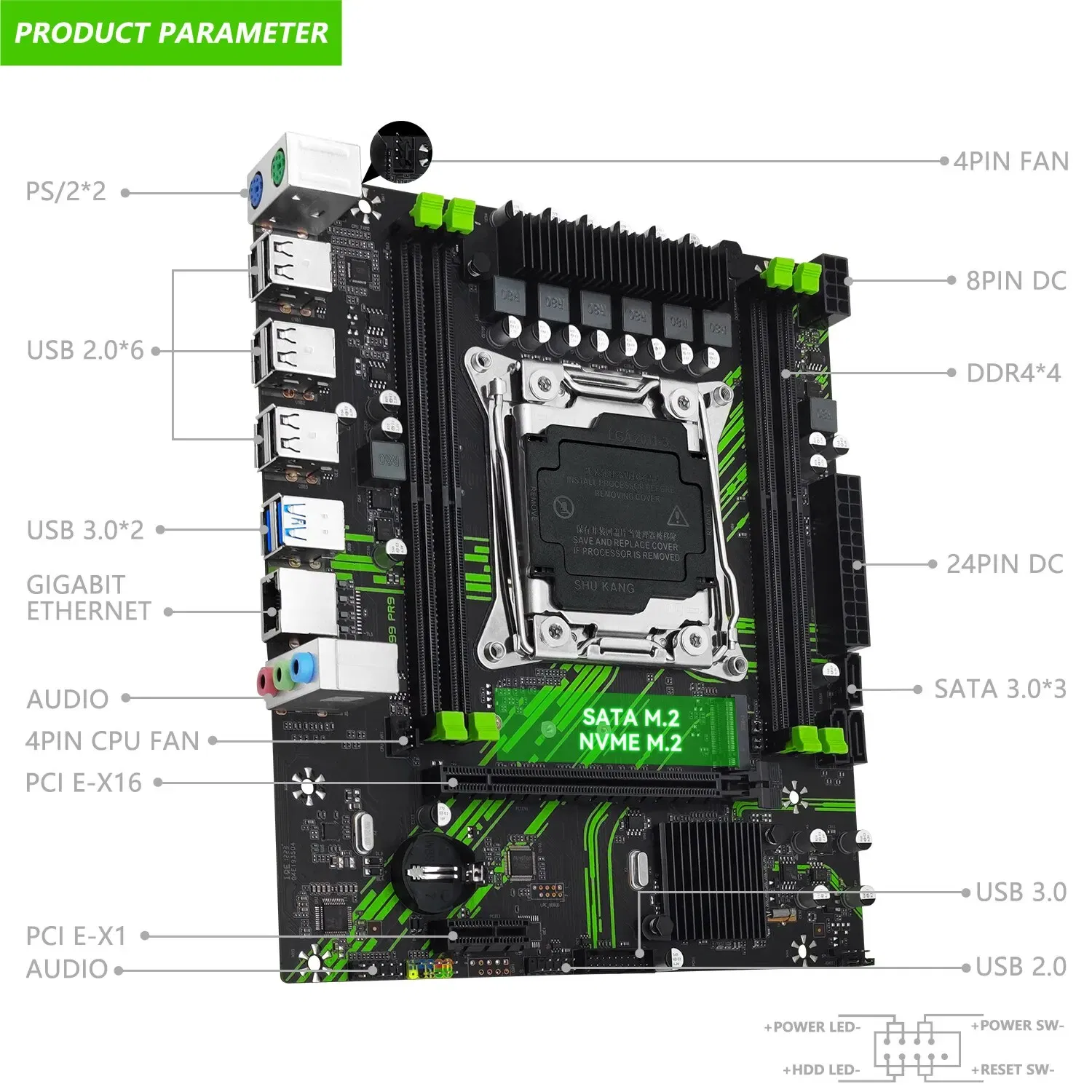

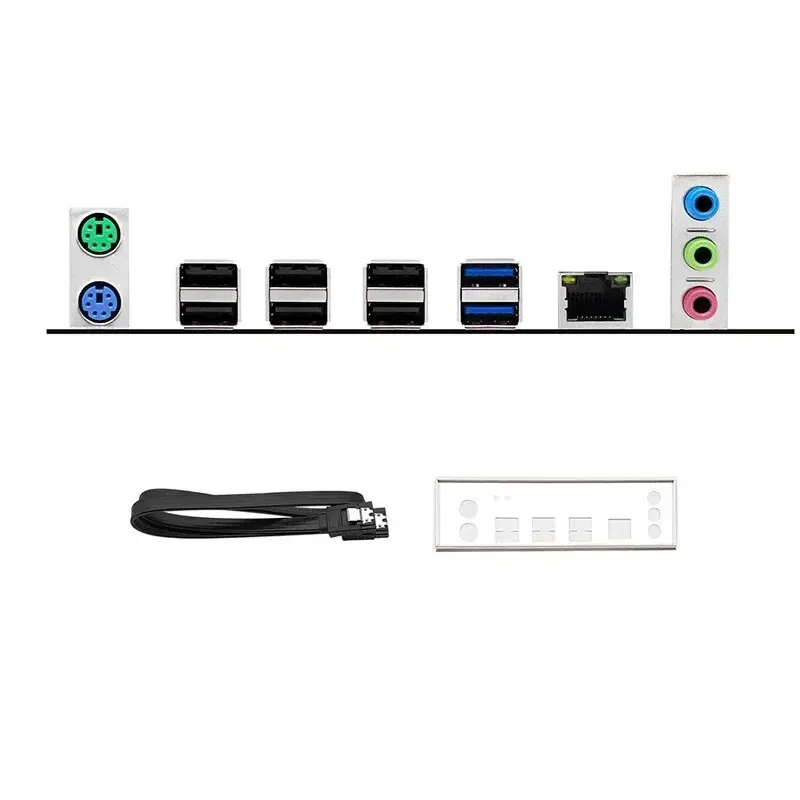

>> Post I/O

PS/2: 1 KB interface + 1 MS interface.

USB interface: 6 USB2.0; 2 USB3.0.

Ethernet: 1 Gigabit network card.

Audio: 1 (Mic-in, Line-out, Line-in).

>>Internal connector

COM Port: 1 pin 2x5Pin.

SATA interface: 2 (SATA2.0), 1 (SATA3.0).

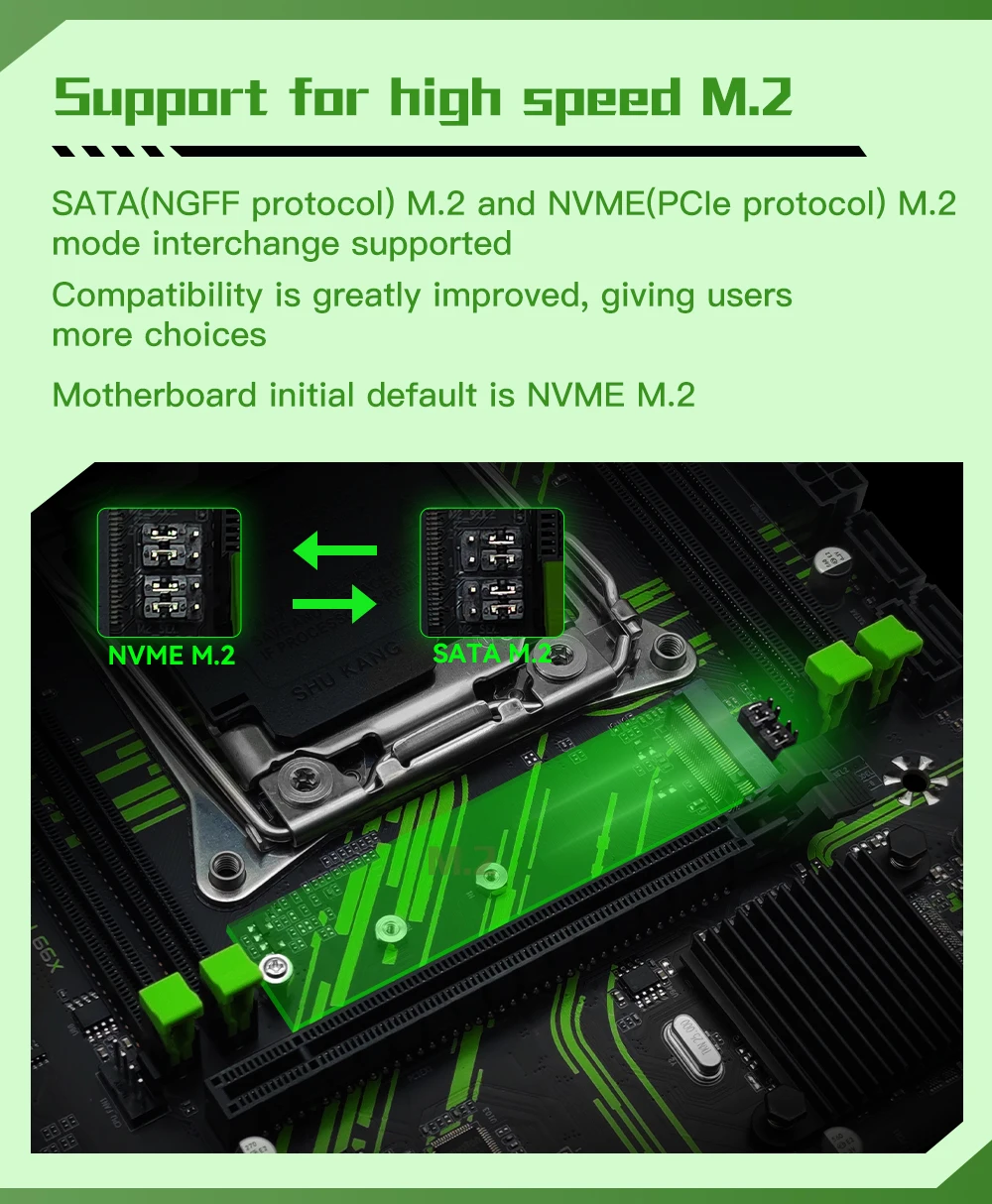

M.2:1 (NVMe/SATA).

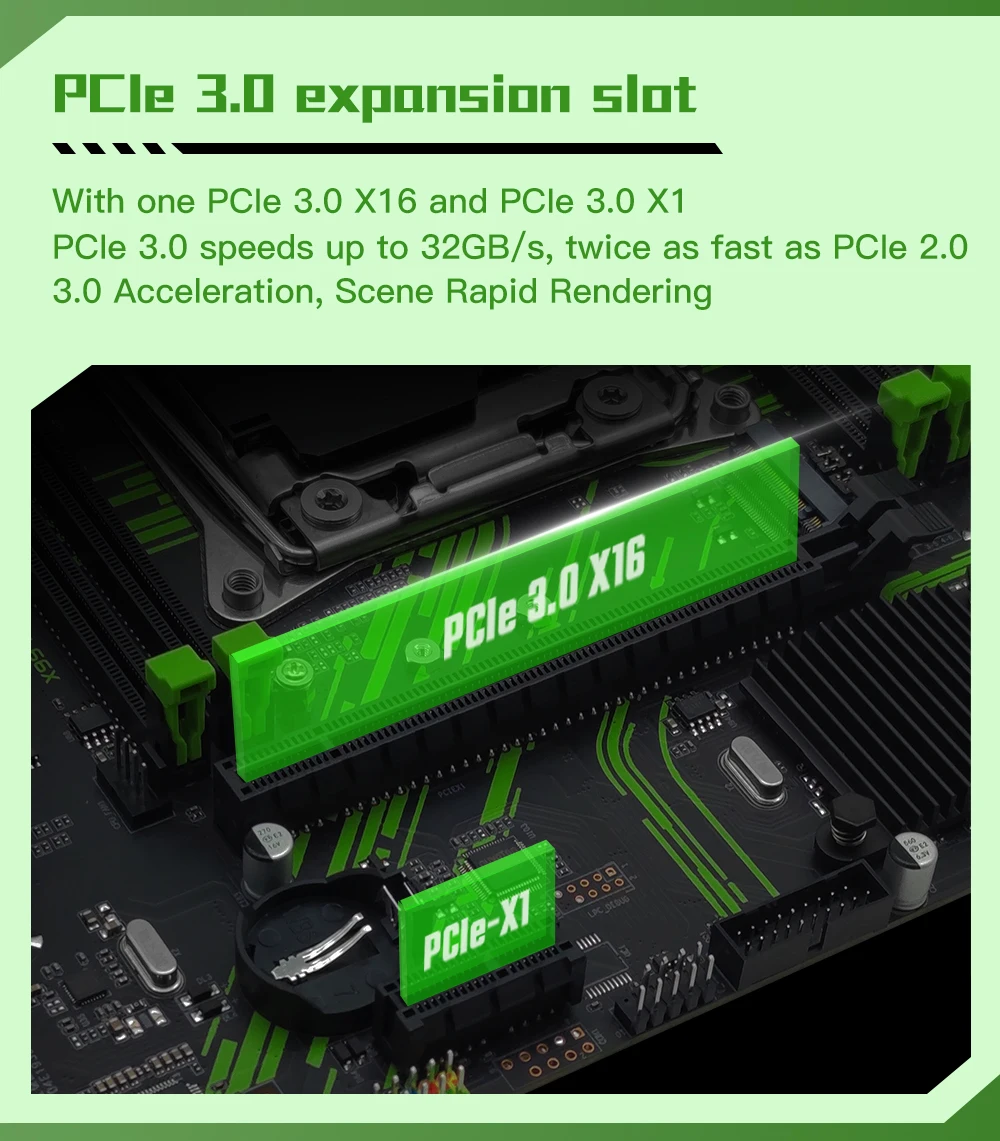

PCIe: 1 PCIe 16X, 1 PCIe 1x.

F_PANEL: 1 2x5Pin.

>>Outline dimensions: 215mm * 185mm.

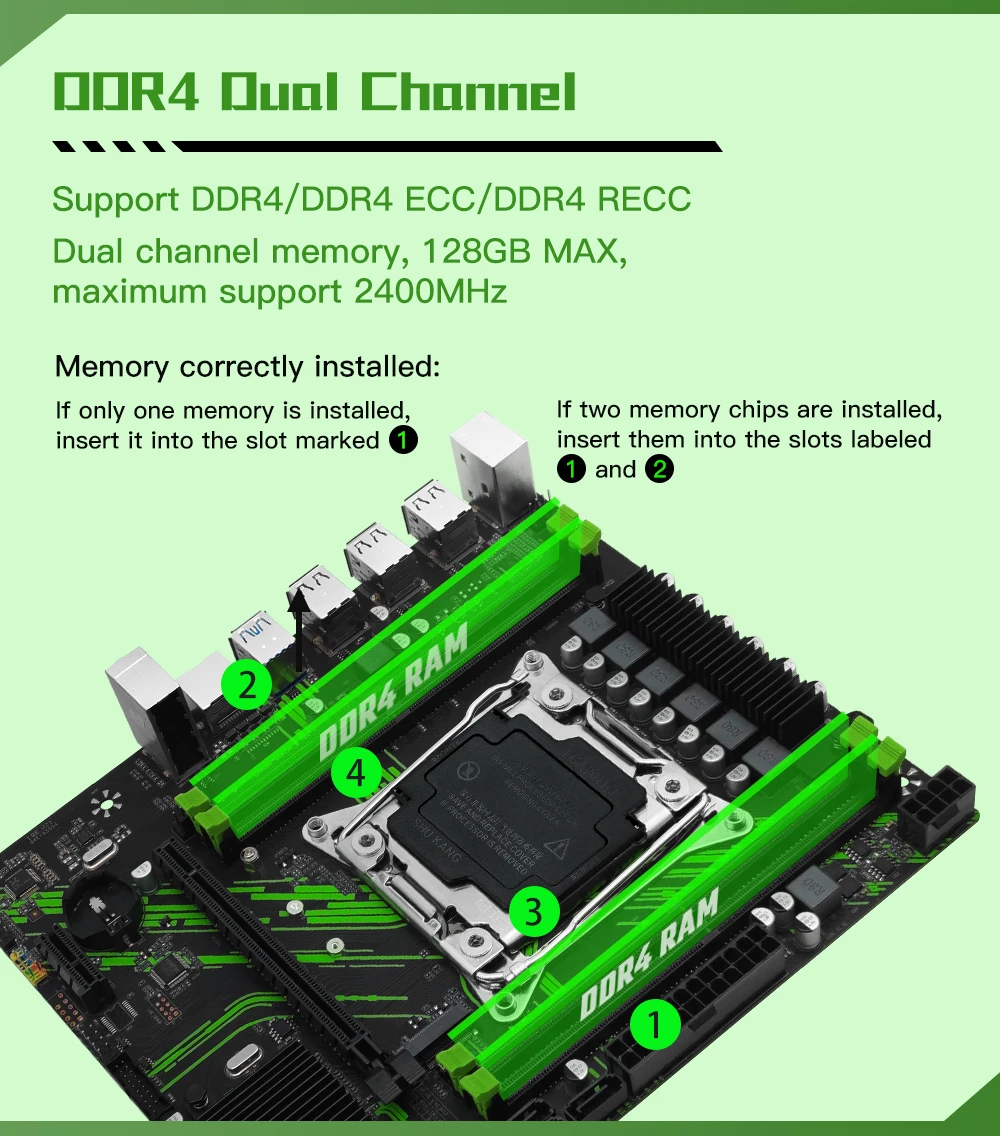

>>For installing memory. All RAM needs to be installed first in slot #1 and slot #4 (the outermost slot). The middle memory slots (#2/#3) of the motherboard cannot work alone.

>>Please note: Some processors only support memory up to DDR4 1866Mhz or 2133MHz. This means that when 3200Mhz or 2666Mhz is installed, it will only show 1866Mhz and 2133MHz. On CPU-Z it can read 3200MHz and 2133MHz. If you mind, please do not place an order.

>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.

Notice:

(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1-3mm.

(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.

(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)

(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
