Condition: New
Type: Voltage Regulator
Model Number: KS0198X
Supply Voltage: DC 7-15V
is_customized: Yes
Operating Temperature: 0-40
Application: For Arduino Robot Arm Kit
Package: TQFP
VIN voltage: VIN = DC 7-15V
VIN current: 5A
Battery Type: 18650 battery(not included)
Average drive current: 1.2A
Peak current: 3.2A
Choice: yes

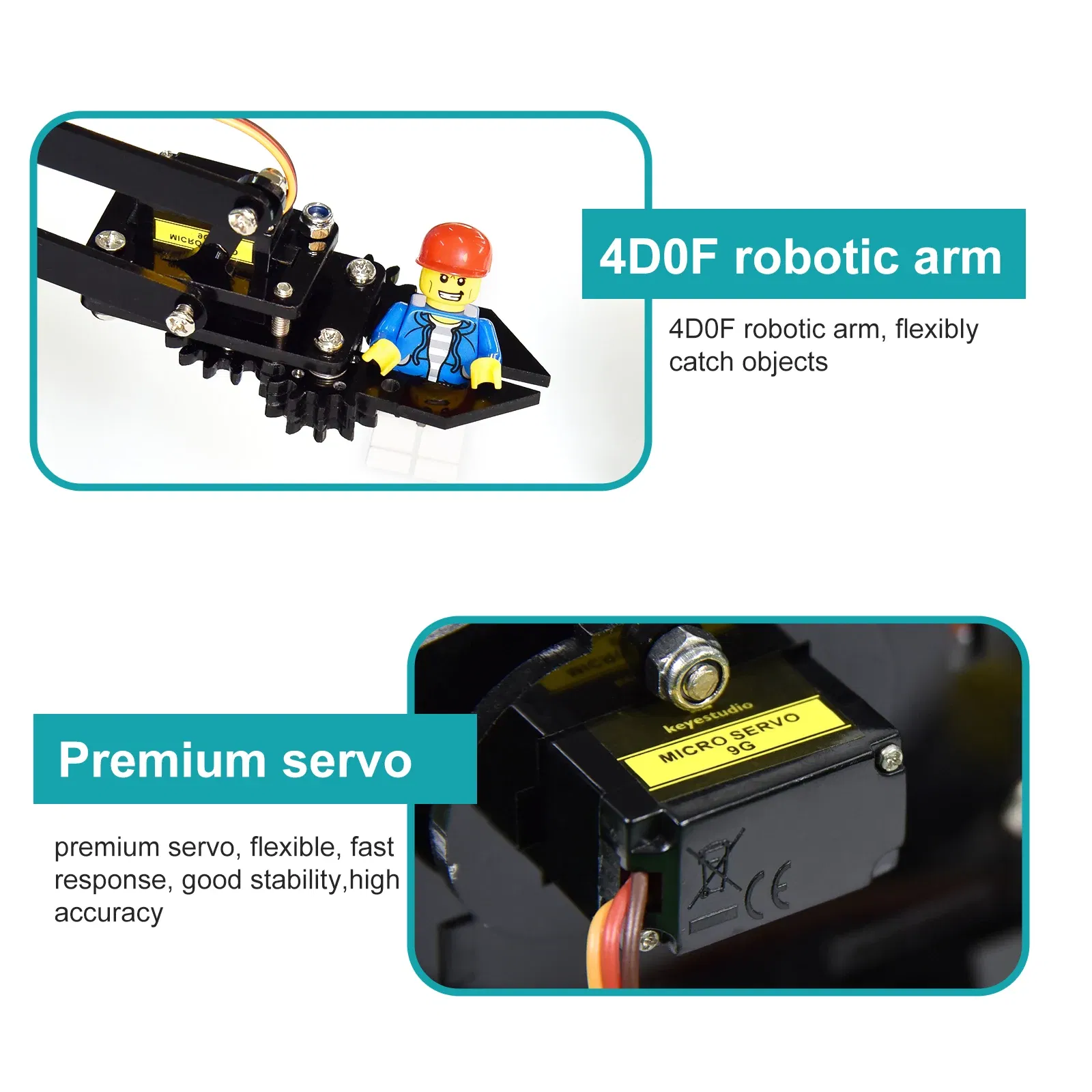

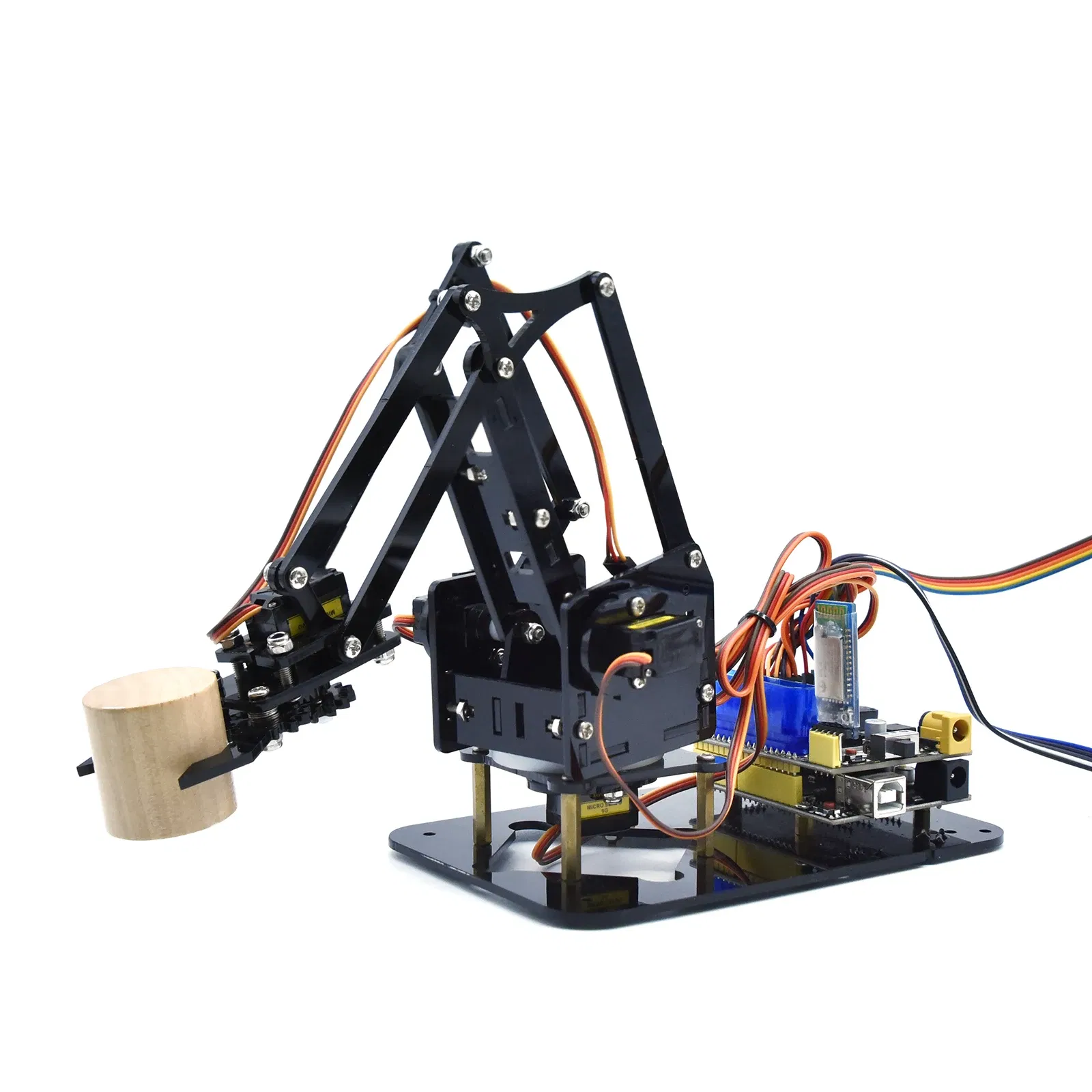

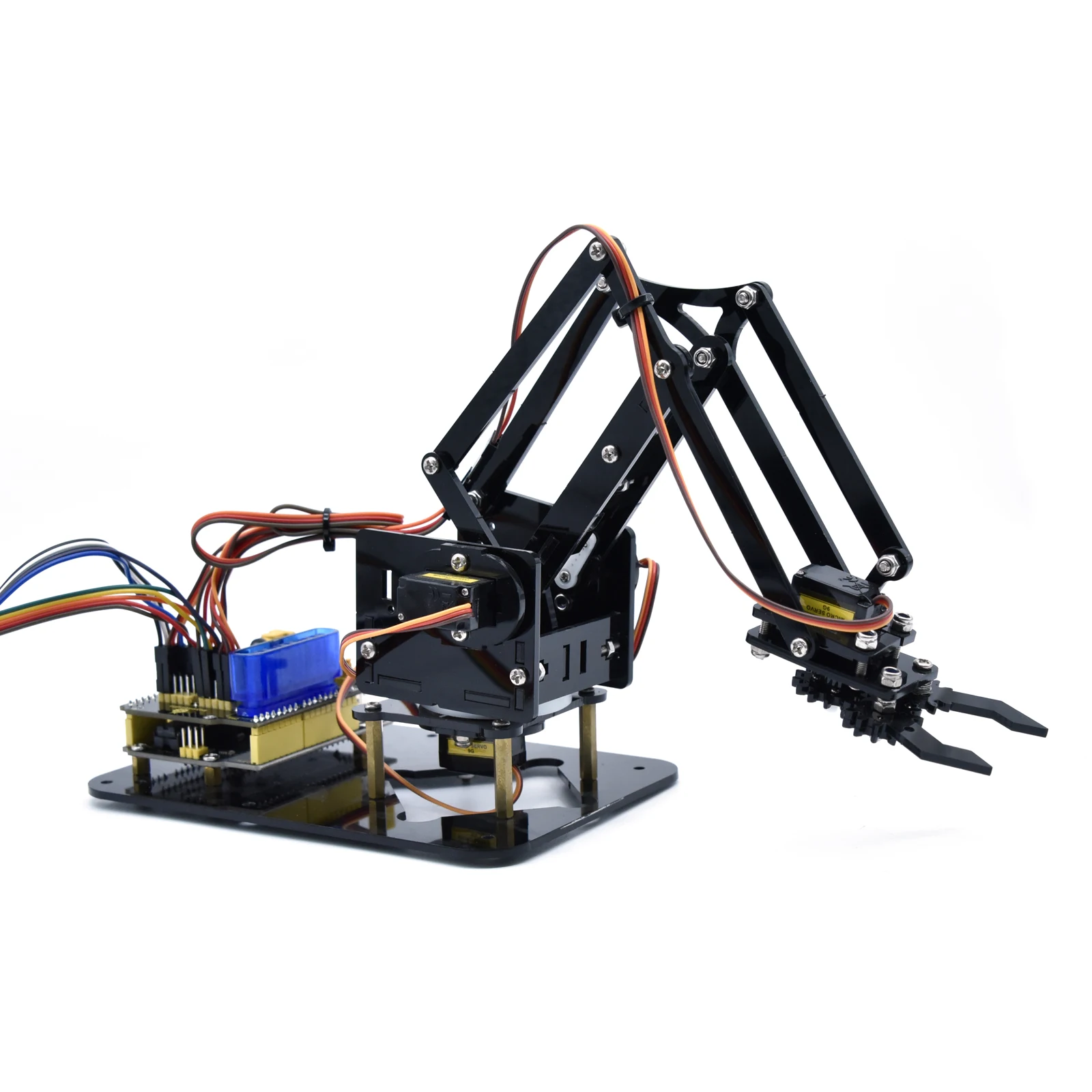

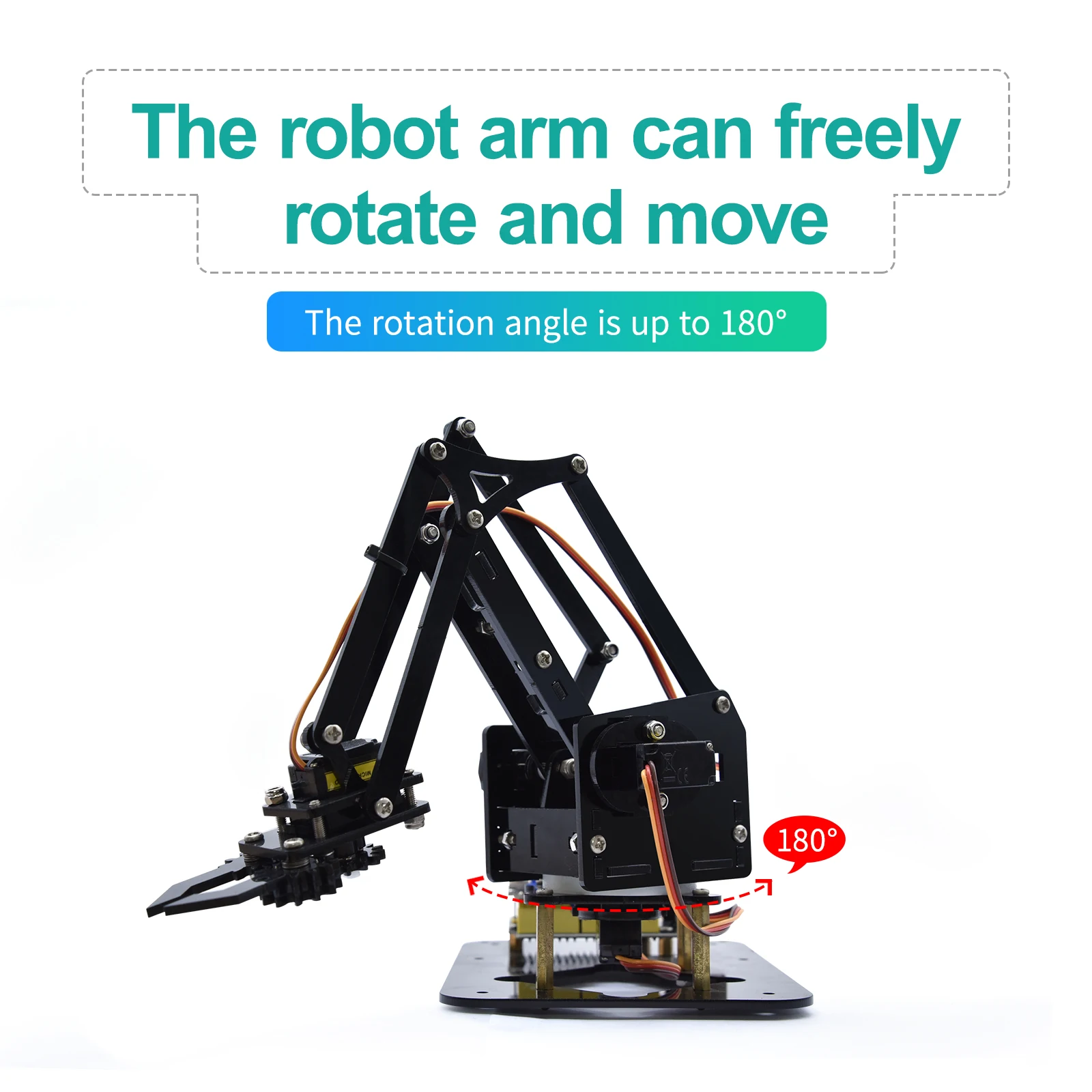

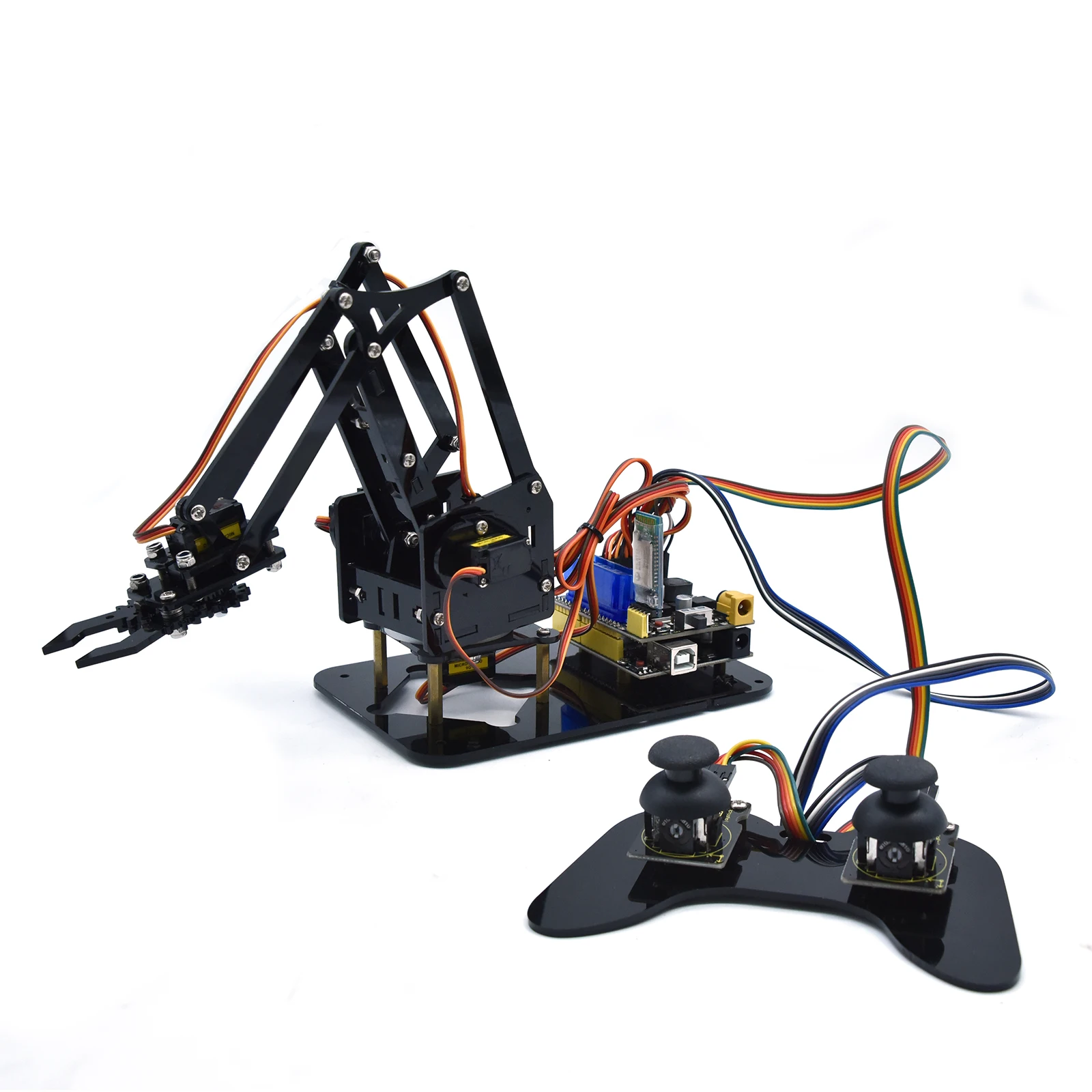

How to DIY a robotic arm to complete multiple movements? Cool.With this keyestudio robotic arm kit, you are able to DIY your own controllable mechanical arm using ARDUINO microcontroller. It uses REV4 and 2 JoyStick modules to control the angle degree of 4 servos.

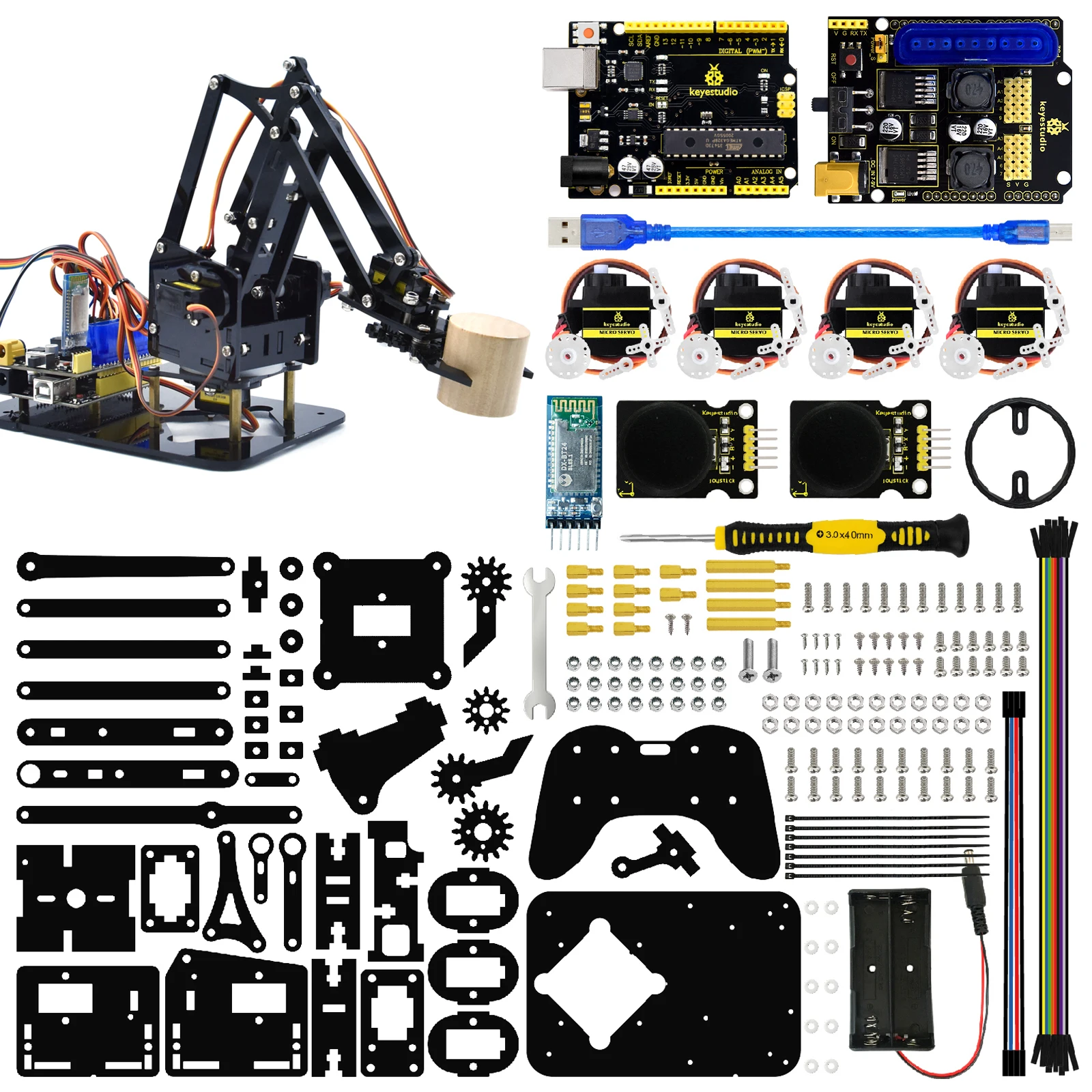

When DIY this 4DOF robot arm kit, you could get everything needed for arm installation and debugging.

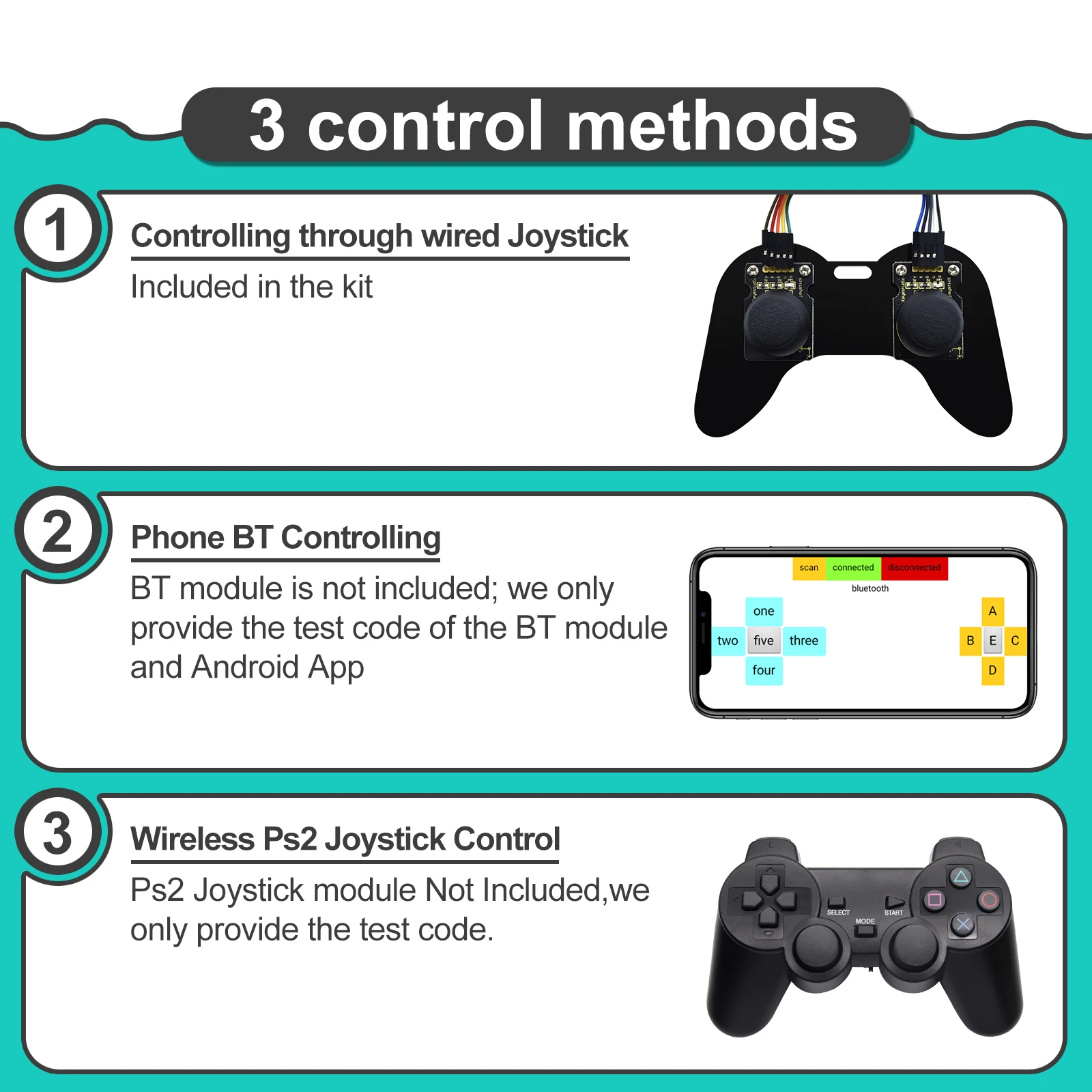

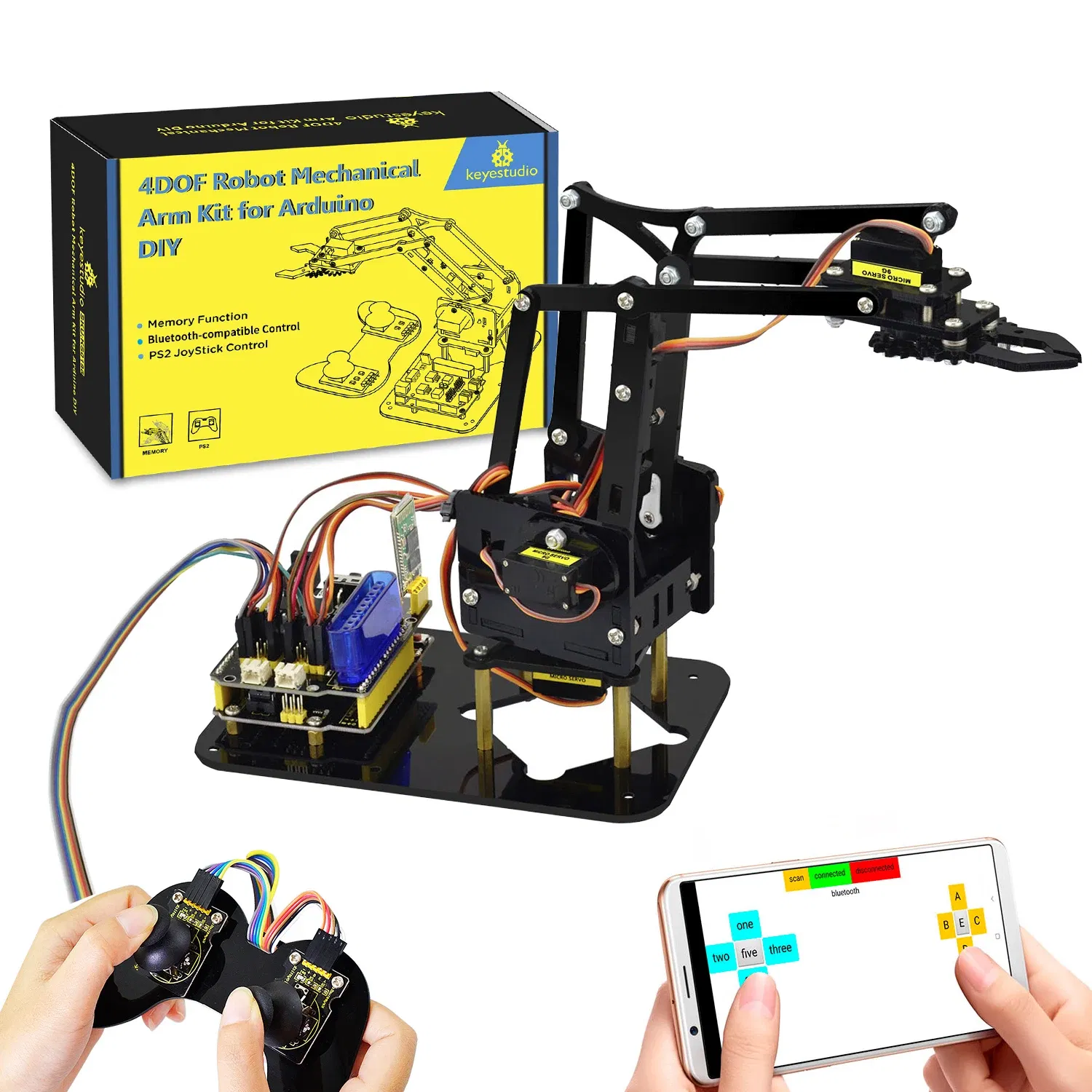

There are 3 controlling methods are as follows:
1) Controlling through Wired JoyStick (included in the kit);
2) Phone Bluetooth-compatible Controlling (note: HC-06 Bluetooth-compatible module Not Included, only provide the test code for Bluetooth-compatible and APP for Android phone);
3) Wireless PS2 JoyStick Control (PS2 JoyStick module Not Included, we only provide the test code.)
You are able to get all related information in the Arm kit.Take your brain on an inspiring journey through the world of programming. Get started now!
You can check out these features:
Detailed installation instructions
Detailed debugging methods, starting Arduino from entry.

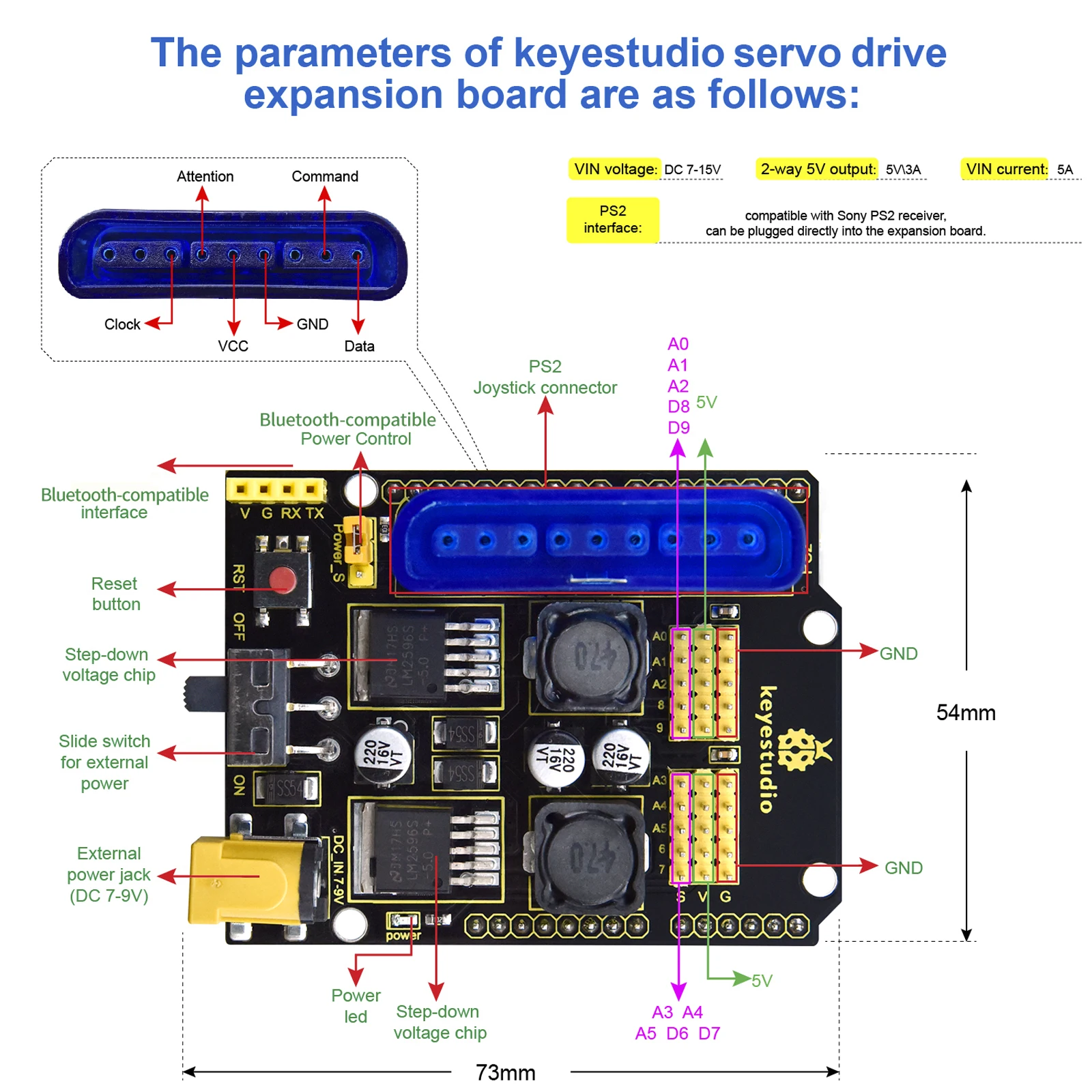

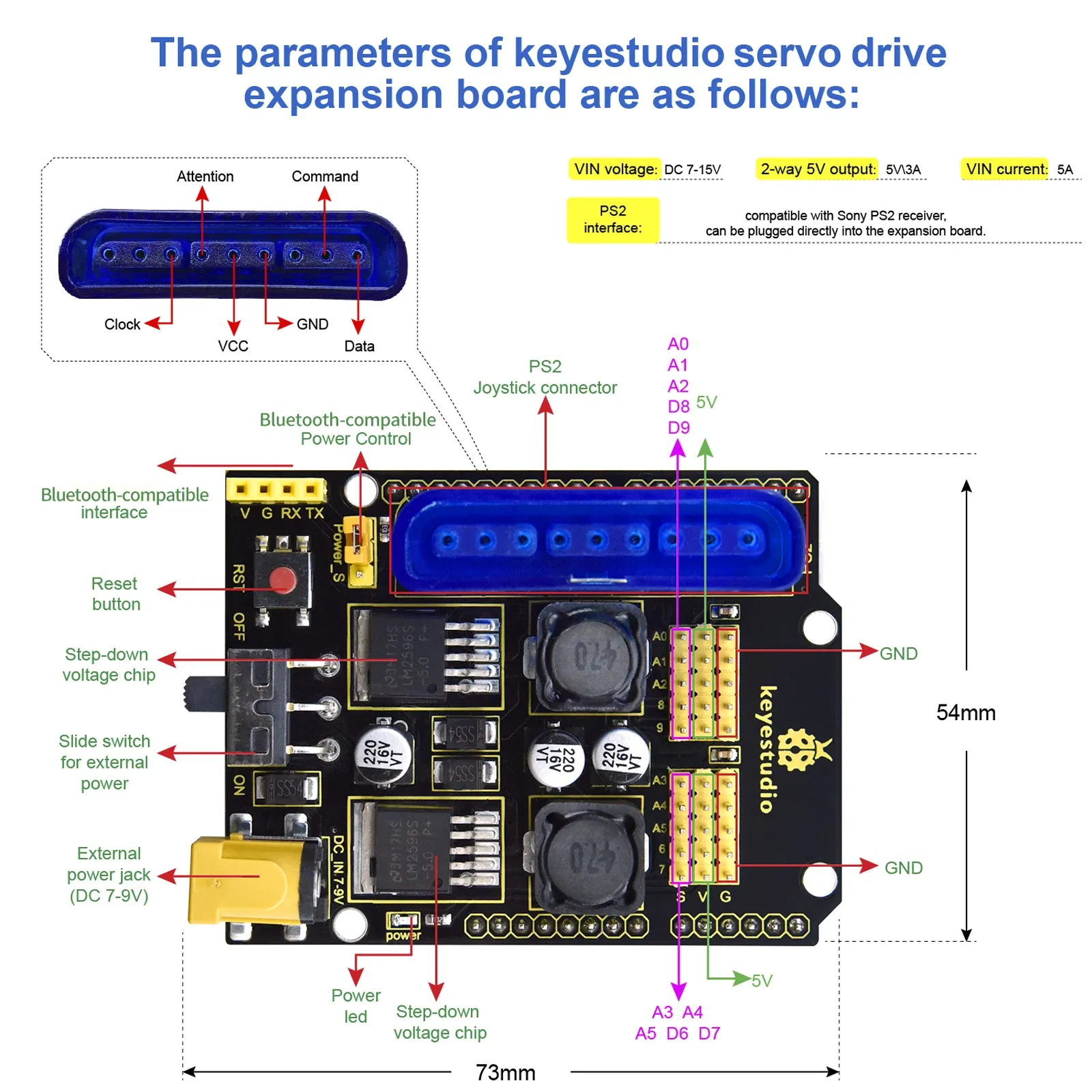

Three controlling methods: Wired JoyStick Control; Phone Bluetooth-compatible Control; Wireless PS2 JoyStick ControThe parameters of keyestudio TB6612FNG motor/servo drive expansion board are as follows:
VIN voltage: VIN = DC 7-15V
VIN current: 5A
Two-way 5V output: 5V/3A
TB6612FNG: VIN input DC 7-15V; average drive current 1.2A; peak current 3.2A
PS2 interface: compatible with Sony PS2 receiver, can be plugged directly into the expansion board.
Dimensions: 73*53.34mm
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
