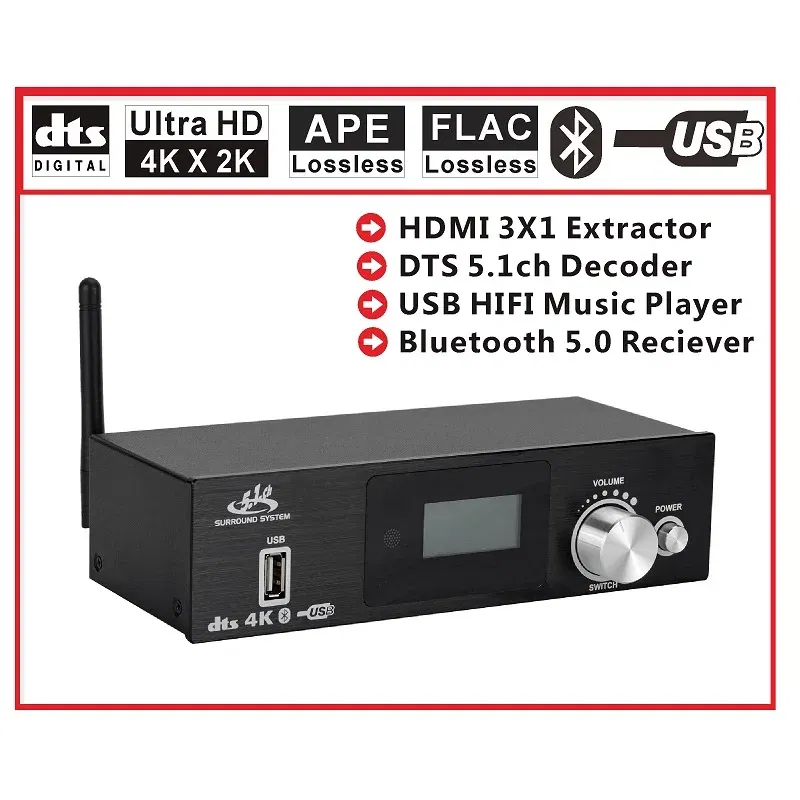

Feature;

1:

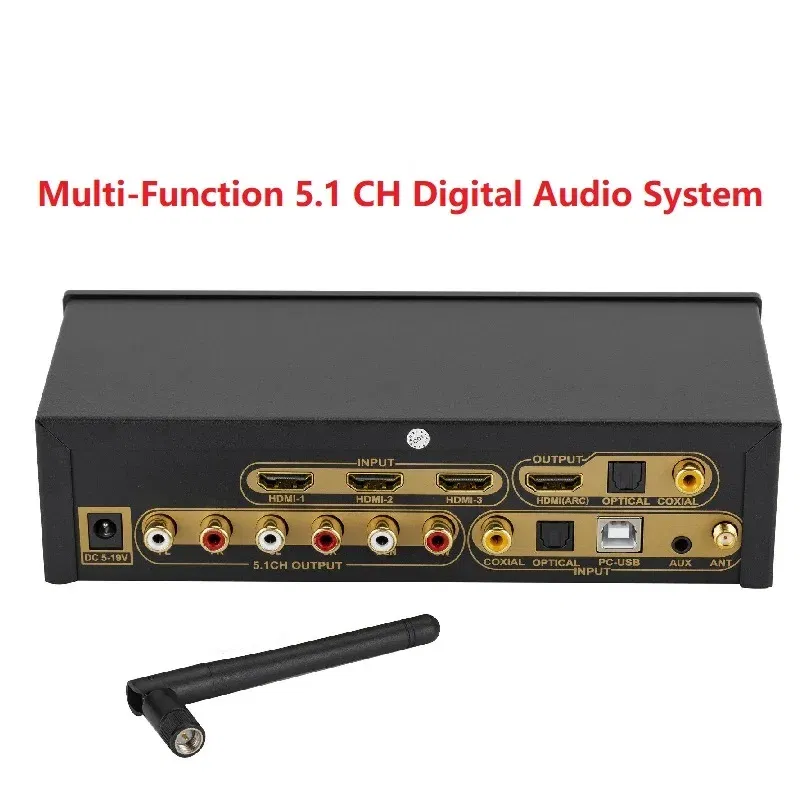

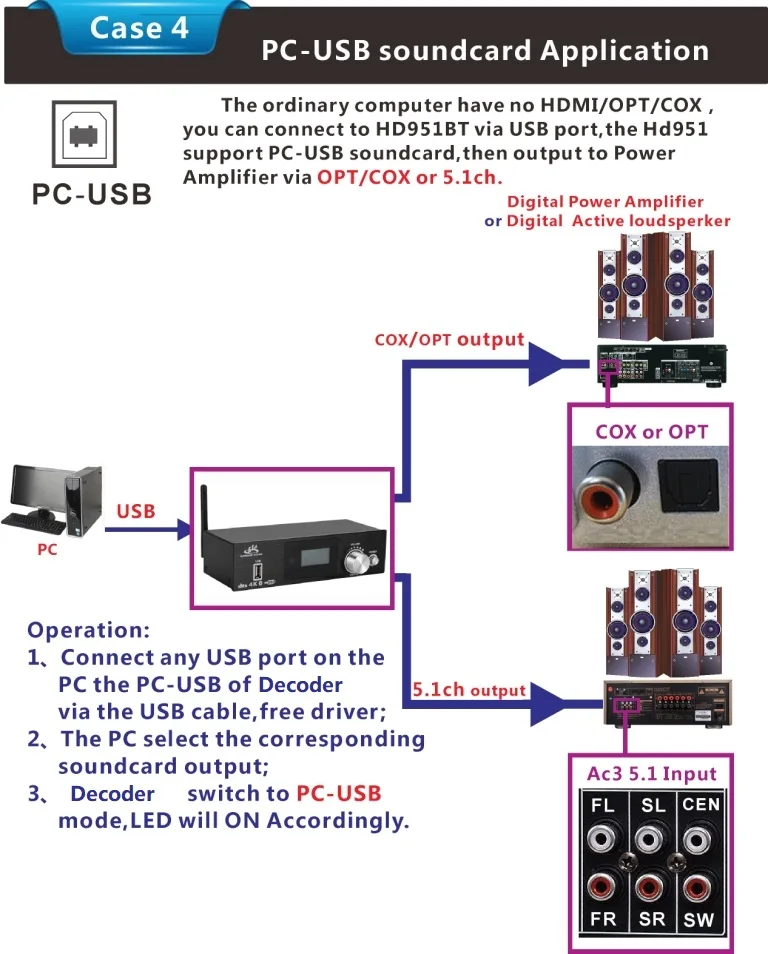

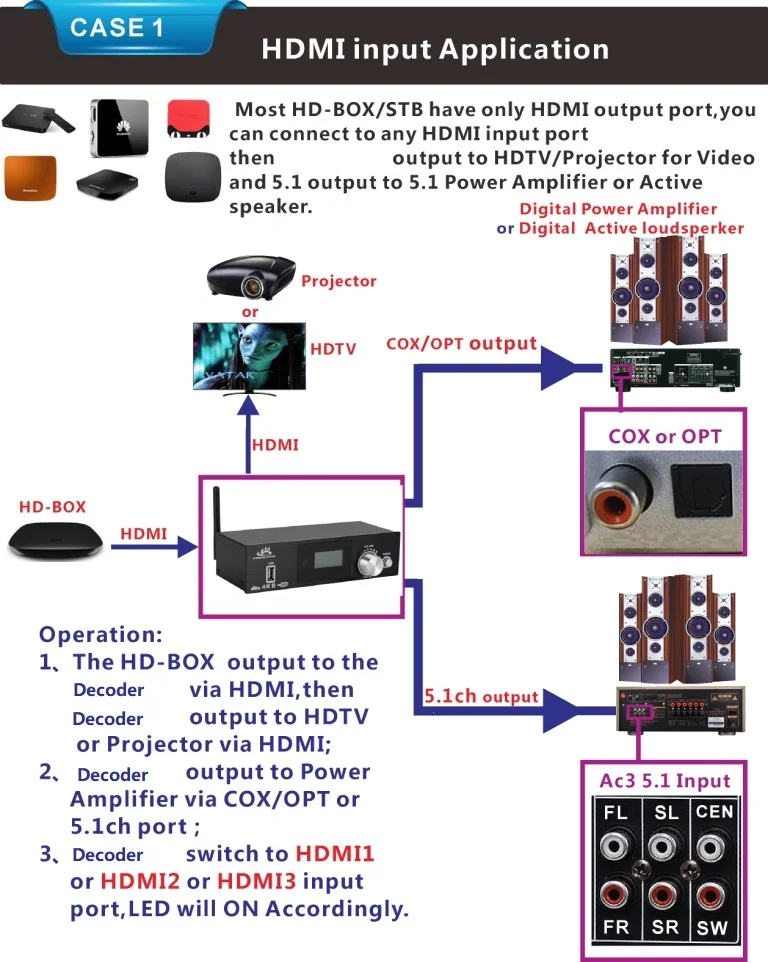

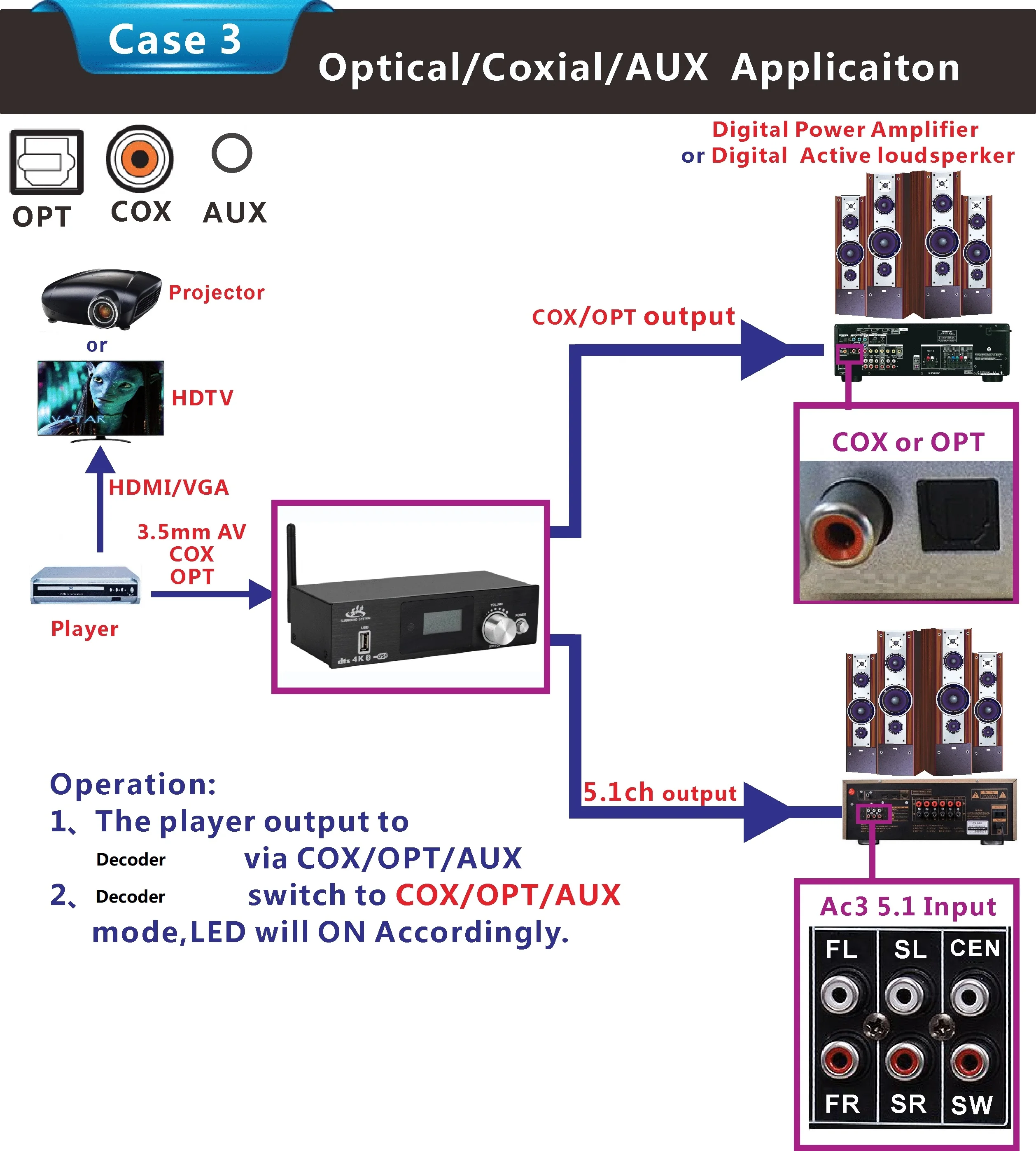

Support three HDMl input,one Coaxial input,one Optical input,one PC-USB
input,oneAUX input,one USB 2.0 input and one BlueTooth 5.0 input.You
can switch different signal sources randomy via Button or Remote.

2:Support

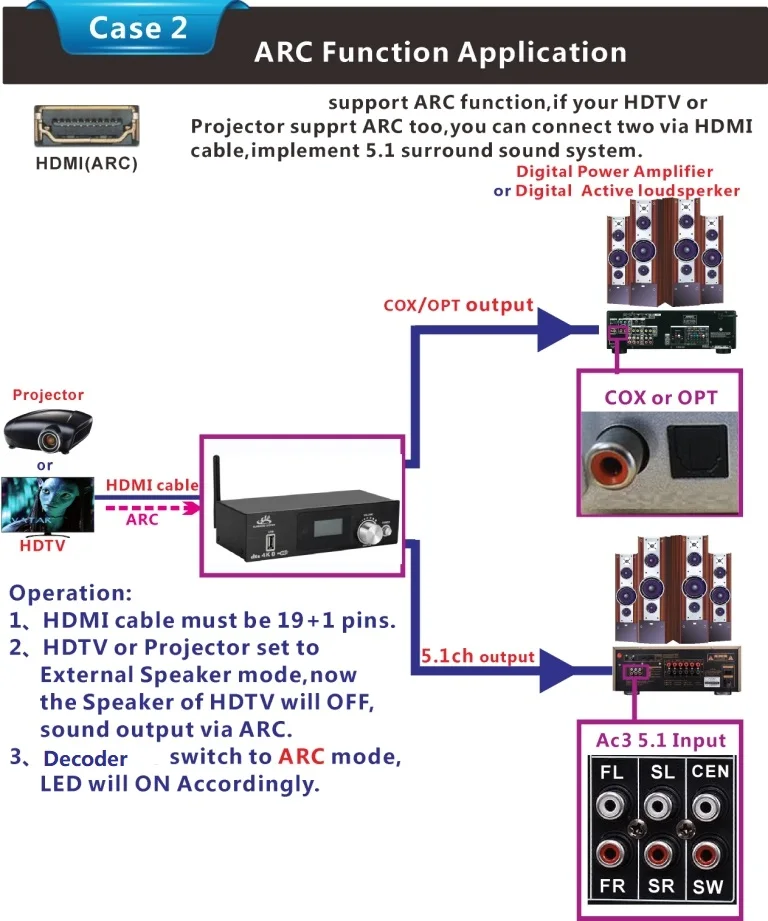

one HDMI(ARC) output, one Optical output,one Coxial output,one 5.1ch
analog audio output of RCA, all audio output simultaneously.

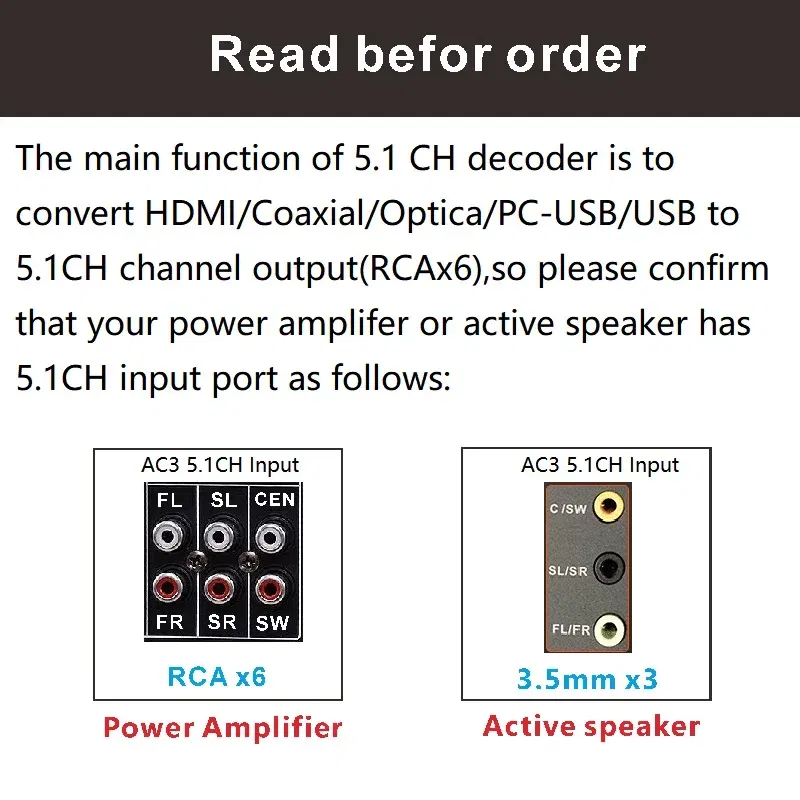

3:All signal source(HDMI/ARC/COXIAL/OPTICAL/PC-USB/AUX/USB/Bluetooth)can decode to 5.1ch output,it is audio decoder system.

4:All
signal source(HDMI/ARC/COXIAL/OPTICAL/PC-USB/AUX/Bluetooth)but USB
player can convert to COXIAL/OPTICAL output,it is SPDIF Switcher system.

5: HDMI resolution up to 4Kx2K@60hz,support HDMI2.0b and HDCP 2.3,support 3D and HDR.

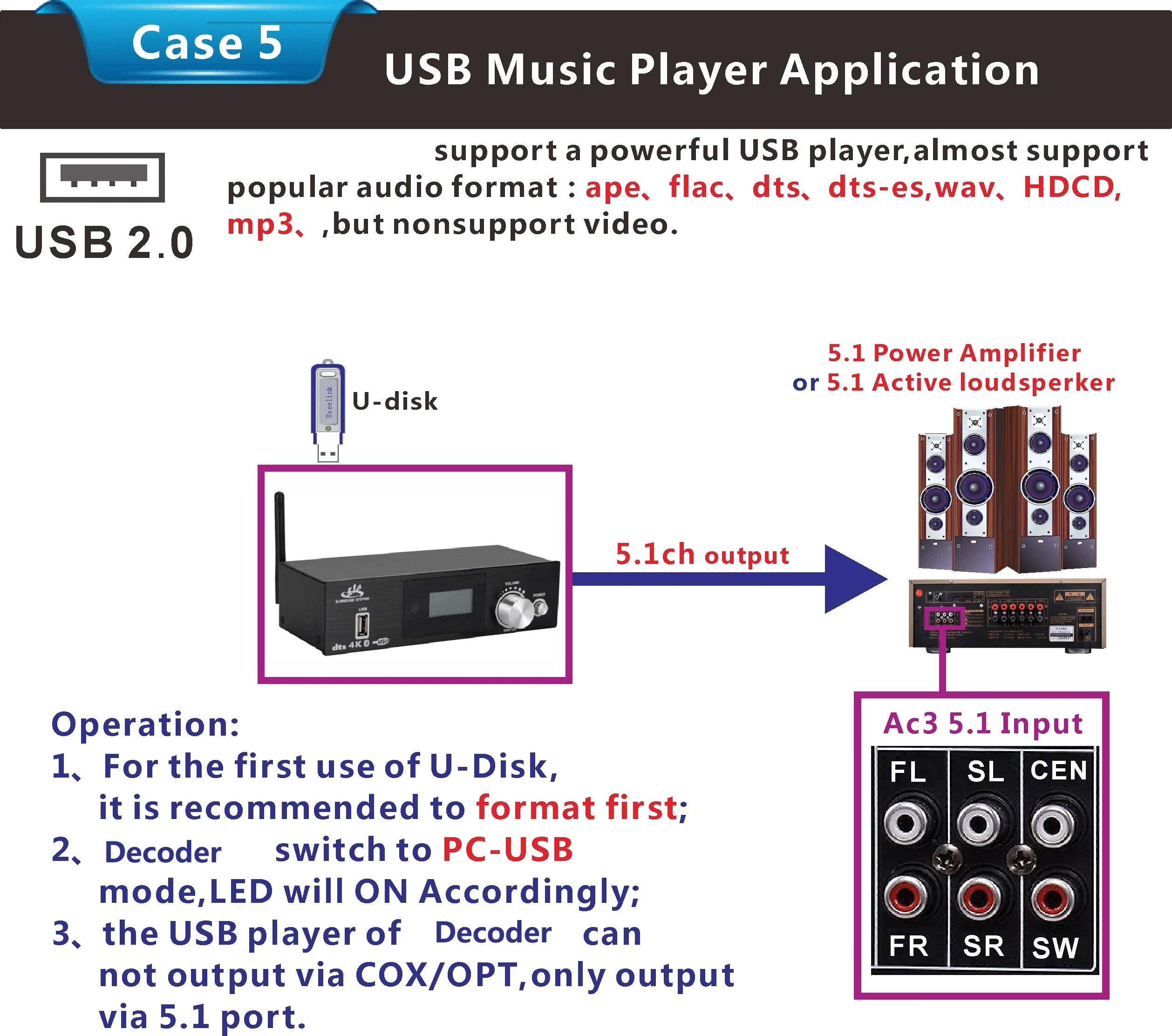

6:Supported audio farmat:DTS,DTS-ES,AC3,WAV,FLAC,APE,HDCD,AAC,WMV,MP3,M4A etc.

7: Support 5.1ch/2.0ch output mode,FL/FR active when 2.0ch output mode.

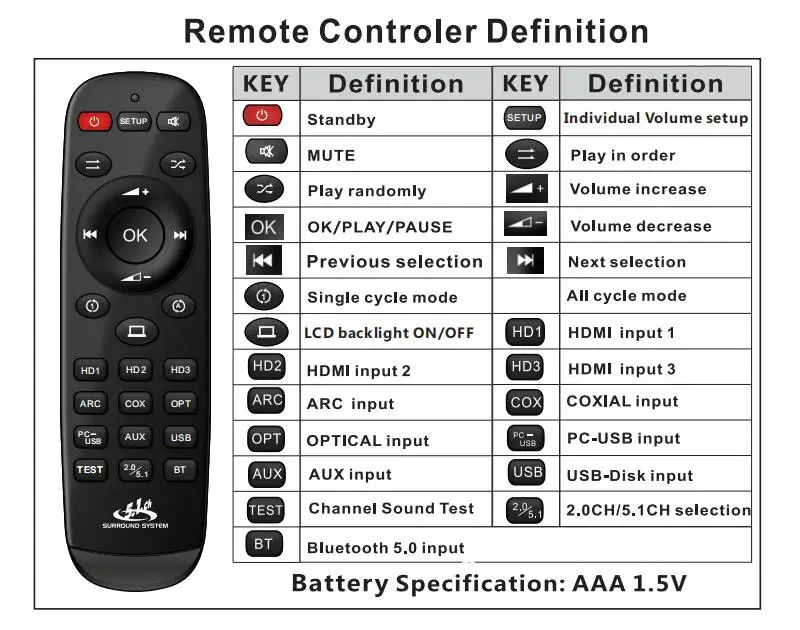

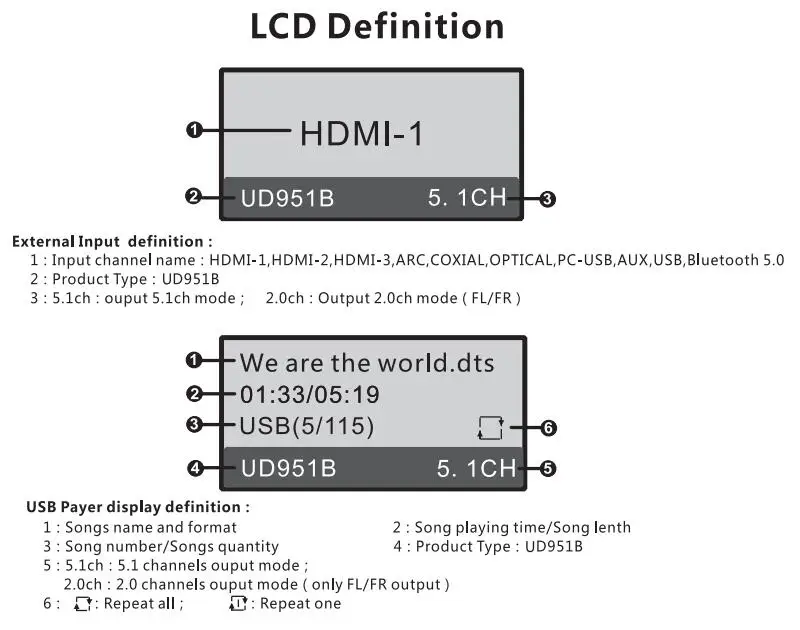

8: Support Button or IR remote switch input source ,infomation will be displayed on LCD.

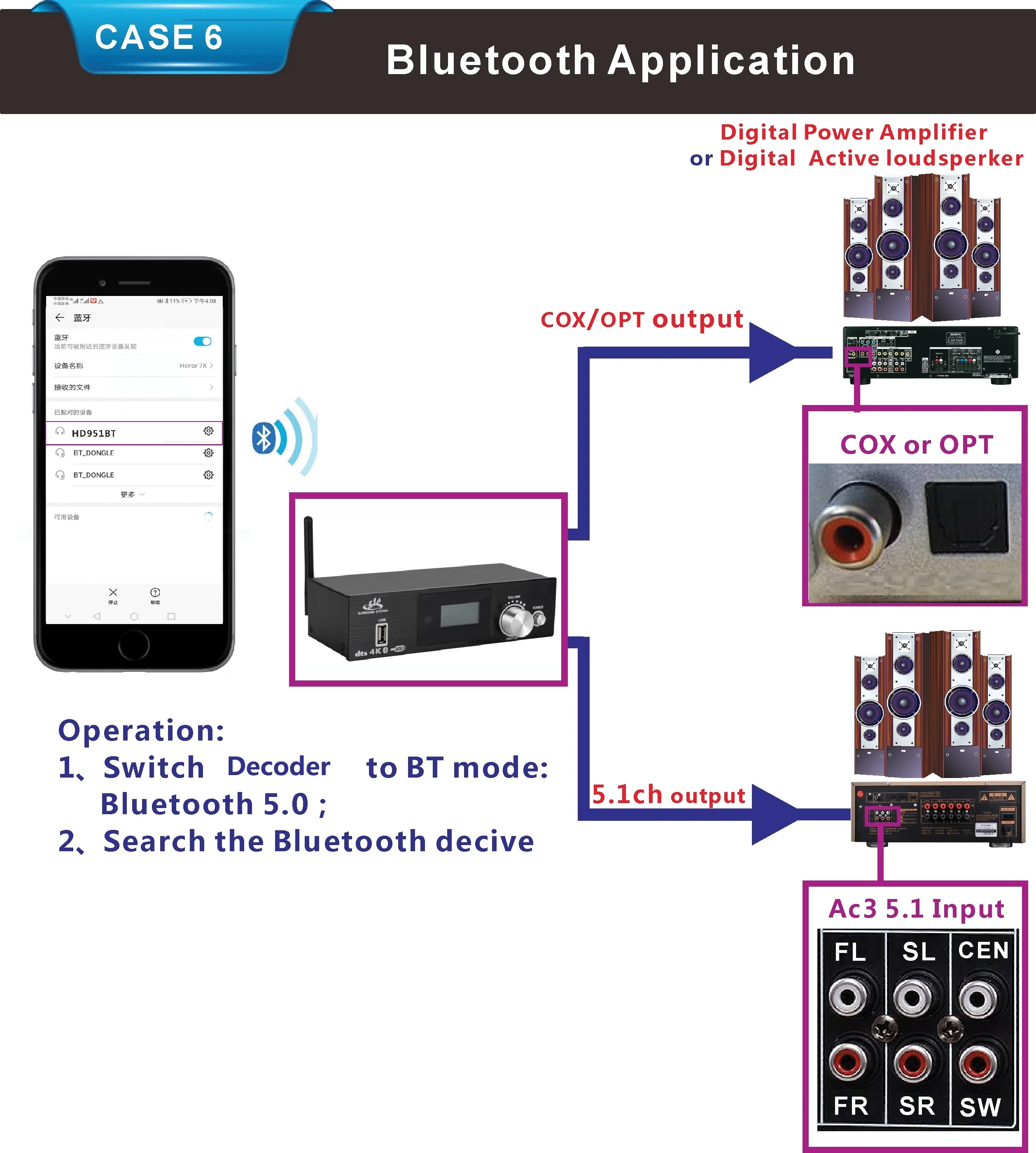

9: The Bluetooth version is 5.0,the distance support 15m.

10: Support knob or remote to select input mode.

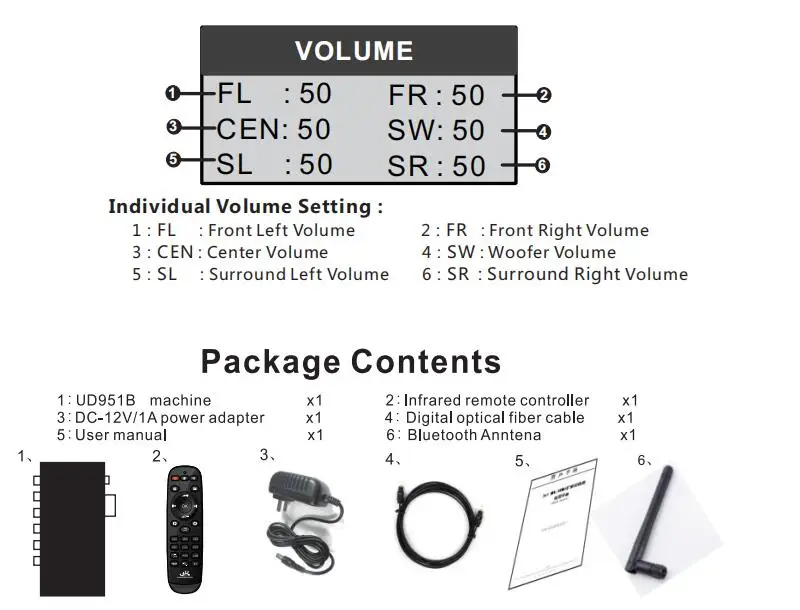

11: Support knob or remote to adjust global and mono volume, and each channelsupports 50 levels of adjustment

12:
The power-off memory function, automatically switch to the last used
signal channel,USB broadcast memory before the power-off.

13: Users can upgrade firmware via U-DISK when manufacturers have updated.

14: The use of DC 12V/1A external poweradapter power supply,wide voltage can use DC(9-19V)power supply.

Specification:

※HDMl version:HDMI2.0b&HDCP2.3

※HDMI resolution:4Kx2K/1080p/1080i/720p/576p/576i/480p/480i@24/50/60fs

※HDMI Max Bandwidth:6Gbps

※HDMl input&output TMDS signal:0.5~1.5Volts p-p(TTL)

※HDMl input&output DDC signal:5Volts p-p(TTL)

※HDMl input&output transfer distance≤20m AWG26 HDMI standard cable

※Support Audio format：dts、dts-es、wav、flac、ape、ac3、hdcd、aac、wmv、mp3、m4a etc

※DSP sample frequency range:24~192 Bit

※DSP Bit rate range:16~24 Bit

※Digital input level:0.1~1 Volts p-p

※Analog output level(1kHz@0dB):≥1.5VRMS

※SNR@0dB(CCIR/ARM):≥95dB

※Frequency response:20Hz~20KHz

※Power adapter format Input:AC100V-240V 50HZ/60Hz,DC12V/1A

※Bluetooth Version:5.0

※Bluetooth protocols:SBC/AAC

※Bluetooth Receive Distance:15m

※Product/Package Dimension(LxWxH):202x103x53(mm)/245x192x57(mm)

※Product/Package Weight:700g/950g
