Condition: New
Type: Drive IC

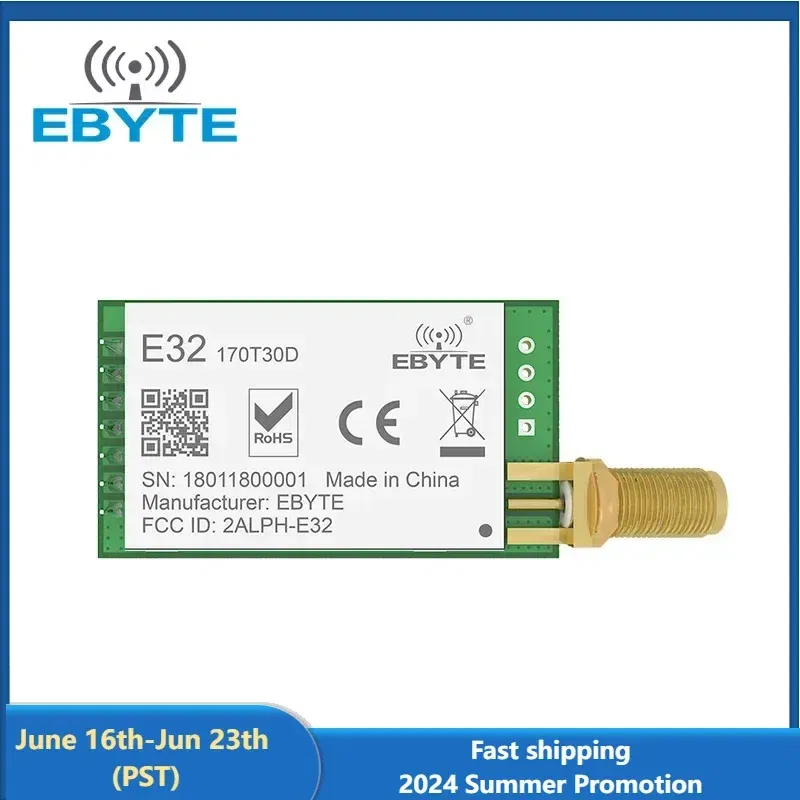

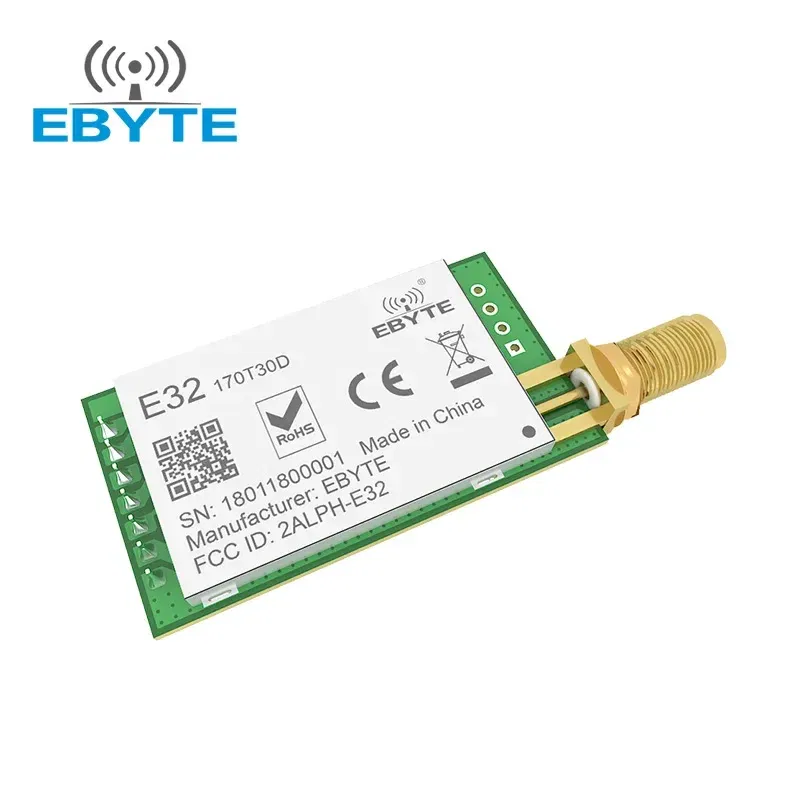

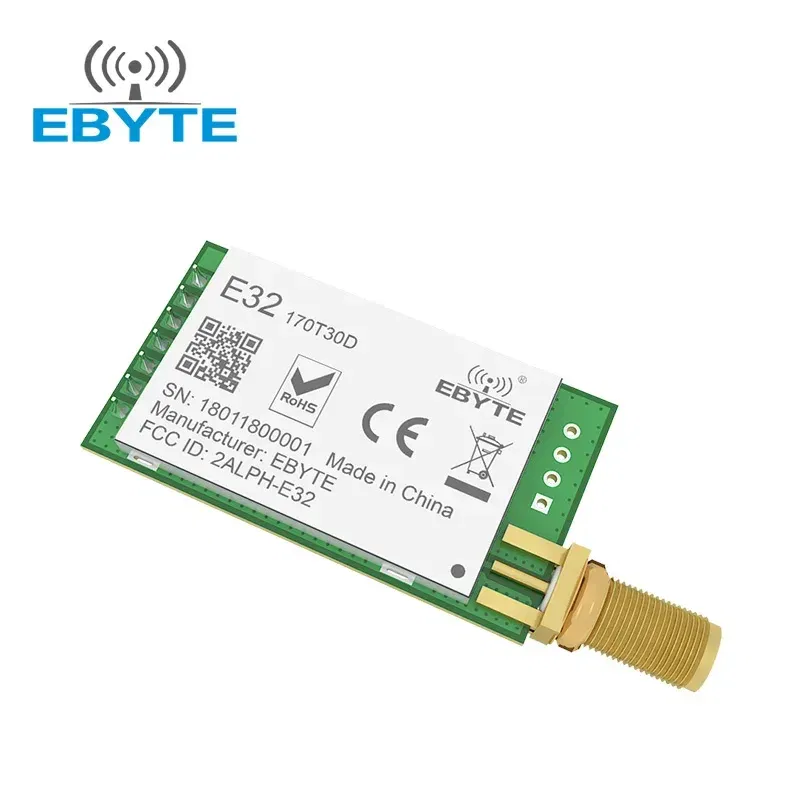

Model Number: E32-170T30D
is_customized: Yes
Working Frenquency: 170MHz
Supply Voltage: 2.8~5.5V DC
Power: 1W
Size: 24 * 43 mm
Communication interface: UART
|
RF Parameter |
Value |
Remark |
|
Working frequency |
160~173.5 MHz |
Default: 170MHz |
|
Transmitting power |
21~30 dBm |
Default: 30dBm(About 1W) |
|
Receiving sensitivity |
-147 dBm |
Air data rate: 0.3kbps |
|
Air data rate |
0.3k~9.6kbps |
Default: 2.4kbps |
|
Test distance |
8000 meter |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.4kbps |
|
Hardware Parameter |
Value |
Remark |
|

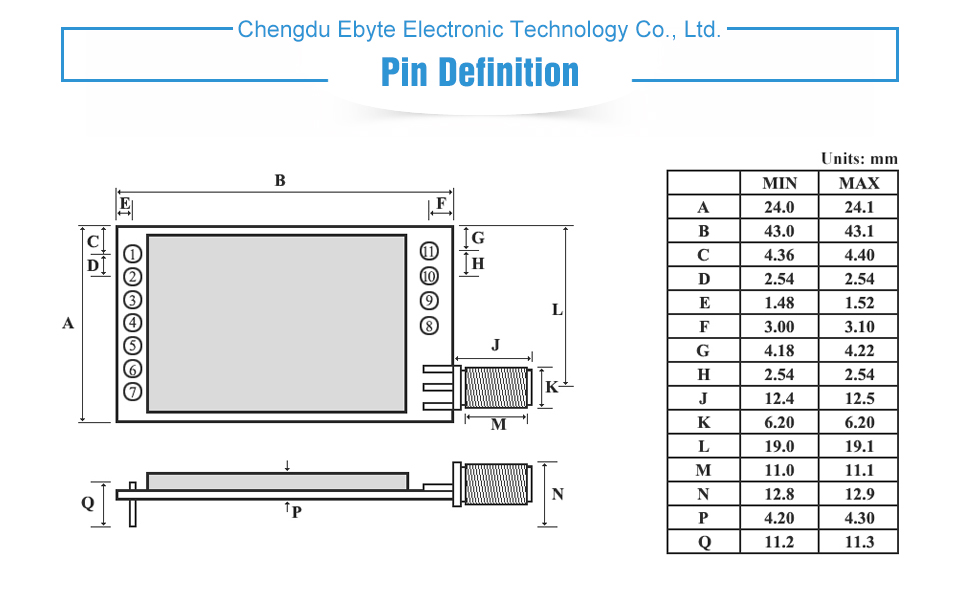

Size |
24 * 43 mm |
Without SMA |
|
Antenna type |
SMA-K |
|
|
Communication interface |
UART |
Baud rate: 1200~115200, default: 9600 |
|
Package |
DIP |
|
|
Buffer |
512 bytes buffer |
Automatically sub-packaging with 58 bytes per package |
|
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
|
Power supply |
3.3 |
5.0 |
5.2 |
V |
|
|
Communication level |
2.5 |
3.3 |
3.6 |
V |
|
|
Transmitting current |
630 |
680 |
750 |
mA |
30dBm(1W) |
|
Receiving current |
21 |
22 |
23 |
mA |
|
|
Sleep current |
4 |
5 |
6 |
μA |
|
|
Operating temperature |
-40 |
20 |
+85 |
℃ |
|
|
Operating humidity |
10 |
60 |
90 |
% |
|
|
Storage temperature |
-40 |
20 |
+125 |
℃ |
|
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
