Material: Metal
Recommend Age: 12+y
RC Parts & Accs: Servos
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Quantity: 1 pcs
Technical parameters: Value 10
Model Number: S007M
Four-wheel Drive Attributes: Assemblage
Choice: yes

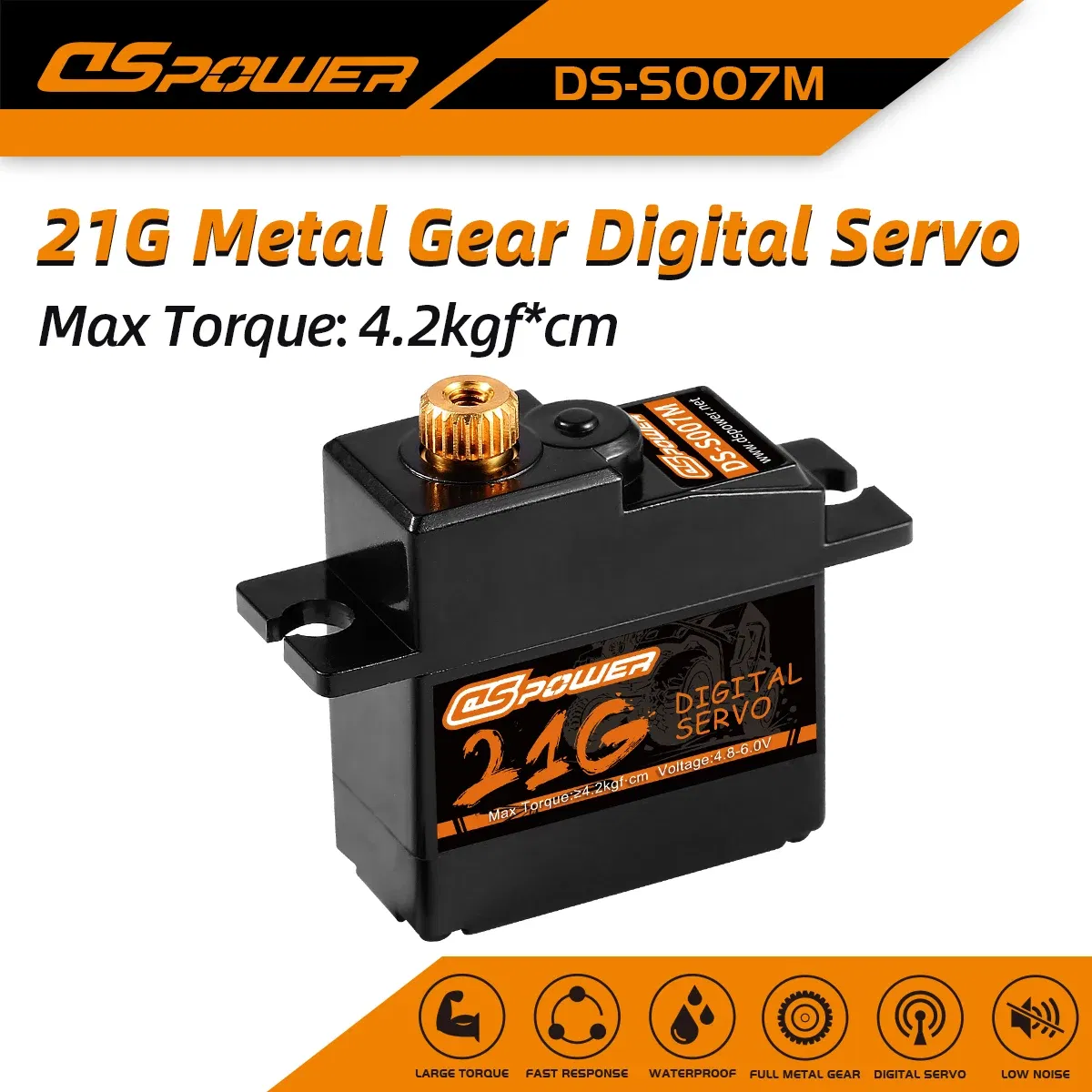

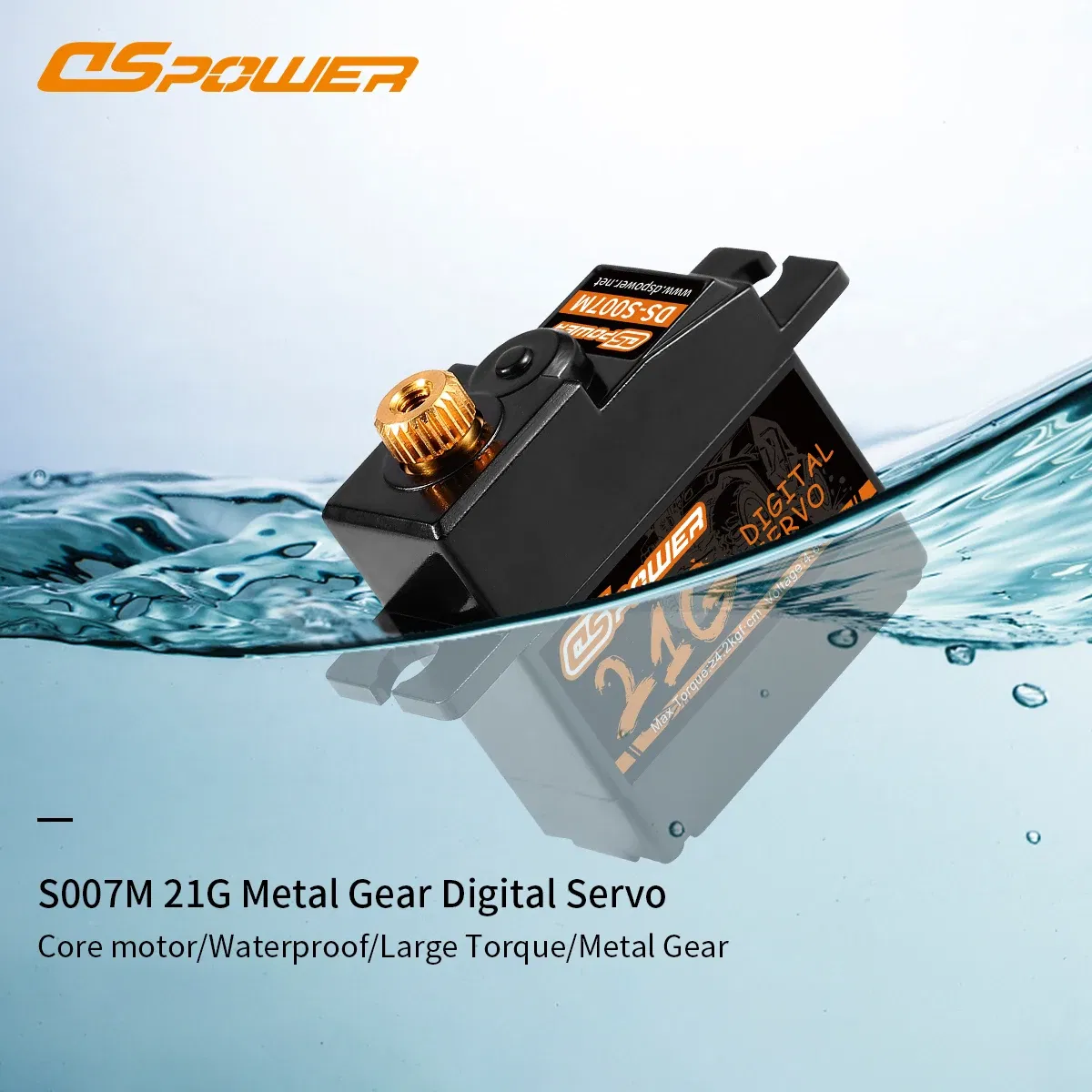

DSpower 21g Metal Gear mini servo 4.2KG torque 17g Servo for 1:18 1:16 rc car slash E-Revo C24 D12 MN99S MN86 RC Airplane robot
Features:
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model

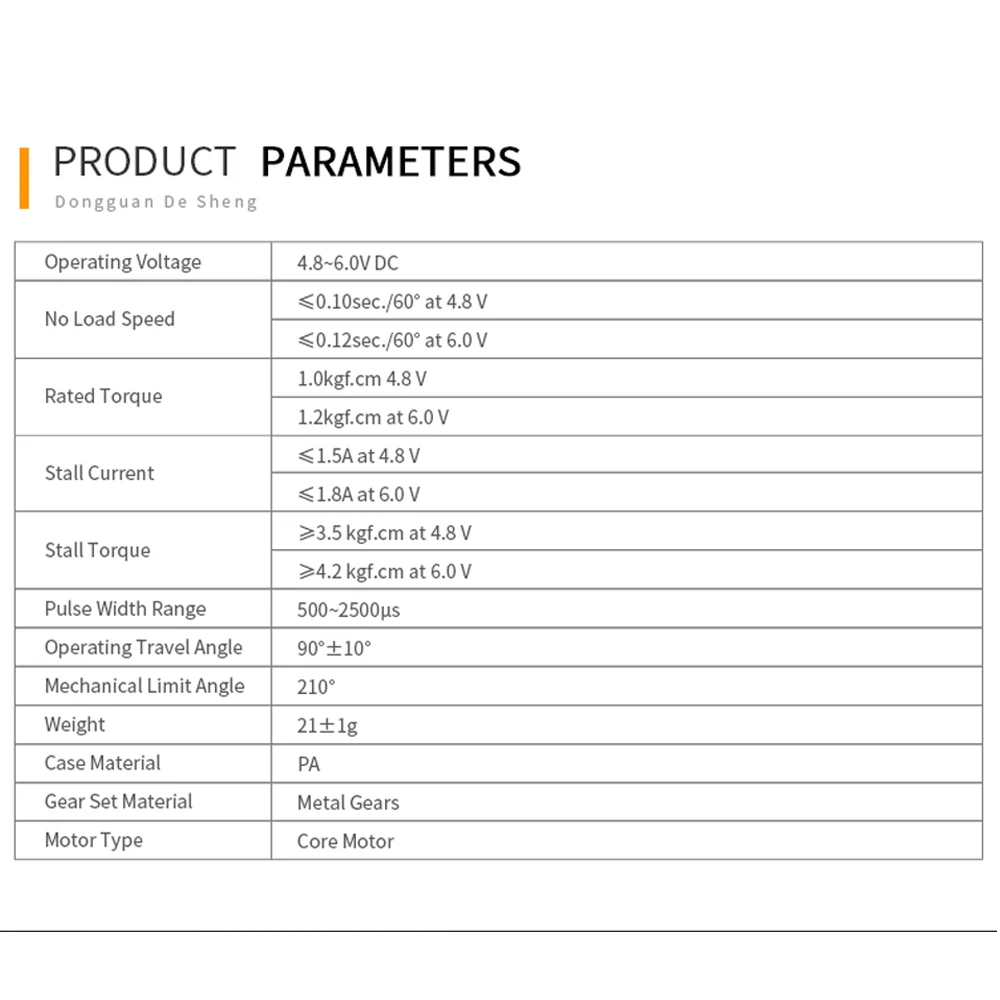

Specifications:

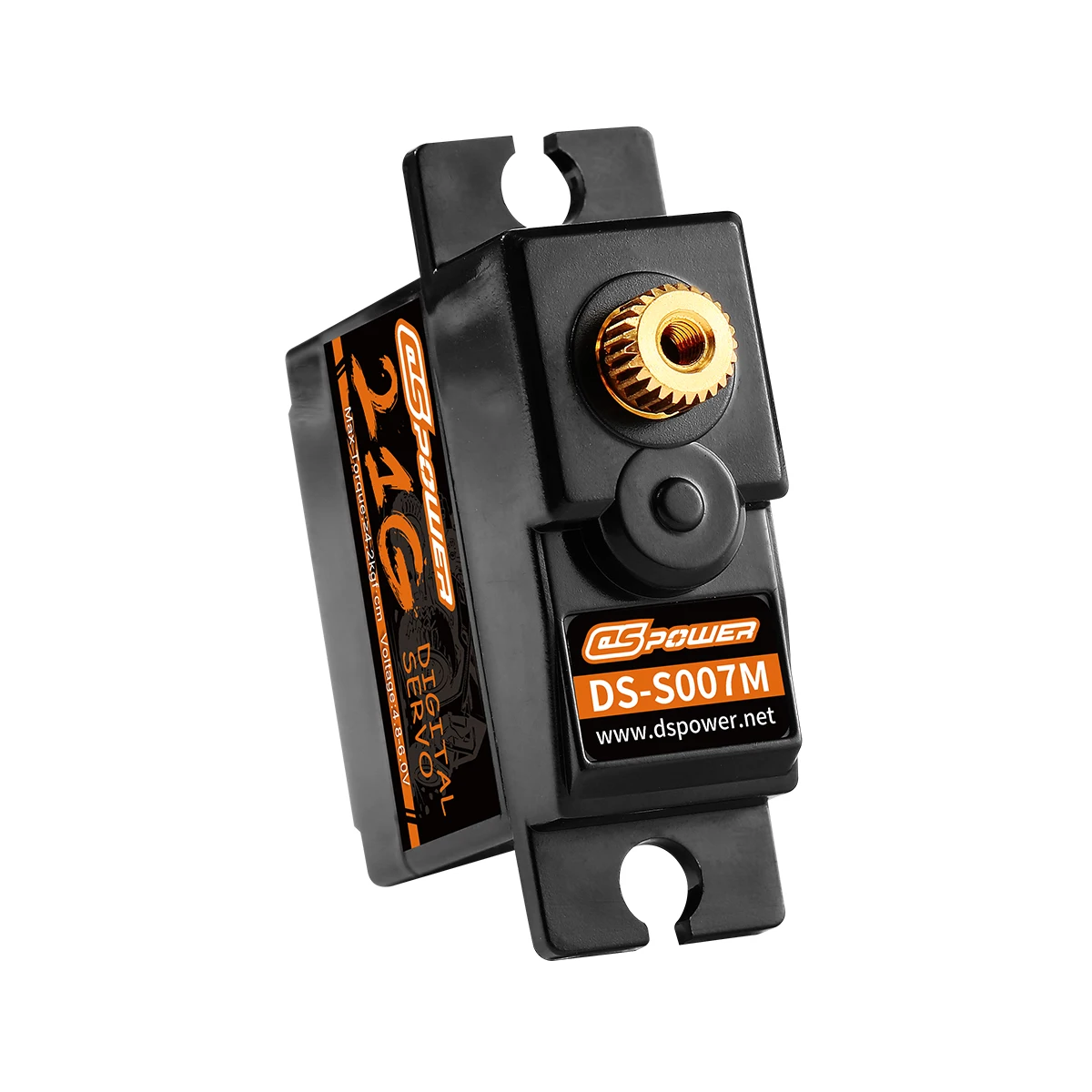

Item name: DSpower S007M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥3.80kgf·cm ； 6.0V≥4.20kgf·cm
No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°
Stall Current：4.8V≦1500mA；6.0V≦1800mA
Consumption Current* (No Load)：4.8V ≦200mA ；6.0V≦210mA

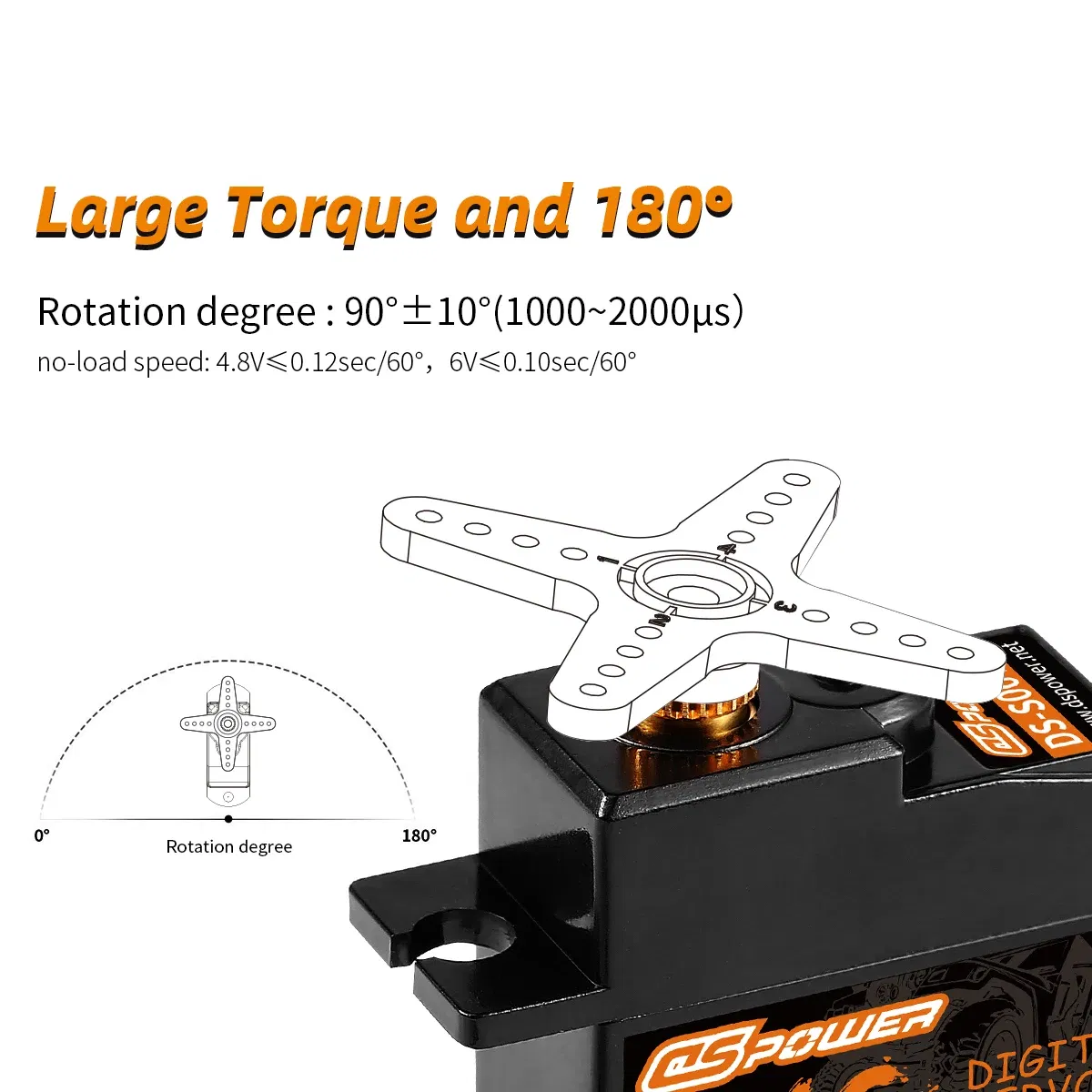

Max. Operating Travel Angle：180°±10°(1000~2000μs）
Dead Band Width: ≤ 5us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS

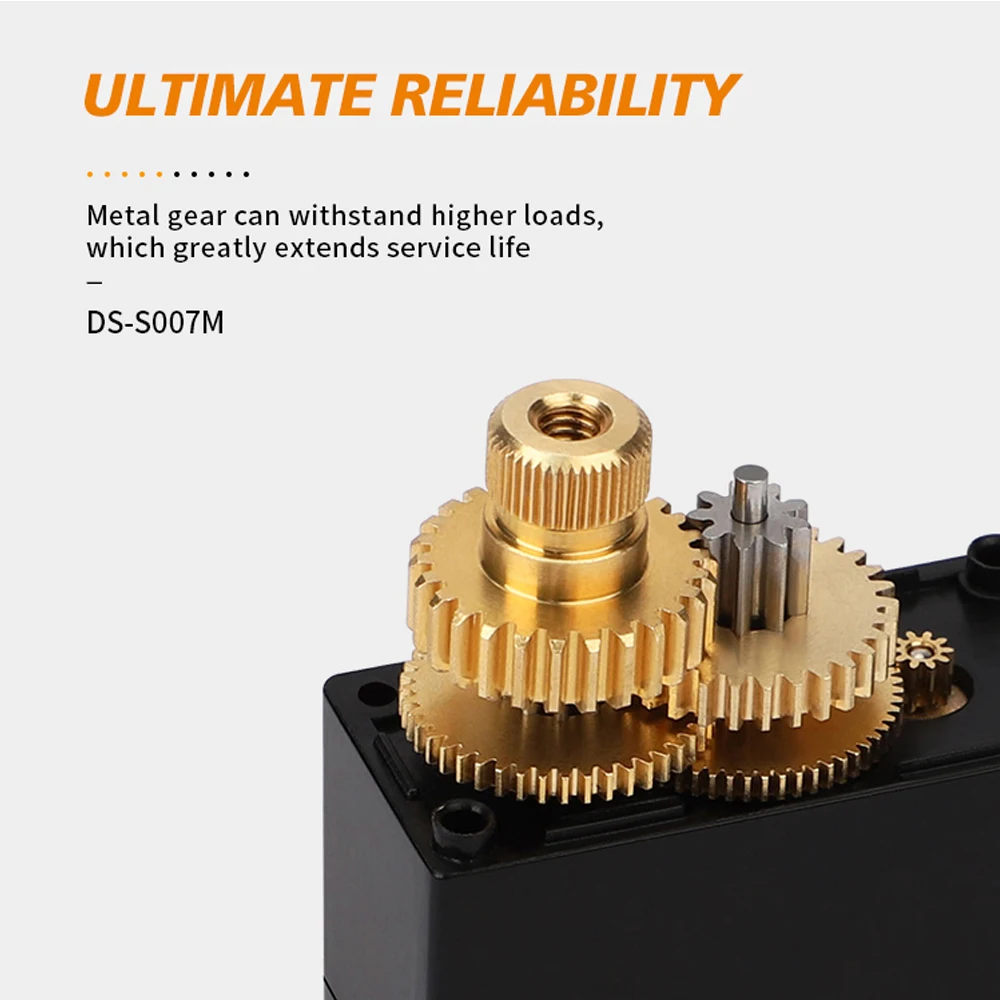

Gear Set Material : Metal gear
Weight: 21 g

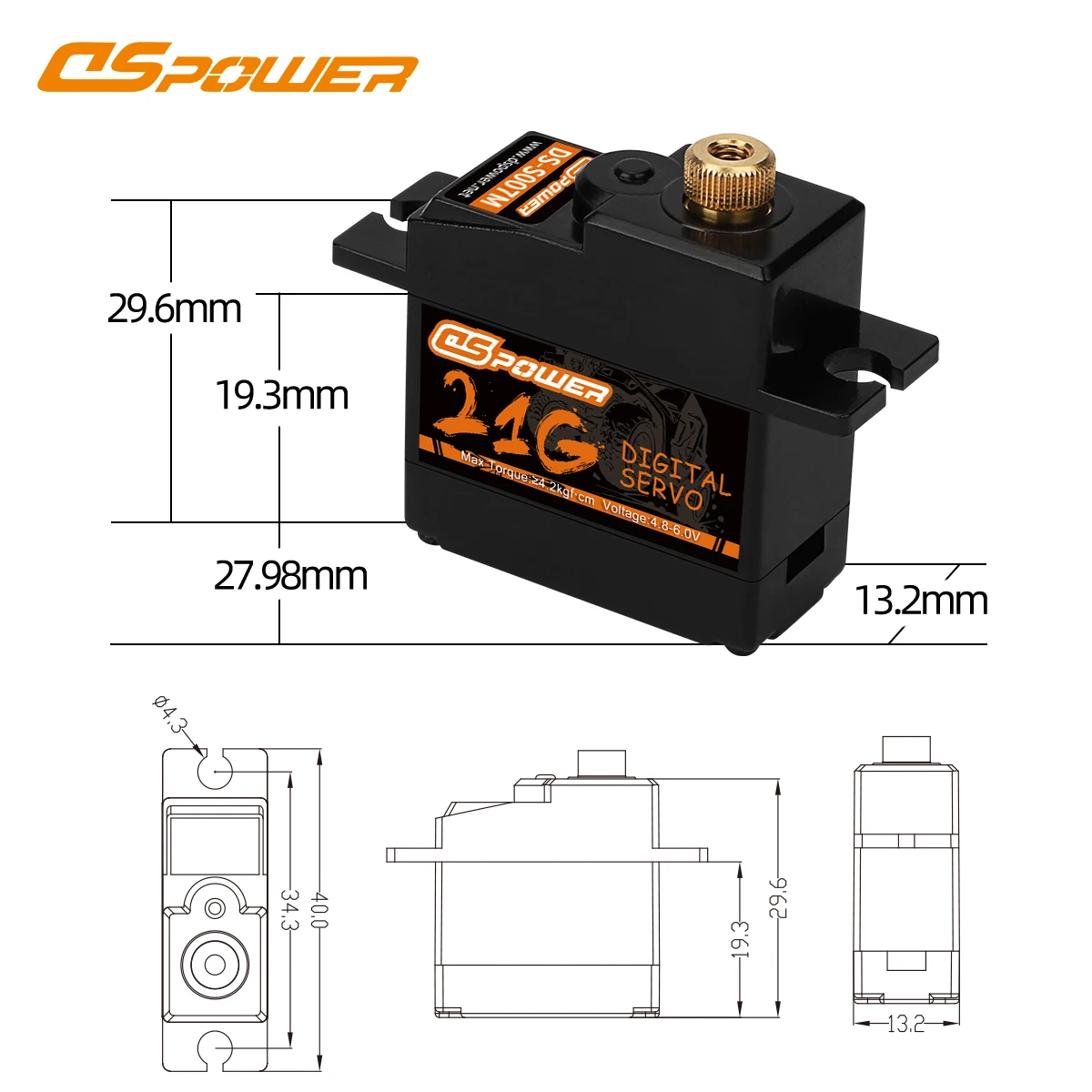

Size: 29.6 × 13.2 × 40mm
Length of Connector cable: JR 250±5mm (exposed without plug)

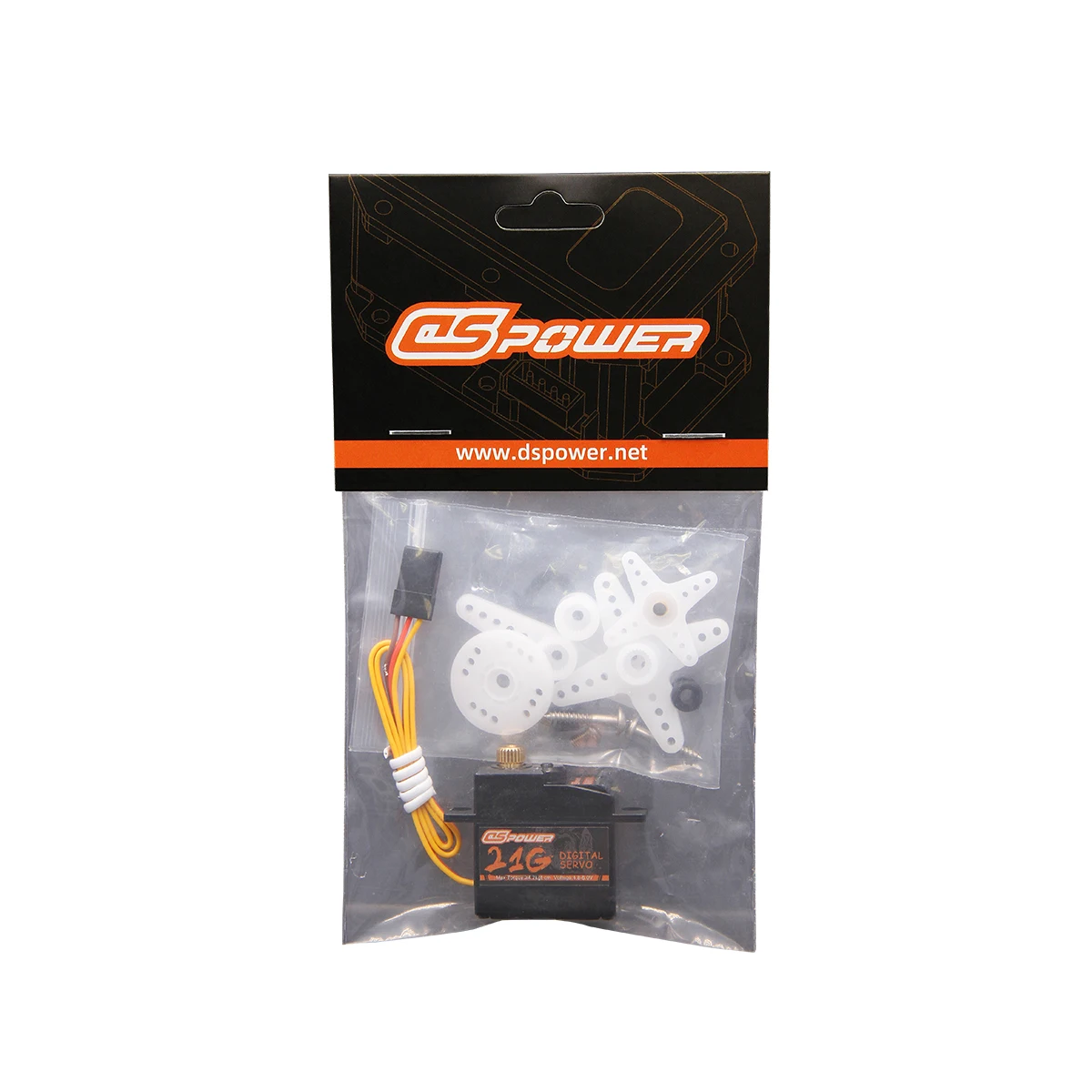

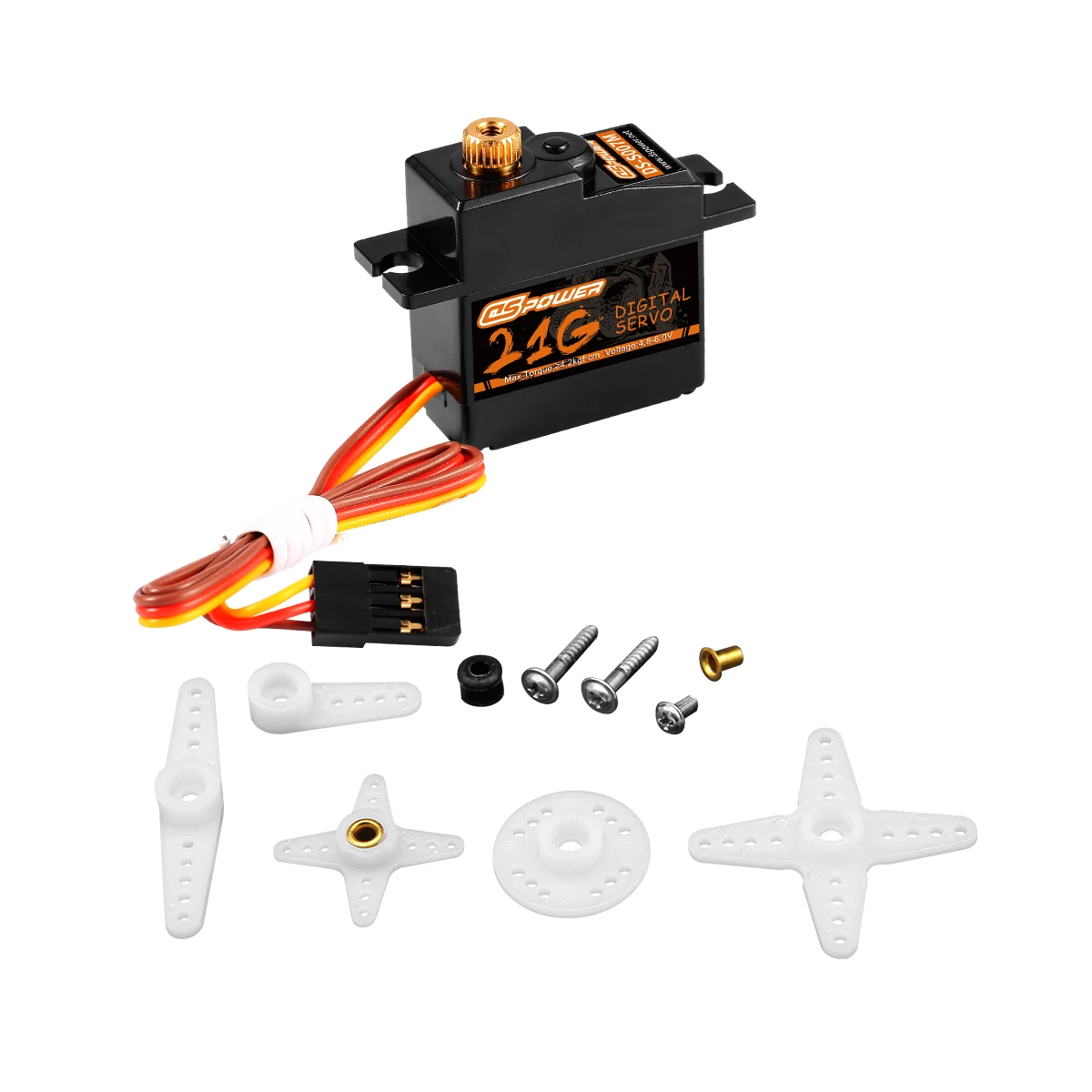

Package included:
1 * 21G Digital Servo
1 * Servo Arm Accessories
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
