MAIN POINTS BEFORE BUYING

Due to the special cases rightnow, the transportation could be delayed, and

* There are some faster chargers in the market, such as 8A/10A, but they are not trustworthy. they're made by some small factories, cheap parts inside, without strict quality control. I don't think they can pass certificates such as CE/UL even if they painted these logo on the chargers. Furthermore, charging too fast is harmful to battery cells, and for some scooters, electric capacities on BMS chips can't bear large current for a long time. In short I don't suggest you use faster chargers.

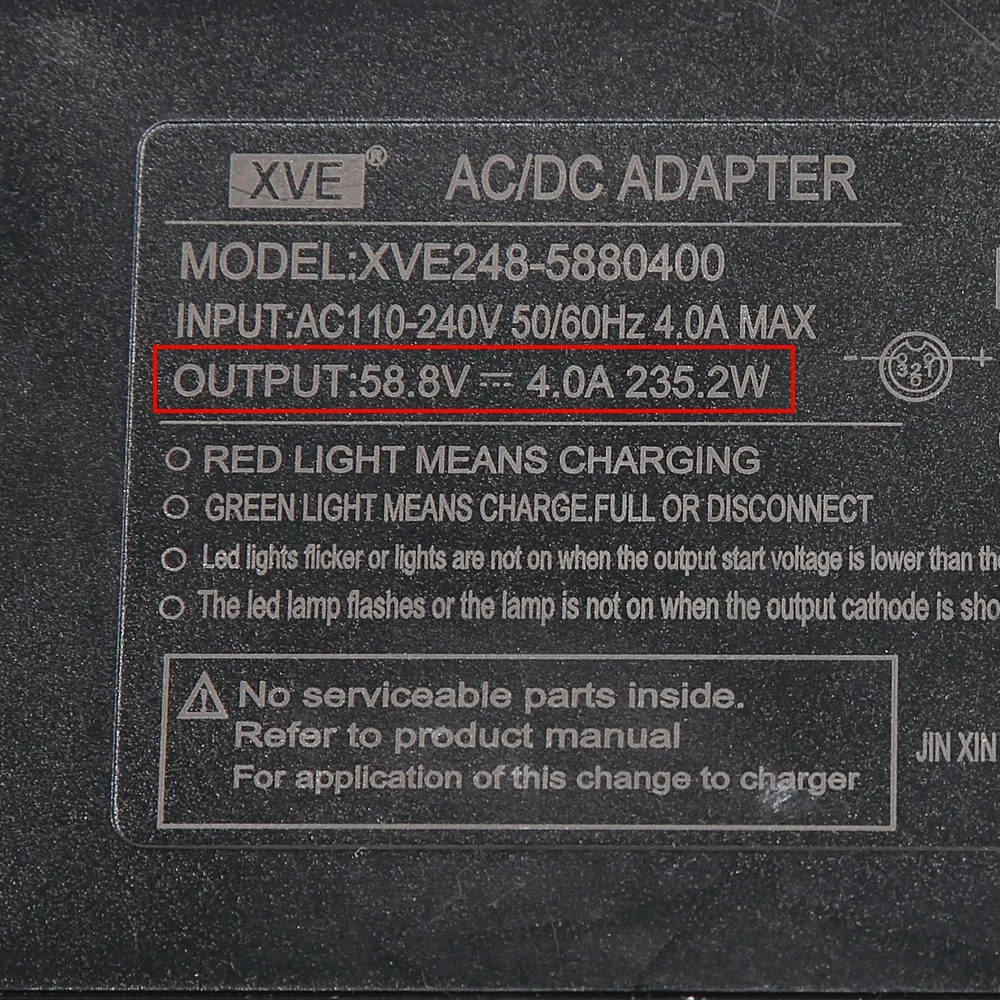

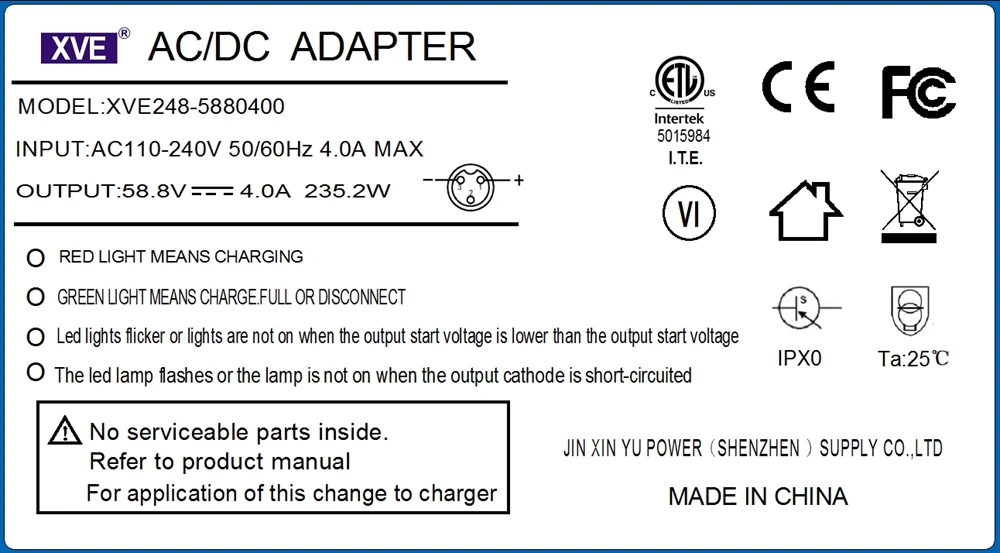

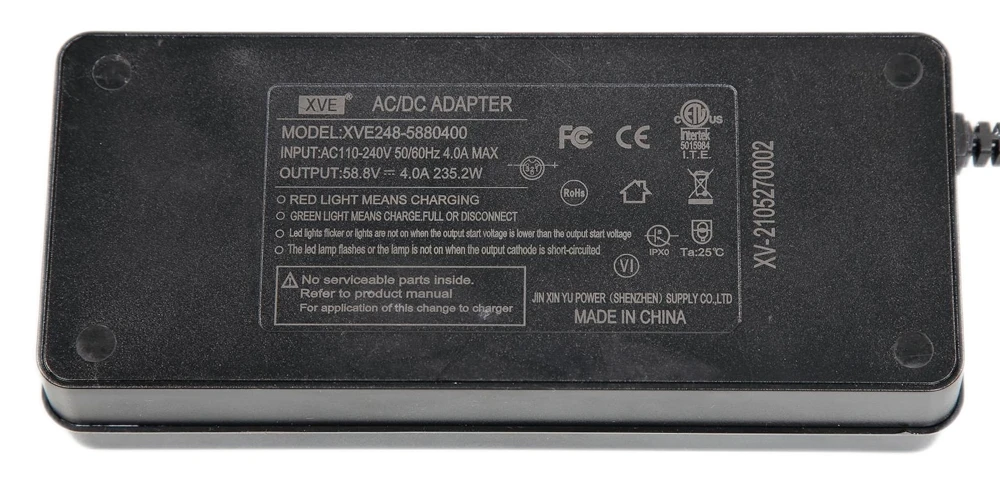

* Product name: Universal GX16 3-Pin 58.8V 4A AC/DC Li-ion Battery Charger
Model number: XVE248-5880400
Shell material: ABS+PC
Supplier: Jin Xin Yu Power(Shenzhen) Supply Co., LTD
Suppliers' trademark: XVE
Input voltage: AC 110-240V
Voltage variation range: AC 90-264V
Input frequency: 50/60HZ
Input current: Max. 4.0A
Maximum energy consumption in NO-Load: 2W Max
Rating output voltage: DC 58.8V±0.2V
Rating output current: DC 4.0A±0.2A
Turn lamp current: 300～500mA
Load output Voltage Range: 40%-65%
Efficiency: Active efficiency at 230V 50Hz: 83% MIN; Active efficiency at 110V 60Hz：81% MIN
Ultimate output：235.2W
Overshoot: 15% Max. When power supply at turn on or turn off.

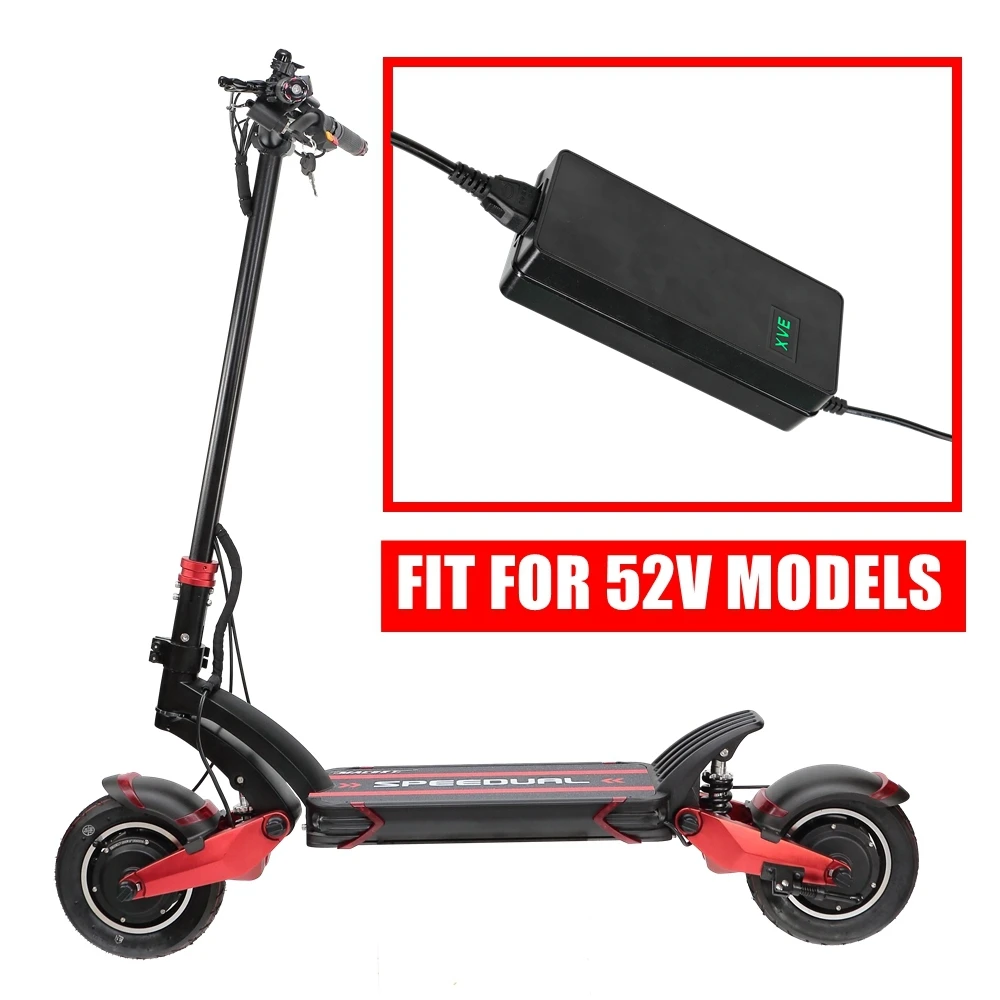

* This charger is one of original fast chargers for ZERO and VSETT series. It fits for all 52V models, such as: ZERO8 52V13Ah, ZERO9 52V13Ah, ZERO10 52V10.4/13/18.2/23Ah, ZERO8X 52V10.4/18.2/25.6Ah, ZERO10X 52V10.4/13/18.2/23Ah, VSETT9 52V13/16/17.5Ah(incompatible with "+" models).

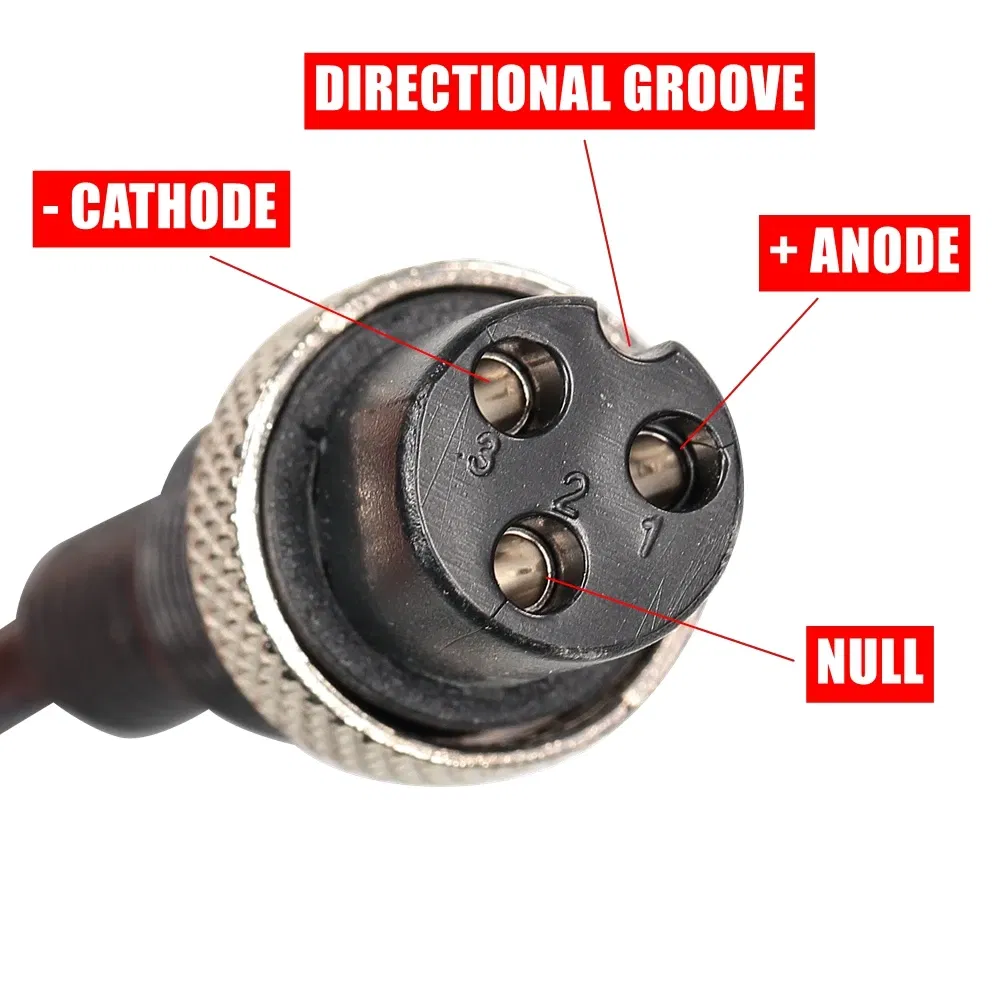

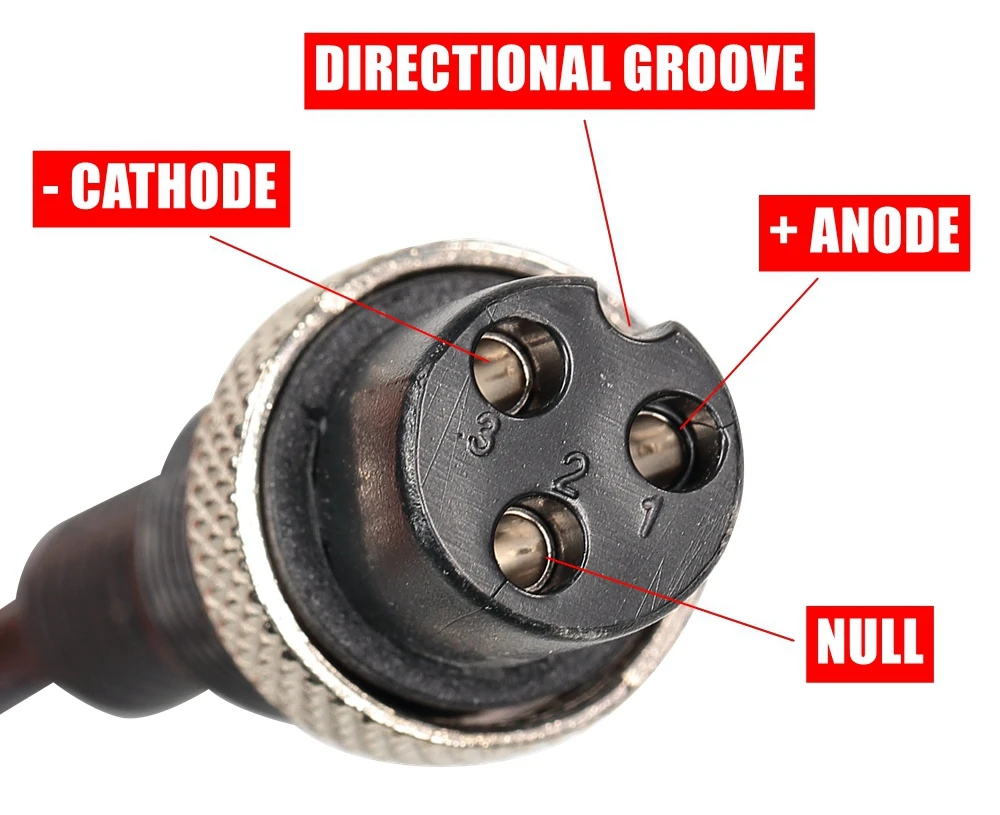

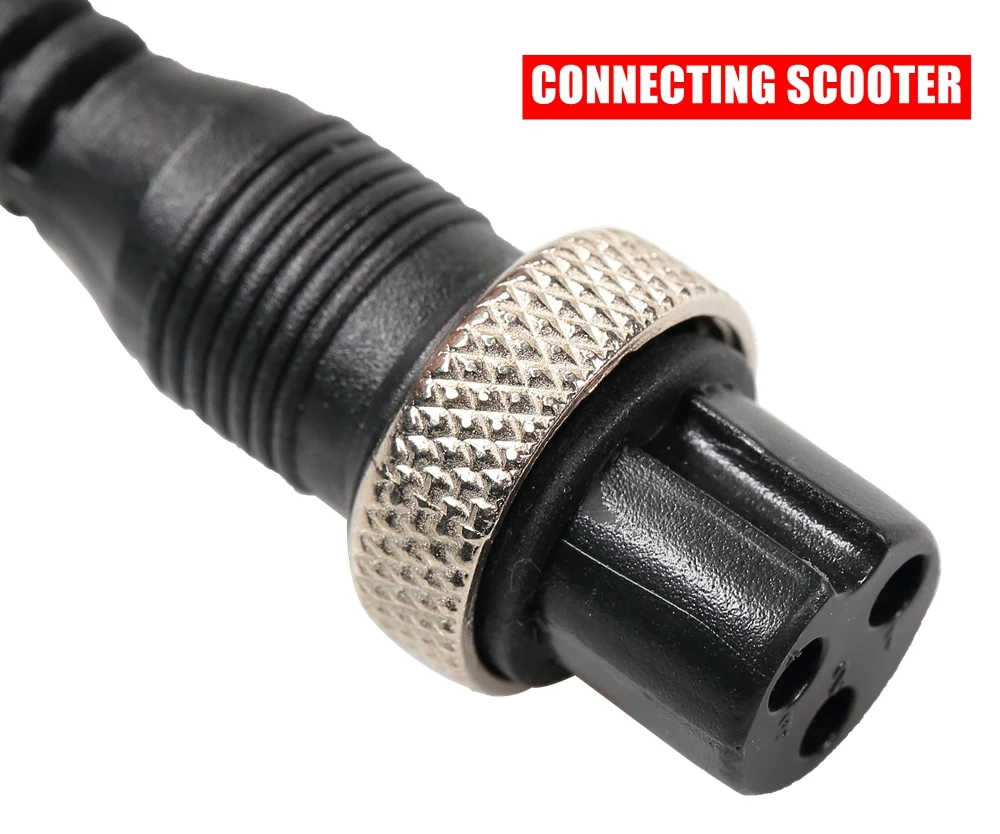

* Besides these scooters I mentioned, this charger is universal for many other electric scooters equipped 52V Li-ion battery pack except Dualtron, such as Dualtron Mini, even if it's 52V model, but it uses 58.1V charger, if you charge it with this 58.8V charger, it's high risk for over-charging. In short the key words are "Output Volt 58.8V" and "For Li-ion Battery" and "GX16 3-Pin, Pin 1: Anode, Pin2: NULL, Pin3: Cathode" .

* If your scooter is not made by our factory, I strongly suggest you check your original charger's lable and plug's shape before your purchasing. If you buy an incompatible charger, it's very dangerous! I will check the charger before I ship it to make sure it works fine, but I don't know anything about your scooter and I can't give you any useful information, obviously I don't know what would happen when you replace them. Of course I won't assume liabilities in this situation.

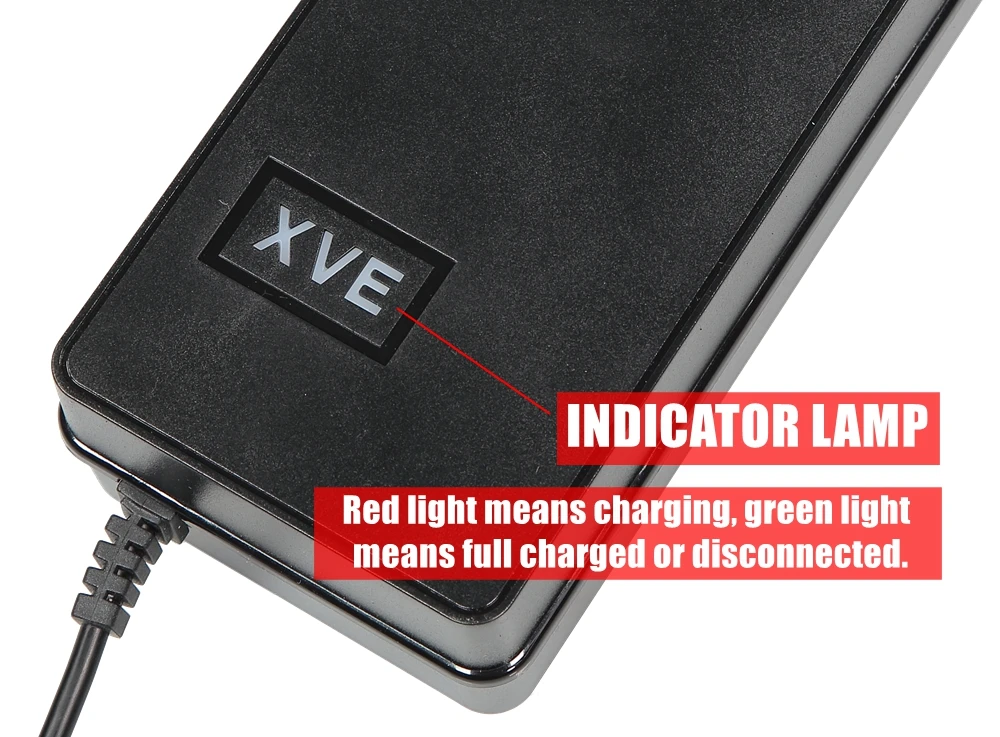

* Display: XVE logo is the light indicator too. Red light means charging, green light means full charged or disconnected. If your scooter support dual-charging, it's normal that the one charger's light turn green but other one is still red when full-charged is coming.

* Charging Time: The charging speed is fast when the battery is nearly empty, then the charging speed becomes slower and slower when the battery is about to be fully charged. The indicator lamp will change from red to green when the battery is around 95% charged. So if your scooter is 52V18.2Ah model, it's 9 hours for full-charged with 2A charger in theory, but the real time is 10 hours+.

* If your scooter supports dual-charging, you can use 2 fast chargers, the charging time would be half shorter. For example, you charge a ZERO10X 52V23Ah, if you use only one 2A charger, you need 12hours, but use one 4A charger, around 6hours for full charged, and two 4A chargers, just only 3hours! Furthermore, I suggest you use 2 same chargers at same time, do not combine a standard charger with a fast charger.

* Fast charger is bigger because of higher power, stricter regulations, better parts, greater calorific value, so please make sure keep good heat dissipation while charging. CAUTION: DO NOT charge the scooter for a long time after it's charged fully. If the light indicator turn green, I suggest you just charge less than half an hour again.

* SAFETY AND EMC REQUIREMENT
ETL(UL), CE, FCC, LVD, PSE, KC, CCC, EMC, ROHS, Hi-Pot, etc.
Maybe there are many cheaper universal chargers on the marcket, but I don't suggest you use them, our chargers passed many strict certificates in the world, I don't think those cheapers did.

* PROTECTION REQUIREMENT
Short Circuit Protection: The power supply will be auto recovered when short circuit faults remove.
Over current Protection: The power supply will be auto recovered when over current faults remove.
Temperature protection point of power supply chip: 125℃
The maximum temperature of the shell: At the ambient temperature of 25℃, full load for 4h, the maximum temperature of outside enclosure is 45℃.
Plastic shell temperature resistance: 120℃ MAX.

* ENVIRONMENTAL REQUIREMET
Operating Temperature: 0℃ to 40℃, Full load normal operation.
Storage Temperature: -20℃ to 85℃, with shell.
Relative Humidity: 5%(0℃)～90%(40℃)RH, 72Hrs, Full load Normal operating
Altitude: MAX to 5000M

* We are constantly improving our products, and we have many different suppliers to provide parts, so maybe some small details would be slightly different from the photos of description page, it's normal, that means you receive a newest model, this is the official store, I promise to provide the newest improved models, just the description page is not renewed yet!

* The price do not include any customs/taxes/VAT. There is a certain probability that the goods will be checked by the customs, if your package is checked, you need to pay the customs by youself. I don't know the specific customs tariff standard. You need to ask about the customs agency of your country.
