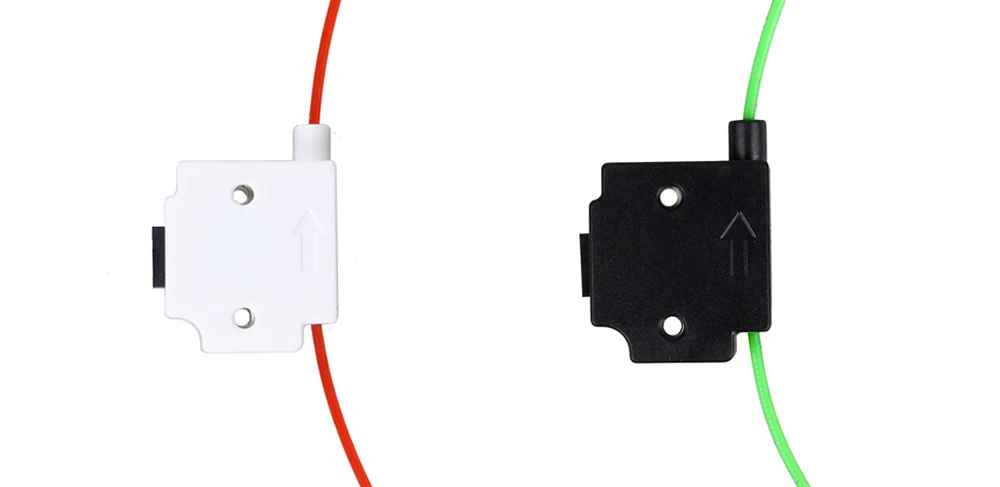

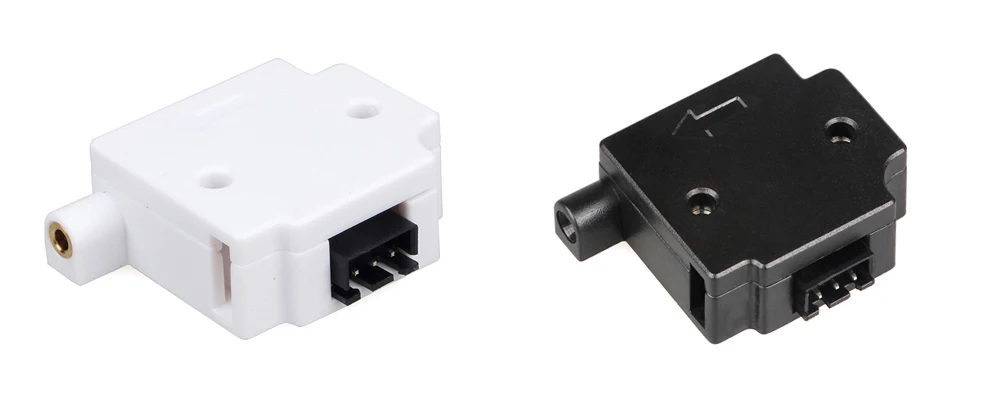

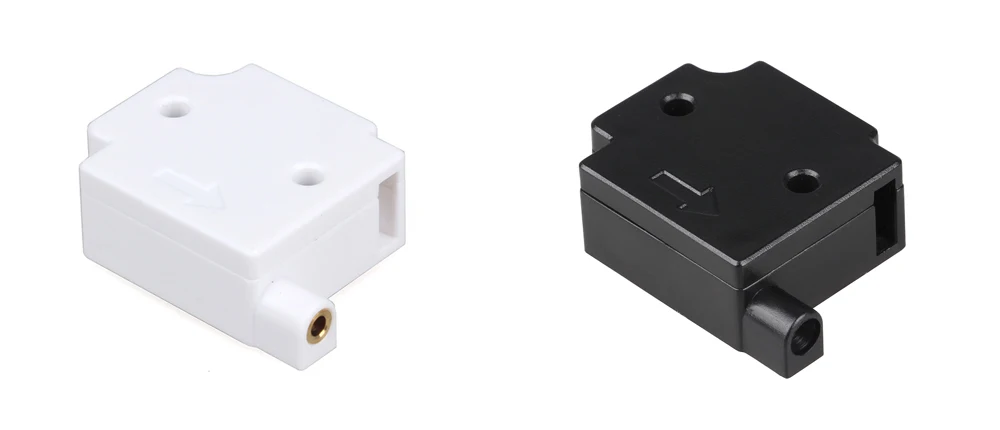

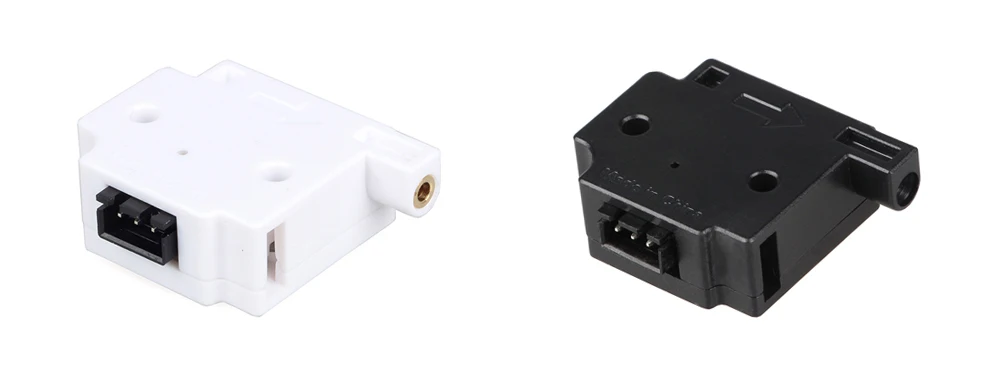

Color: white and black for option
Sizes for option: 1.75mm
Item Type: Module
Model Number: 3D Printer Material detection module
Origin: Mainland China
Choice: yes
semi_Choice: yes

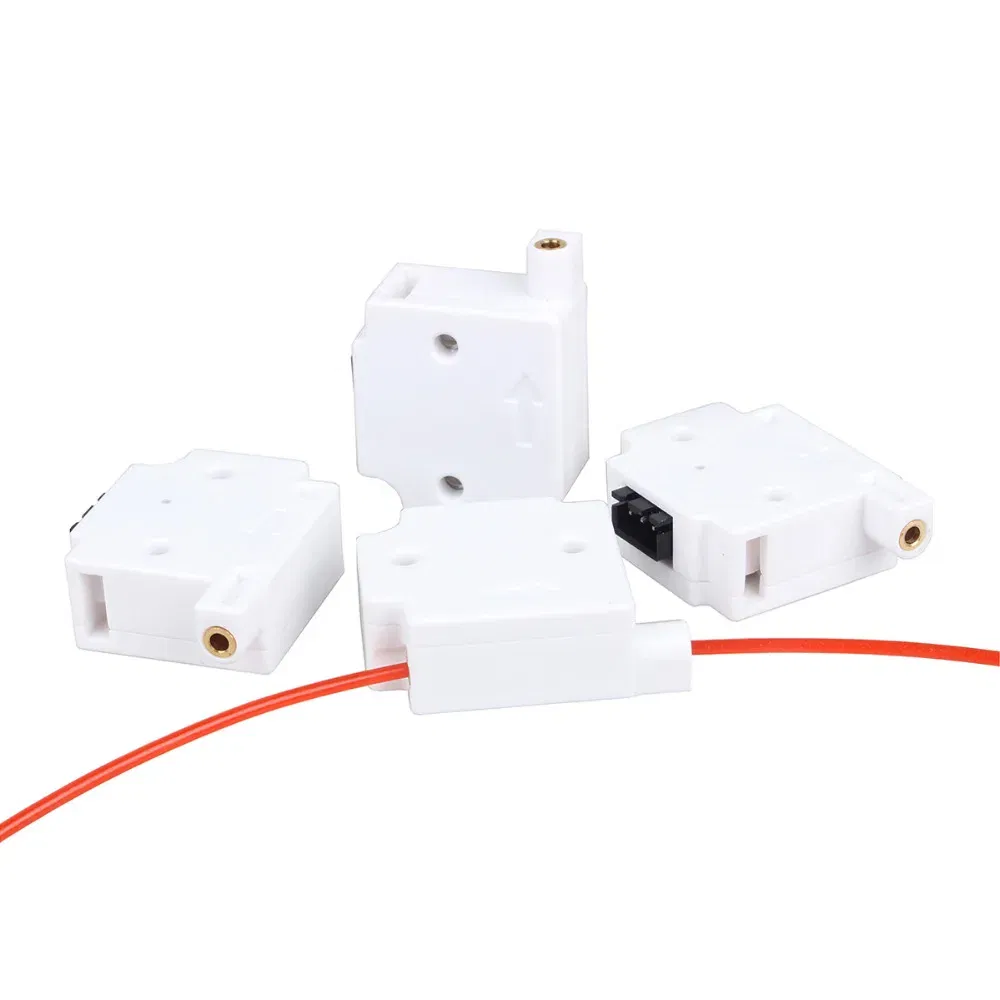

Product name:Material detection module
Sizes for option:1.75mm
Features:

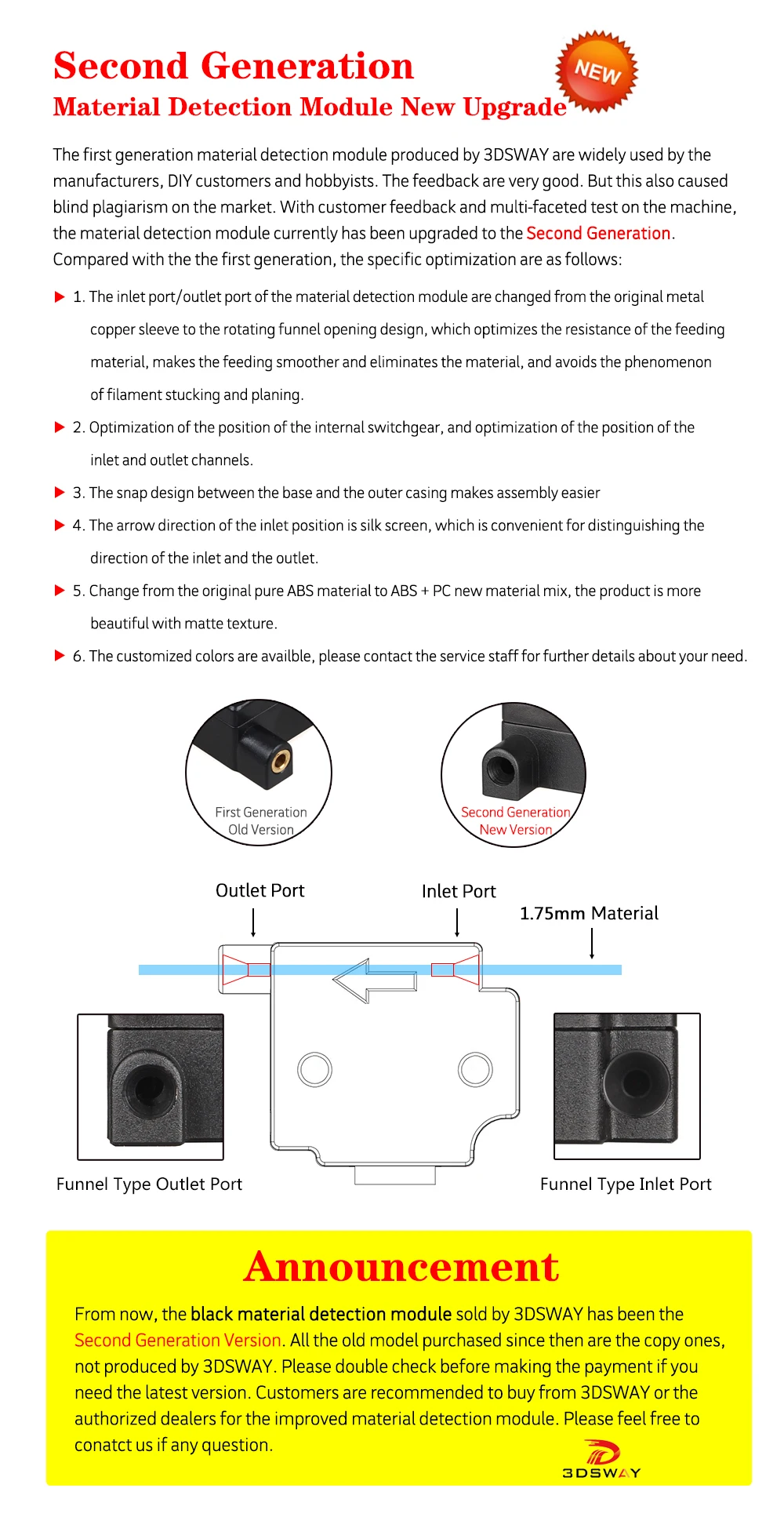

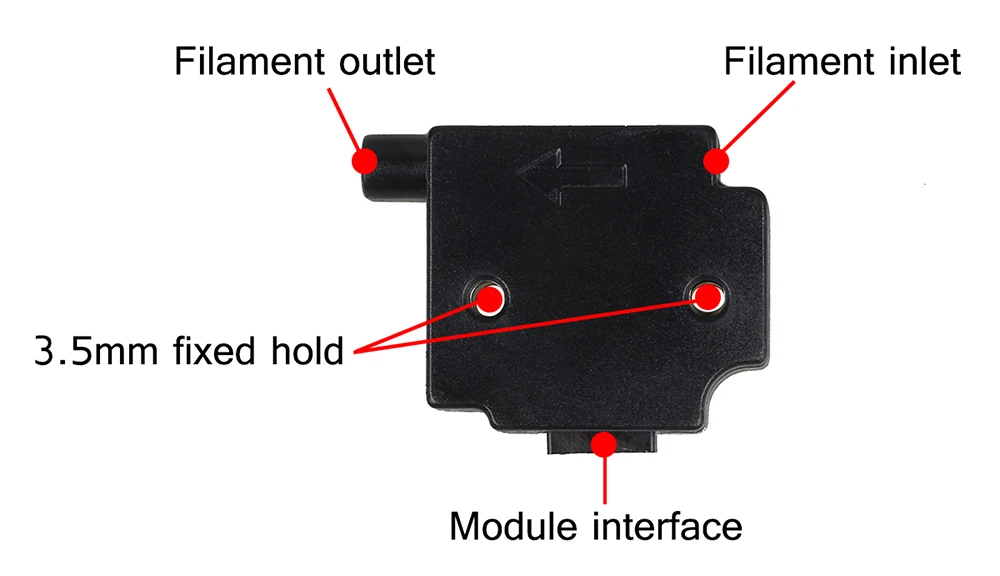

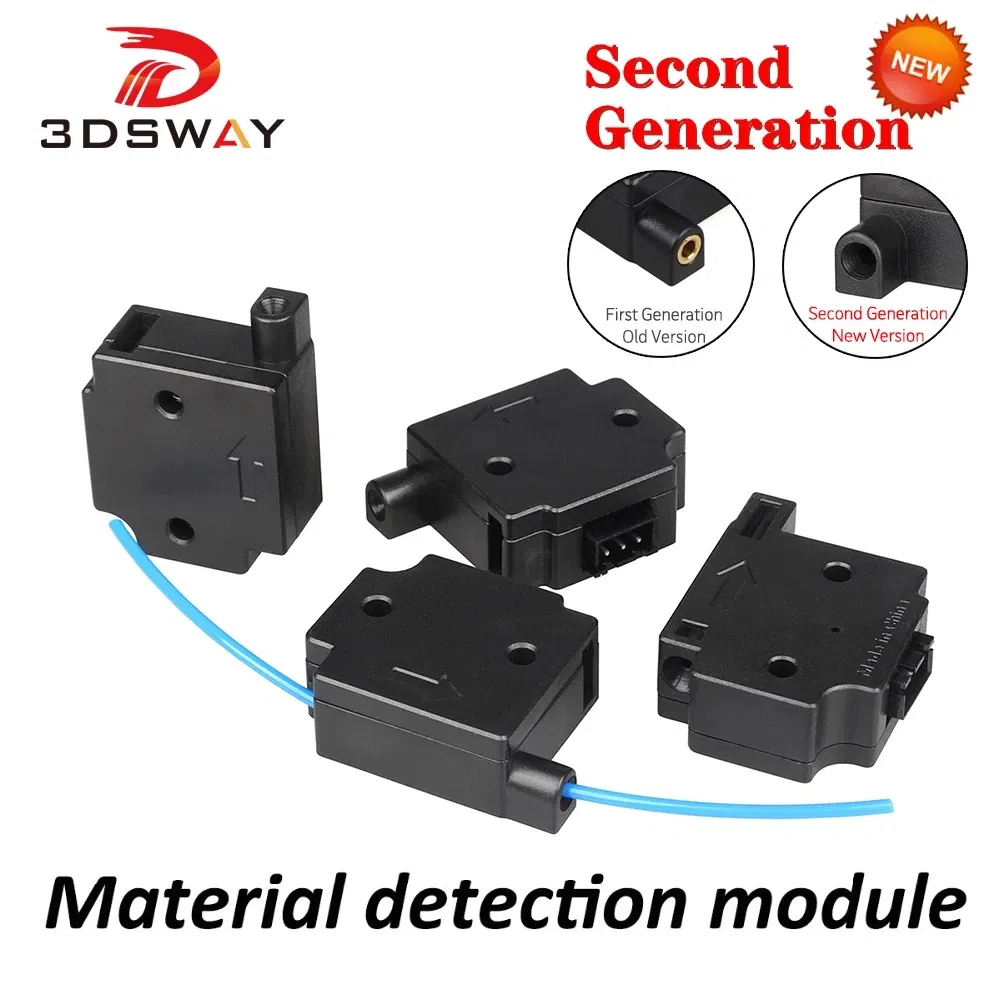

1. The inlet port/outlet port of the material detection module are changed from the original metal copper sleeve to the rotating funnel opening design, which optimizes the resistance of the feeding material, makes the feeding smoother and eliminates the material/filament, and avoids the phenomenon of filament stucking and planing.
6. The customized colors are availble, please contact the service staff for further details about your need.

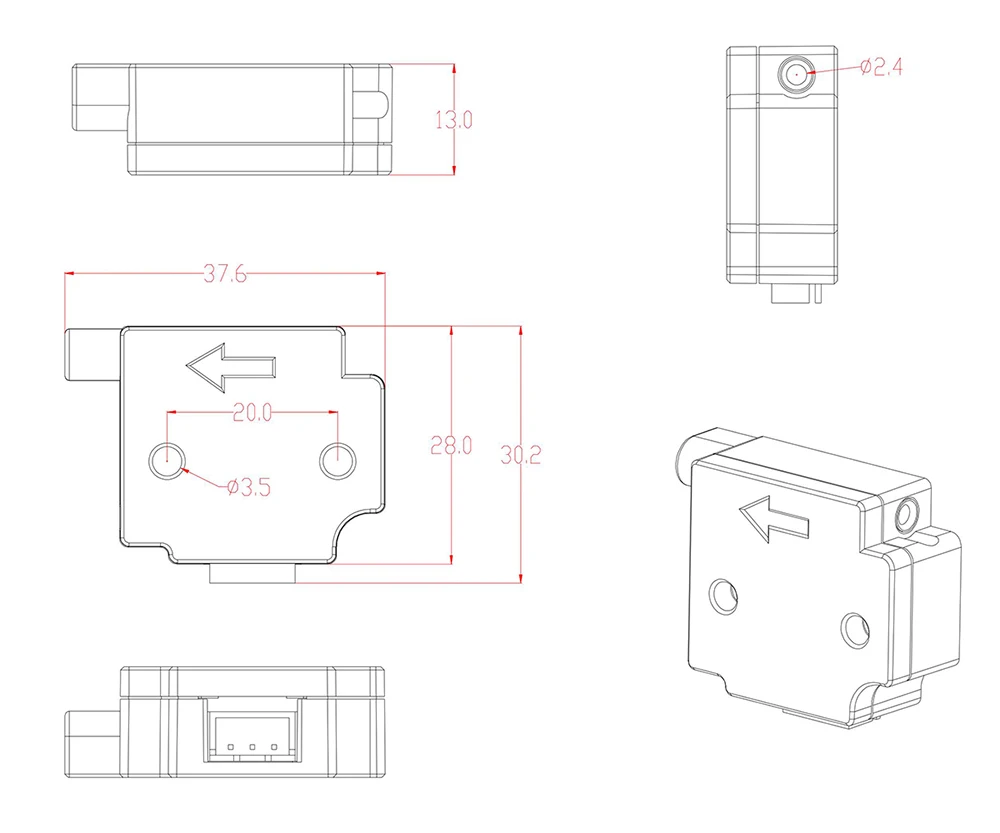

Dimensions drawing:
Used with Lerdge board:
When there is material in, the green light in the module keeps lighting. And when the material is exhausted, the green light goes off, then the motherboard executes the pause command operation, after the replacement of the material, can continue to print.

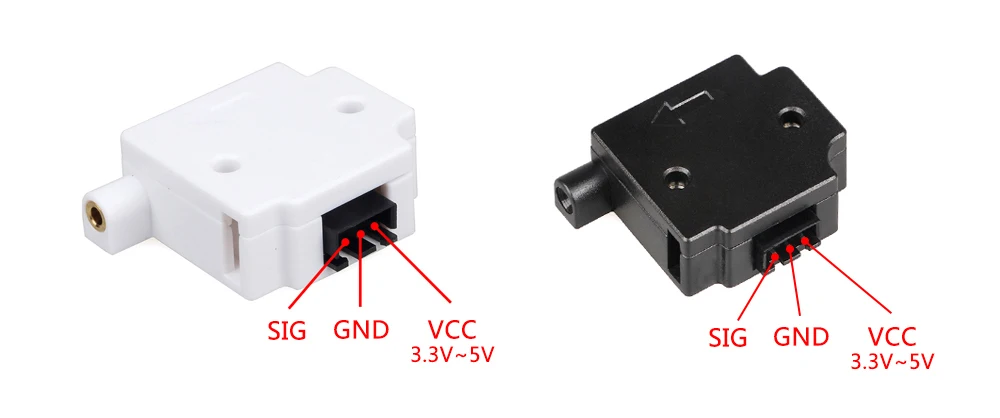

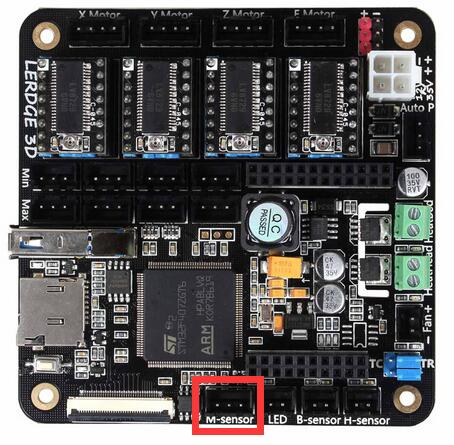

Wiring: Connect the module to the M-sensor port on the motherboard.
Used with other motherboards:
The material detection module uses the level transition detection method. When with material in, the detection level signal should be high, and when no material, the material port level signal goes low. When the system detects a determined transition from high to low level, it will regard it as the material exhausted, then the board executes the pause command operation, and after the replacement of the material, it will continue to print.
Shipping list:

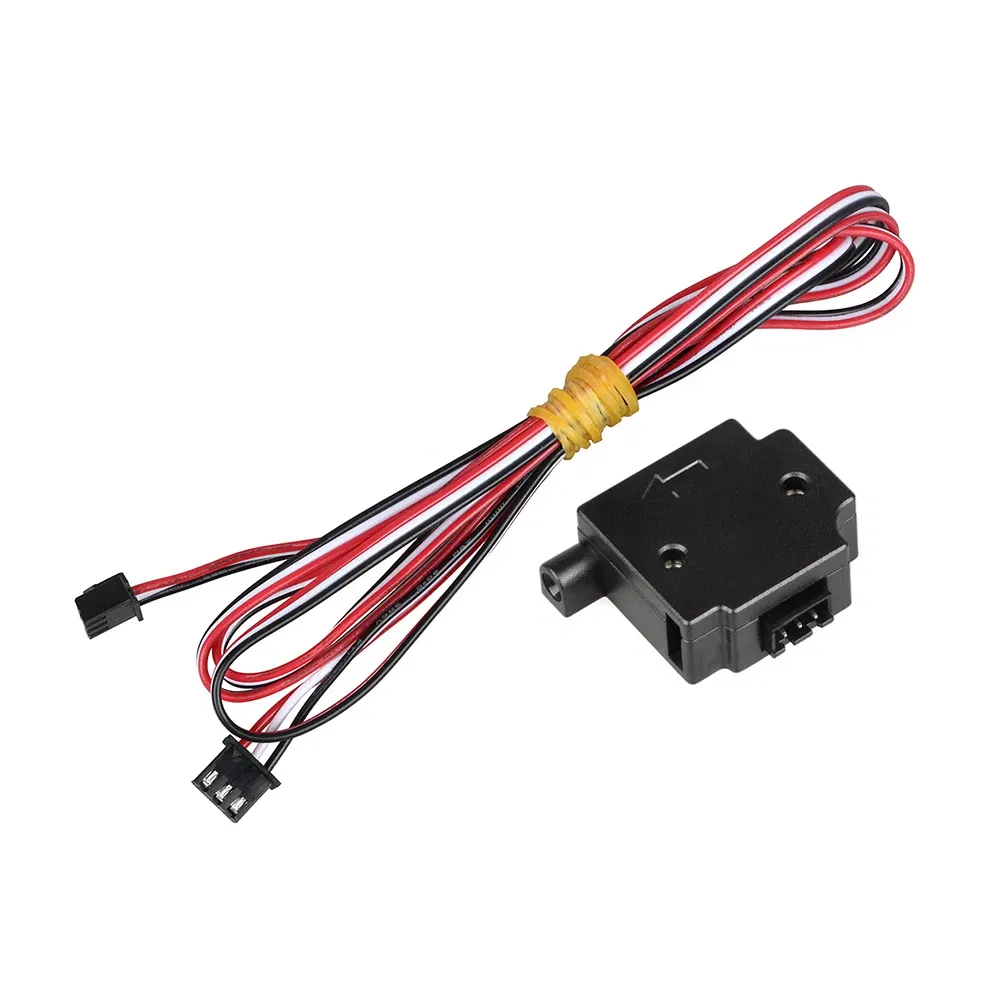

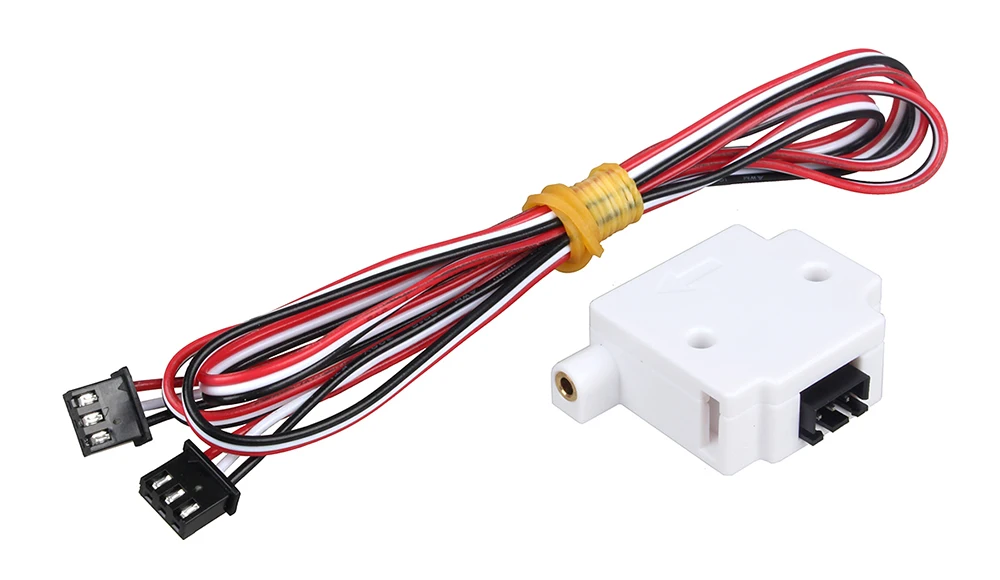

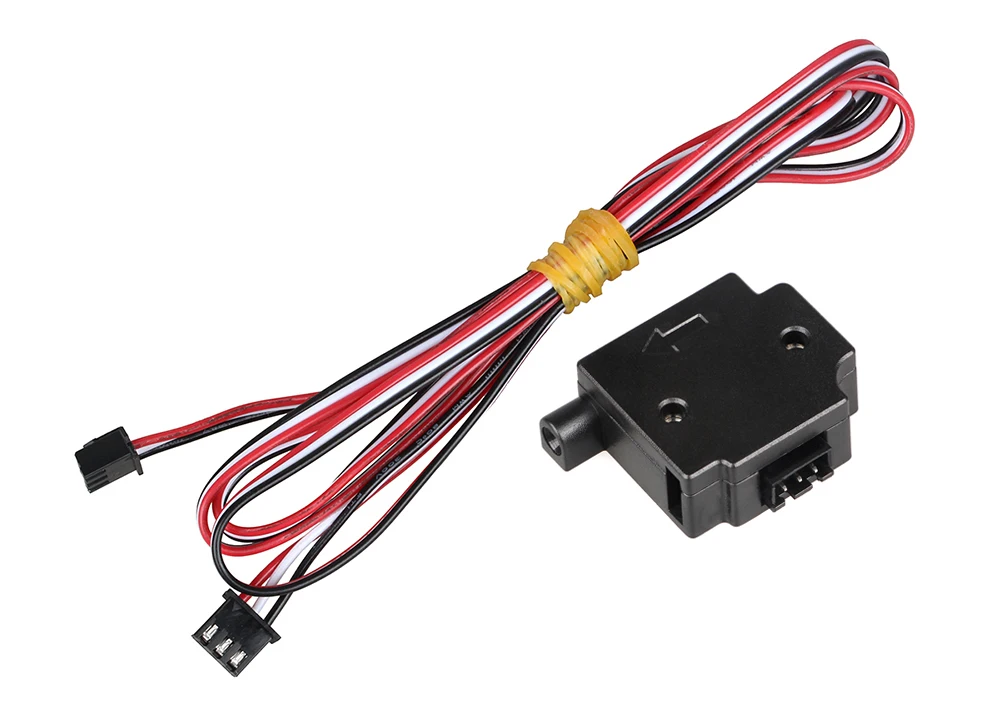

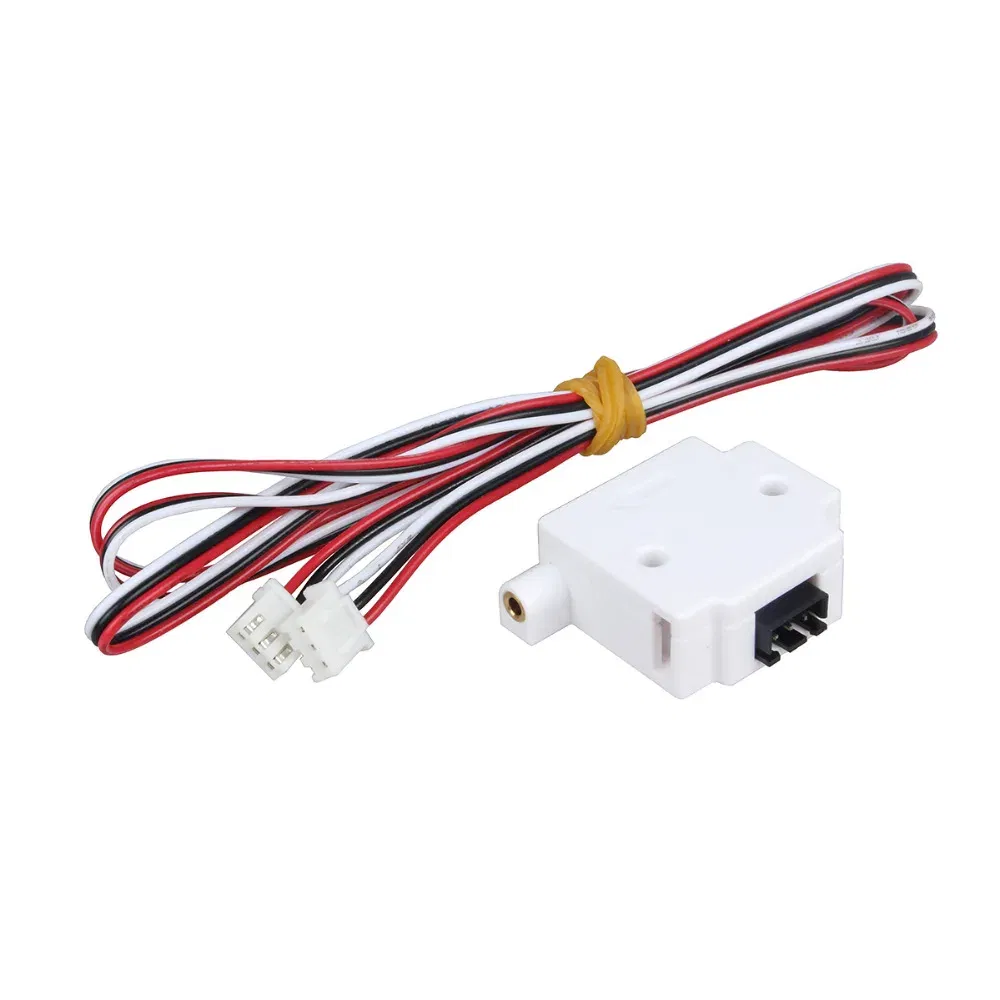

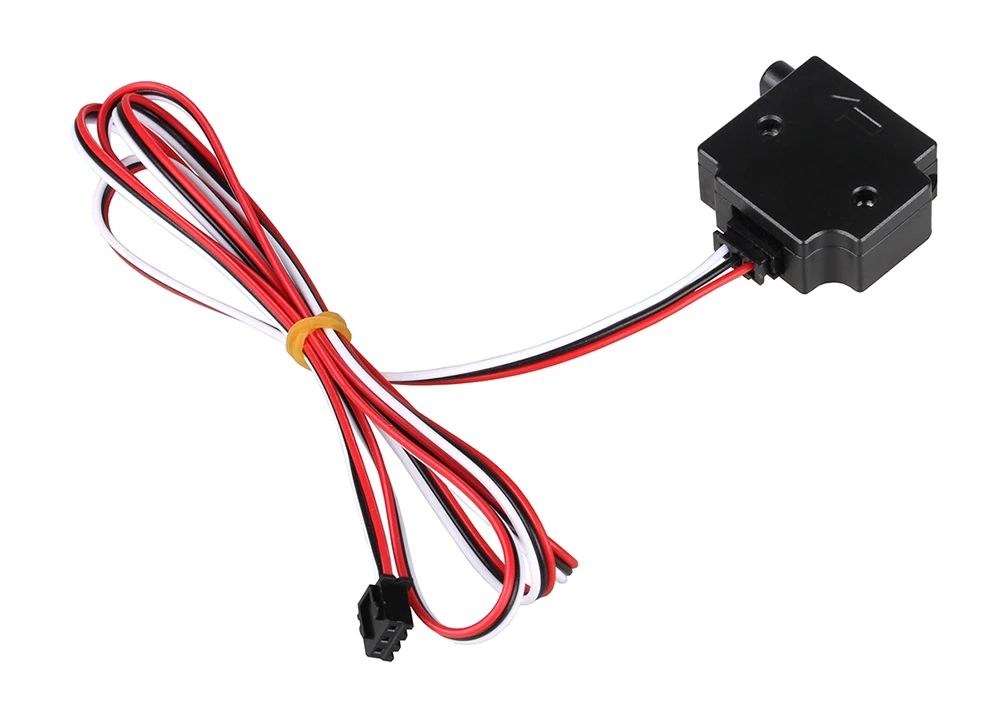

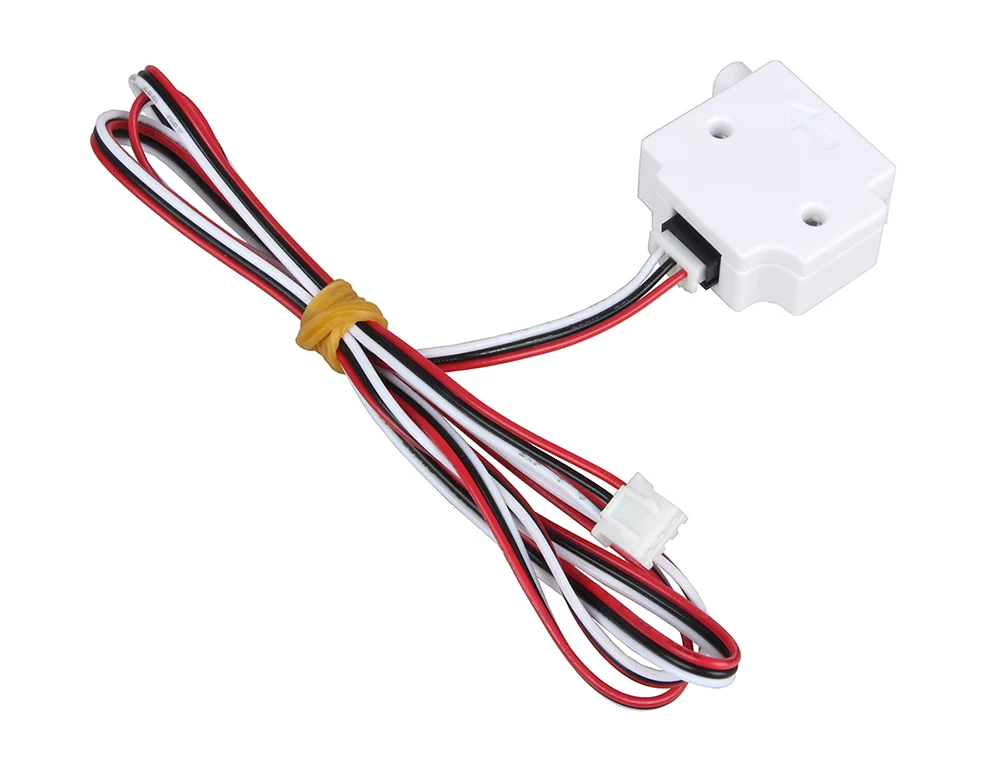

Material detection module with cable 1pc
(The colors of the cable connectors are random)
We support both retail and wholesale. Please feel free to contact us for more details!
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
